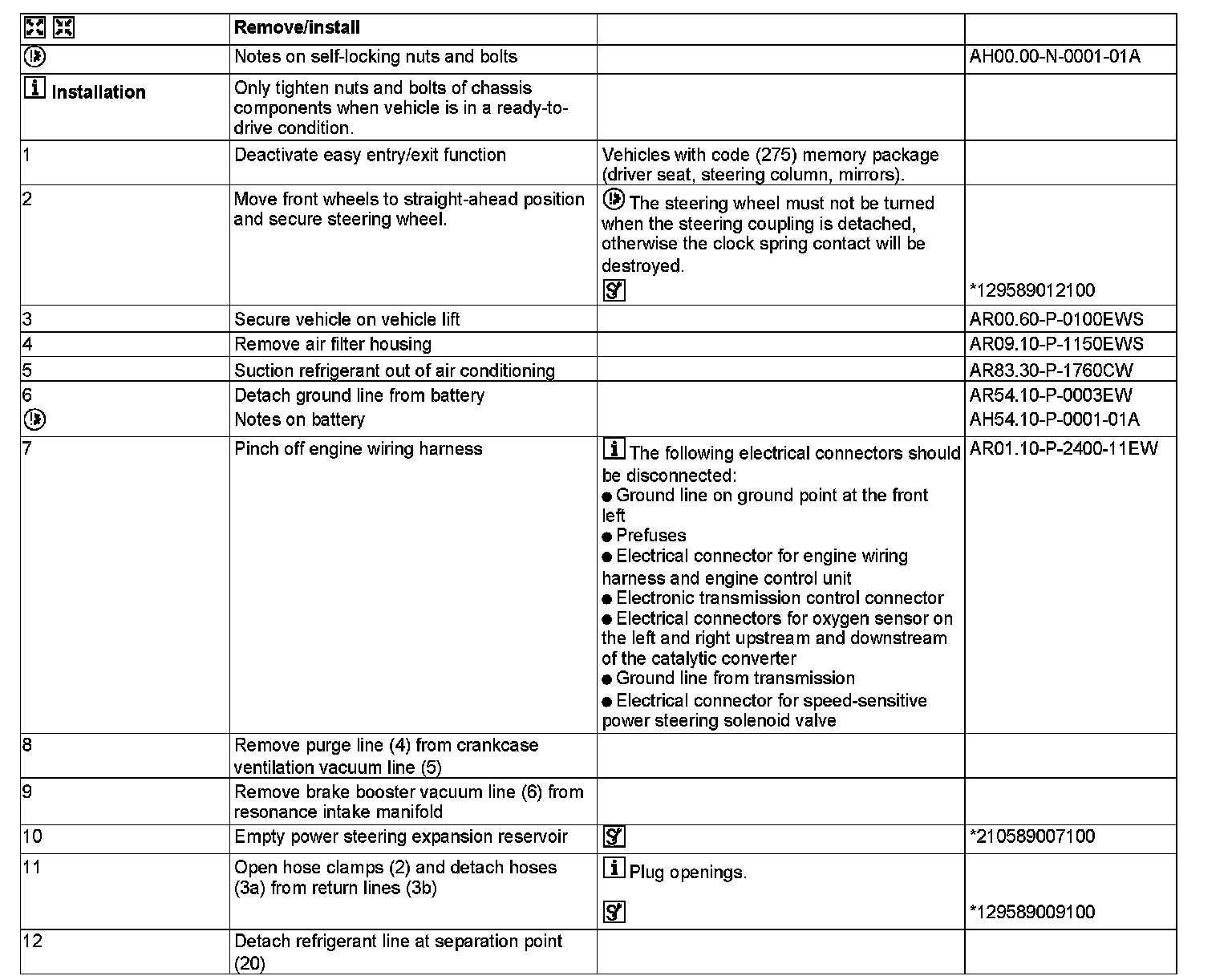

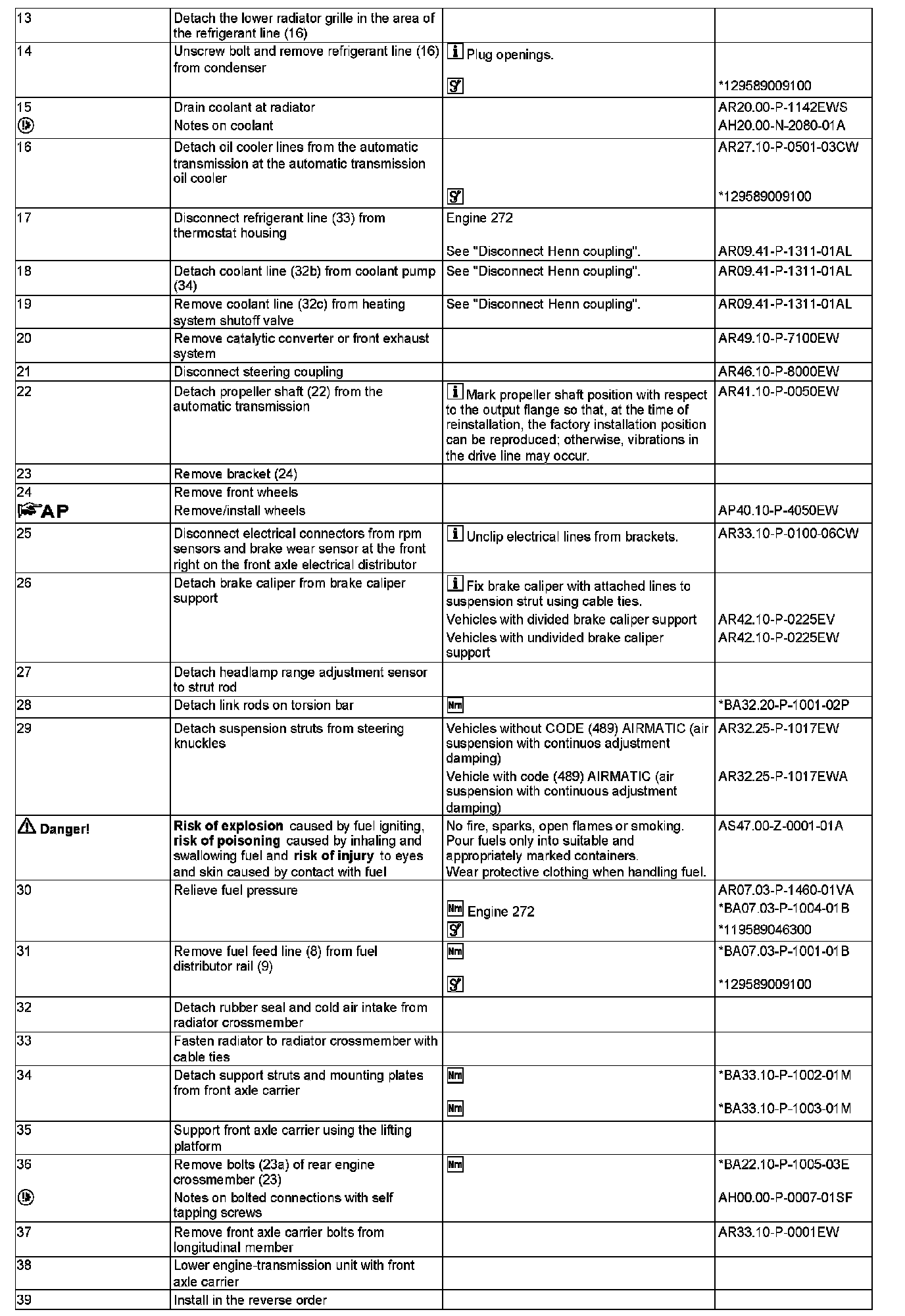

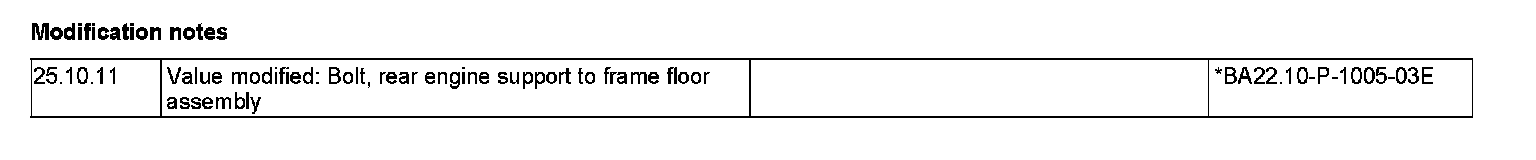

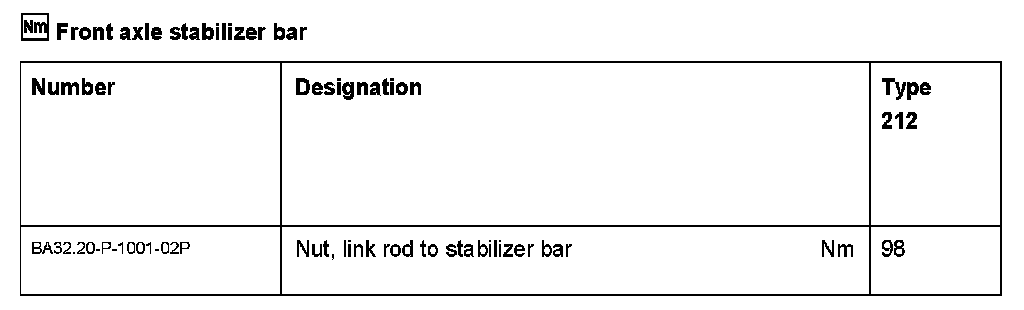

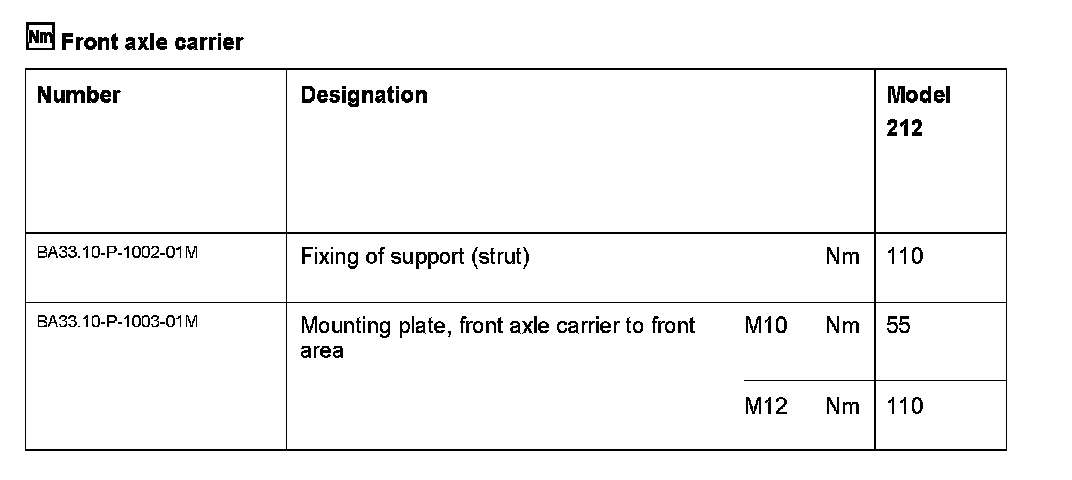

AR01.10-P-2500EW Remove/Install Engine With Front Axle Carrier

AR01.10-P-2500EW Remove/Install Engine With Front Axle Carrier
ENGINES 272, 273 in MODEL 212
Vehicle with 4MATIC

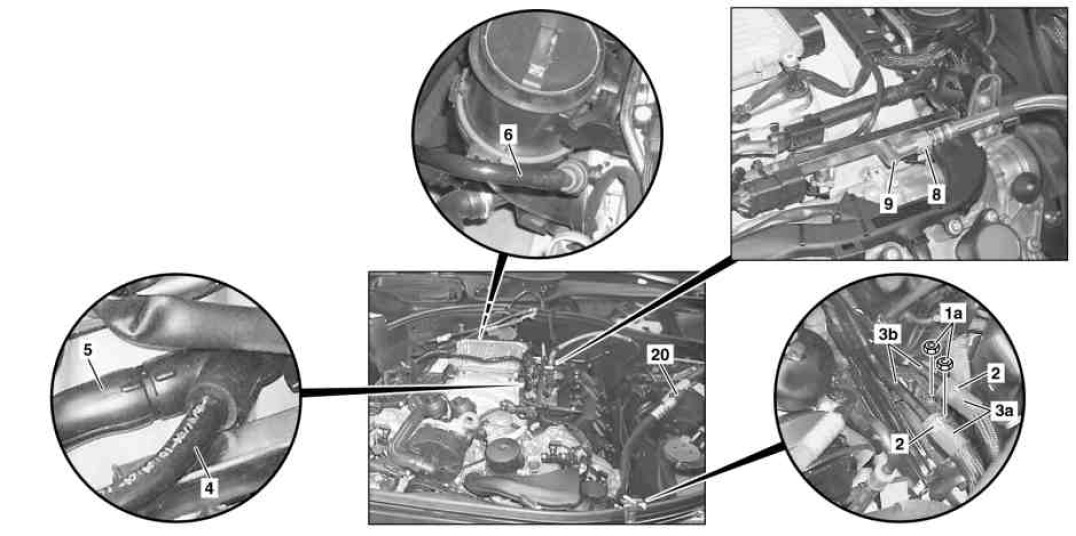

Shown on engine 272

1a Nuts
2 Hose clamps
3a Hoses
3b Power steering return lines
4 Purge line
5 Crankcase ventilation system vacuum line
6 Brake booster vacuum line

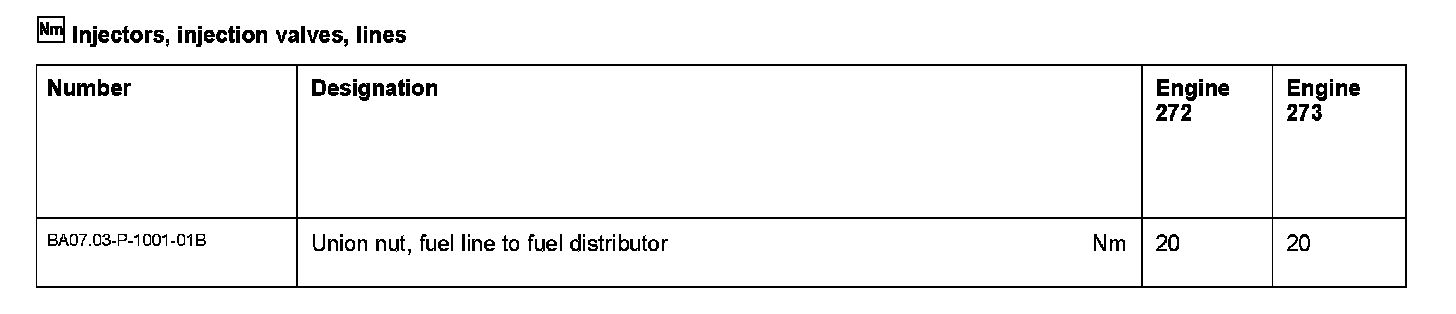

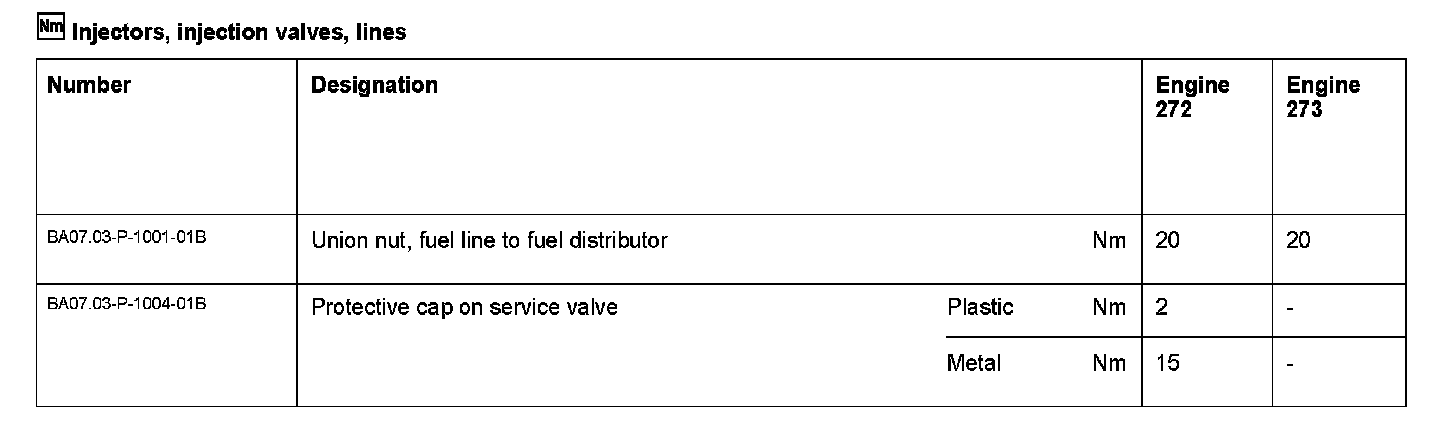

8 Fuel feed line
9 Fuel distributor rail
20 Separation point

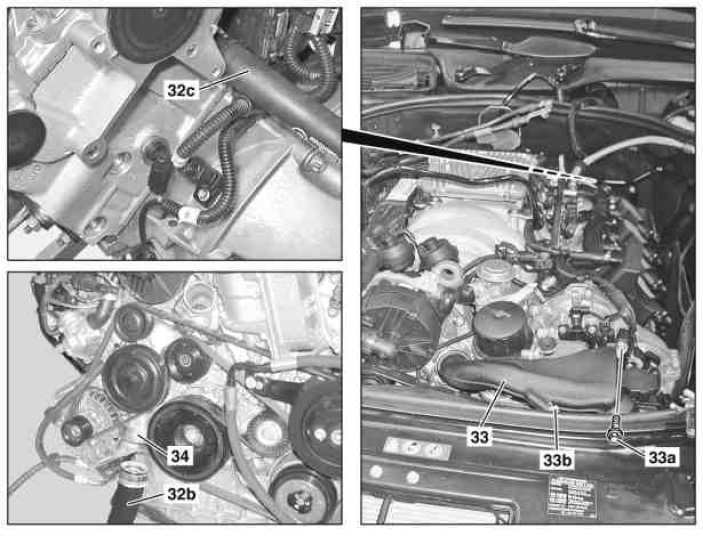

Shown on engine 272

32b Coolant line
32c Coolant line
33 Coolant pipe
33a Screw
33b Hose clamp
34 Coolant pump

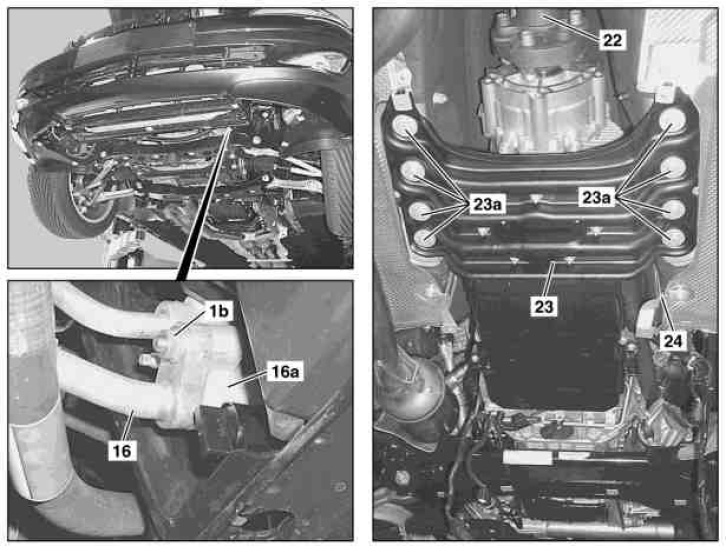

Illustrated on model 204

1b Nut
16 Refrigerant line
16a Air conditioning receiver-drier
22 Propeller shaft

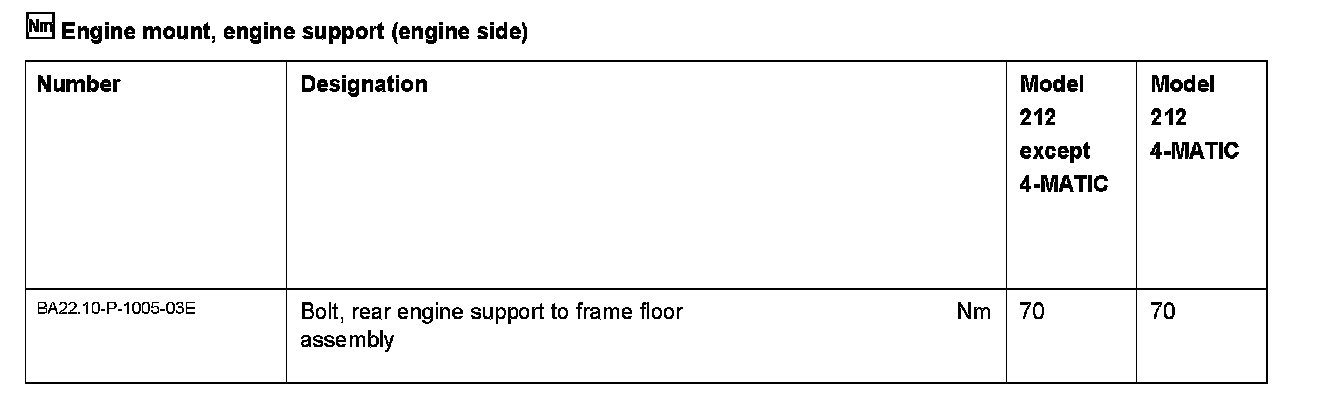

23 Rear engine crossmember
23a Bolts
24 Bracket
































129 589 01 21 00
Holding device





210 589 00 71 00
Hand pump





129 589 00 91 00
Set of stop plugs





119 589 04 63 00
Pressure hose
