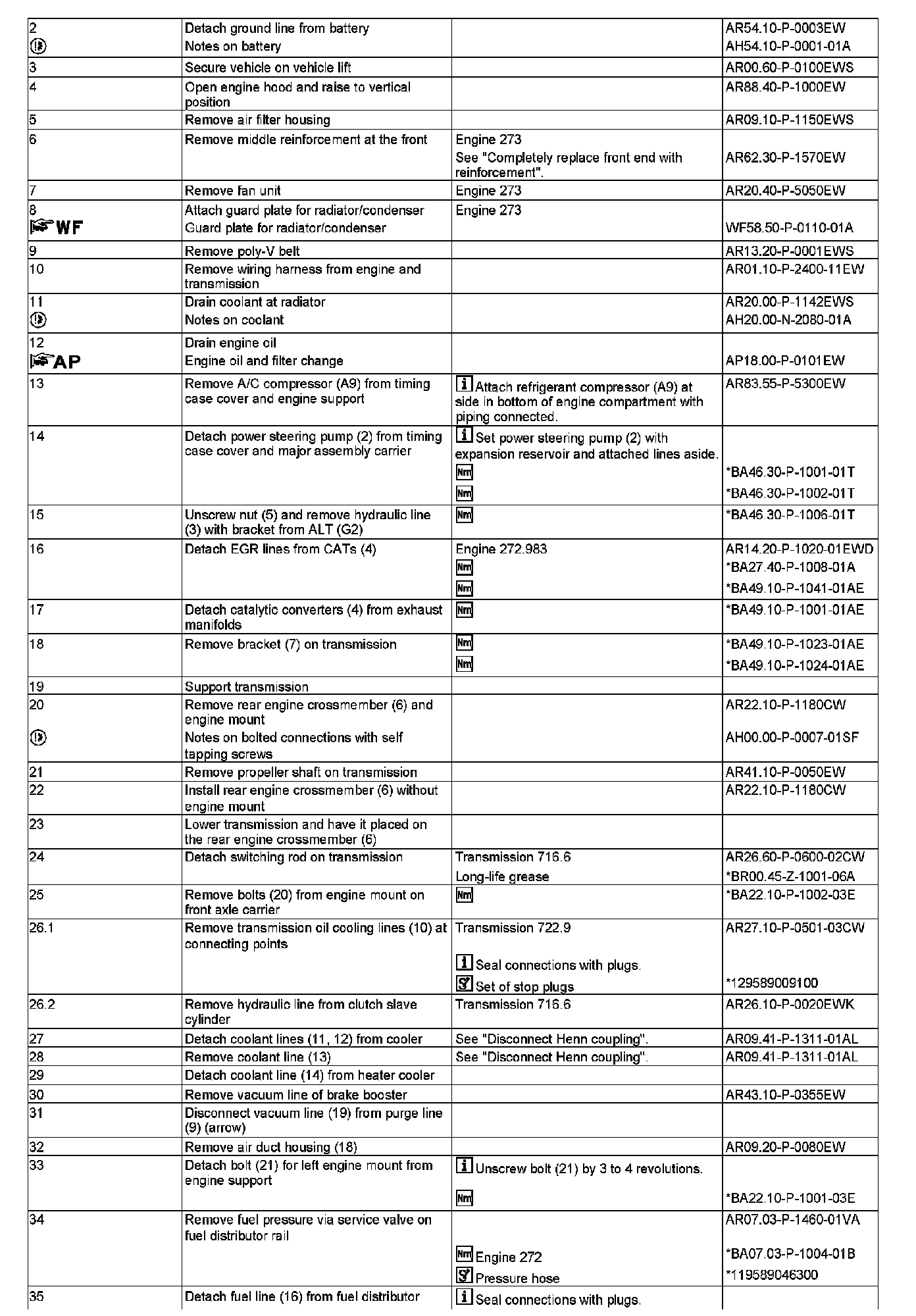

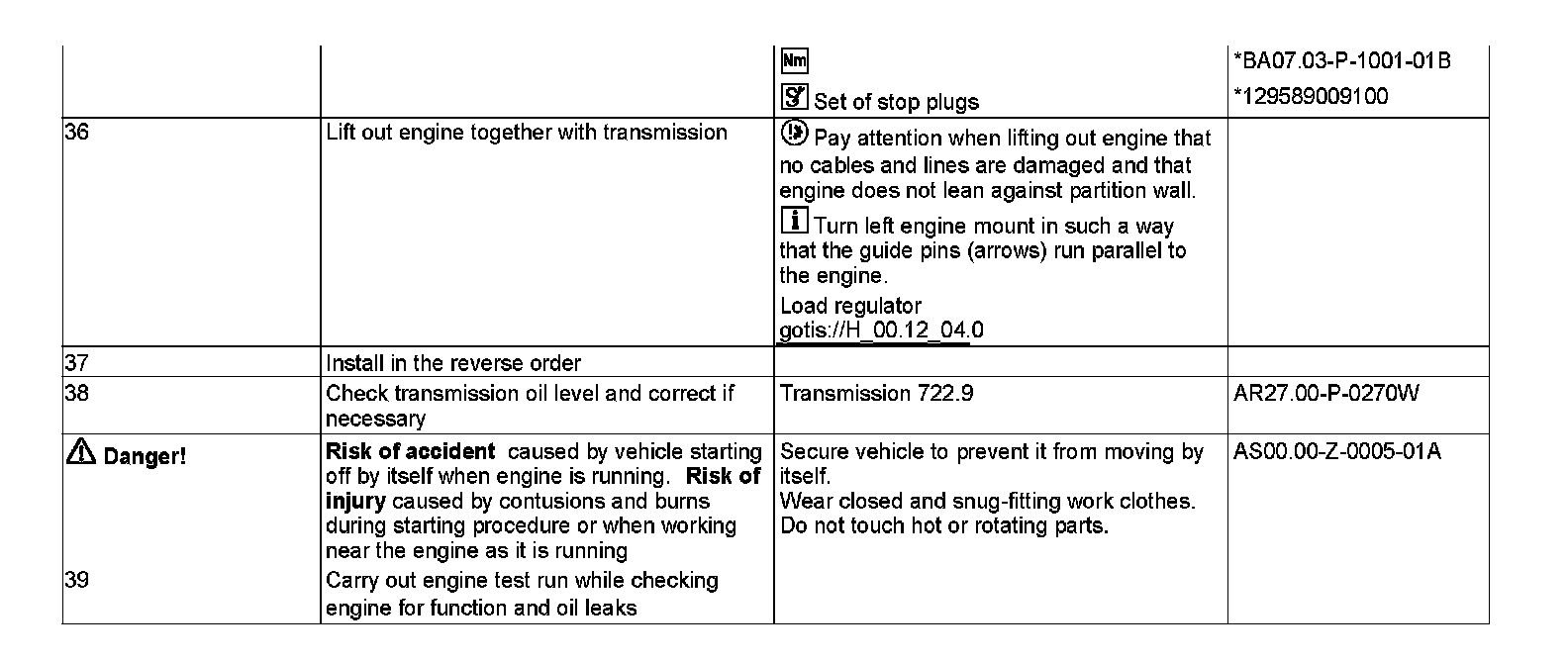

AR01.10-P-2401EW Remove/Install Engine With Transmission

AR01.10-P-2401EW Remove/Install Engine With Transmission
ENGINES 272, 273 in MODEL 212
Vehicles without 4-MATIC

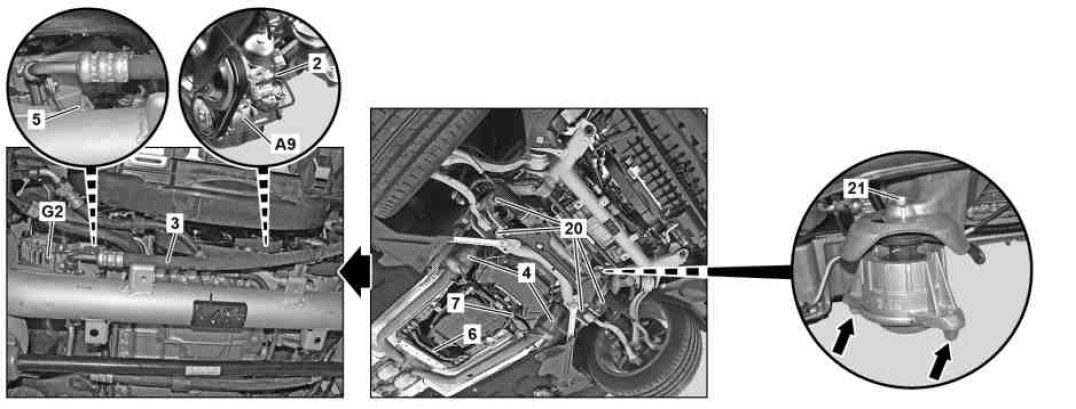

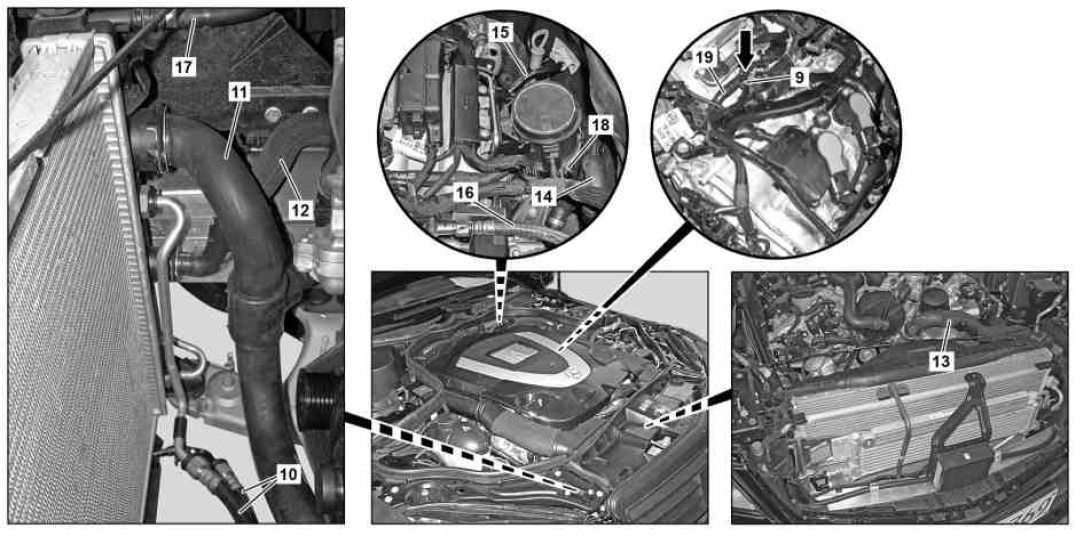

9 Purge line
10 Transmission oil cooling lines
11 Coolant line
12 Coolant line
13 Coolant line
14 Coolant line
15 Vacuum line
16 Fuel line
18 Air duct housing
19 Vacuum line

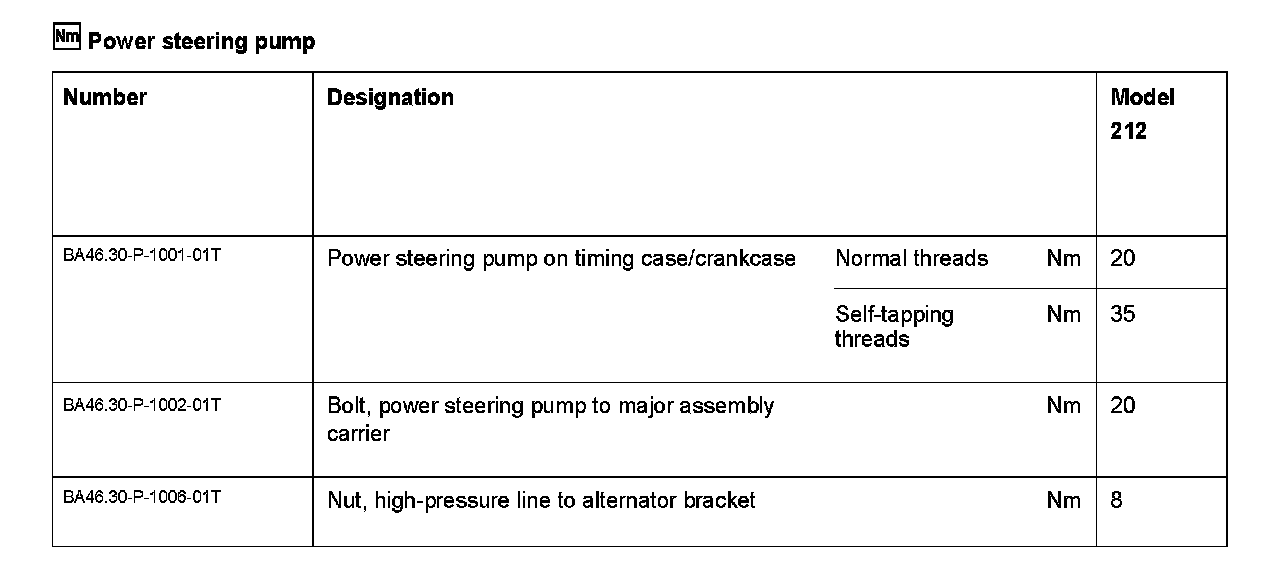

2 Power steering pump
3 Hydraulic line
4 Catalytic converter
5 Nut
6 Engine crossmember
7 Bracket
20 Bolts
21 Screw
A9 AC compressor
G2 Generator





























129 589 00 91 00
Set of stop plugs





119 589 04 63 00
Pressure hose
