Intake Manifold: Service and Repair
AR09.20-P-1961EW Remove/Install Resonance Intake Manifold

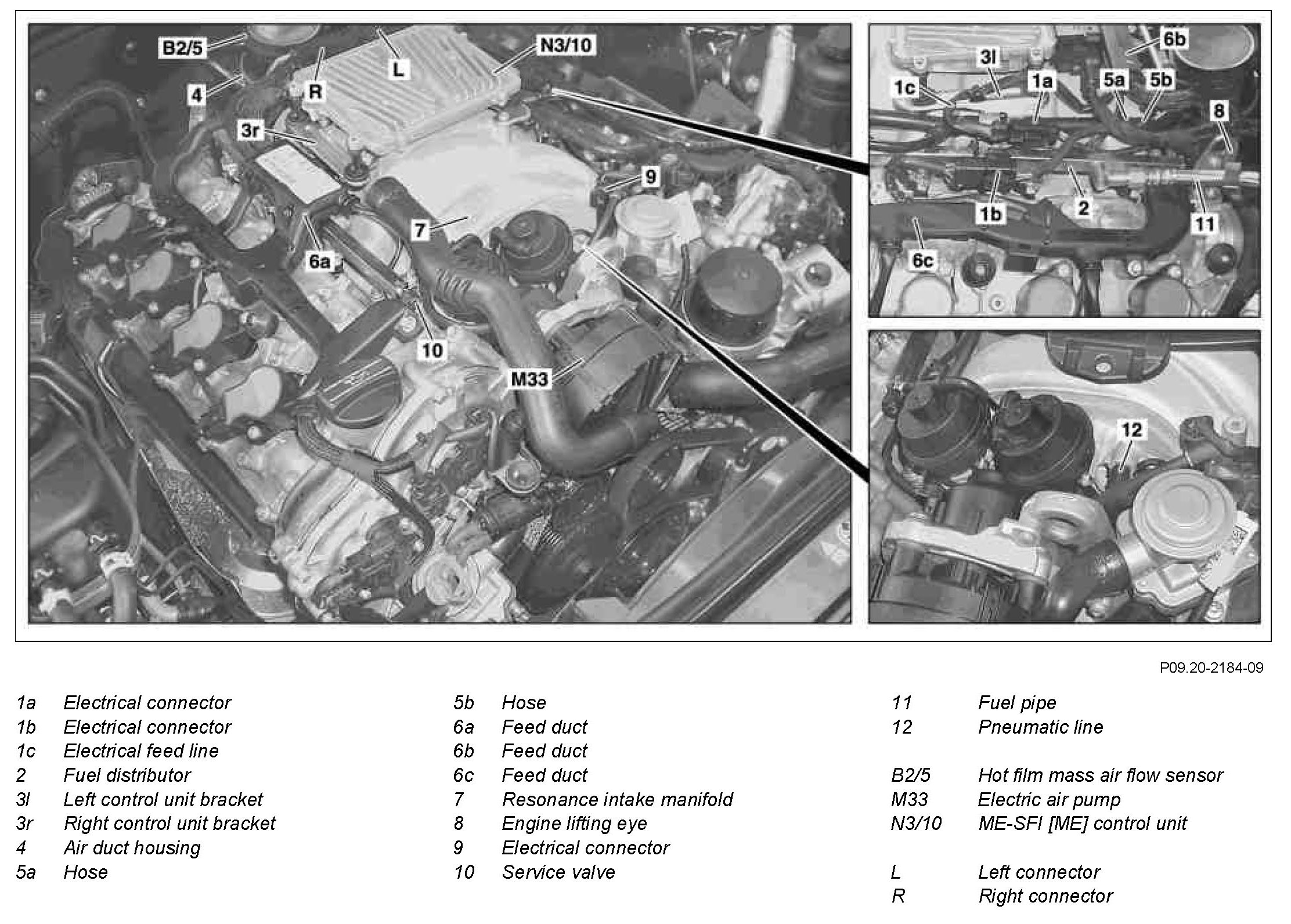

Component Identification:

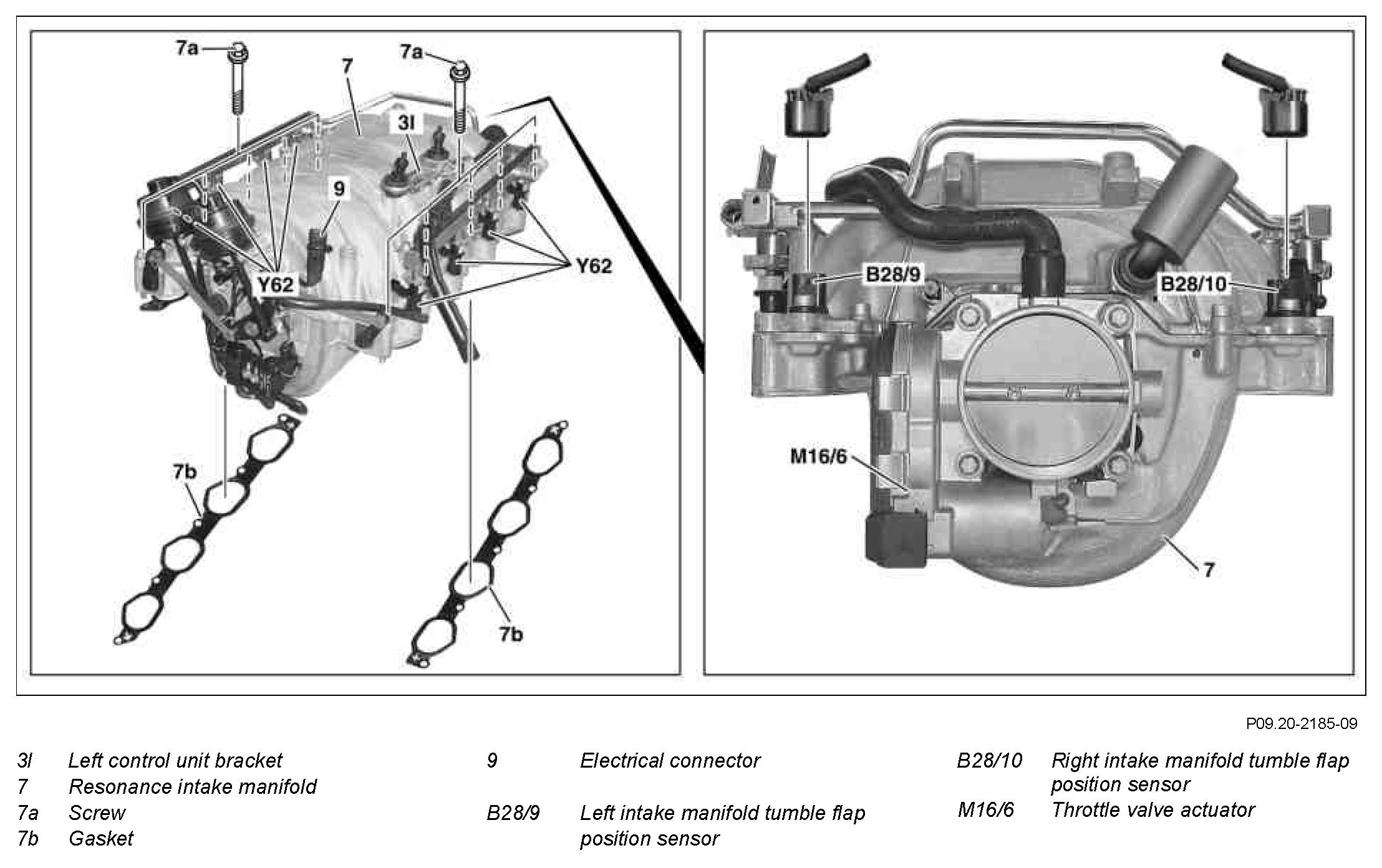

Component Identification:

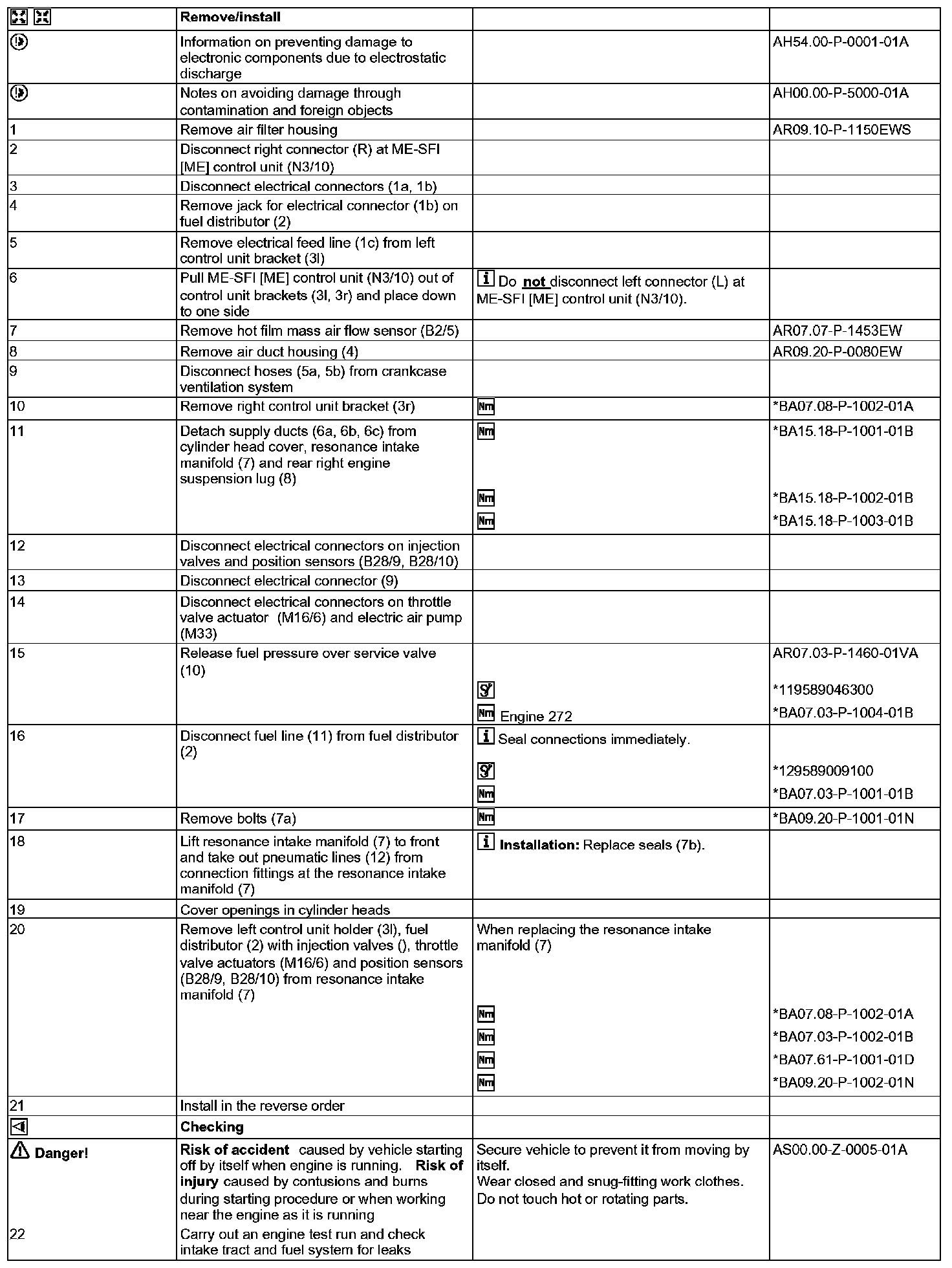

Steps 1 - 22:

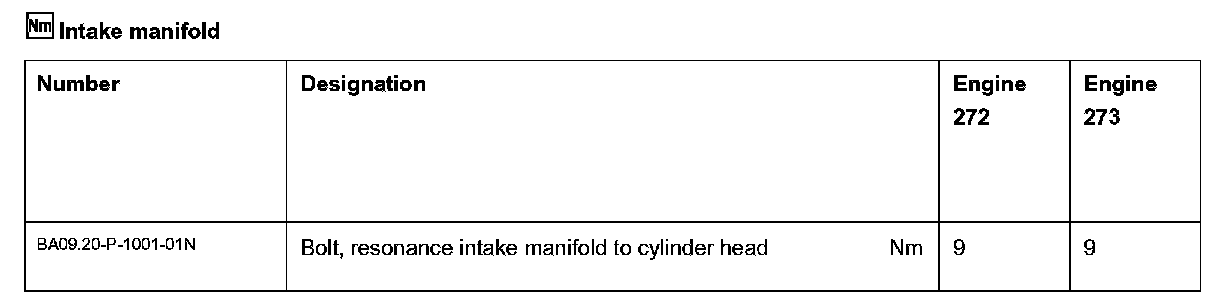

Intake Manifold:
Control Unit:

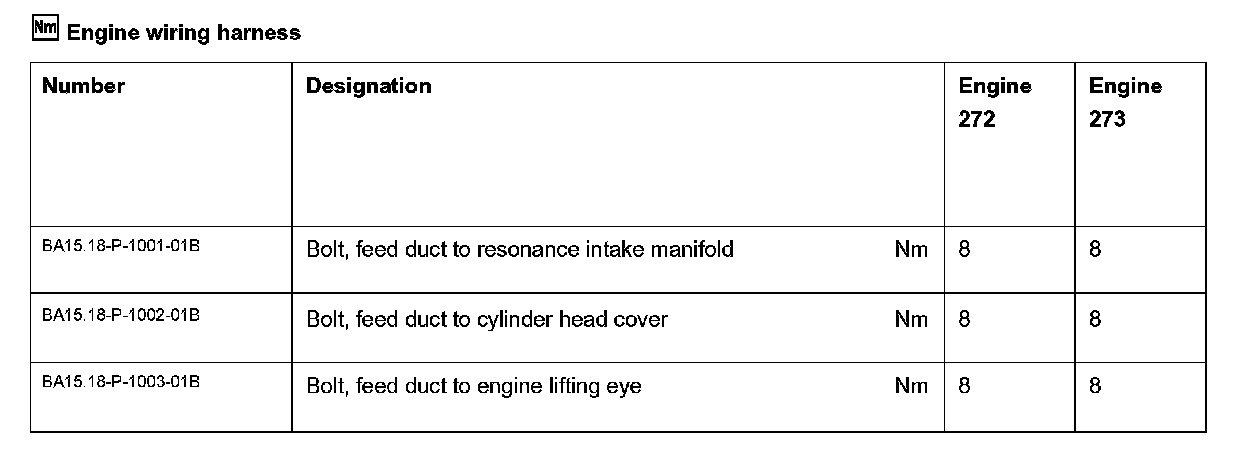

Engine Wiring Harness:
Injectors, Injection Valves, Lines:

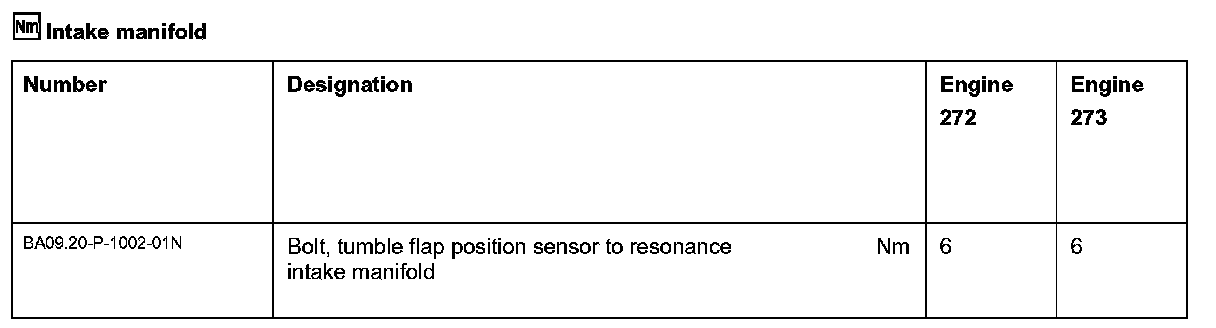

Intake Manifold:

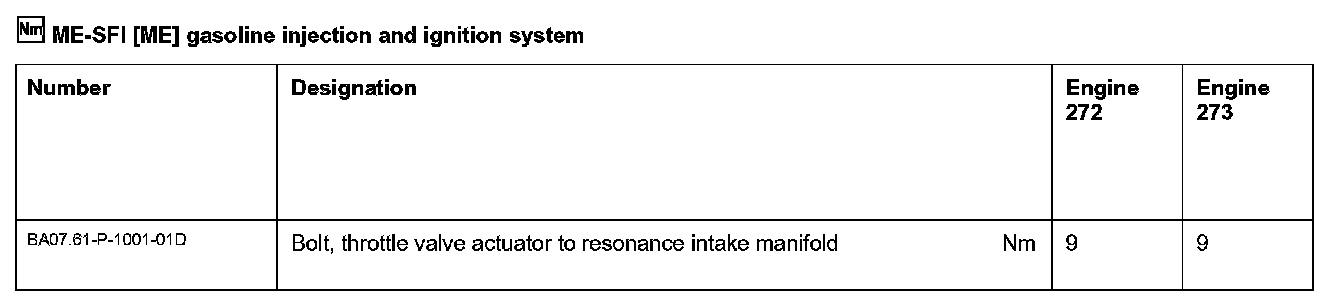

ME-SFI [ME] Gasoline Injection And Ignition System:

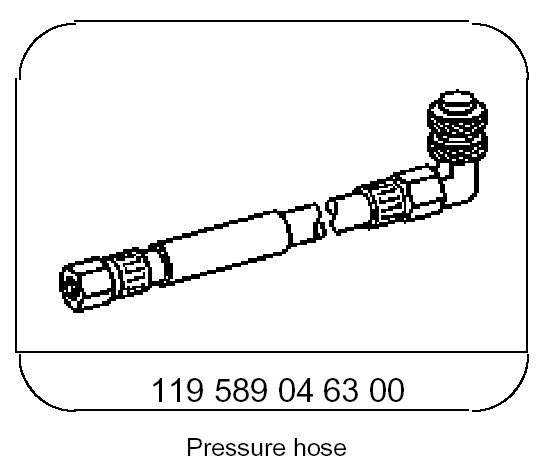

Special Tools:

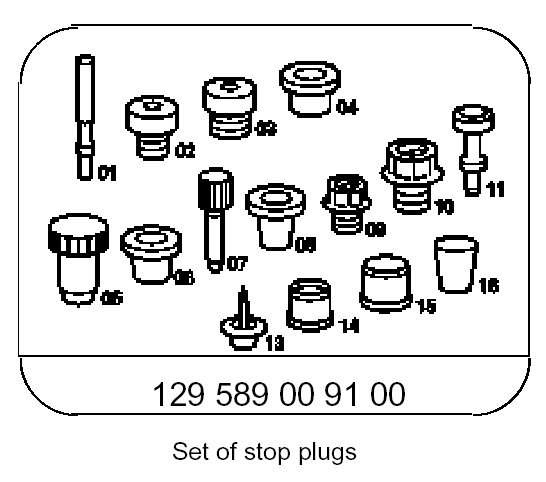

Special Tools:
