Oil Spray Jet: Service and Repair

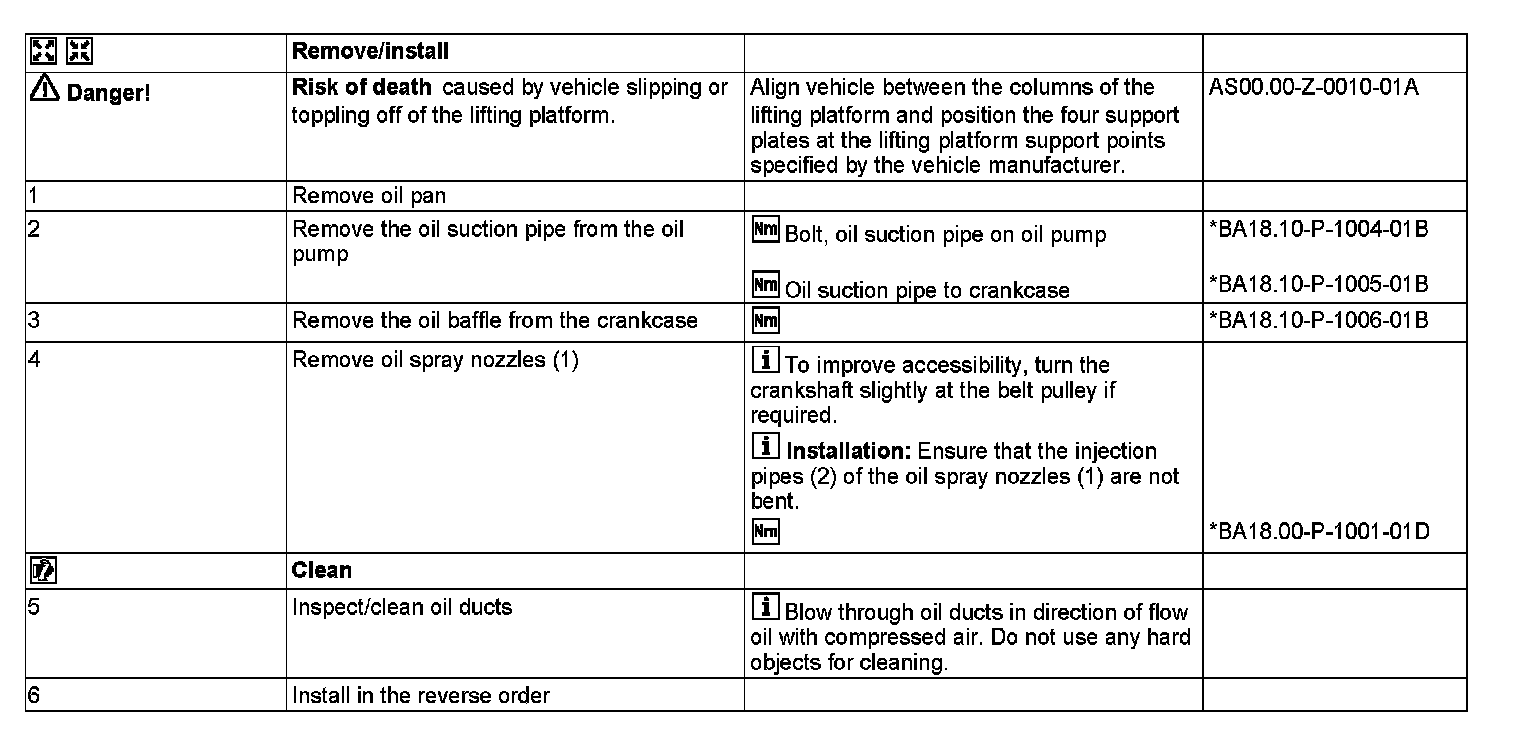

AR18.00-P-4000QB Remove/Install Oil Spray Nozzles (Pistons)
ENGINES 272, 273/

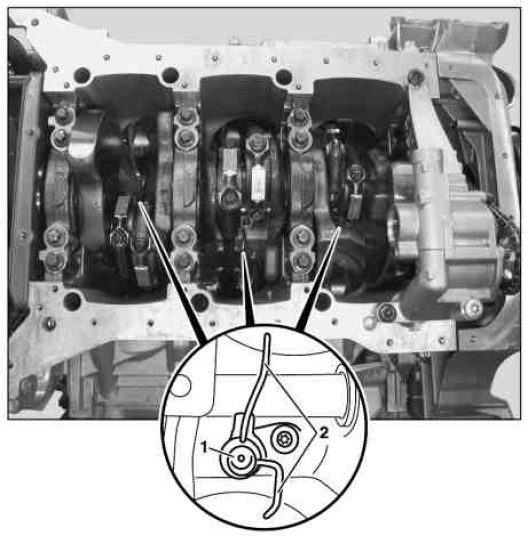

1 Oil spray nozzle
2 Injection pipe
