AR18.10-P-6020EW Remove/Install Oil Pump
AR18.10-P-6020EW Remove/Install Oil Pump
AR18.10-P-6020EW Remove/install oil pump

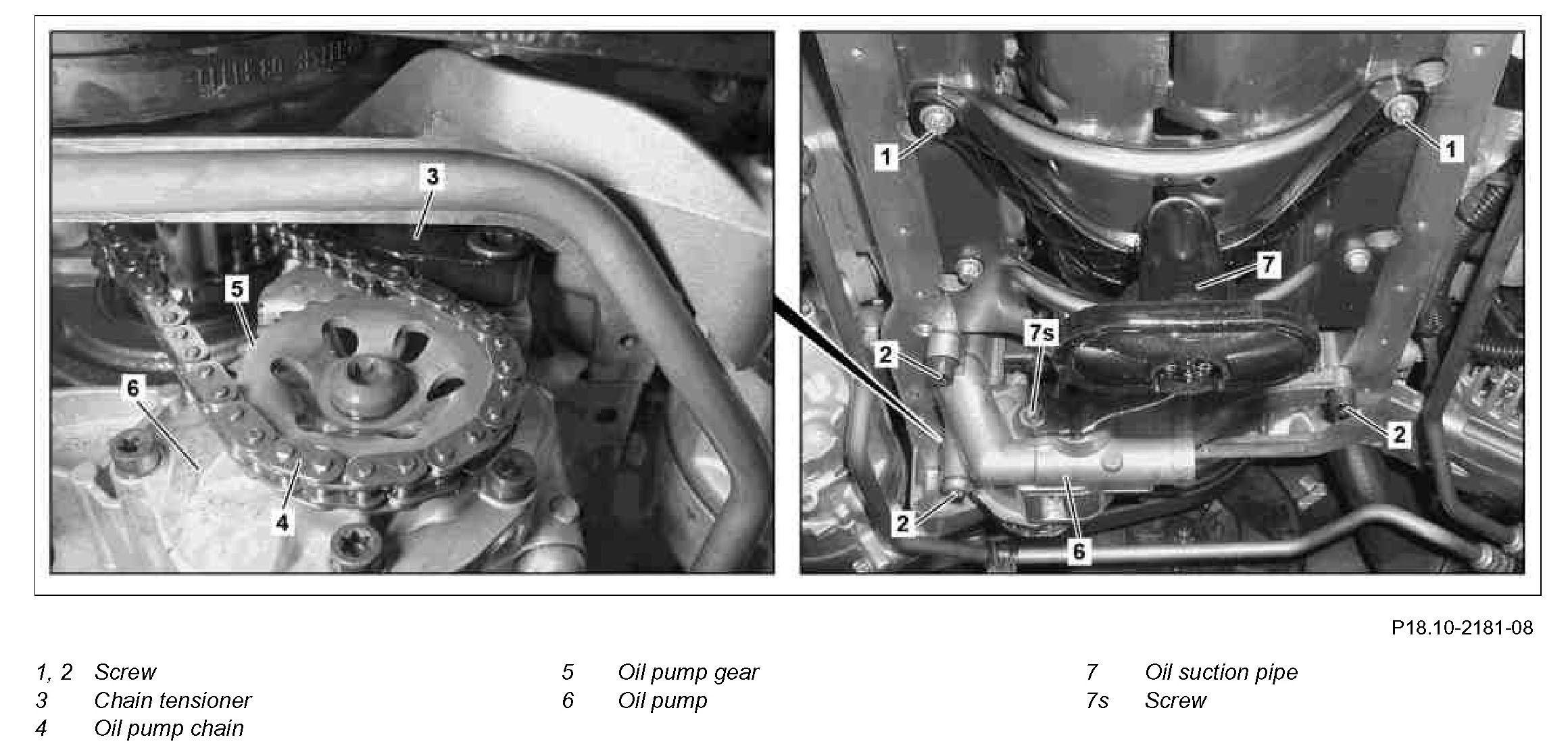

Component Identification:

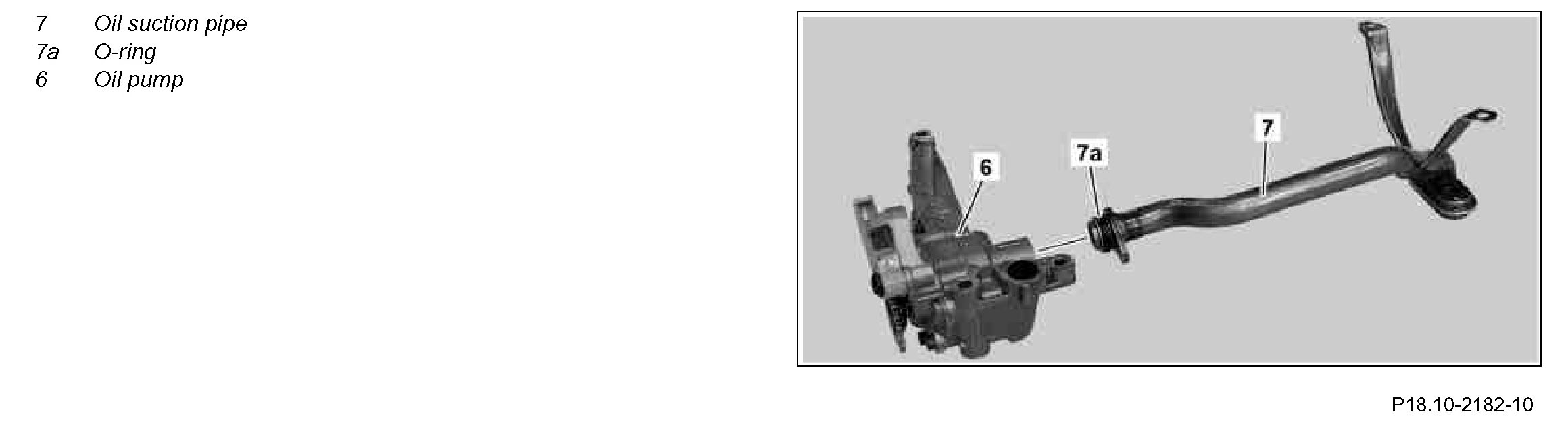

Component Identification:

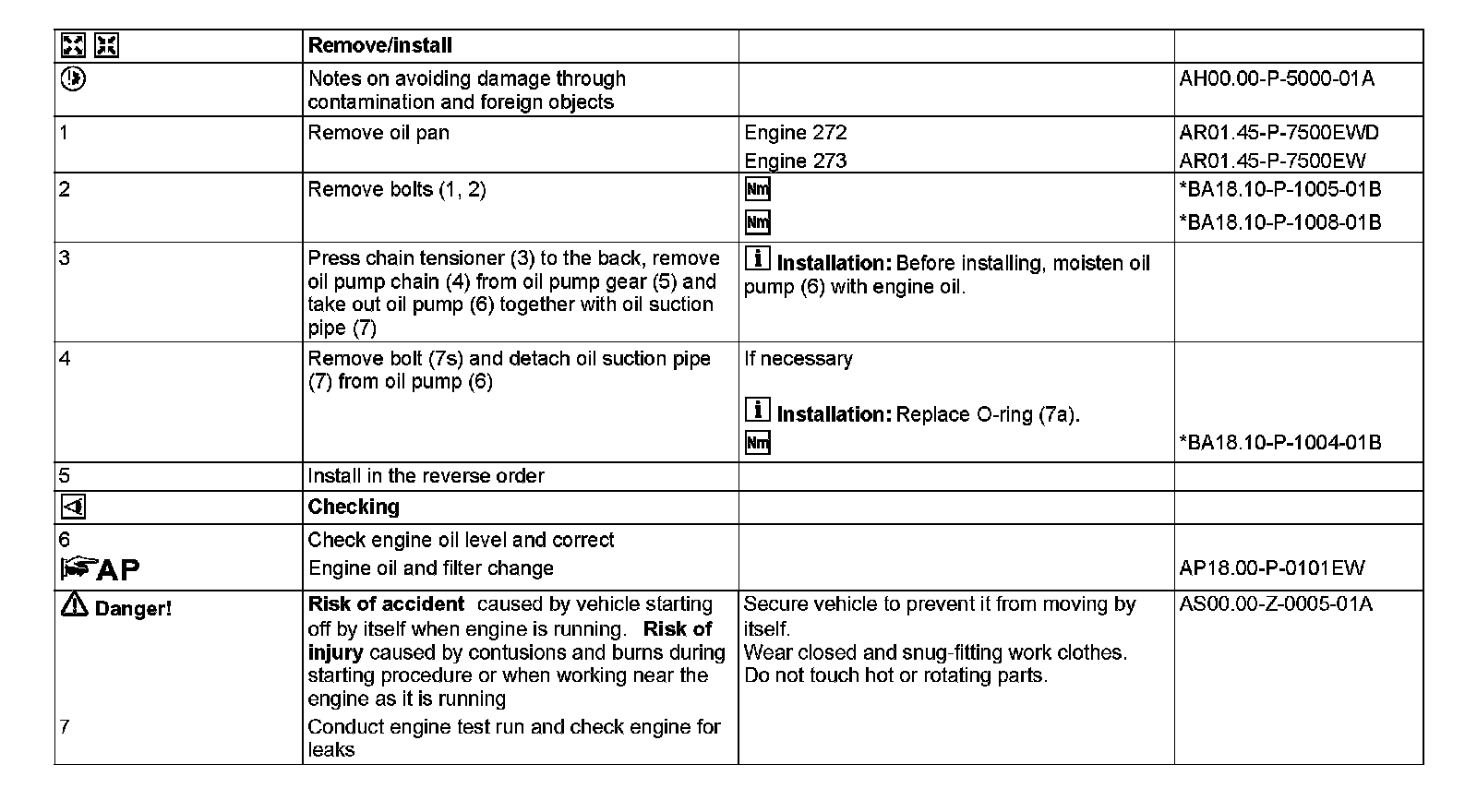

Steps 1-7:
