AR18.10-P-2000SX Remove/Install Tensioning Device For Oil Pump Chain



AR18.10-P-2000SX Remove/install the tensioning device for the oil pump chain

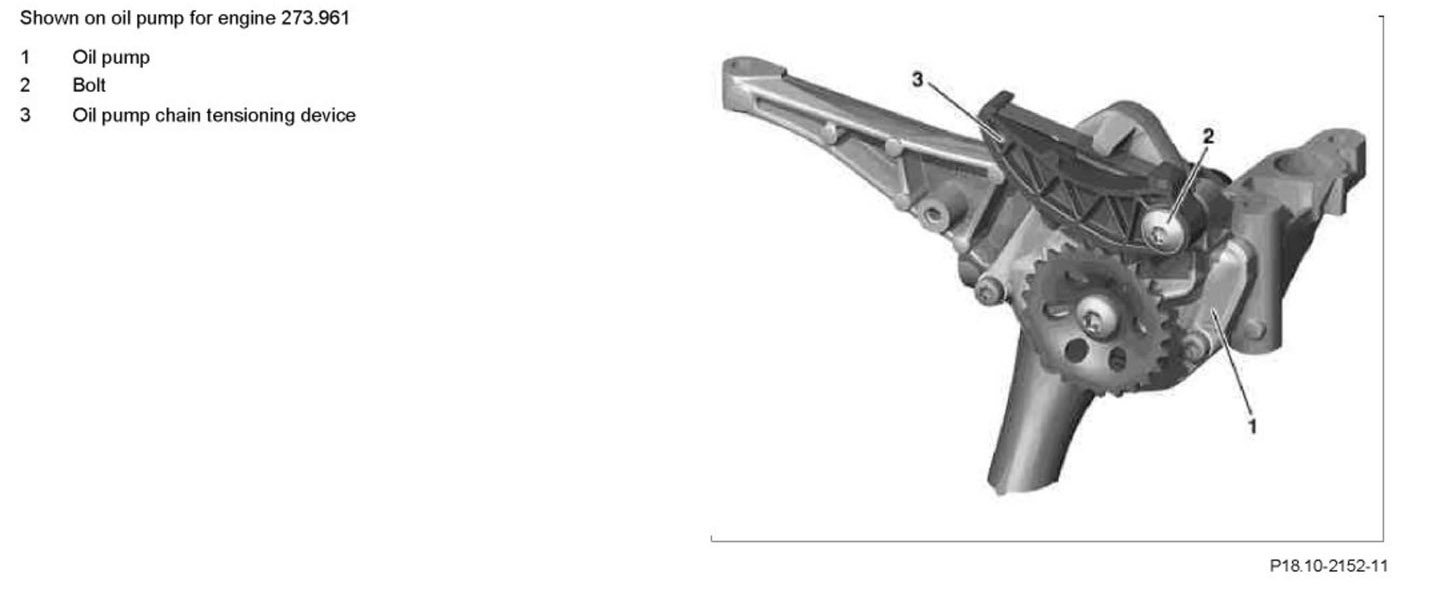

Component Identification:

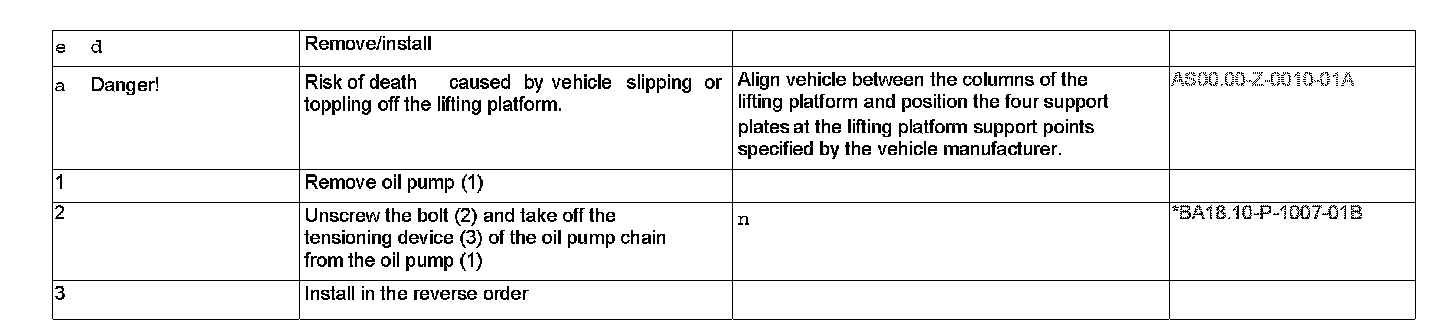

Steps 1 - 3:

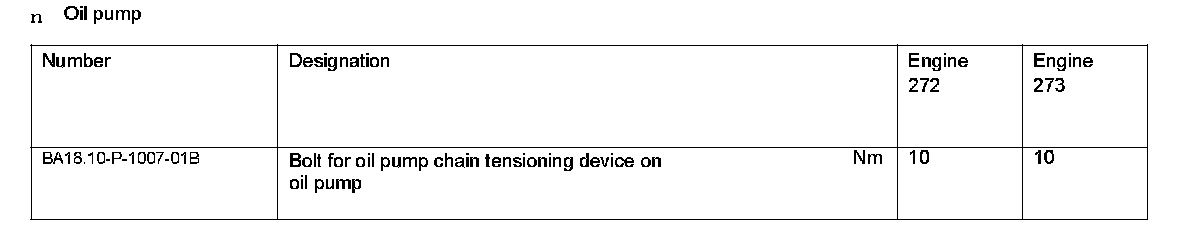

Oil Pump:
