AR01.45-P-7555EW Remove/Install Bottom Part of Oil Pan



AR01.45-P-7555EW Remove/install bottom part of oil pan
- Vehicles with rear sump

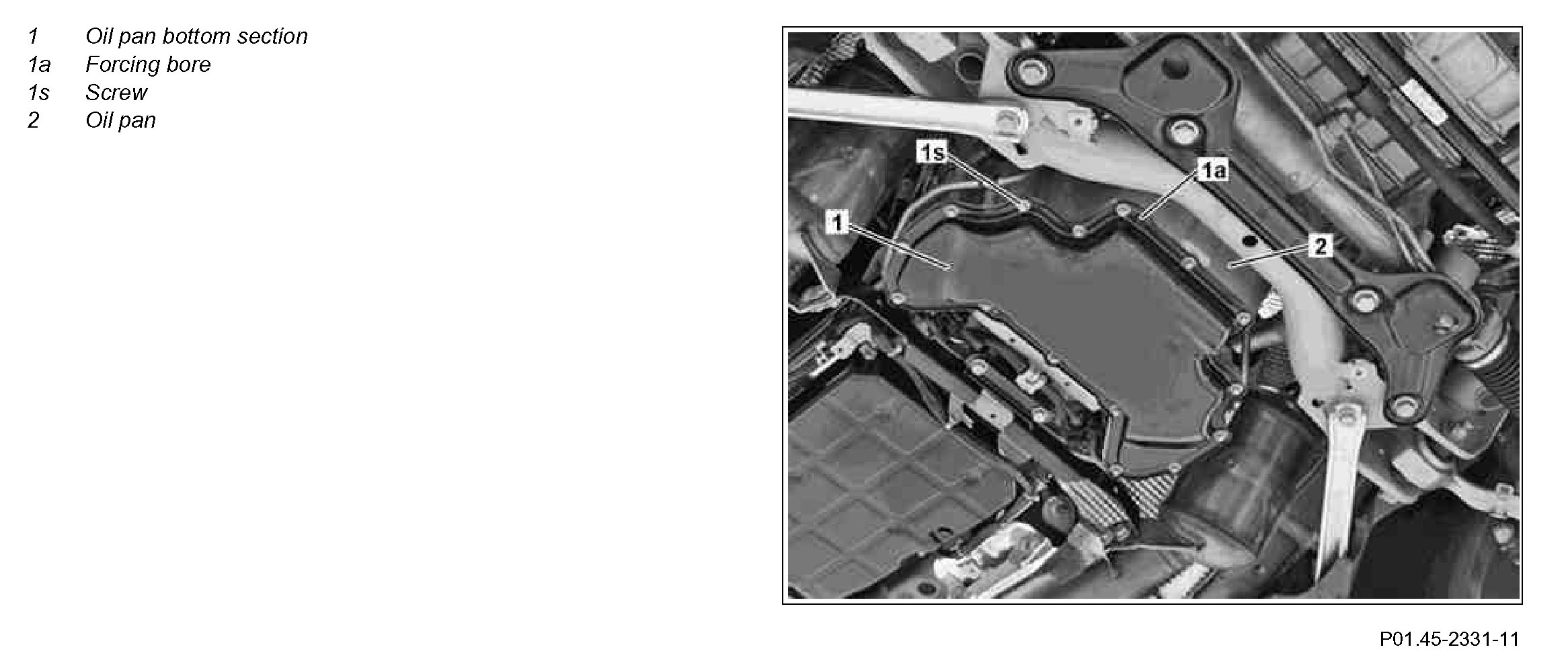

Component Identification:

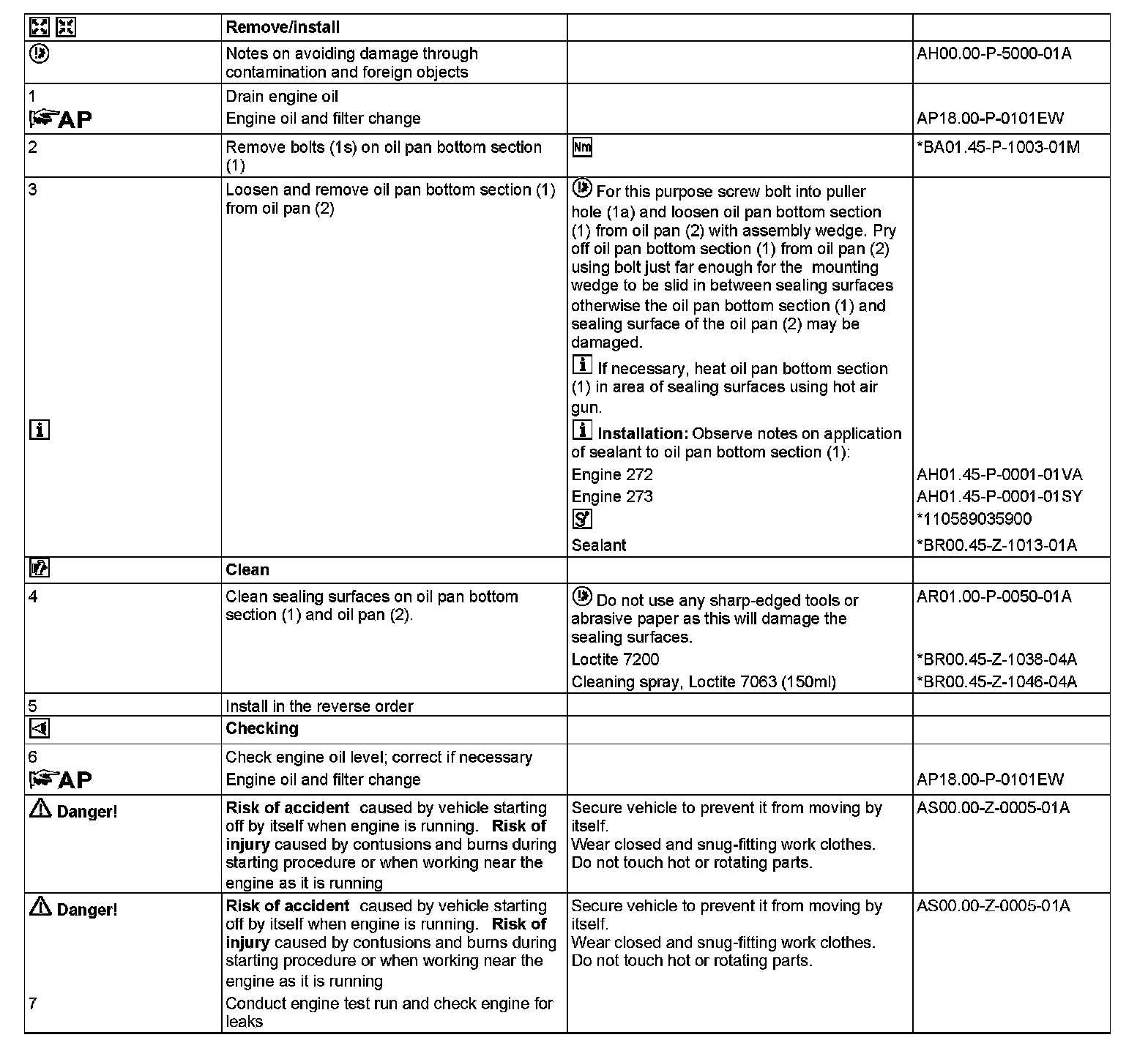

Steps 1-7:

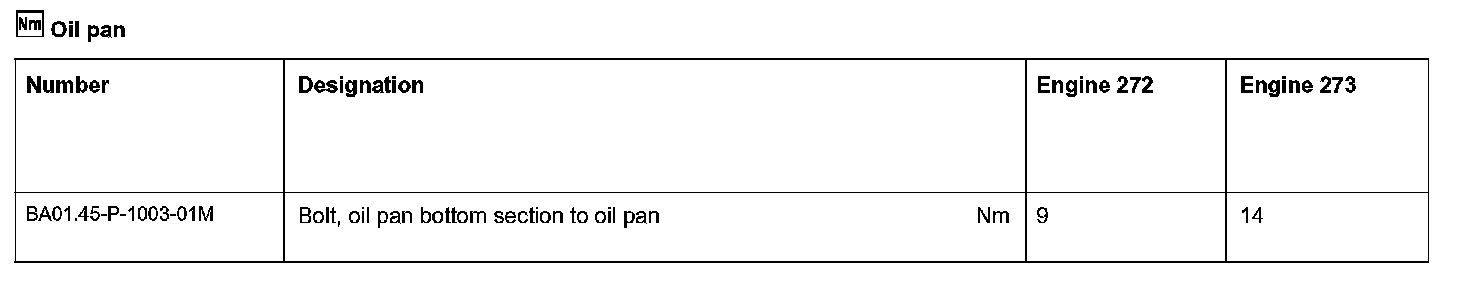

Oil pan:

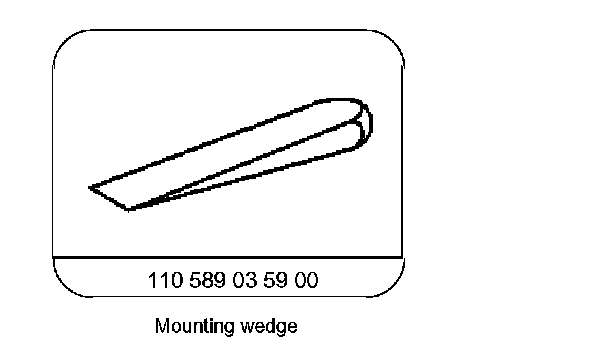

Special Tools:

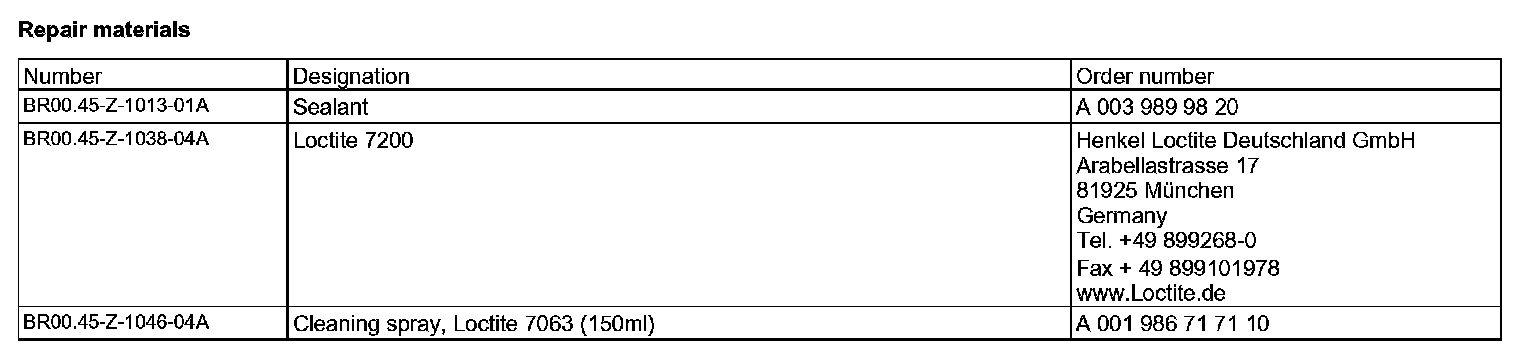

Repair materials:
