AR01.45-P-7555CWX Remove/Install Bottom Part of Oil Pan



AR01.45-P-7555CWX Remove/install bottom part of oil pan
- Vehicles with center sump

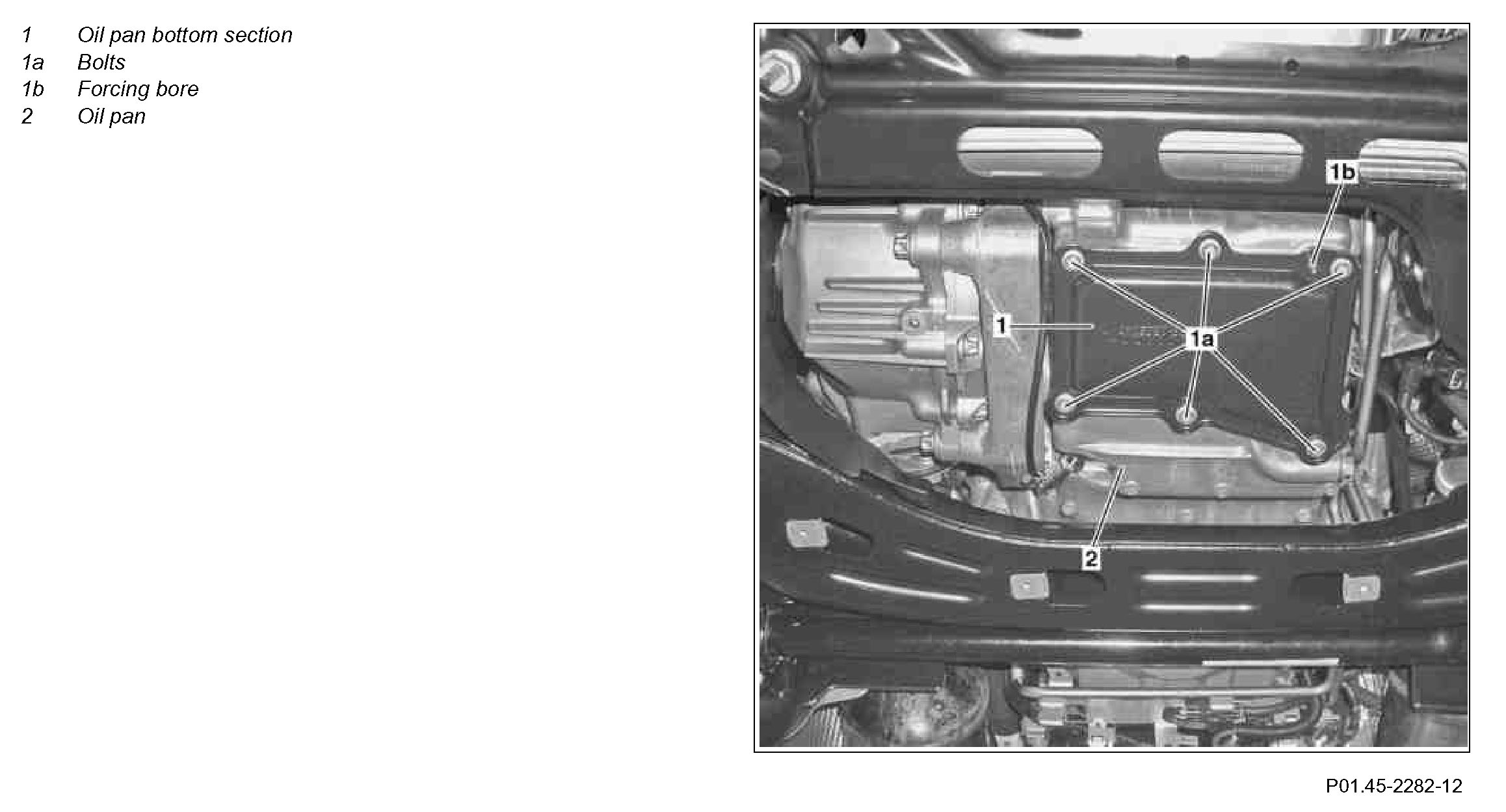

Component Identification:

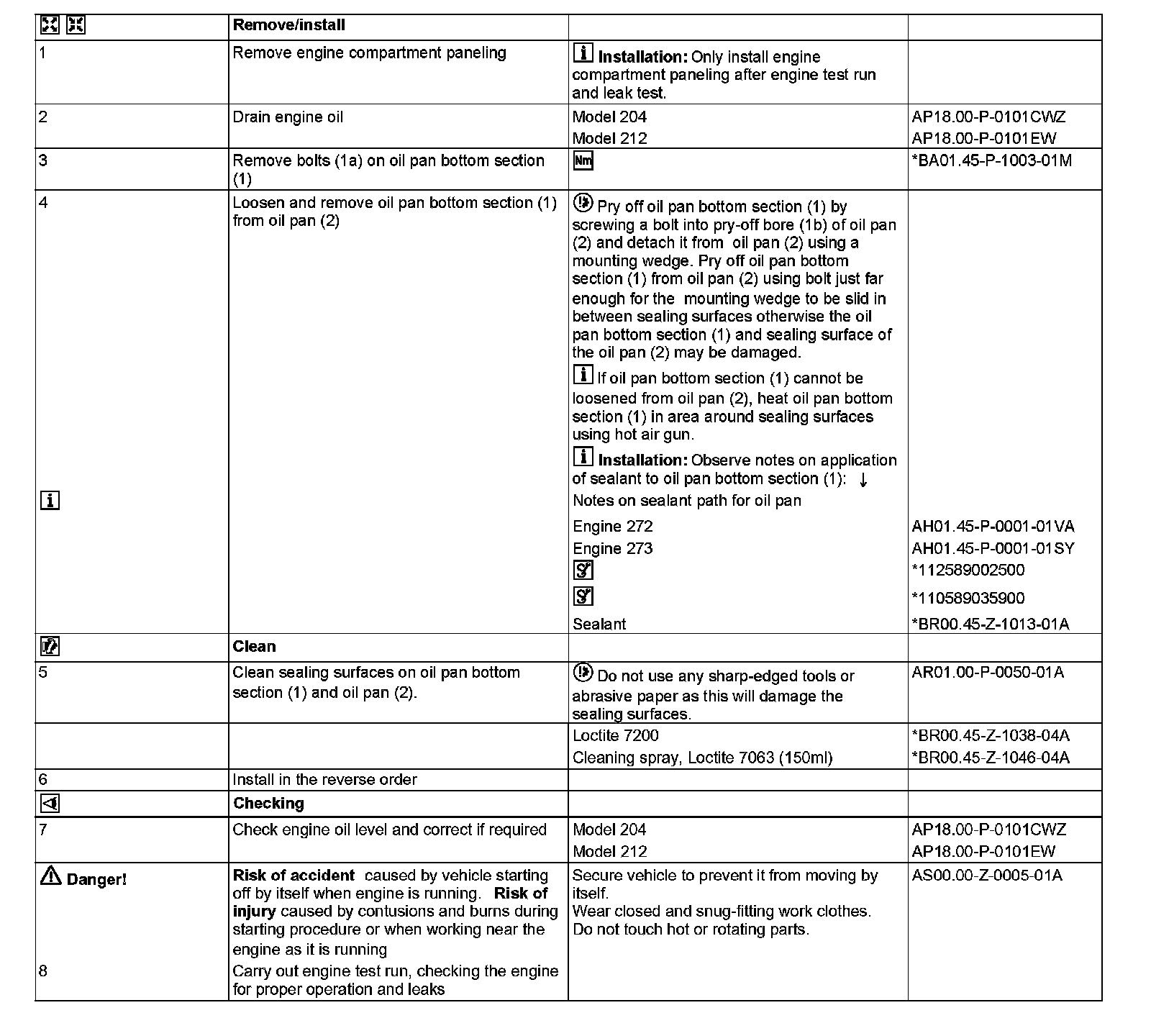

Steps 1-8:




Oil pan:

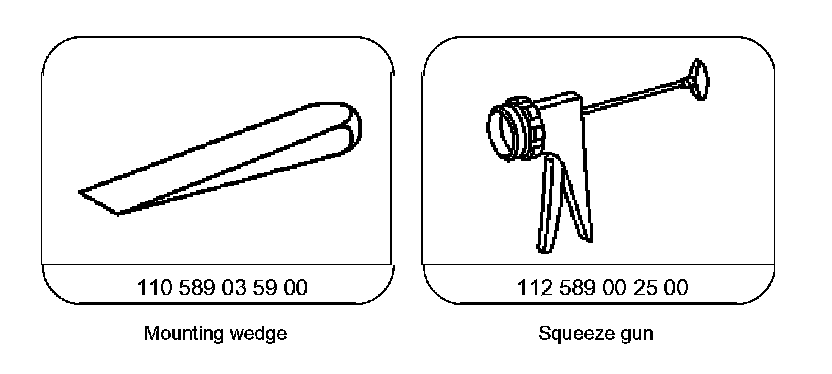

Special Tools:

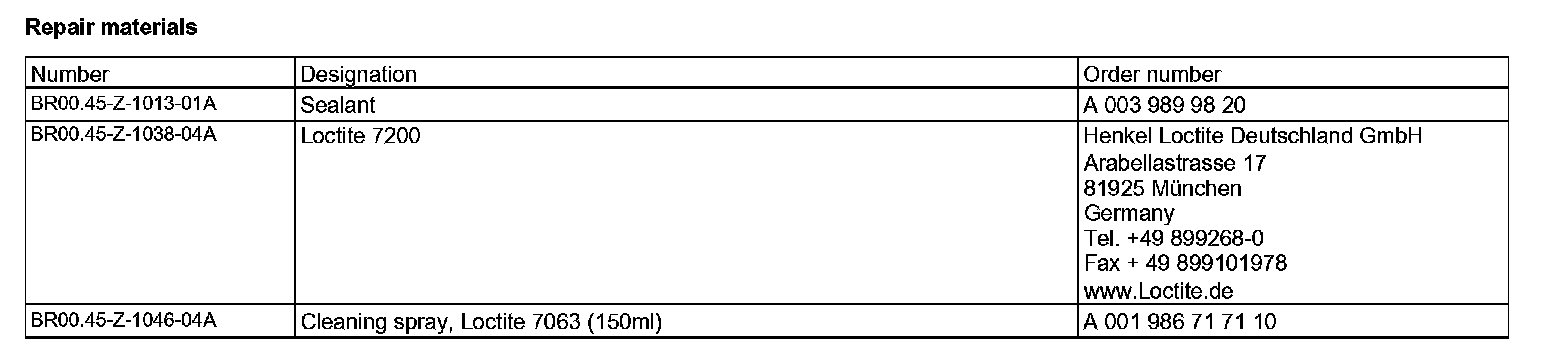

Repair materials:
