AR01.45-P-7500EWX Remove/Install Oil Pan

AR01.45-P-7500EWX Remove/Install Oil Pan
ENGINES 272 in MODEL 212
Vehicles with center sump
ENGINES 273 in MODEL 212
Vehicles with center sump

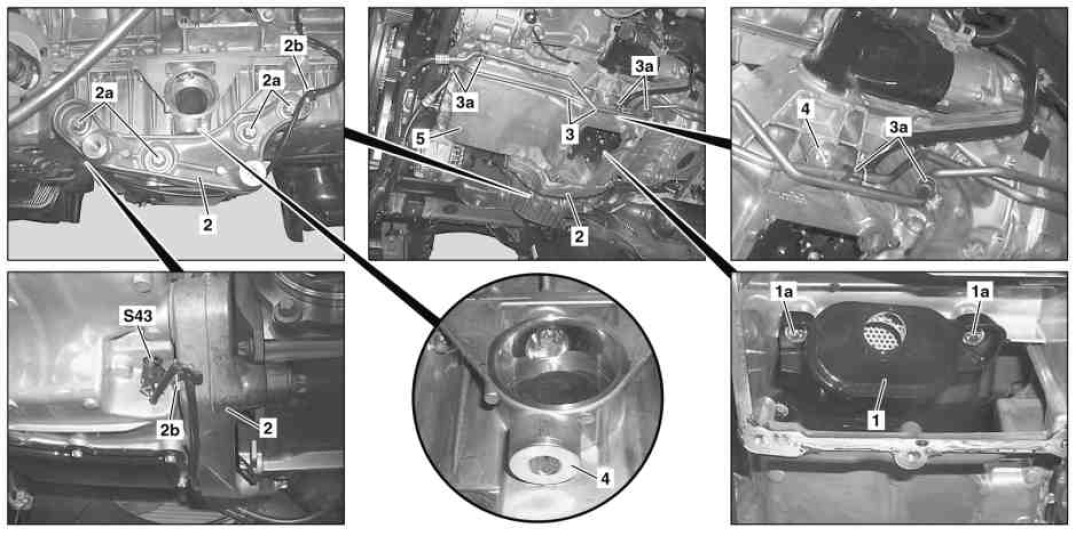

1 Oil suction pipe
1a Screw/bolts
2 Support brace
2a Screw/bolts
2b Retaining clips
3 ATF lines
3a Retaining clamps
4 Plug
5 Oil pan

S43 Oil level check switch























112 589 00 25 00
Squeeze gun
