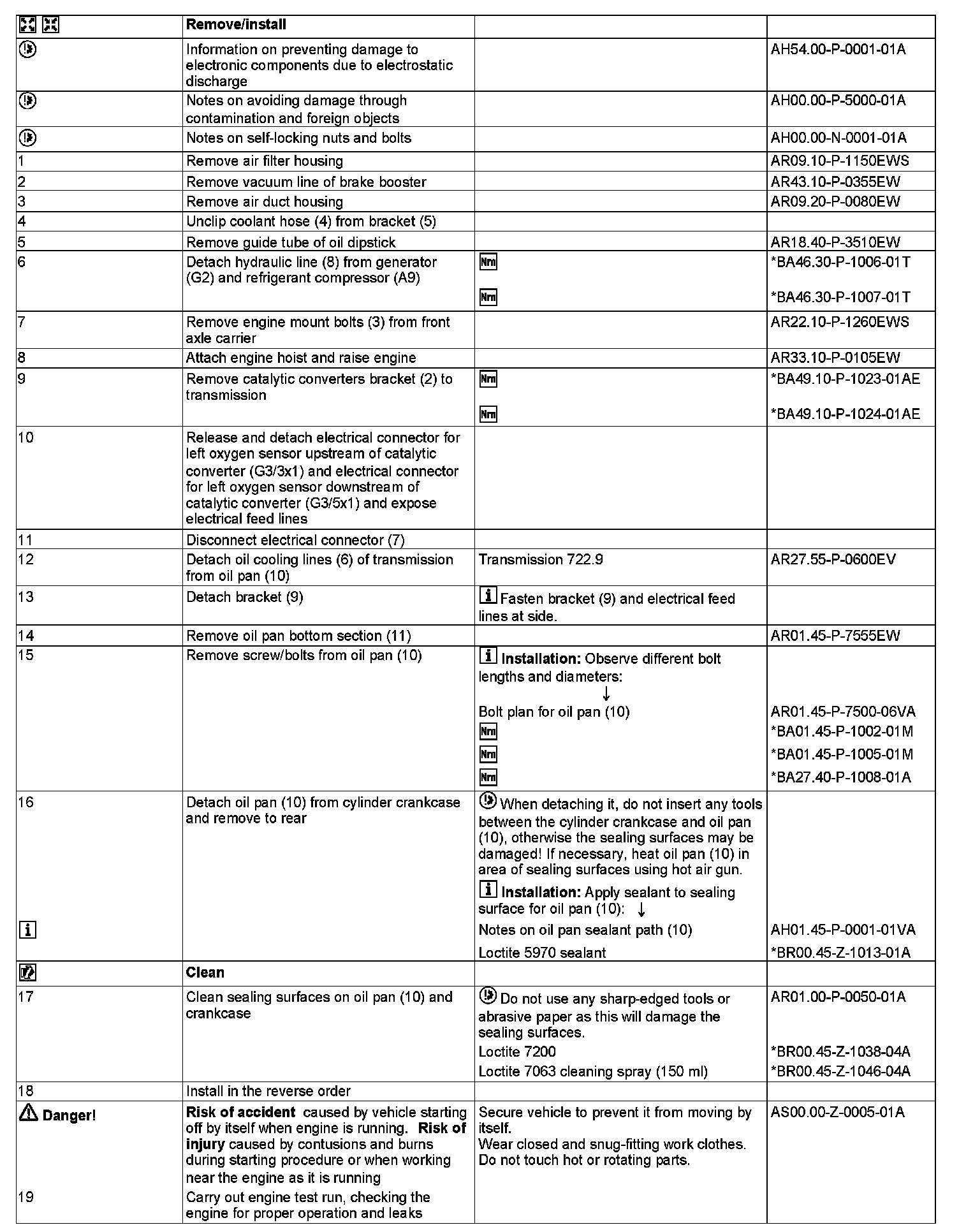

AR01.45-P-7500EWD Remove/Install Oil Pan

AR01.45-P-7500EWD Remove/Install Oil Pan
ENGINES 272 in MODEL 212
Vehicle with rear sump

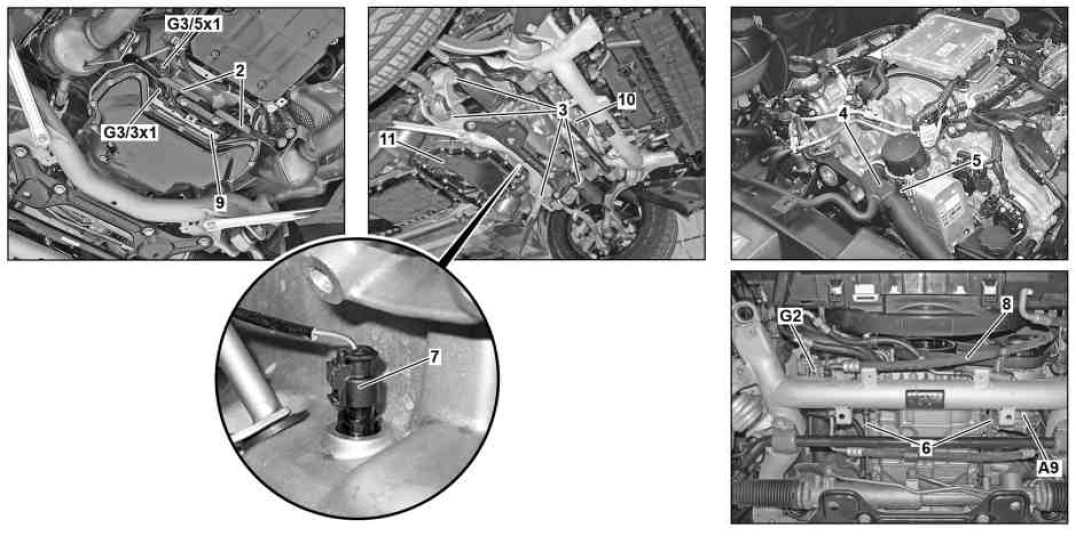

2 Bracket
3 Screw/bolts
4 Coolant hose
5 Bracket
6 Oil cooling lines
7 Electrical connector
8 Hydraulic line
9 Bracket
10 Oil pan
11 Oil pan bottom section

A9 A/C compressor
G2 Alternator
G3/3x1 Electrical connector for left oxygen sensor upstream of catalytic converter
G3/5x1 Electrical connector for left oxygen sensor downstream of catalytic converter
