AH01.45-P-0001-01VB Notes on Application of Sealant to Oil Pan

AH01.45-P-0001-01VB Notes on application of sealant to oil pan

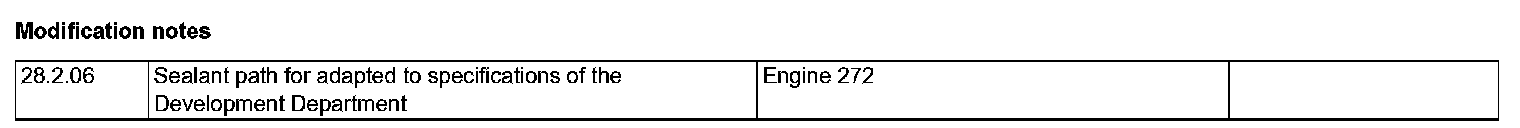

Modification notes:

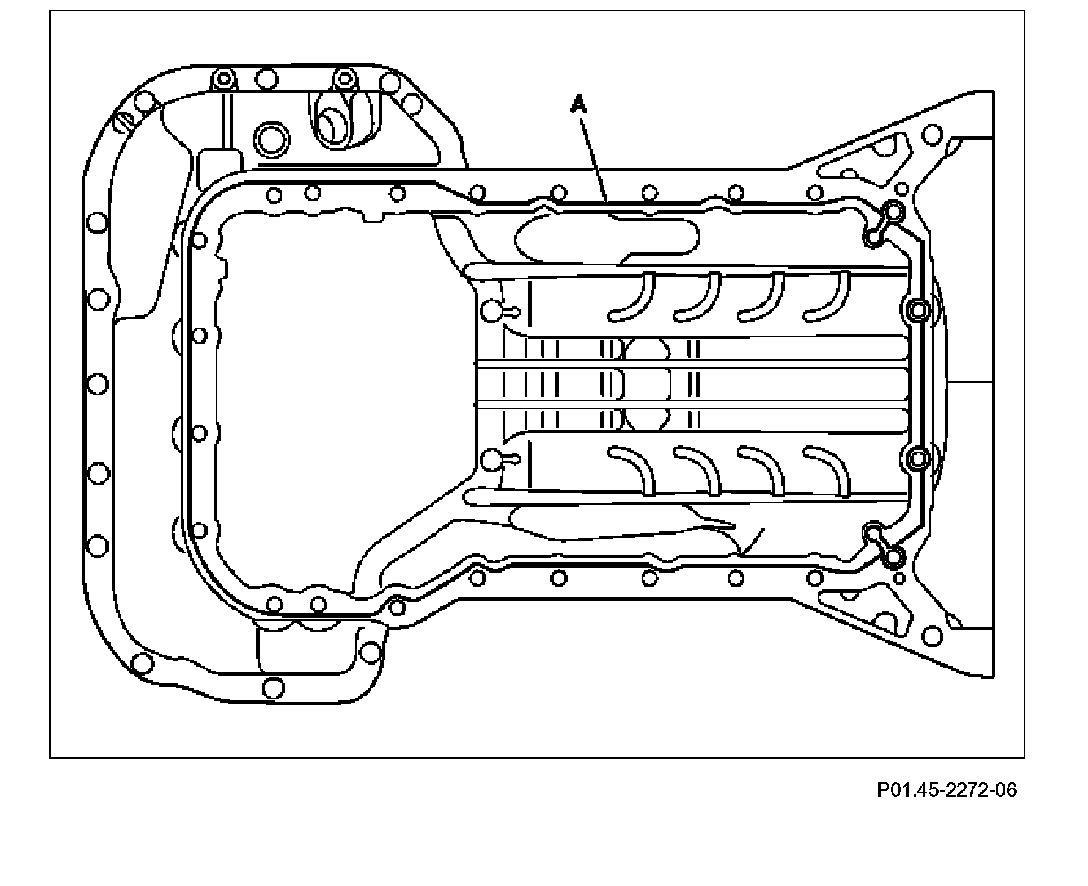

Oil pan with rear sump:

Oil pan with rear sump
The lines (A) identify the sealant beads.

The sealing surface must be cleaned. The sealant must only be applied to the specified surface in the form of a bead and a height and width of 2.0 mm (± 0.5 mm).

The sealant must be applied within 10 min.

The sealant bead must not be spread. Only the approved sealing compound may be used.

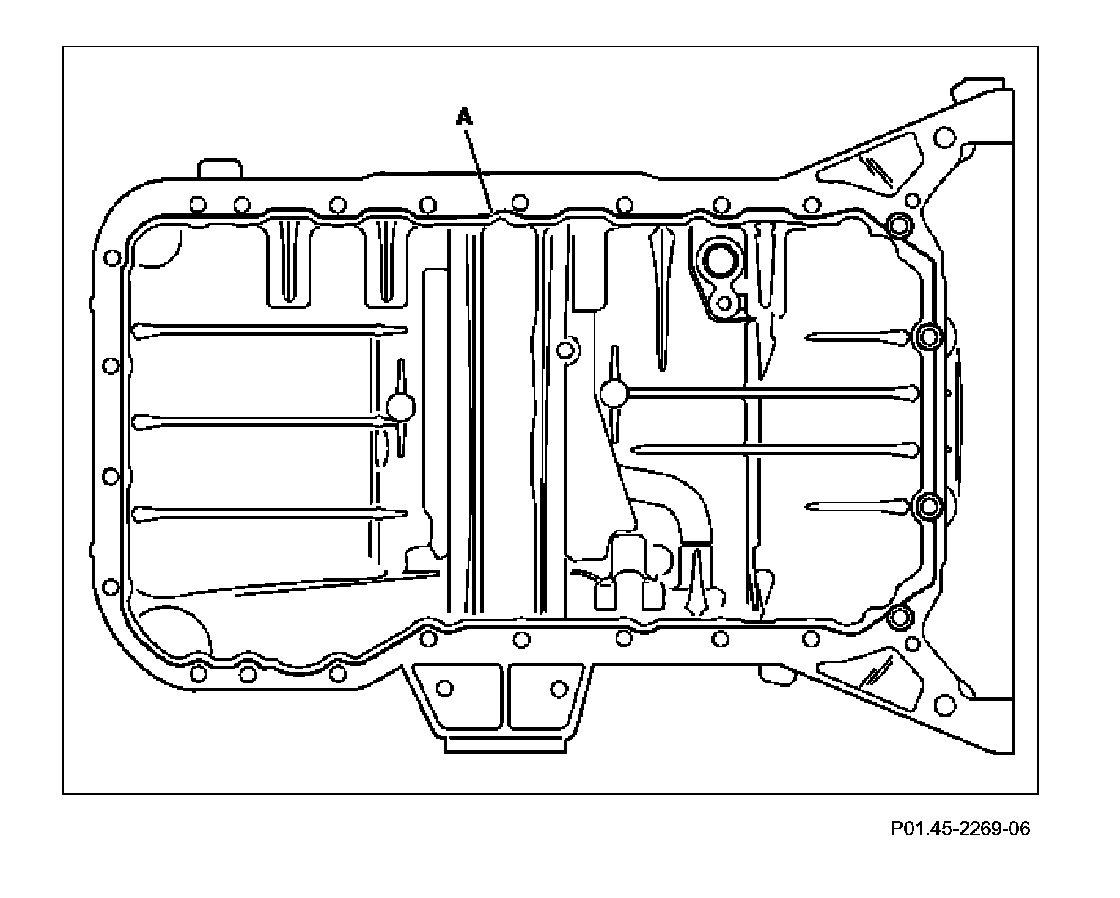

Oil pan with front sump:

Oil pan with front sump

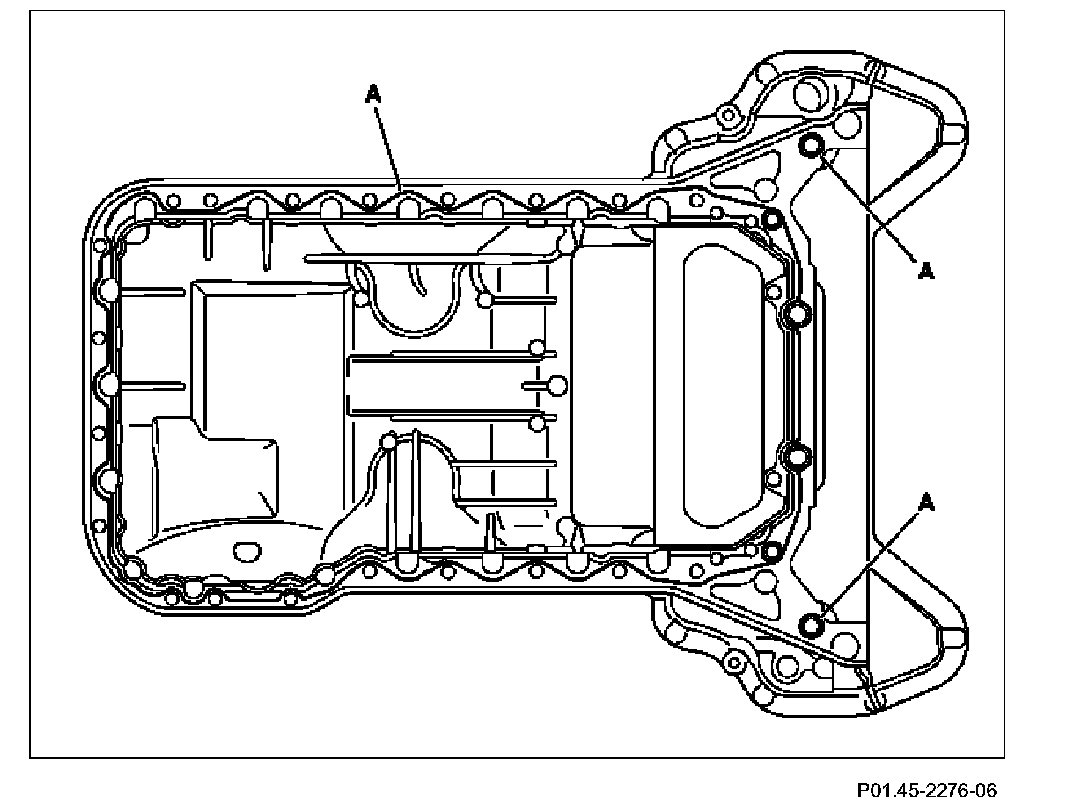

Oil pan with middle sump:

Oil pan with middle sump
