AH01.45-P-0001-01VA Notes on Application of Sealant to Oil Pan
AH01.45-P-0001-01VA Notes on Application of Sealant to Oil Pan

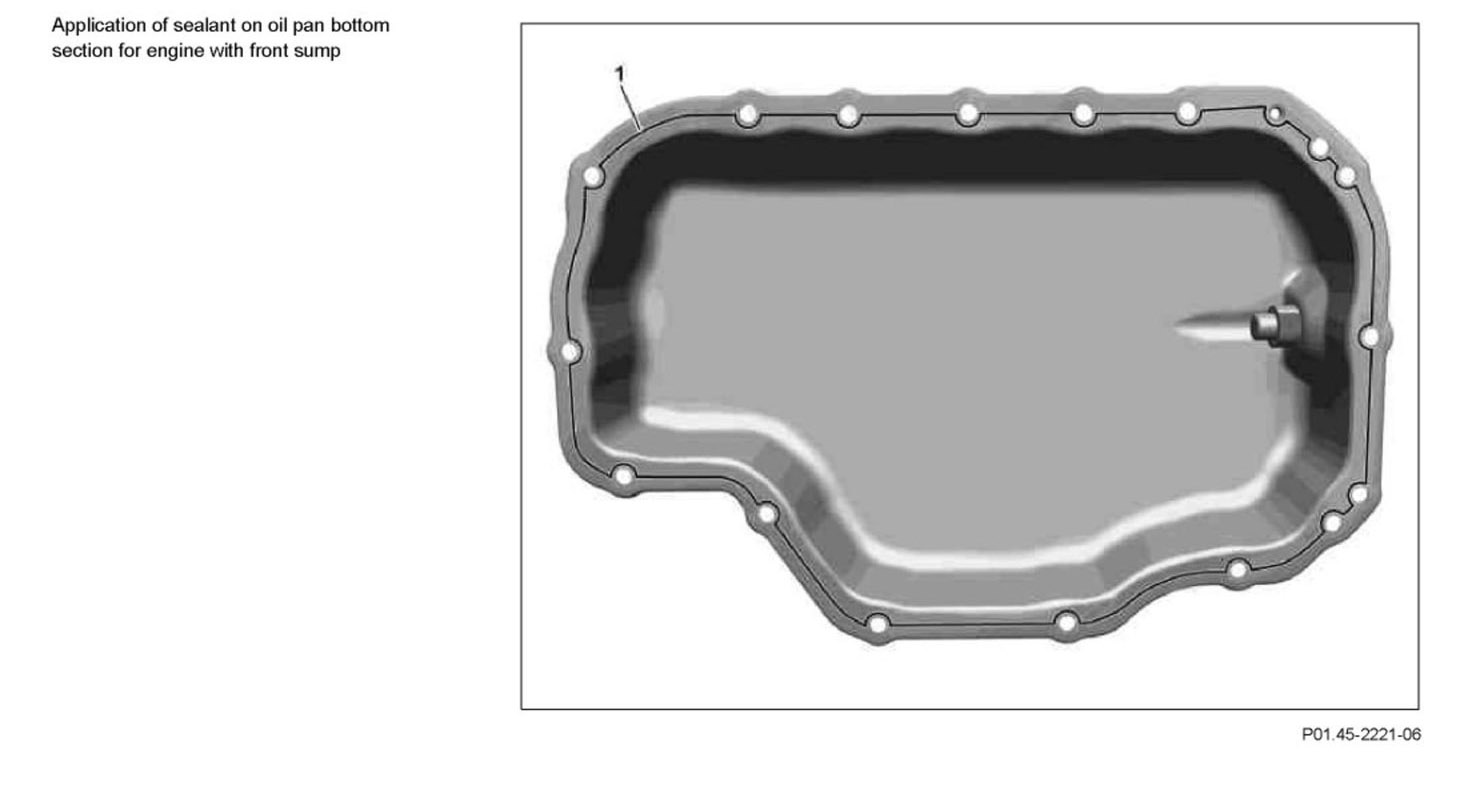

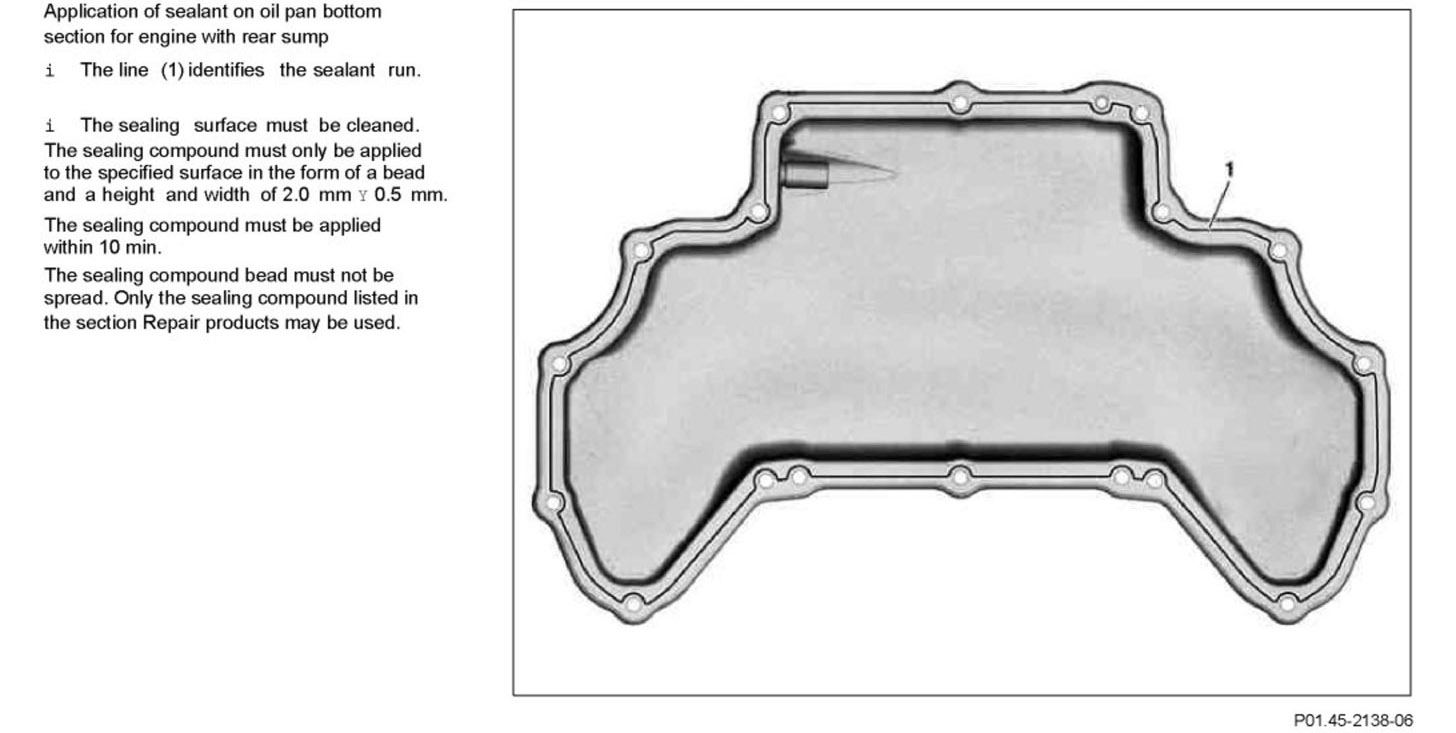

AH01.45-P-0001-01VA Notes on application of sealant to
oil pan
Component Identification:
Component Identification:
