AR01.45-P-7500-06VA Bolt Plan For Oil Pan
AR01.45-P-7500-06VA Bolt Plan For Oil Pan
AR01.45-P-7500-06VA Bolt plan for
oil pan

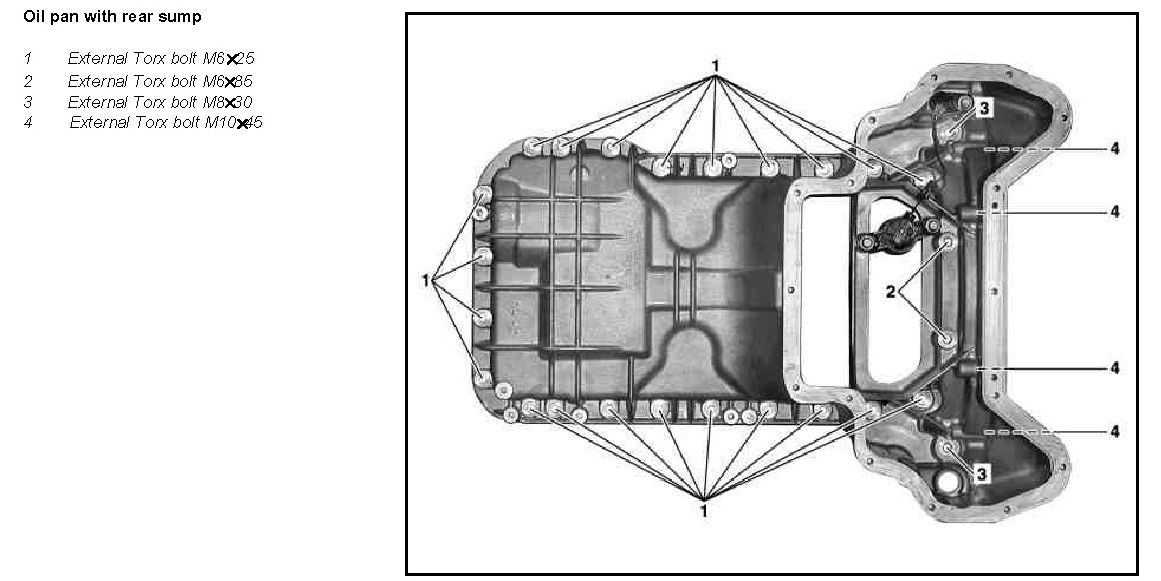

Oil pan with rear sump:

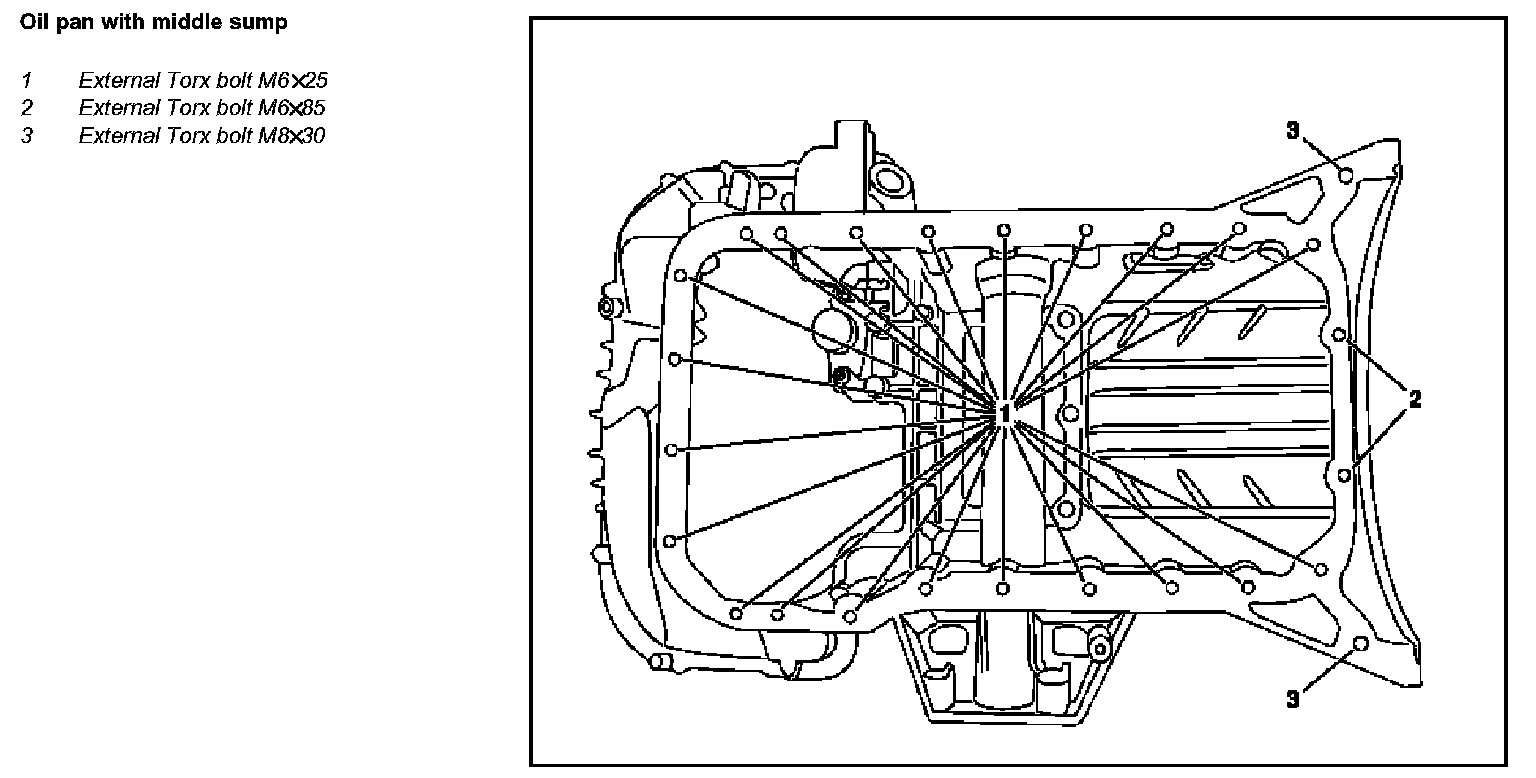

Oil pan with middle sump:

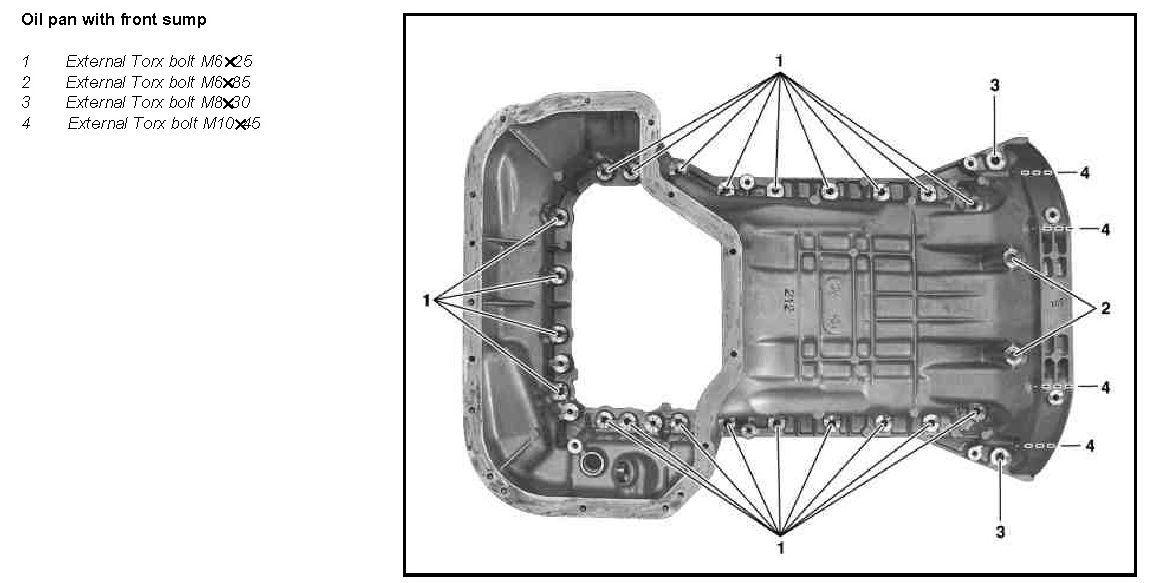

Oil pan with front sump:
