AH01.45-P-0001-01VA Notes on Sealant Path For Oil Pan

AH01.45-P-0001-01VA Notes on sealant path for oil pan

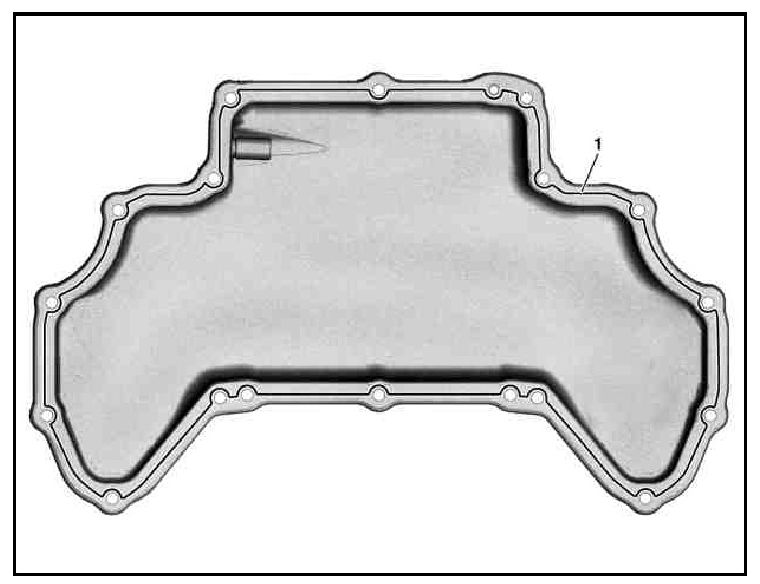

Application of sealant to oil pan bottom section for engine with rear sump:

Application of sealant to oil pan bottom section for engine with rear sump
The line (1) identifies the sealant run.

The sealing surface must be cleaned. The sealant must only be applied to the specified surface in the form of a bead and a height and width of 2.0 mm (±0.5 mm).

The sealing compound must be applied within 10 min.

The sealant bead must not be spread. Use only the sealant listed in the Repair Products.

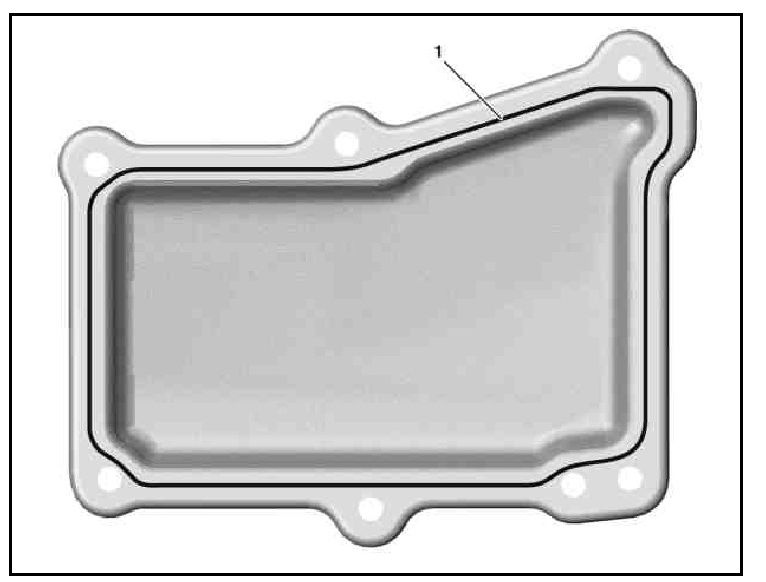

Application of sealant to oil pan bottom section for engine with middle sump:

Application of sealant to oil pan bottom section for engine with middle sump

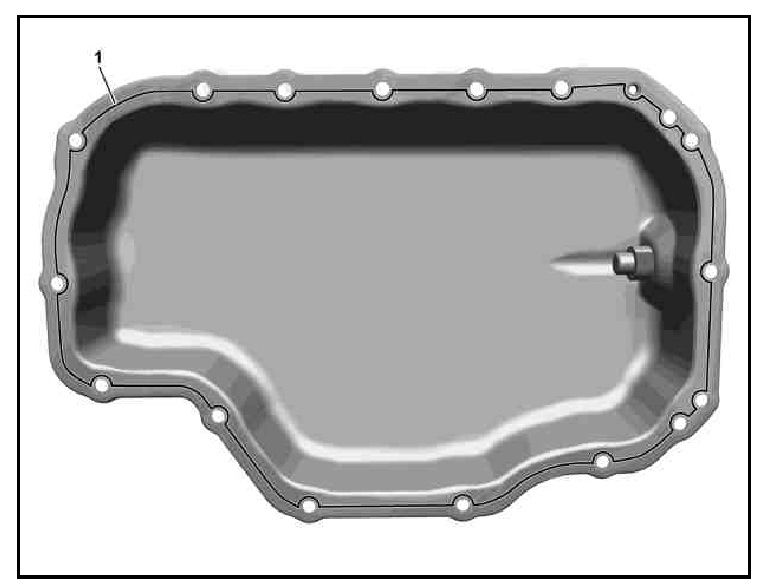

Application of sealant to oil pan bottom section for engine with front sump:

Application of sealant to oil pan bottom section for engine with front sump
