Engine Oil Pressure: Testing and Inspection

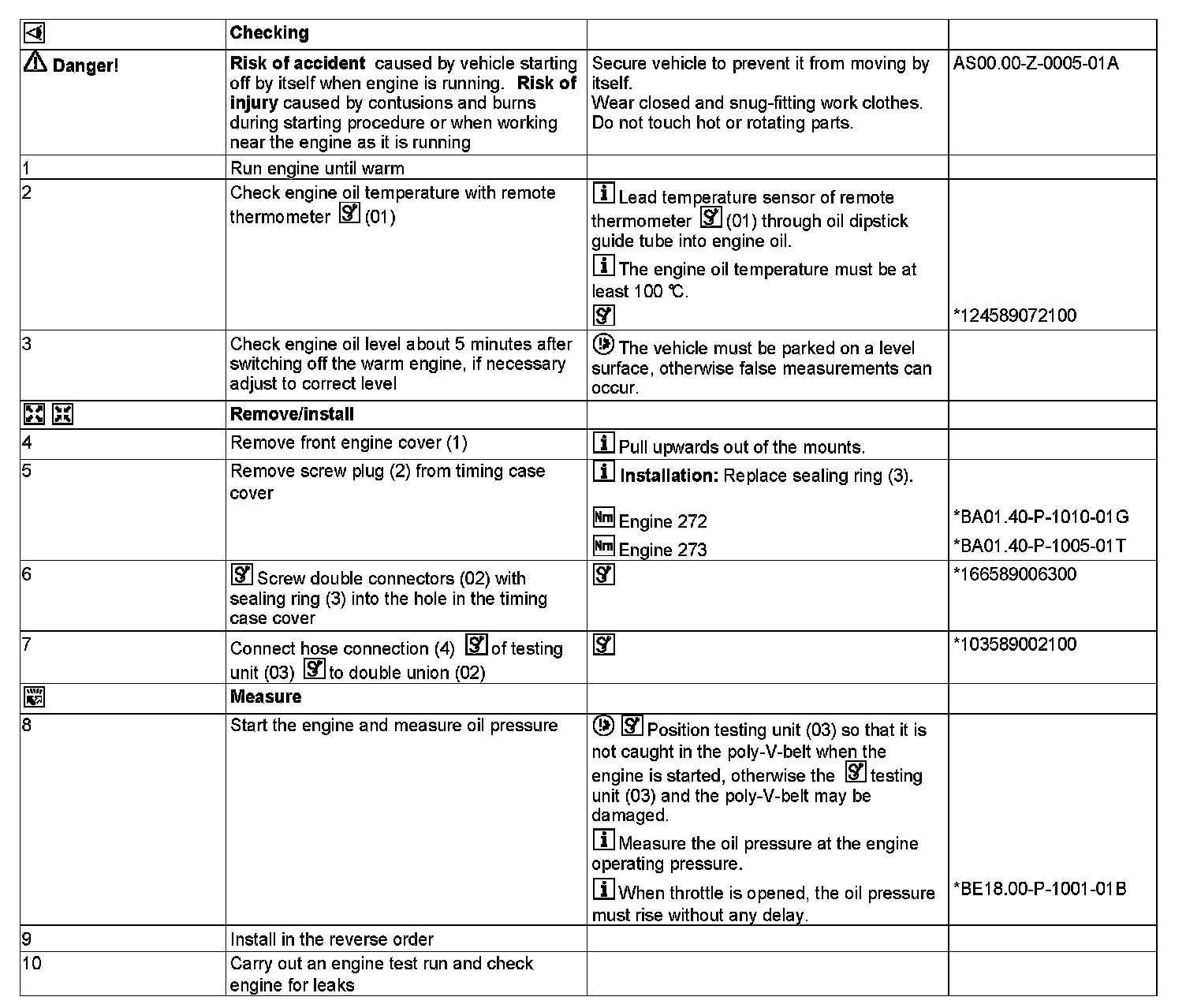

AR18.00-P-1250SX Check Oil Pressure
ENGINE 272, 273/

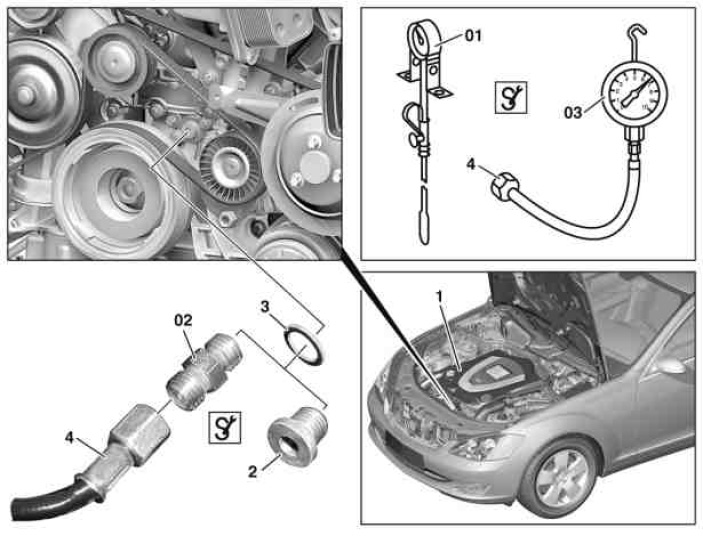

01 Remote thermometer
02 Double union
03 Testing unit
1 Front engine cover
2 Screw plug
3 Sealing ring
4 Hose connection

















103 589 00 21 00
Tester





124 589 07 21 00
Remote thermometer





166 589 00 63 00
Double union
