AR18.40-P-3510EW Remove/Install Oil Dipstick Guide Tube
AR18.40-P-3510EW Remove/Install Oil Dipstick Guide Tube
AR18.40-P-3510EW Remove/install oil dipstick guide tube

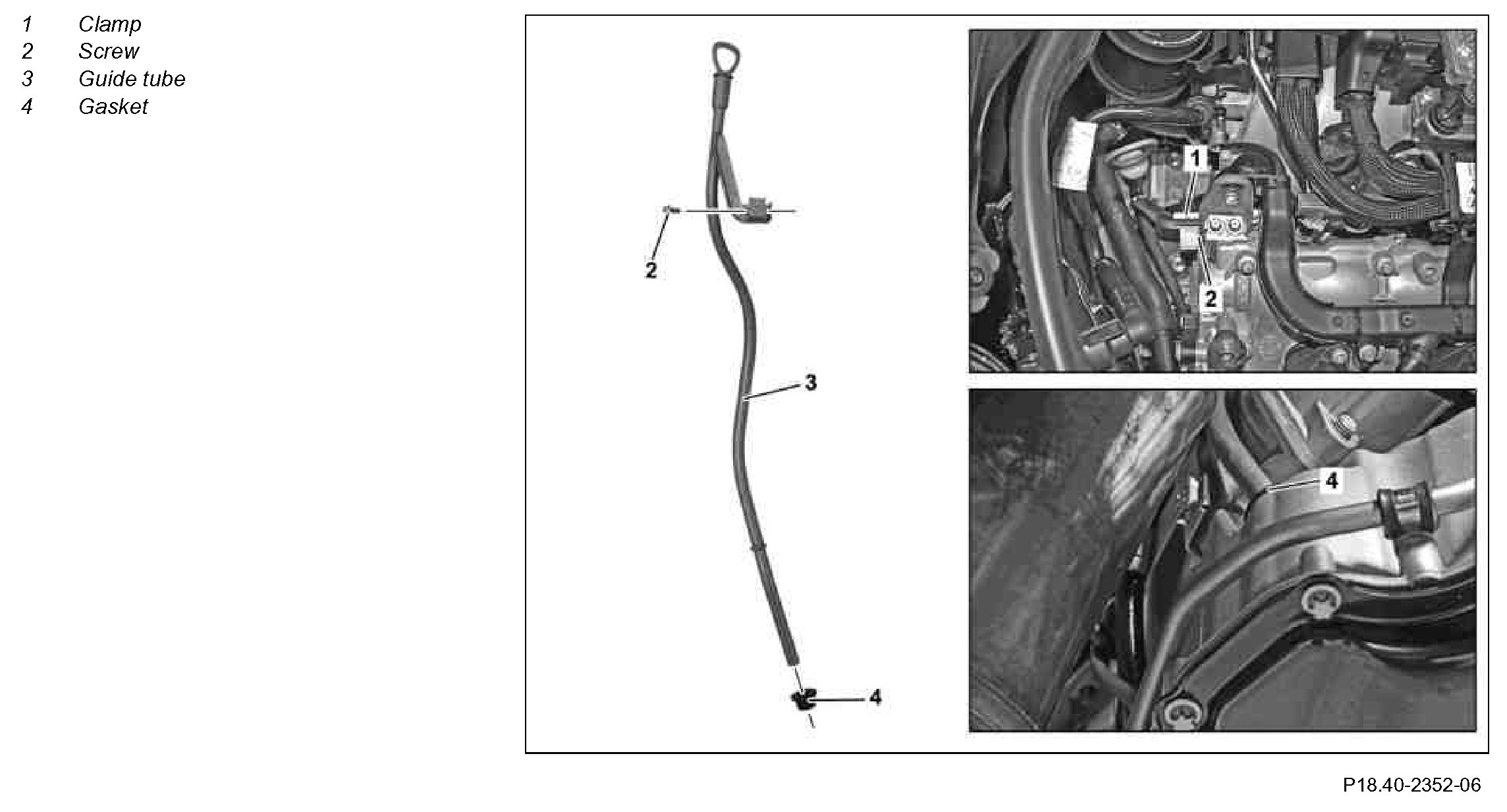

Component Identification:

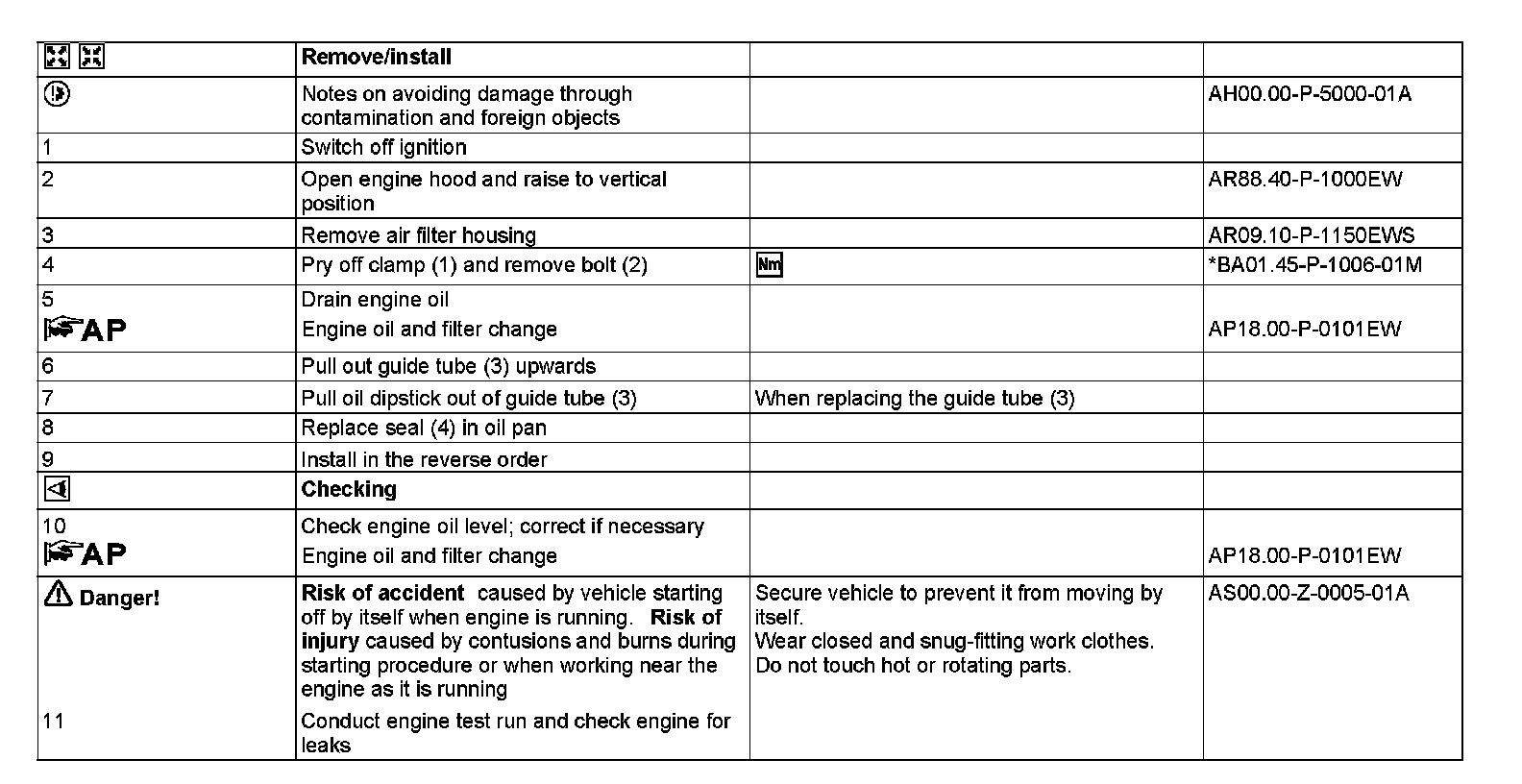

Steps 1-11:

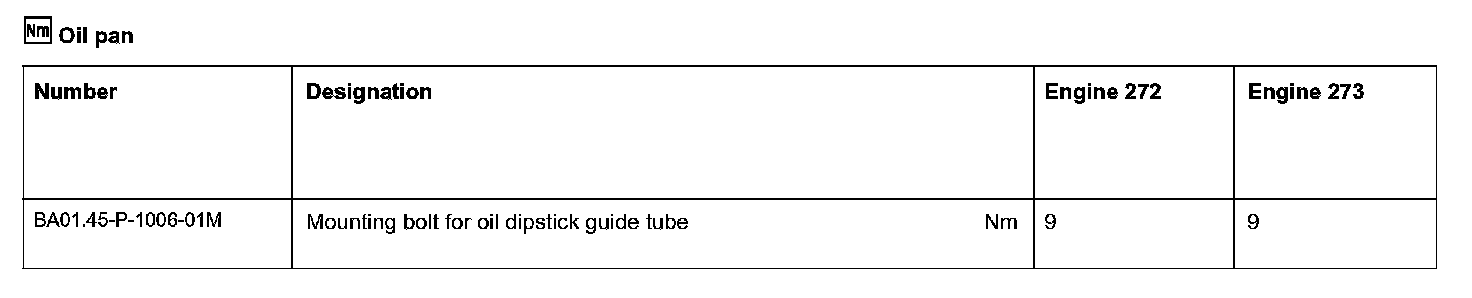

Oil pan:
