Drive Belts, Mounts, Brackets and Accessories: Service and Repair



AR13.20-P-0001EWS Remove/Install Belt Drive Components

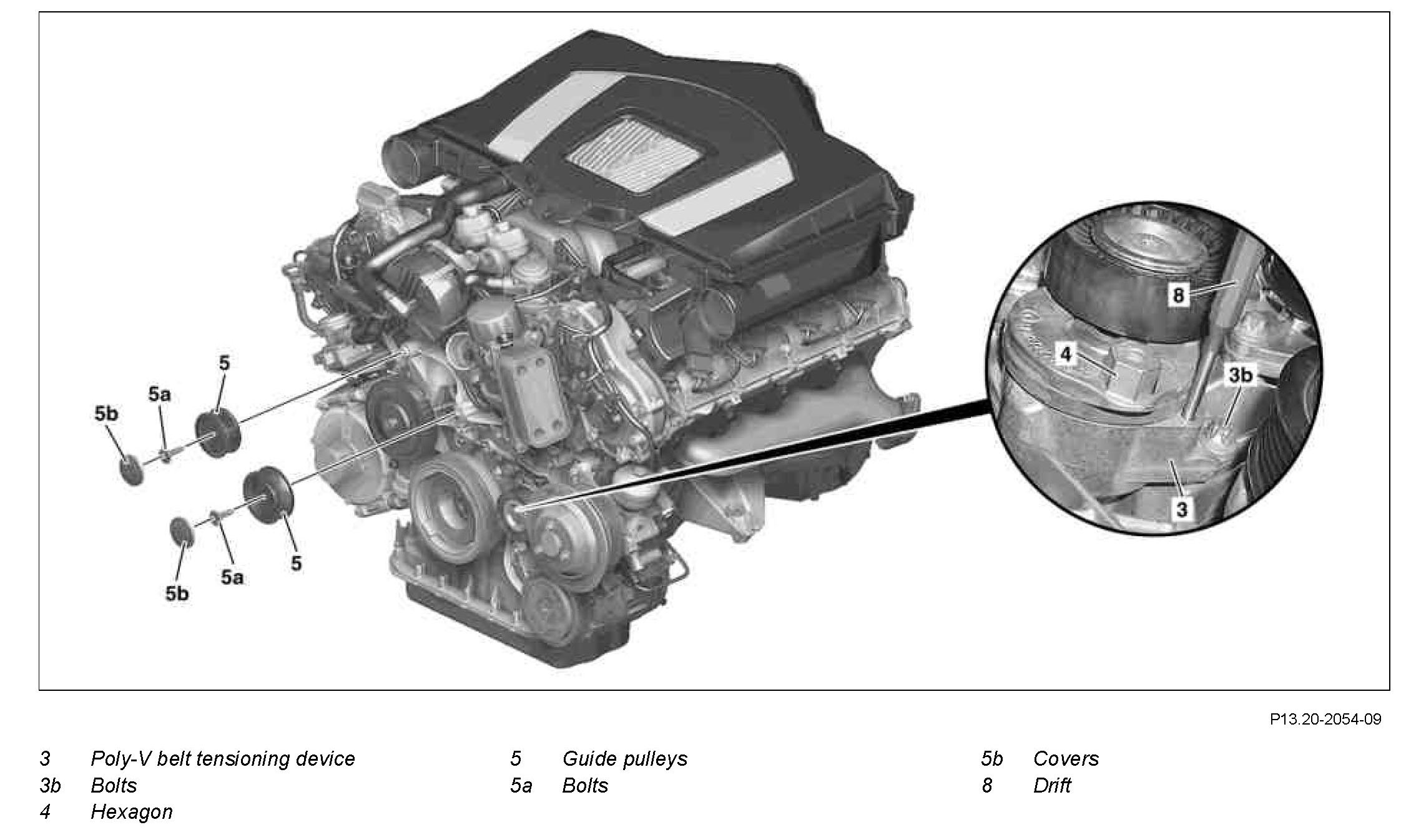

Component Identification:

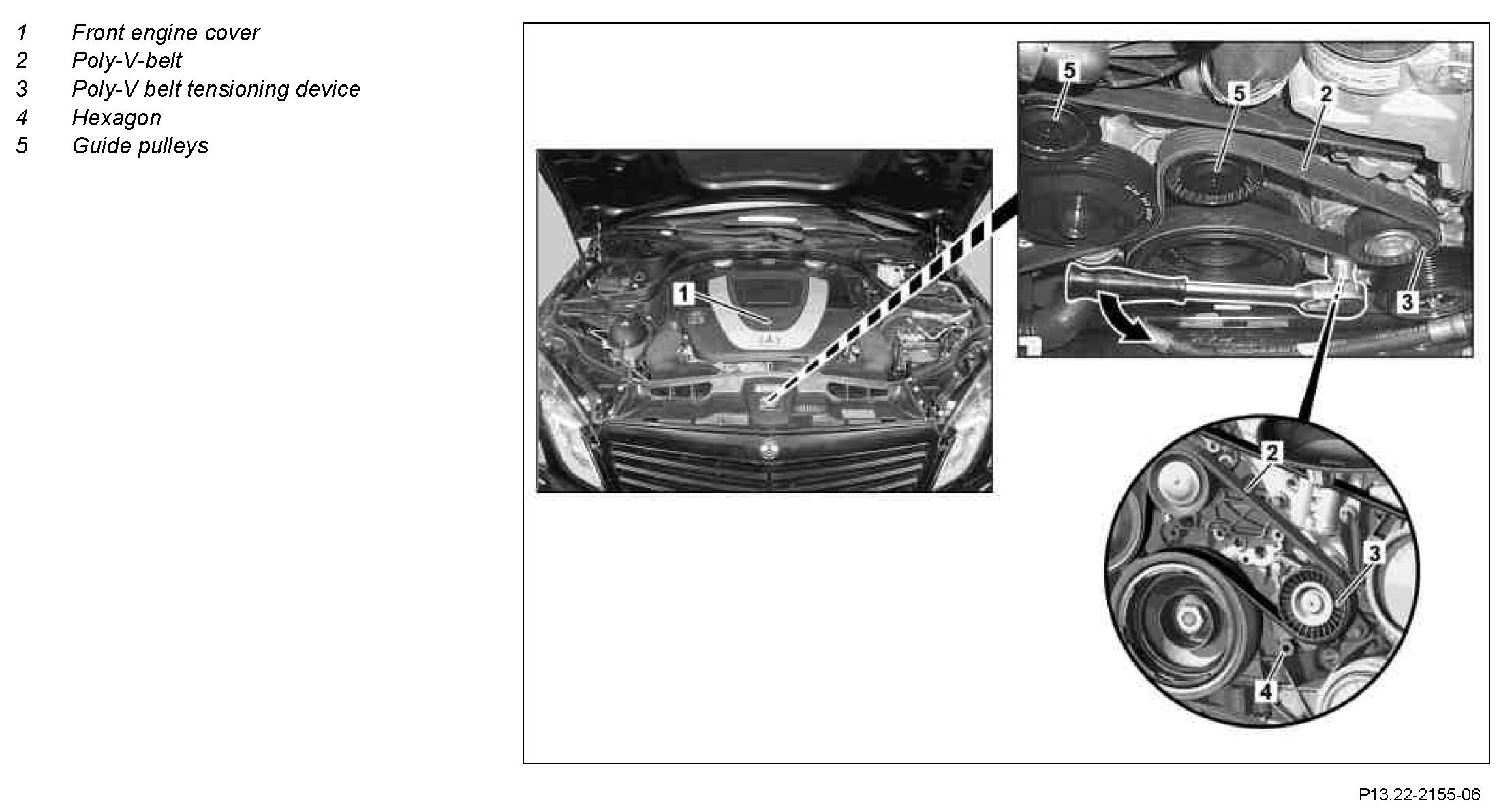

Component Identification:

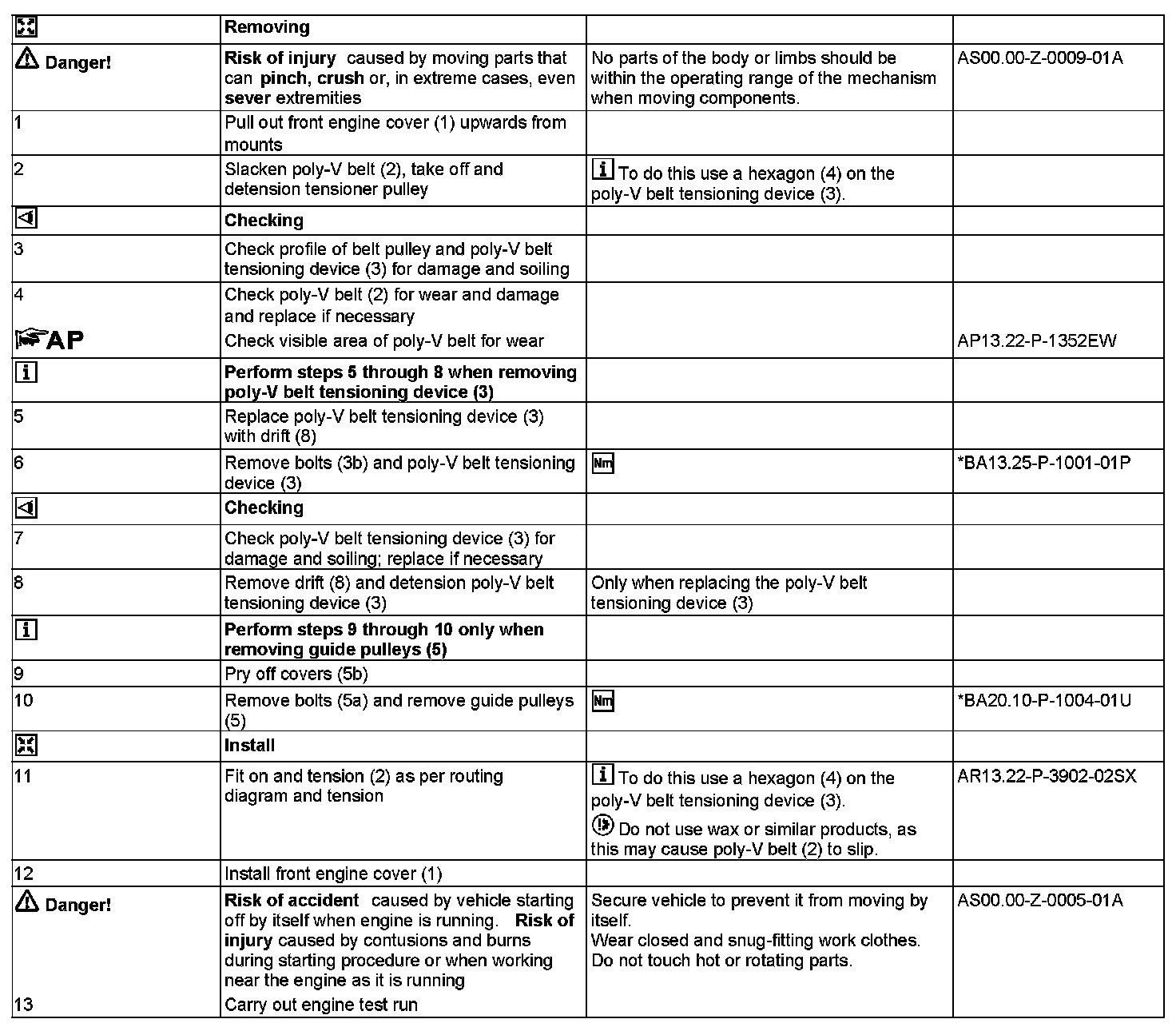

Steps 1 - 13:

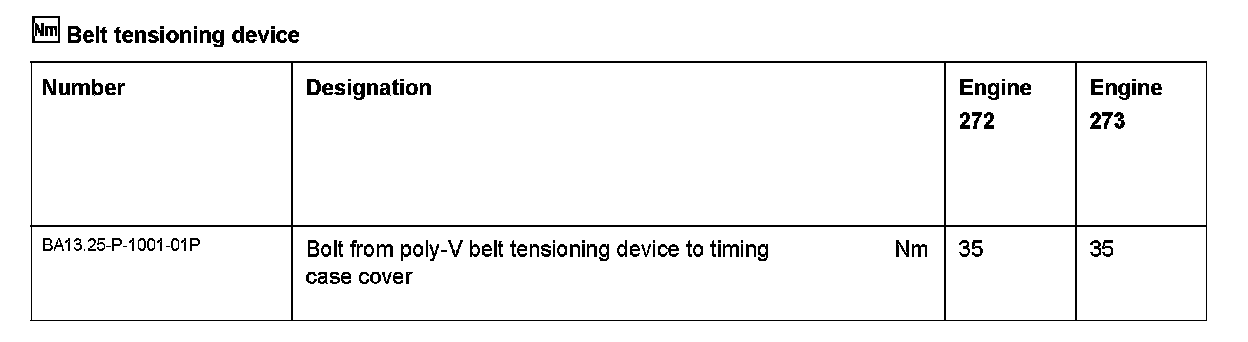

Belt Tensioning Device:

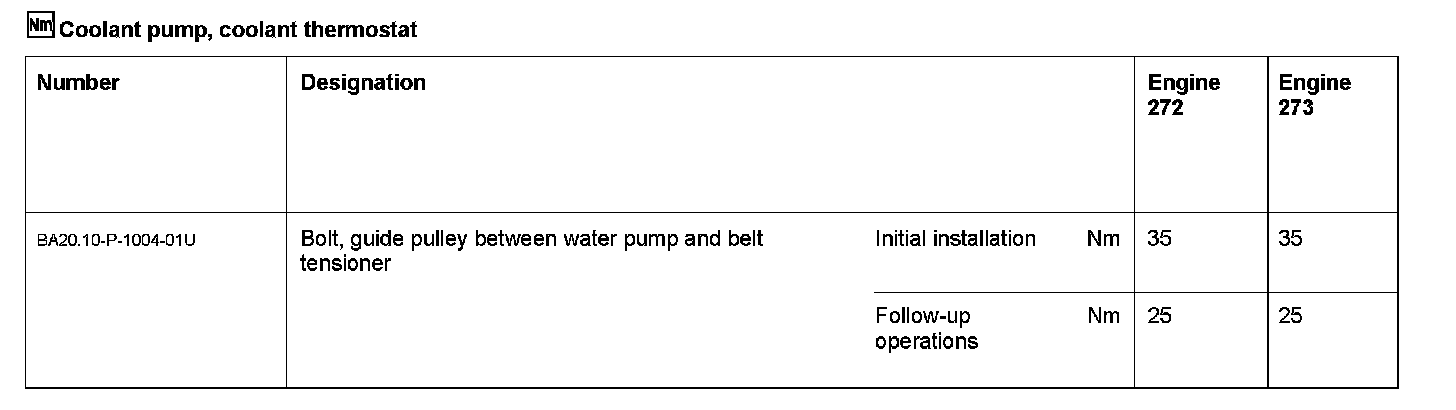

Coolant Pump, Coolant Thermostat:
