AR22.10-P-1260EWS Remove/Install Front Engine Mounts and/or Engine Support



AR22.10-P-1260EWS Remove/install front engine mounts and/or engine support

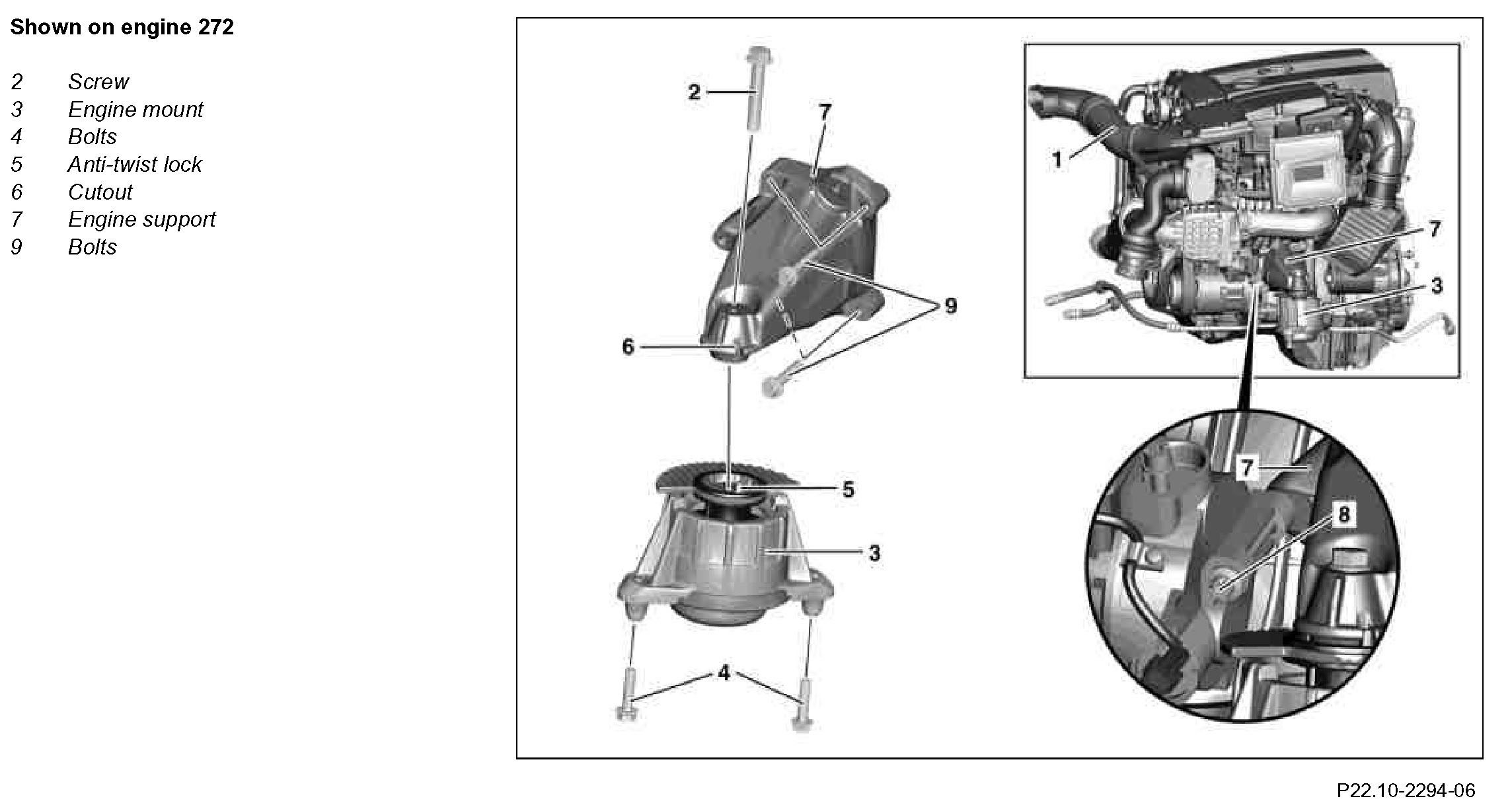

Component Identification:

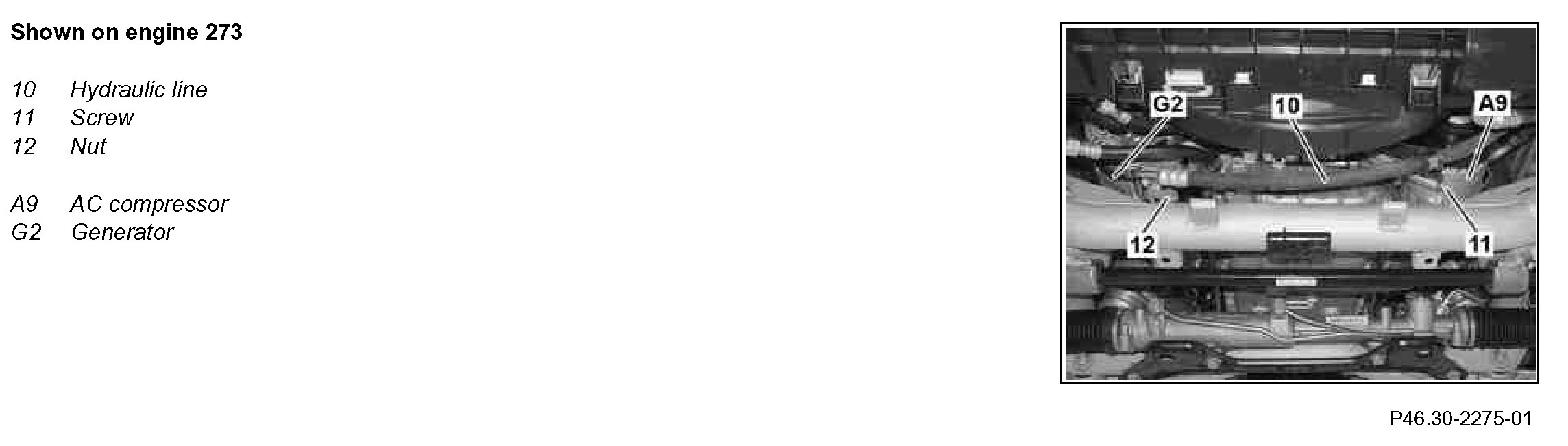

Component Identification:

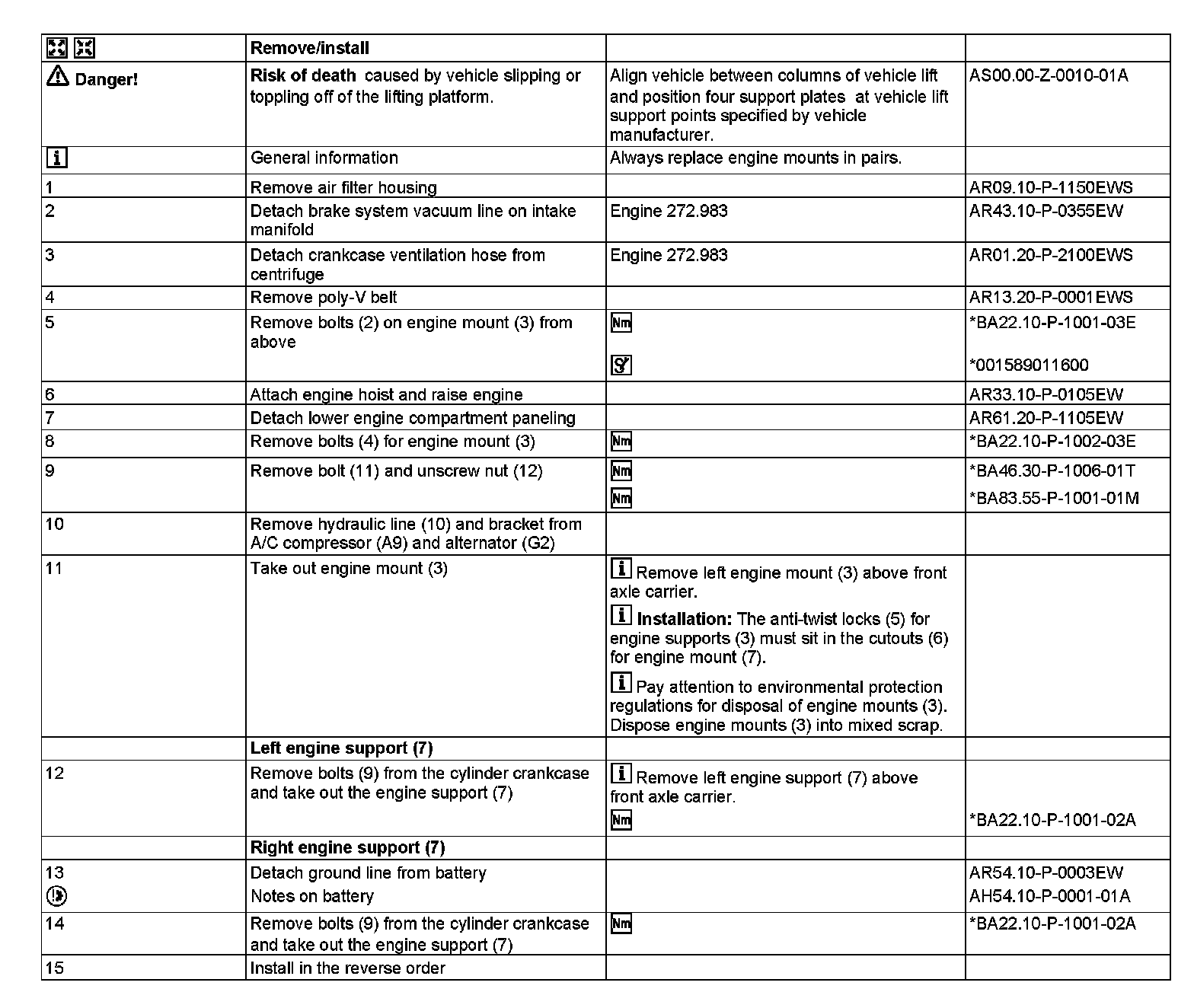

Steps 1-15:

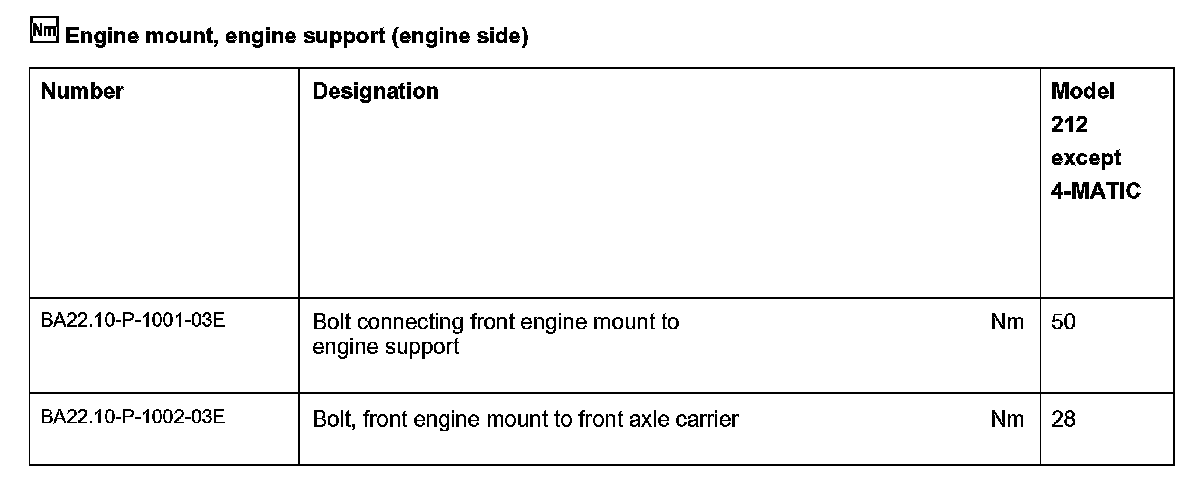

Engine mount, engine support (engine side):




Power steering pump:




Engine support (engine side):

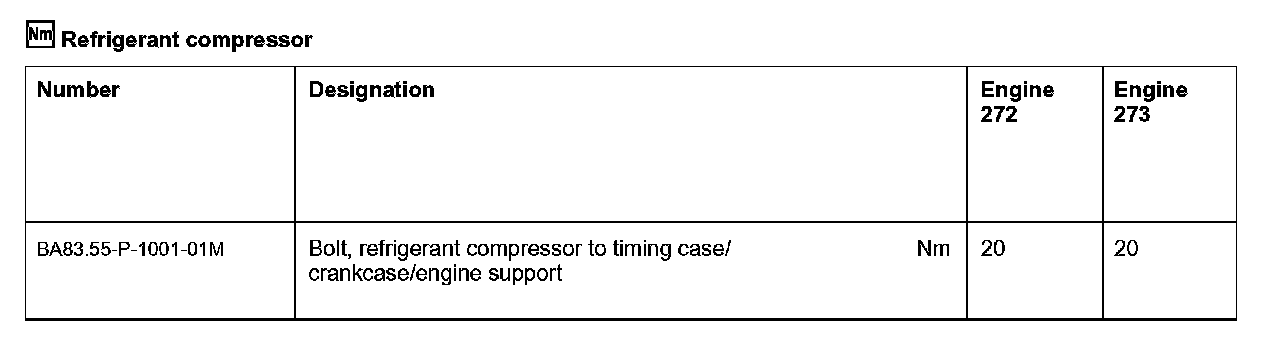

Refrigerant compressor:

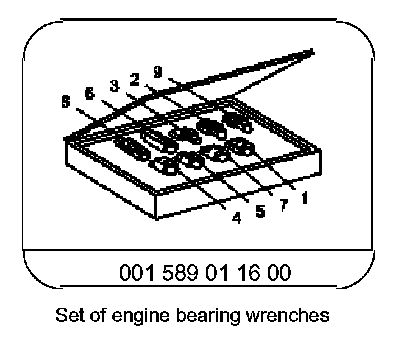

Special Tools:
