AR05.30-P-4201-01VA Inspect Valves
AR05.30-P-4201-01VA Inspect Valves
AR05.30-P-4201-01VA Inspect valves

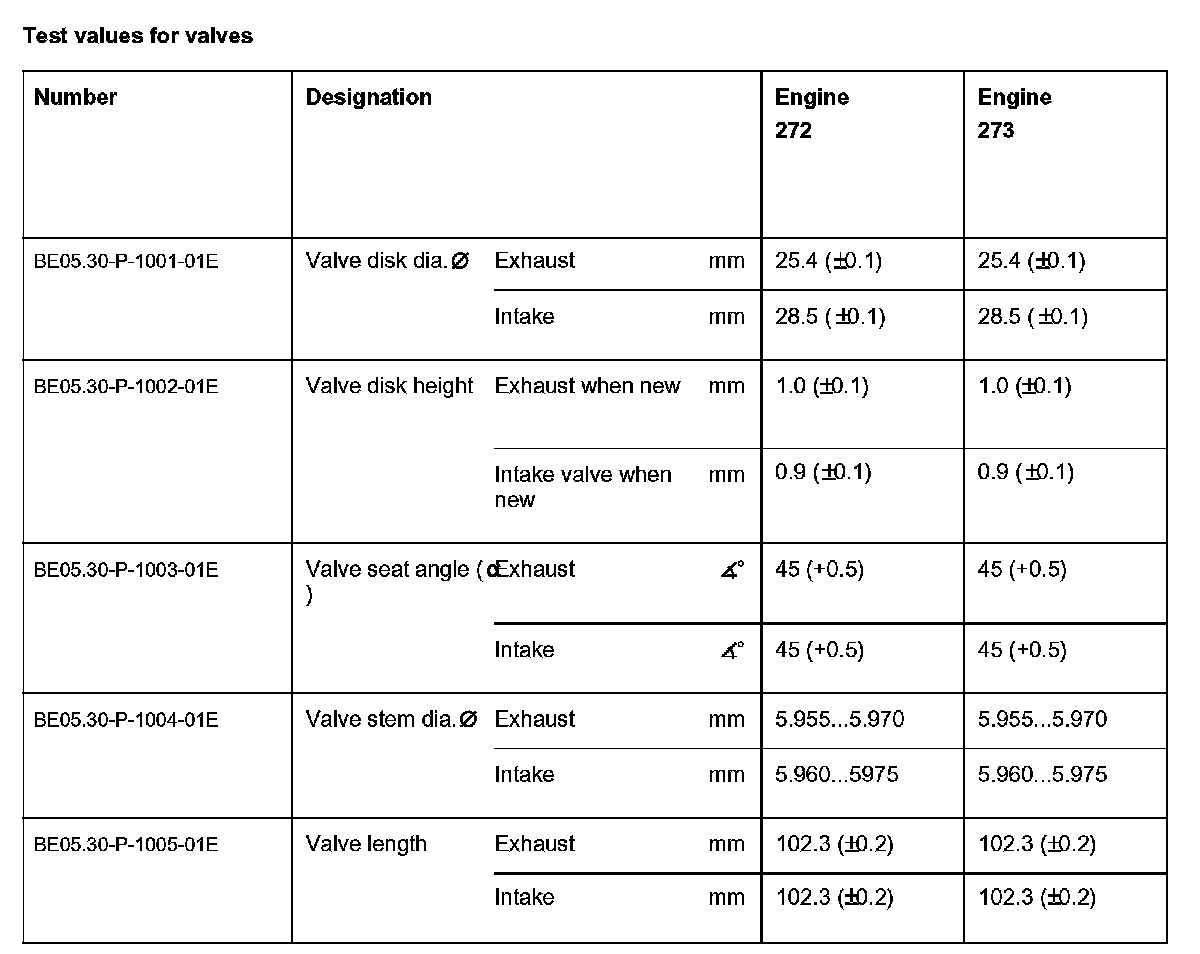

Test values for valves:

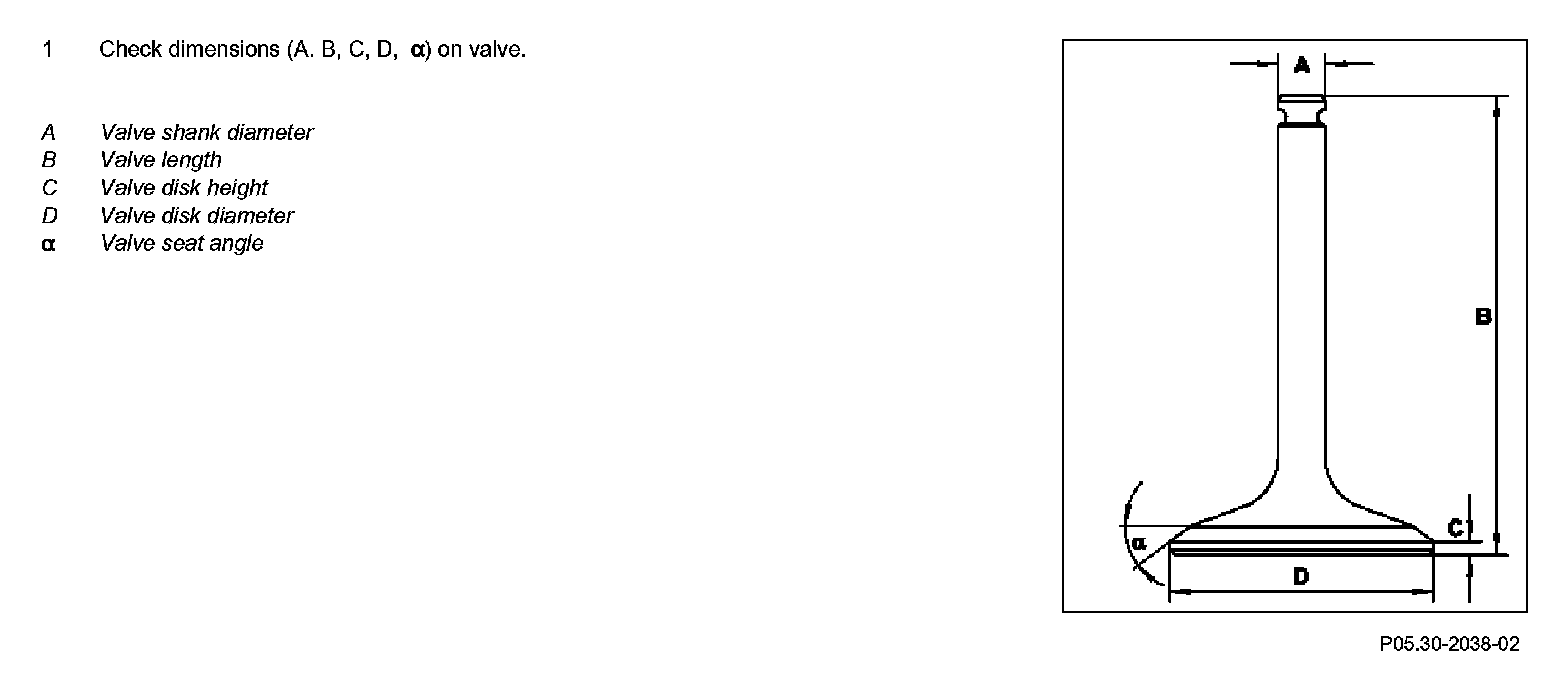

Valve dimensions:
1
Check dimensions (A, B, C, D,) on valve.
