AR05.30-P-4201-01VA Check Valves

AR05.30-P-4201-01VA Check Valves

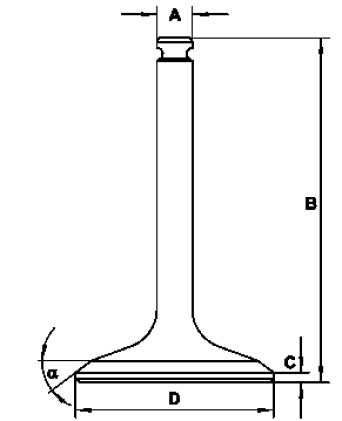

1 Check dimensions (A. B, C, D,) on valve.

A Valve stem diameter
B Valve length
C Valve disk height
D Valve disk diameter
Valve seat angle
