Valve: Service and Repair

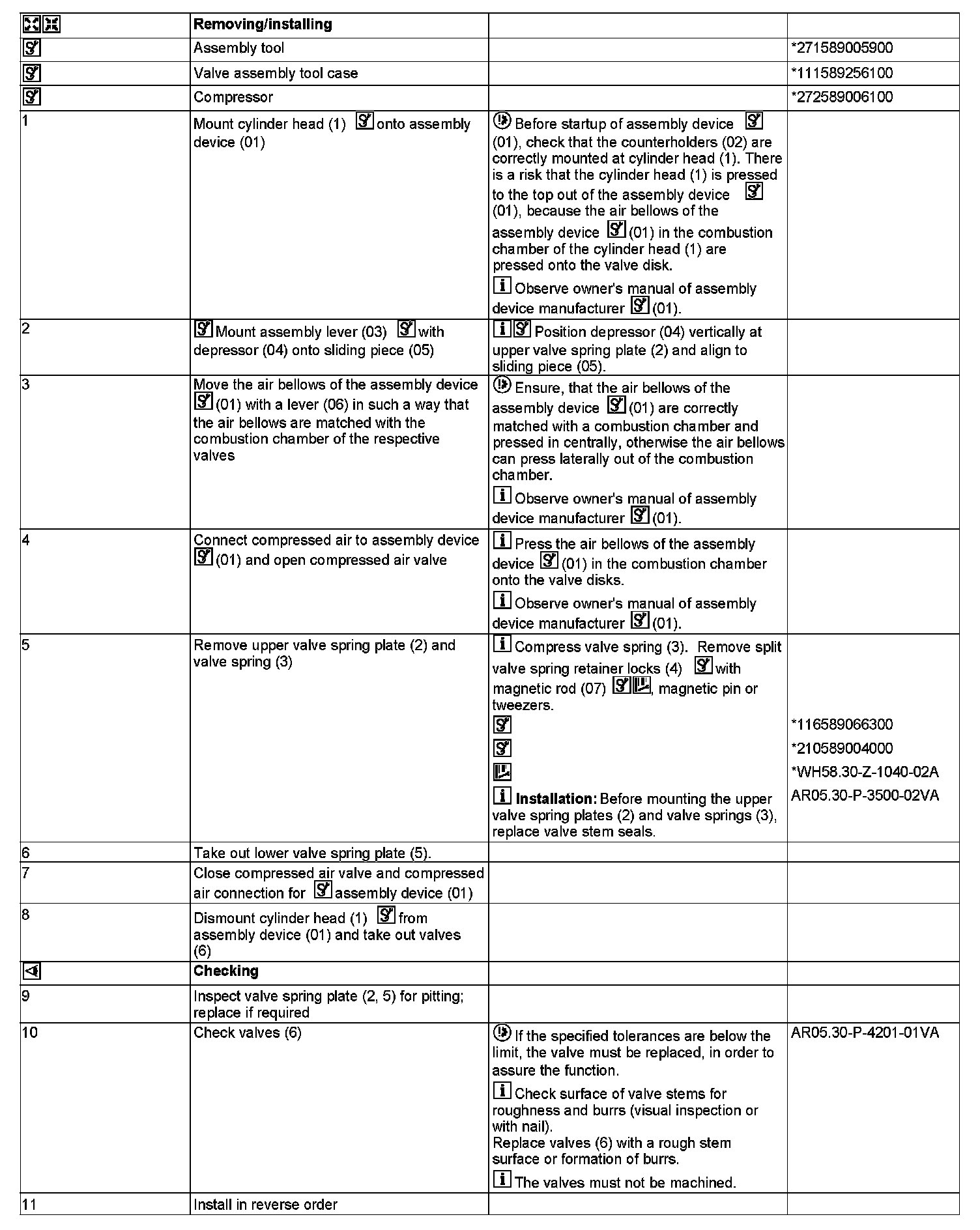

AR05.30-P-3511SX Removing/Installing Valves
ENGINE 272, 273
Cylinder head removed

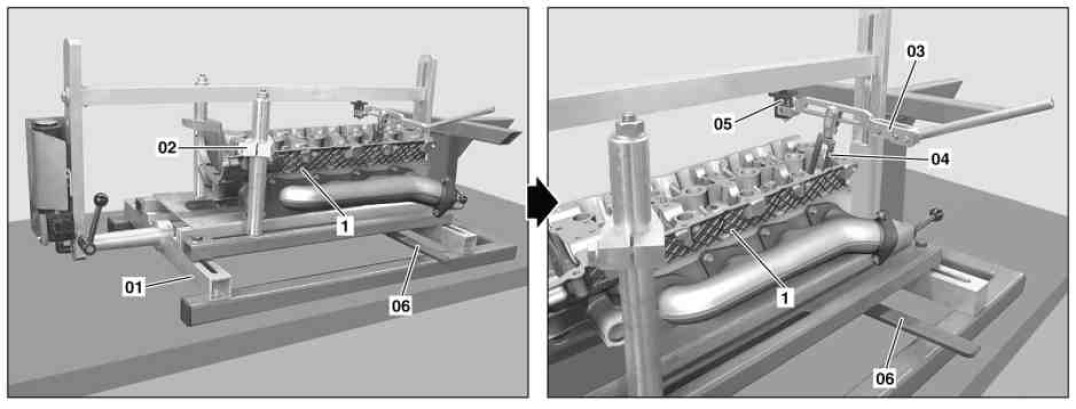

01 Assembly device
02 Counterholder
03 Assembly lever
04 Depressor
05 Sliding element
06 Lever

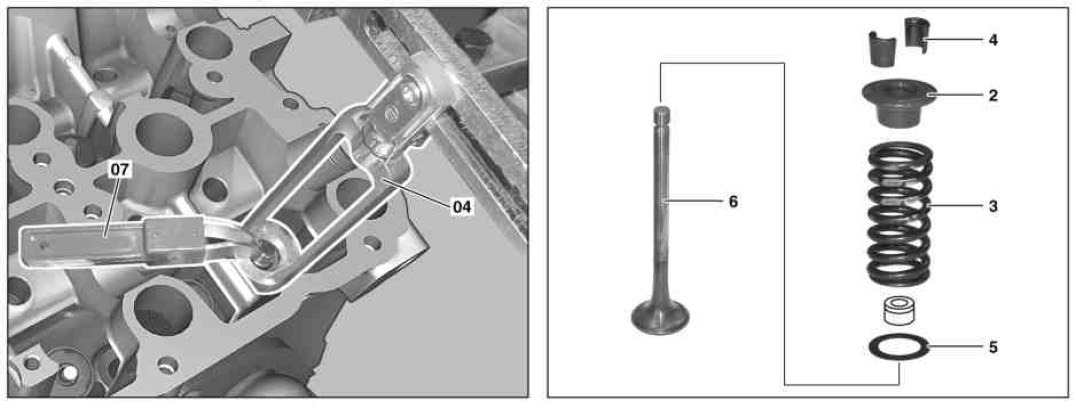

1 Cylinder head





04 Depressor
07 Magnetic finger
2 Upper valve spring retainer
3 Valve spring
4 Valve collets
5 Bottom valve spring retainer
6 Valve








271 589 00 59 00
Assembly tool





111 589 25 61 00
Valve assembly tool case





272 589 00 61 00
Compressor





116 589 06 63 00
Magnet finger





210 589 00 40 00
Magnet pin
