Valve Spring: Service and Repair



AR05.30-P-3500EW Remove/install valve springs and/or valve stem seals

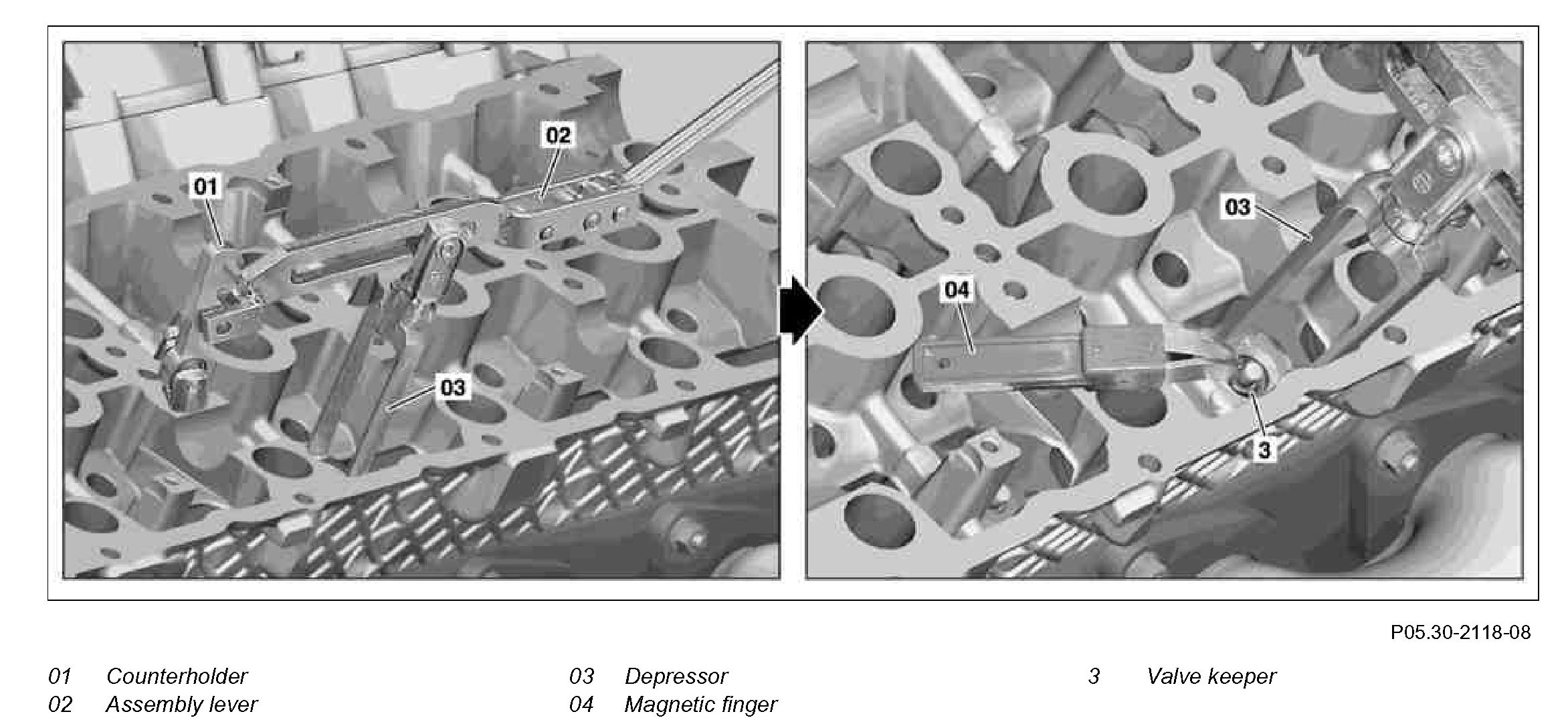

Component Identification:

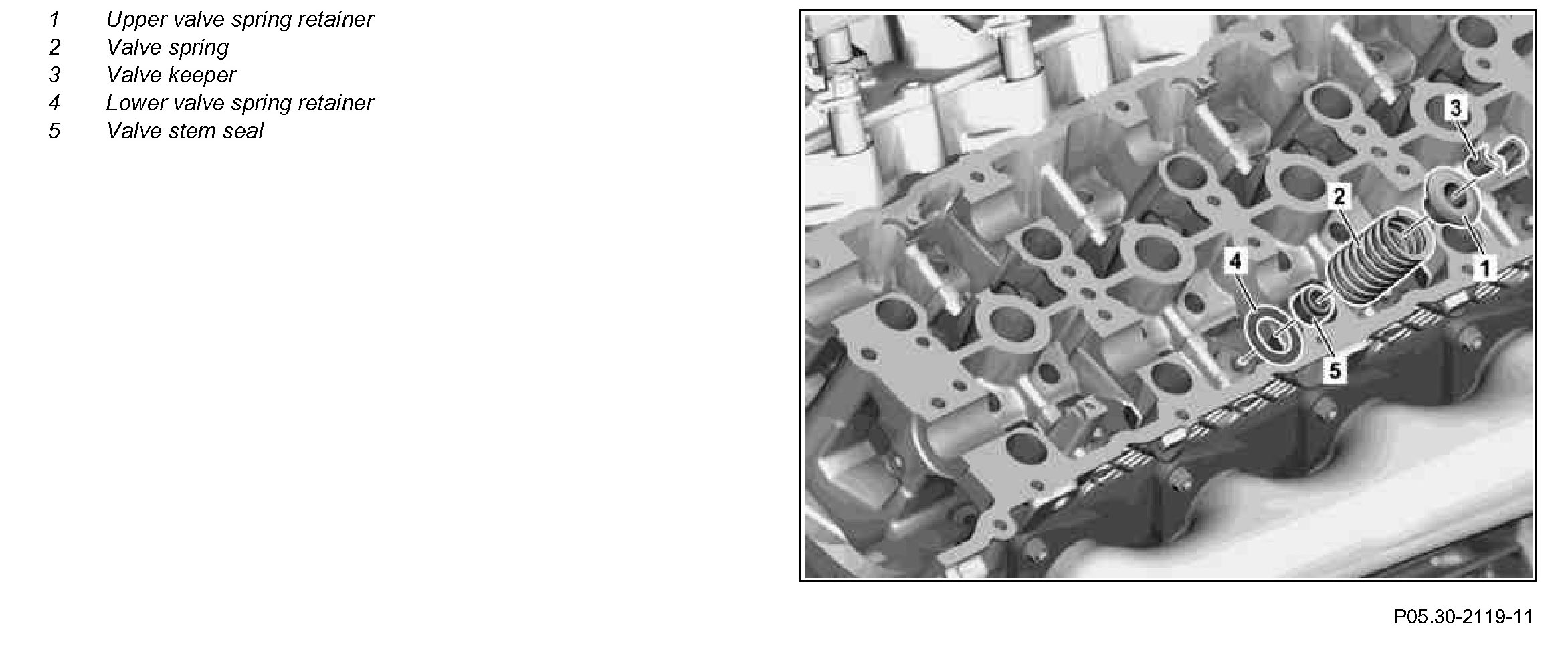

Component Identification:

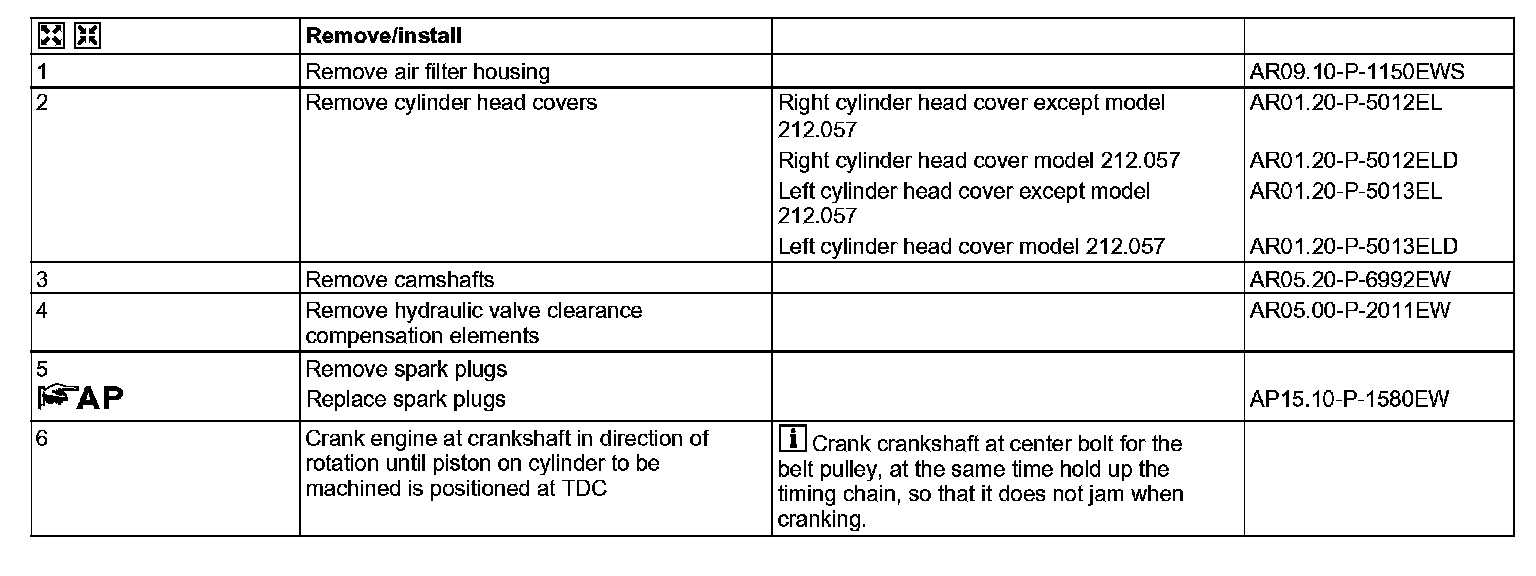

Steps 1-6:

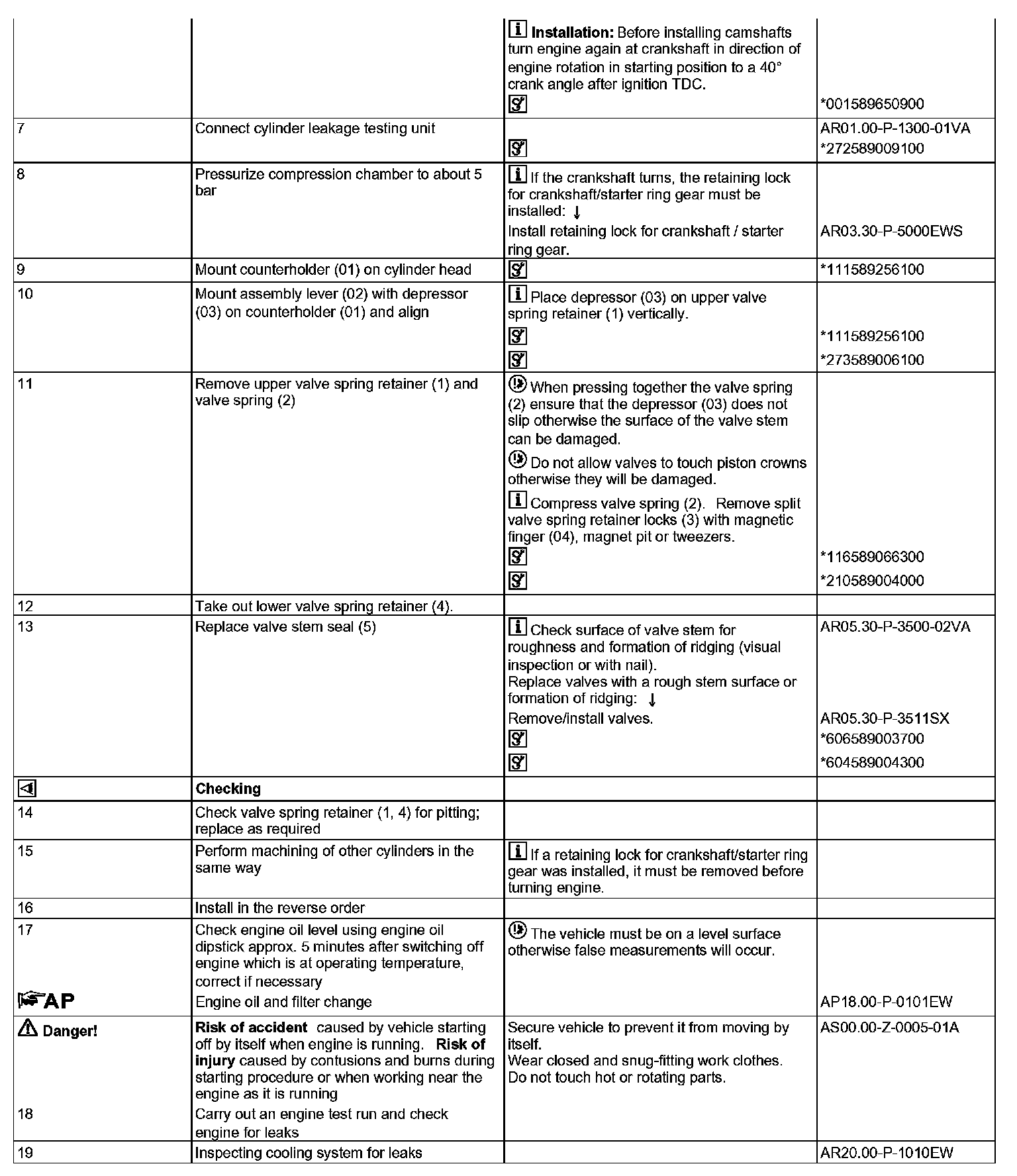

Steps 6-19:




Special Tools:
