AR01.20-P-5014-03VA Bolt Tightening Diagram For Cylinder Head cover

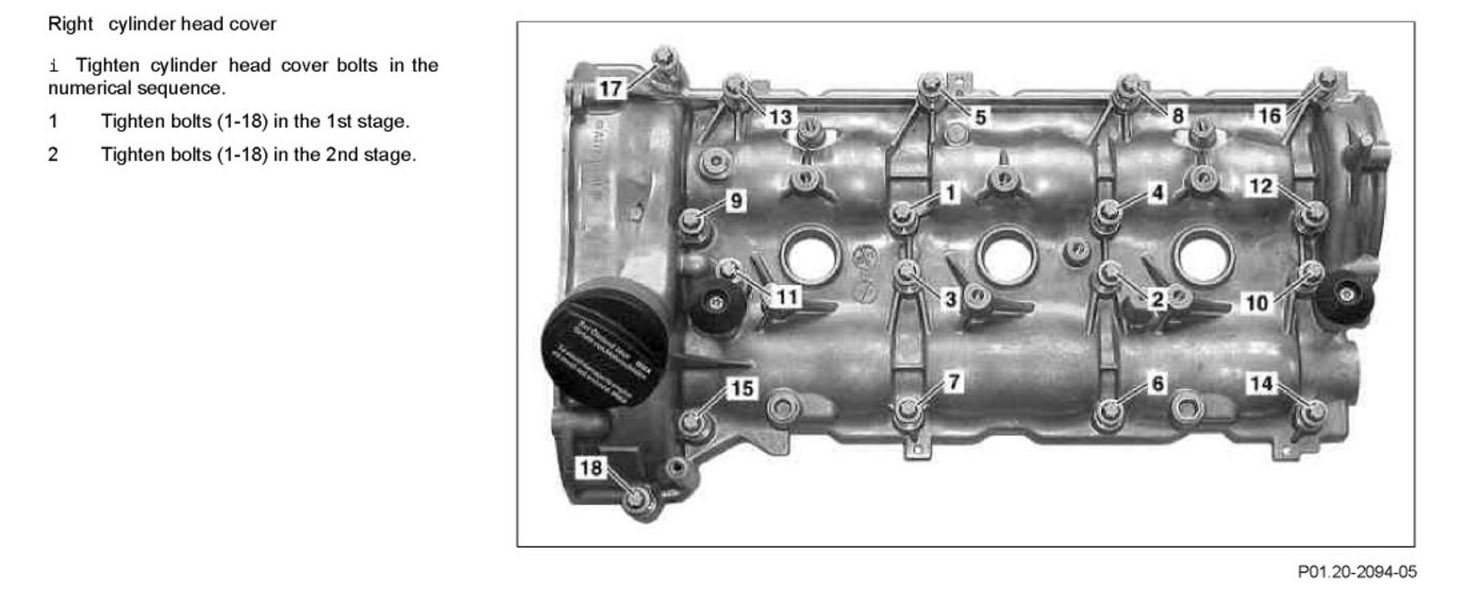

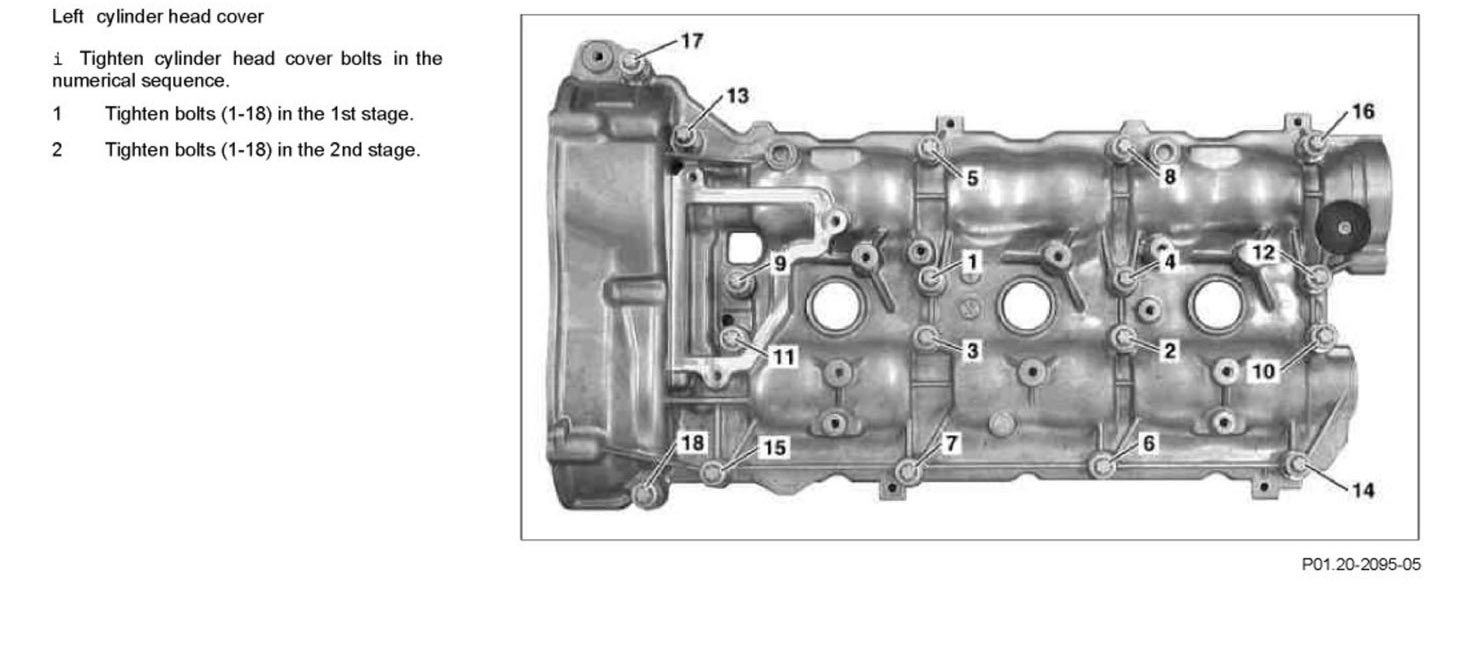

AR01.20-P-5014-03VA Bolt tightening diagram for cylinder head
cover

Bolt of cylinder head cover
- 1st stage 12 Nm
- 2nd stage 90°

Component Identification:




Component Identification:
