AR01.20-P-5012EL Remove/Install Right Cylinder Head Cover



AR01.20-P-5012EL Remove/install right cylinder head cover

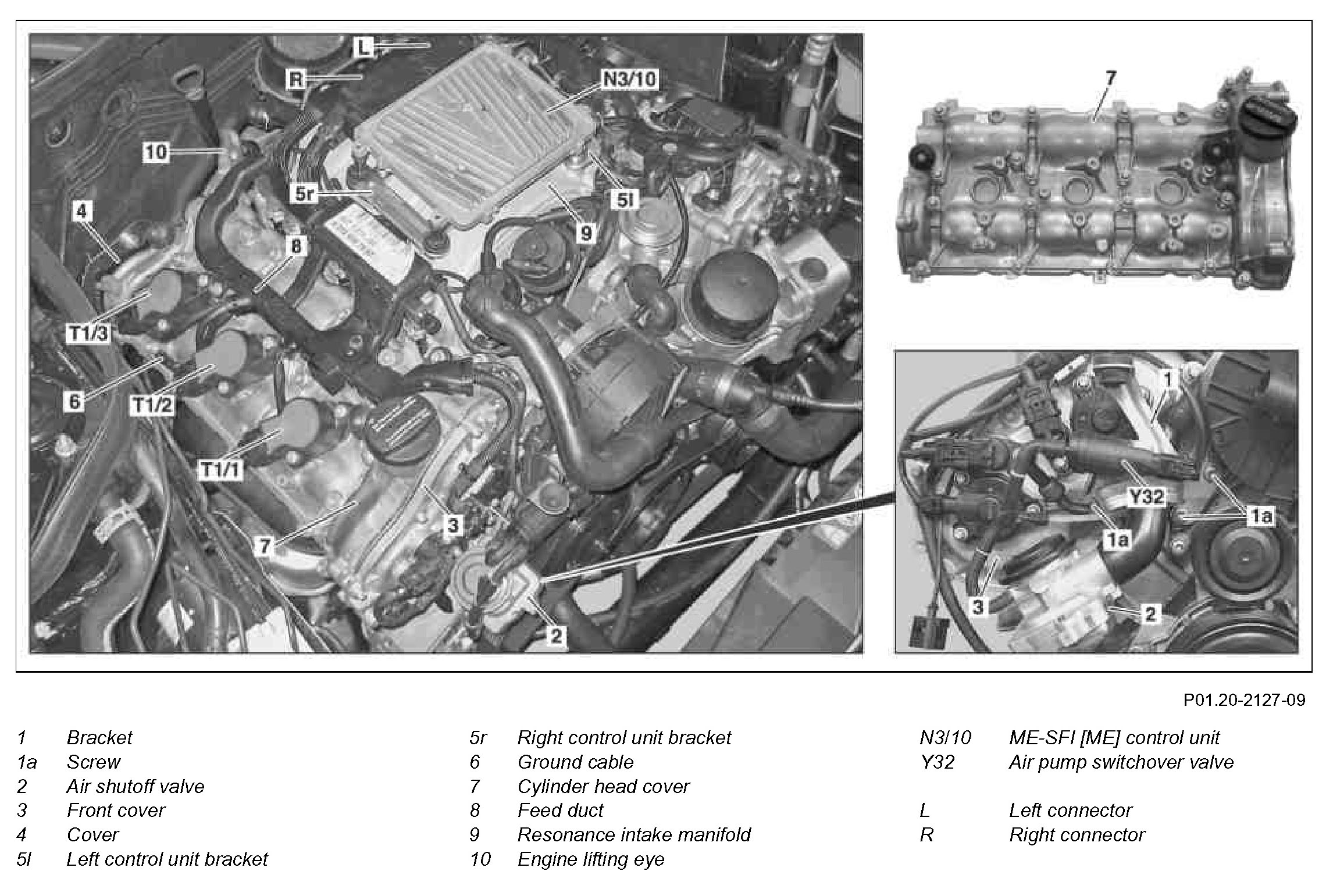

Component Identification:

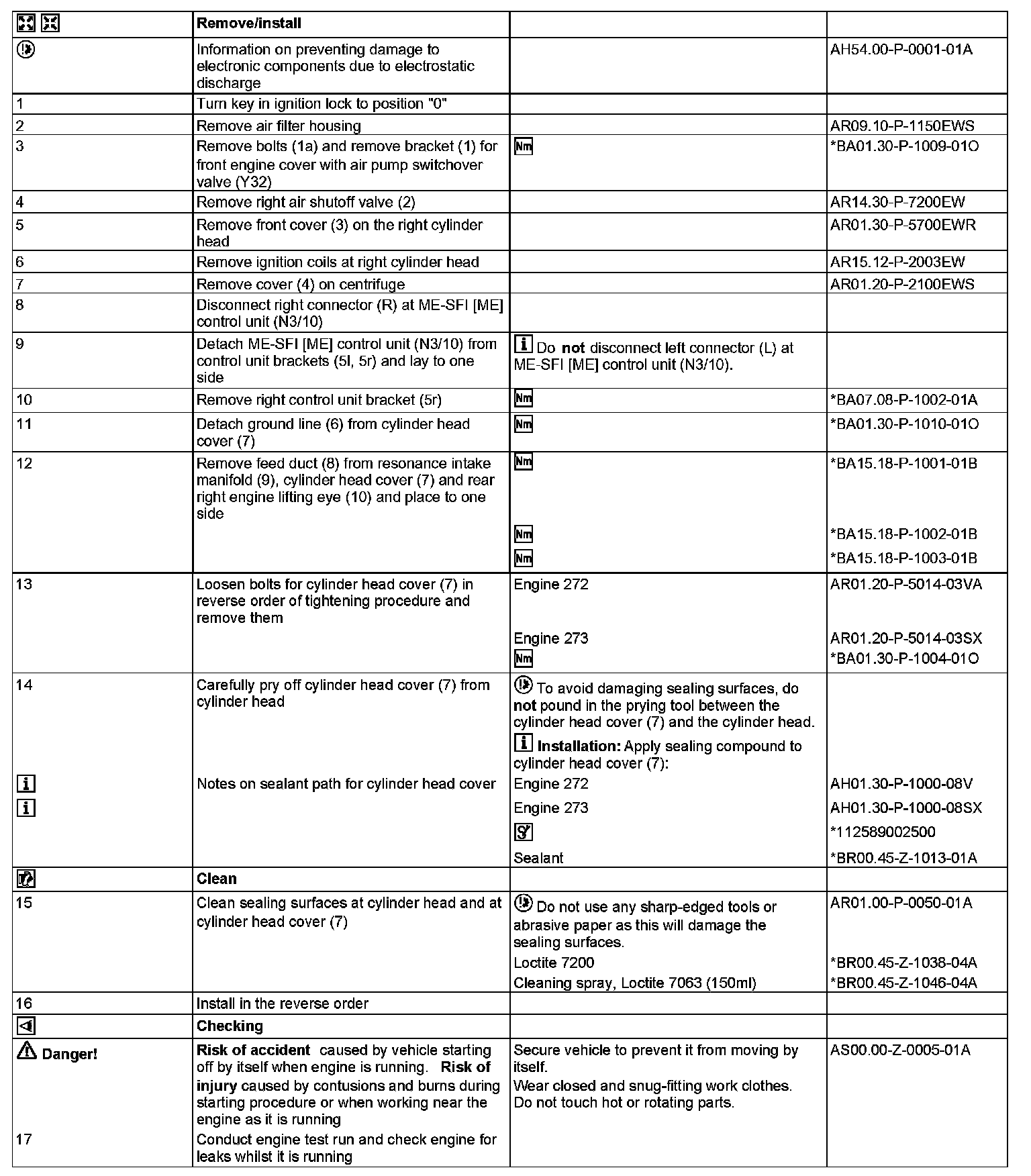

Steps 1-17:

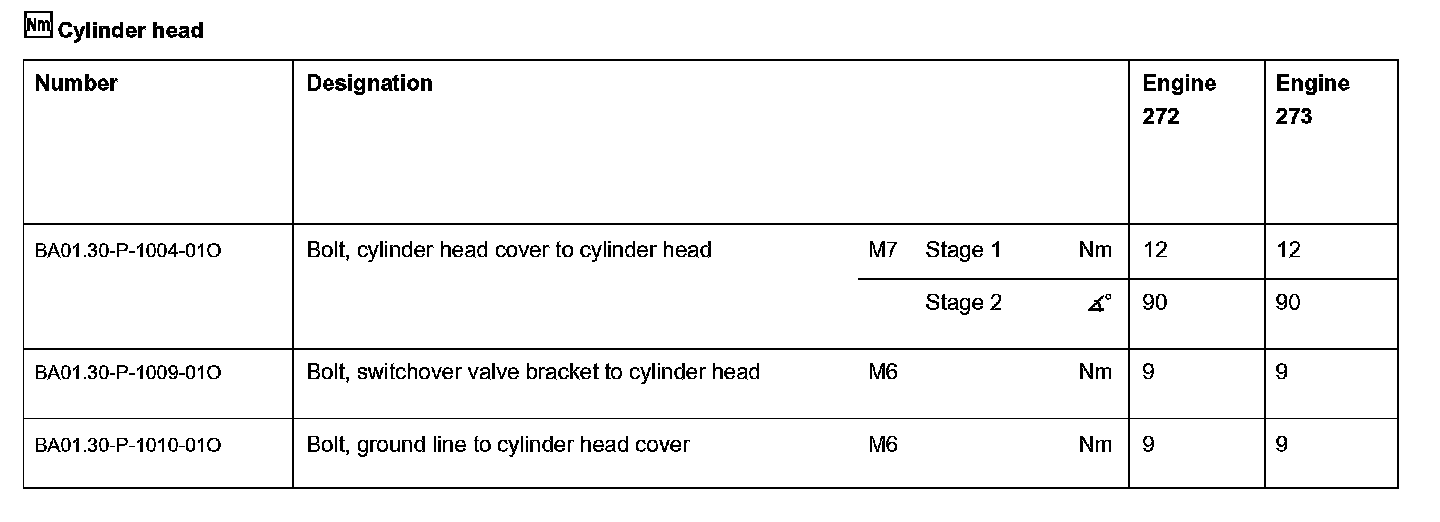

Cylinder head:

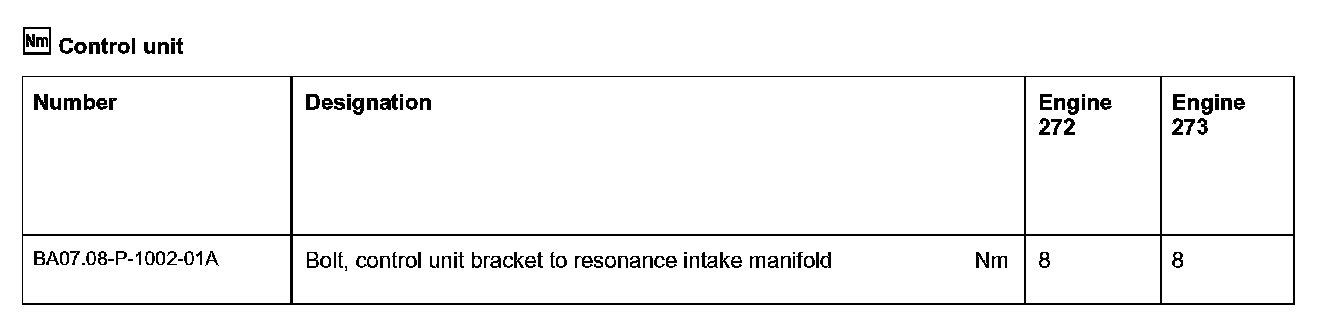

Control unit:

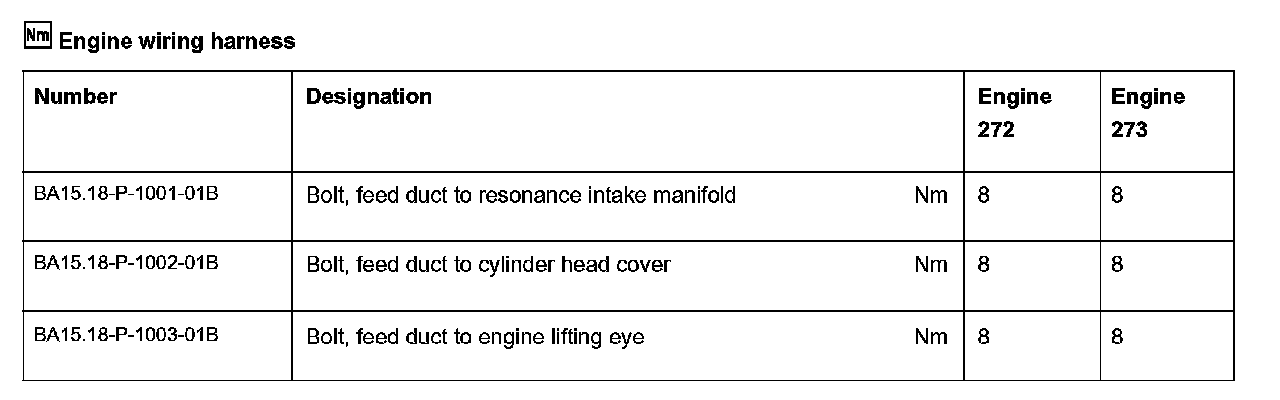

Engine wiring harness:

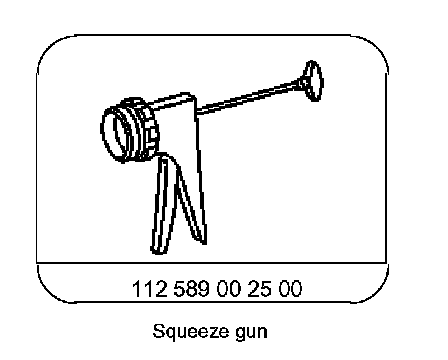

Special Tools:




Repair materials:
