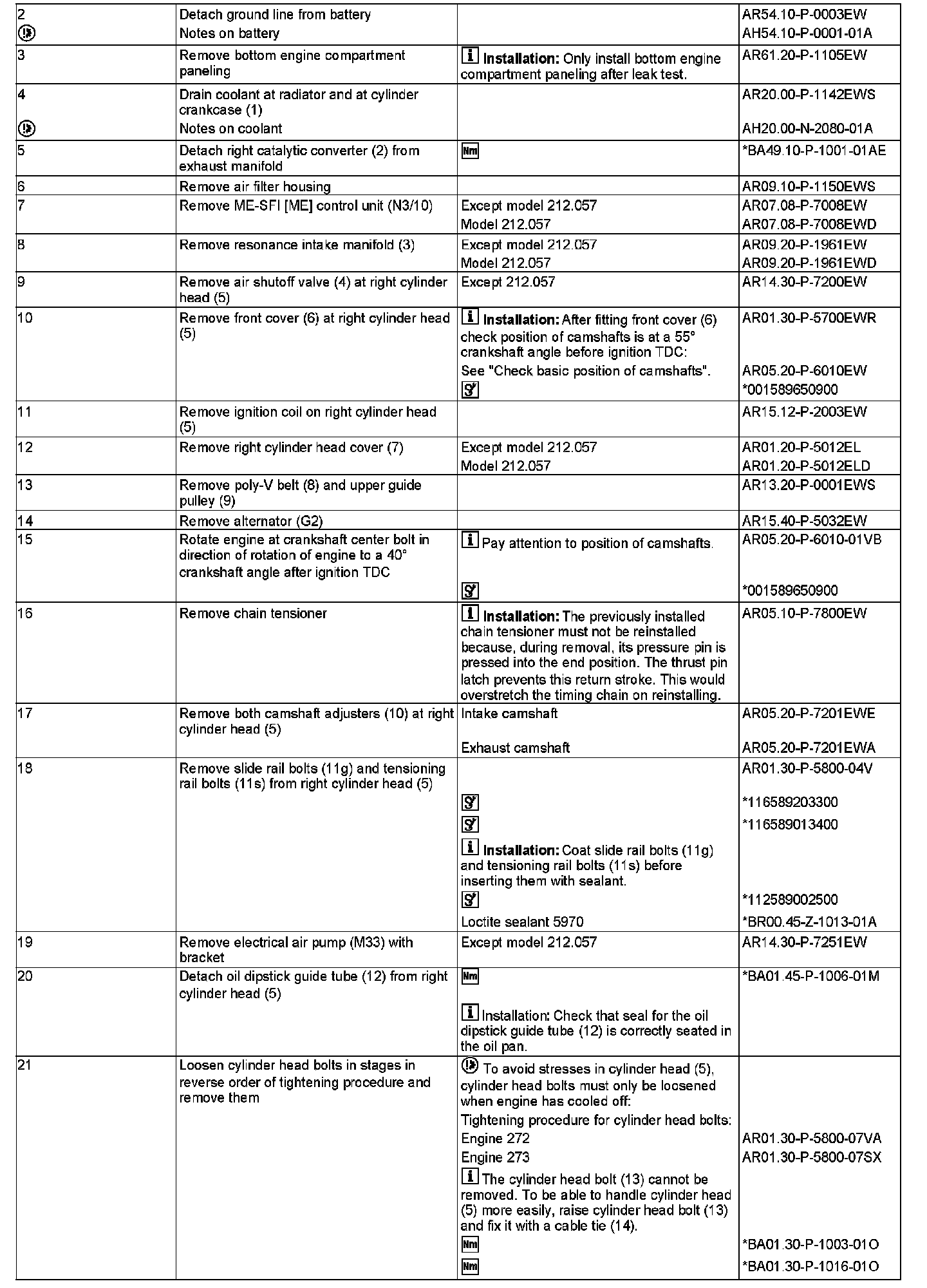

AR01.30-P-5780EW Remove/Install Right Cylinder Head

AR01.30-P-5780EW Remove/Install Right Cylinder Head
ENGINES 272, 273 in MODEL 212

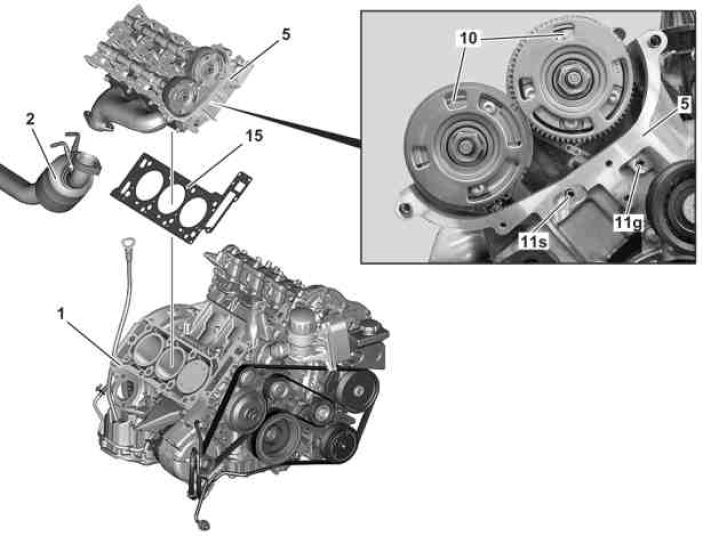

1 Cylinder crankcase

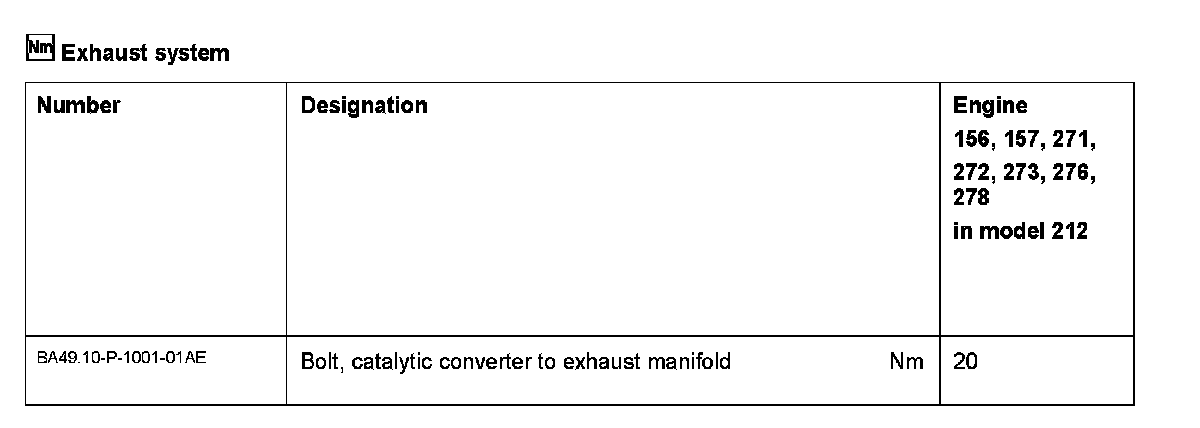

2 Catalytic converter
5 Cylinder head
10 Camshaft adjuster
11g Slide rail pins
11s Tensioning rail bolts
15 Cylinder head gasket

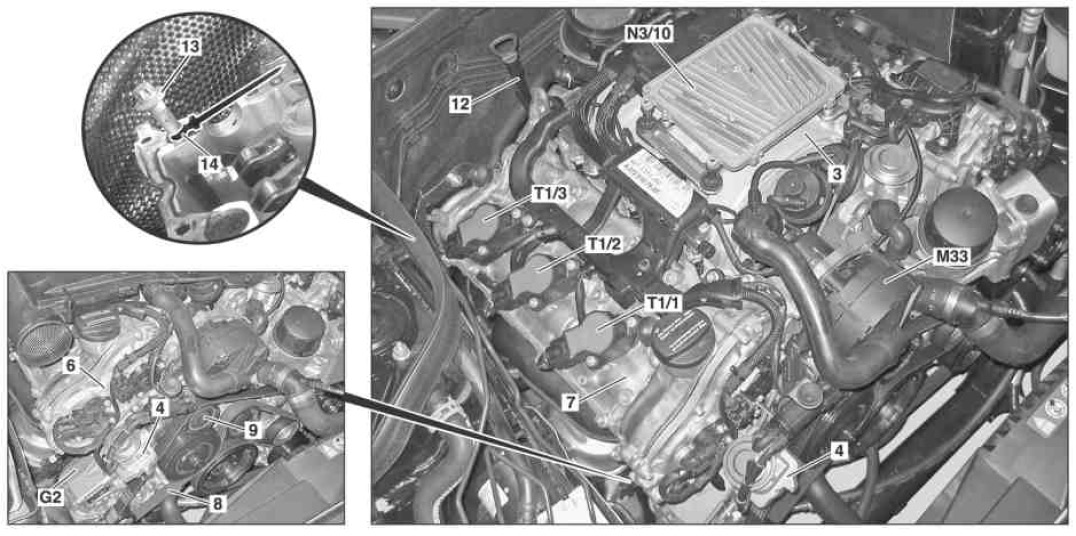

3 Resonance intake manifold
4 Air shutoff valve
6 Front cover
7 Cylinder head cover
8 Poly-V belt
9 Pulley

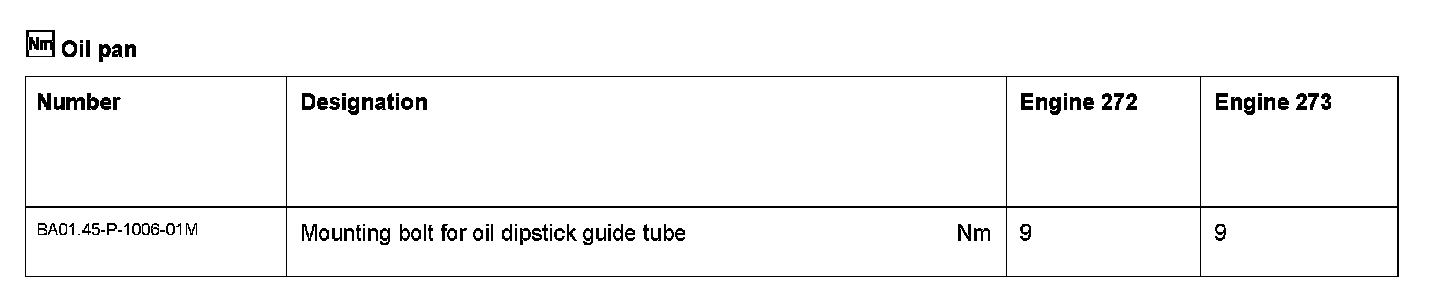

12 Oil dipstick guide tube

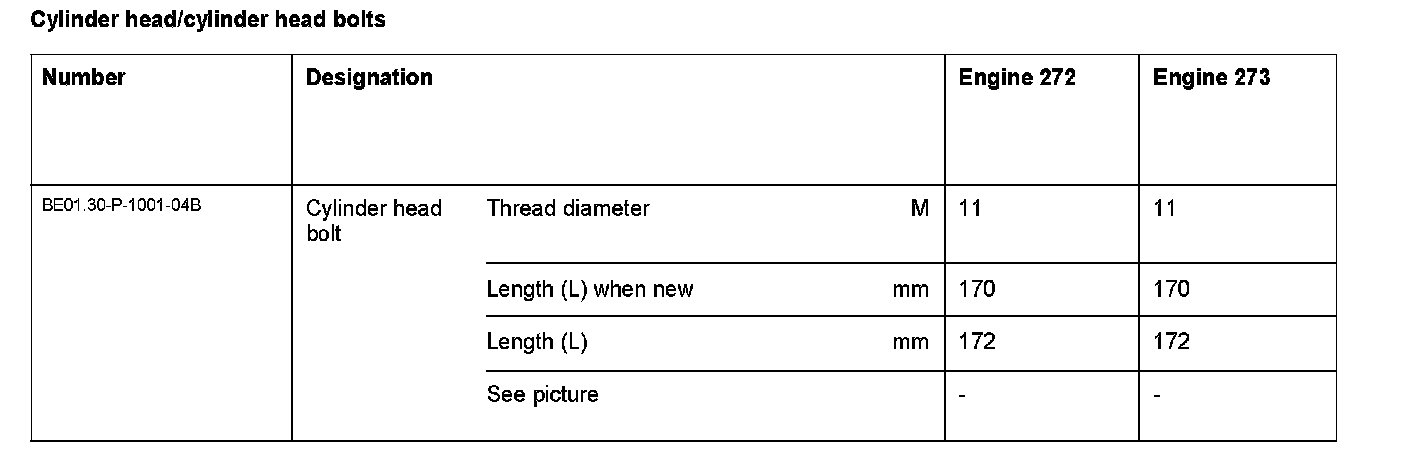

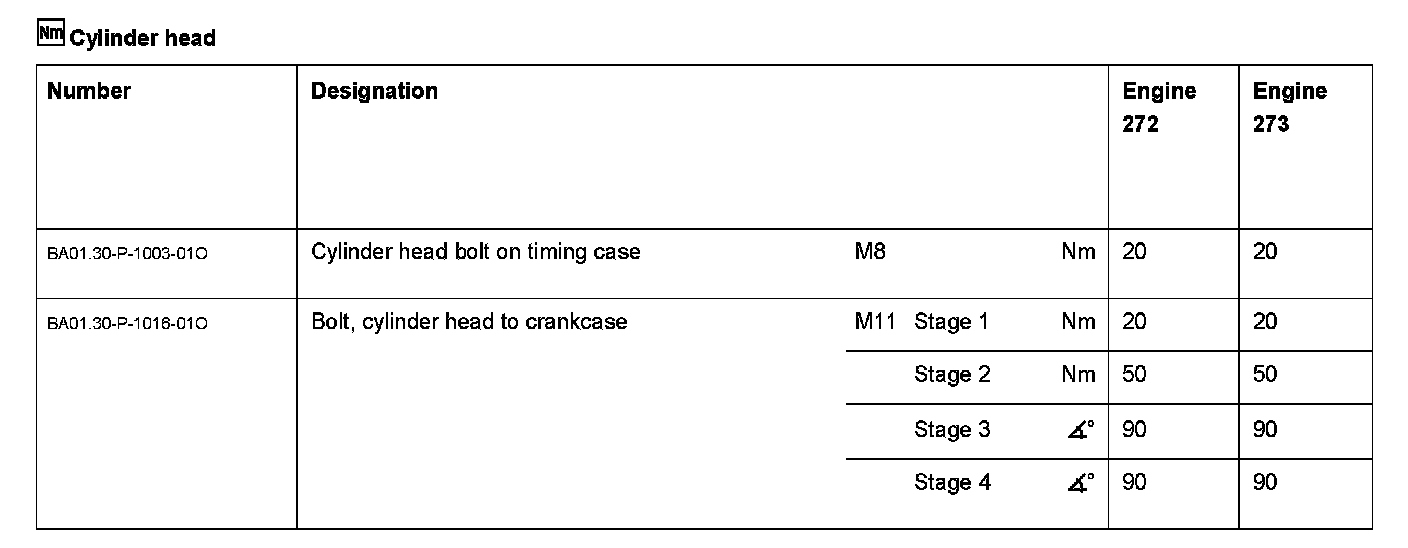

13 Cylinder head bolt
14 Cable tie

G2 Alternator
M33 Electric air pump
N3/10 ME-SFI [ME] control unit





























001 589 65 09 00
Wrench socket





116 589 20 33 00
Impact extractor





116 589 01 34 00
Threaded stud





112 589 00 25 00
Squeeze gun
