AR01.30-P-5770EW Remove/Install the Cylinder Head

AR01.30-P-5770EW Remove/Install The Cylinder Head
ENGINES 272, 273 in MODEL 212

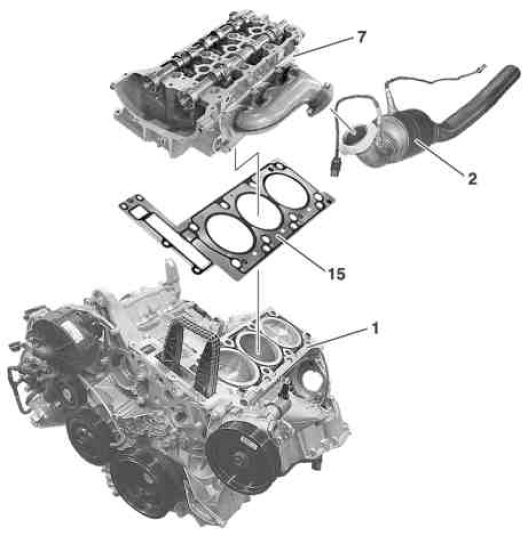

1 Cylinder crankcase
2 Catalytic converter
7 Cylinder head
15 Cylinder head gasket

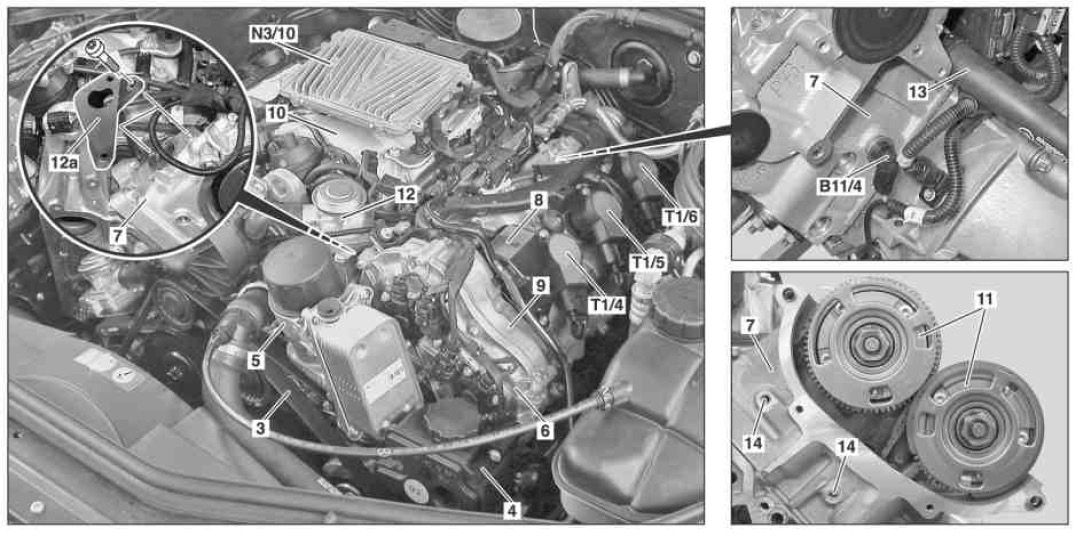

3 Poly-V-belt
4 Power steering expansion reservoir
5 Oil filter housing
6 Front cover
7 Cylinder head
8 Oil separator
9 Cylinder head cover
10 Resonance intake manifold
11 Camshaft adjuster

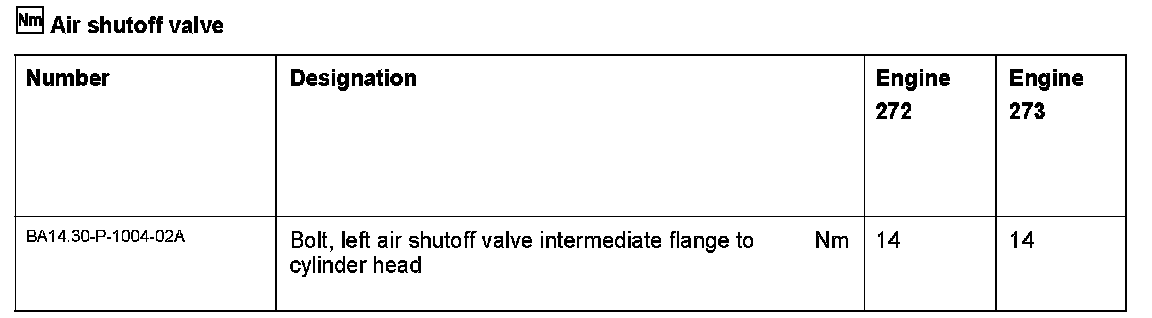

12 Air shutoff valve
12a Intermediate flange
13 Coolant hose
14 Slide rail pins

B11/4 Coolant temperature sensor
N3/10 ME-SFI [ME] control unit





























001 589 65 09 00
Wrench socket





116 589 20 33 00
Impact extractor





116 589 01 34 00
Threaded stud





112 589 00 25 00
Squeeze gun
