AR03.10-P-7311VA Removing/Installing Piston Rings
AR03.10-P-7311VA Remove, install piston rings
- Piston removed

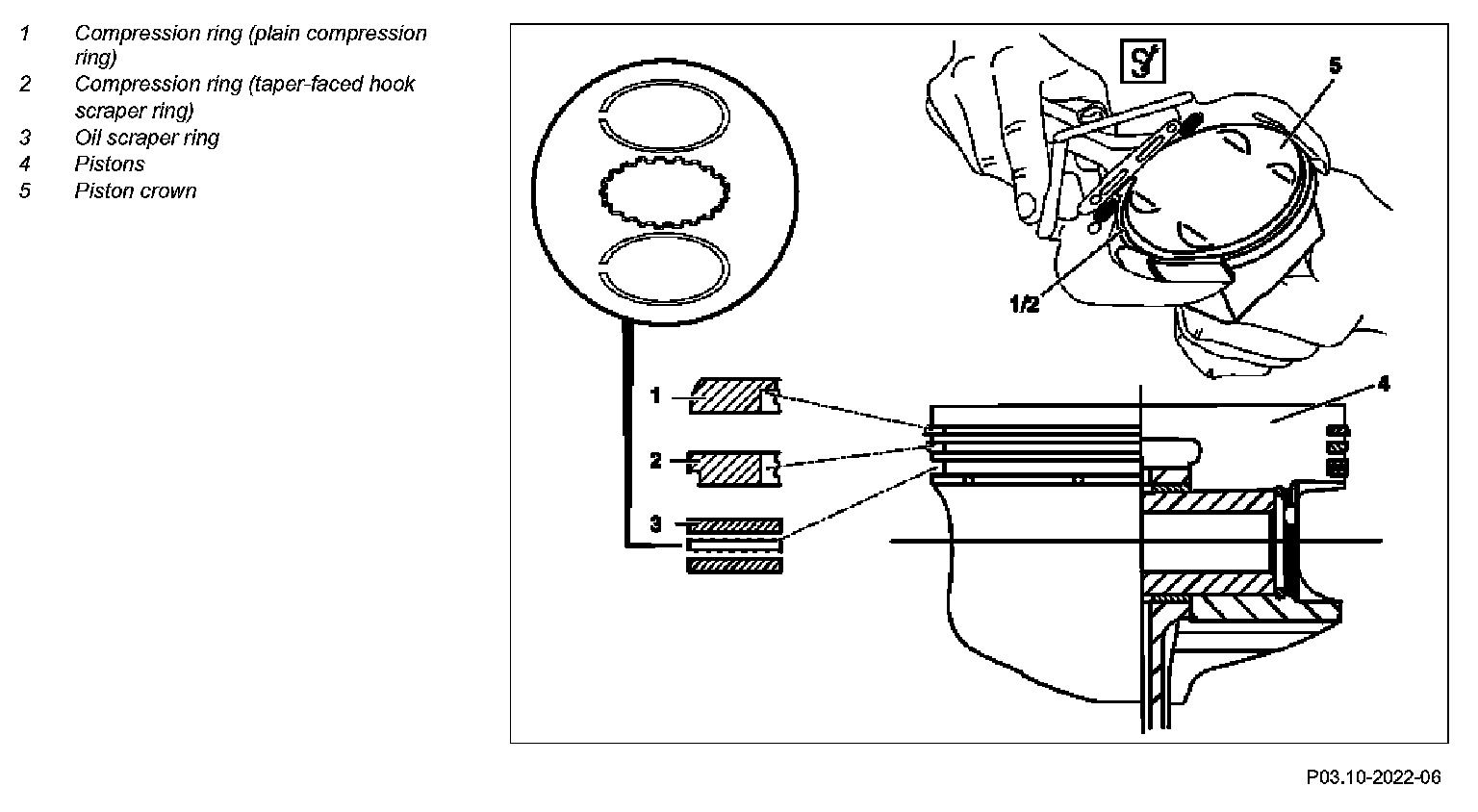

Component Identification:

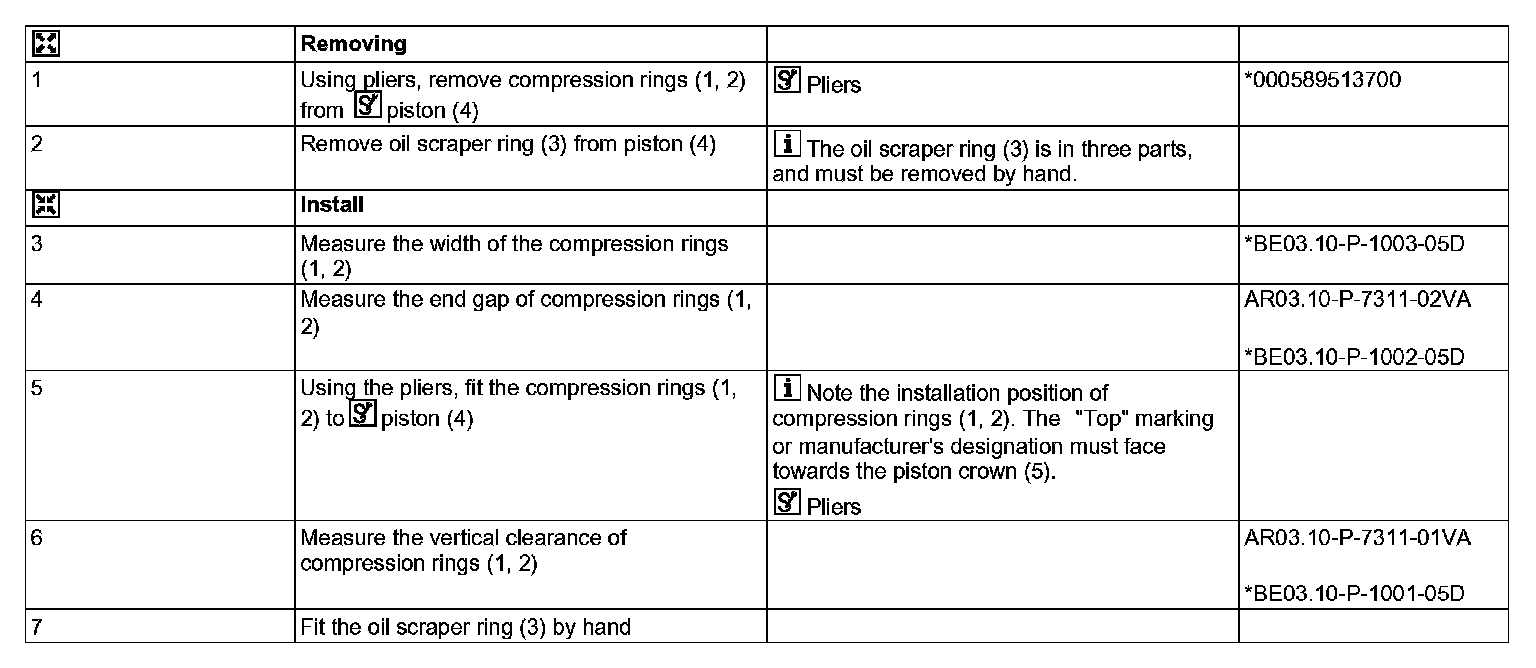

Steps 1-7:

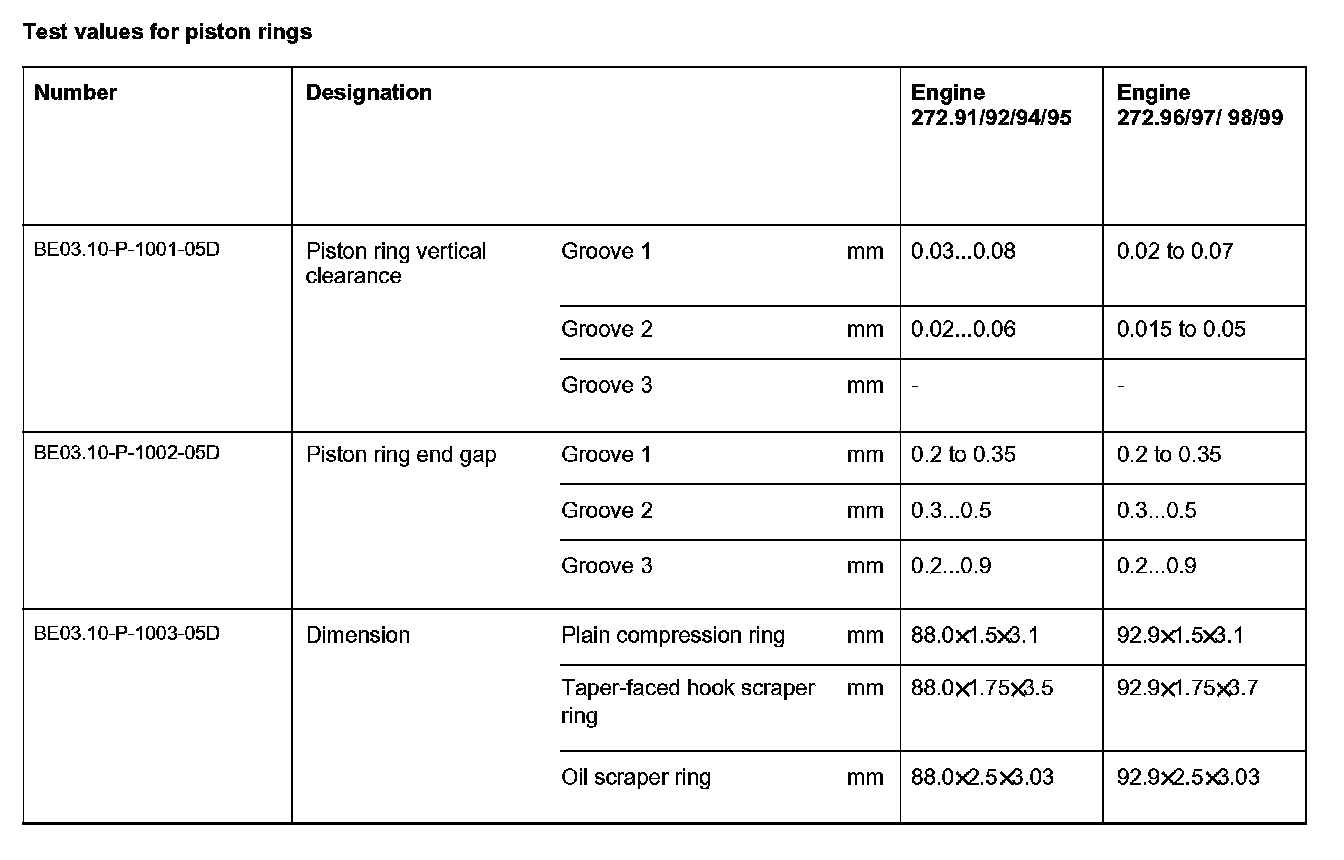

Test values for piston rings:

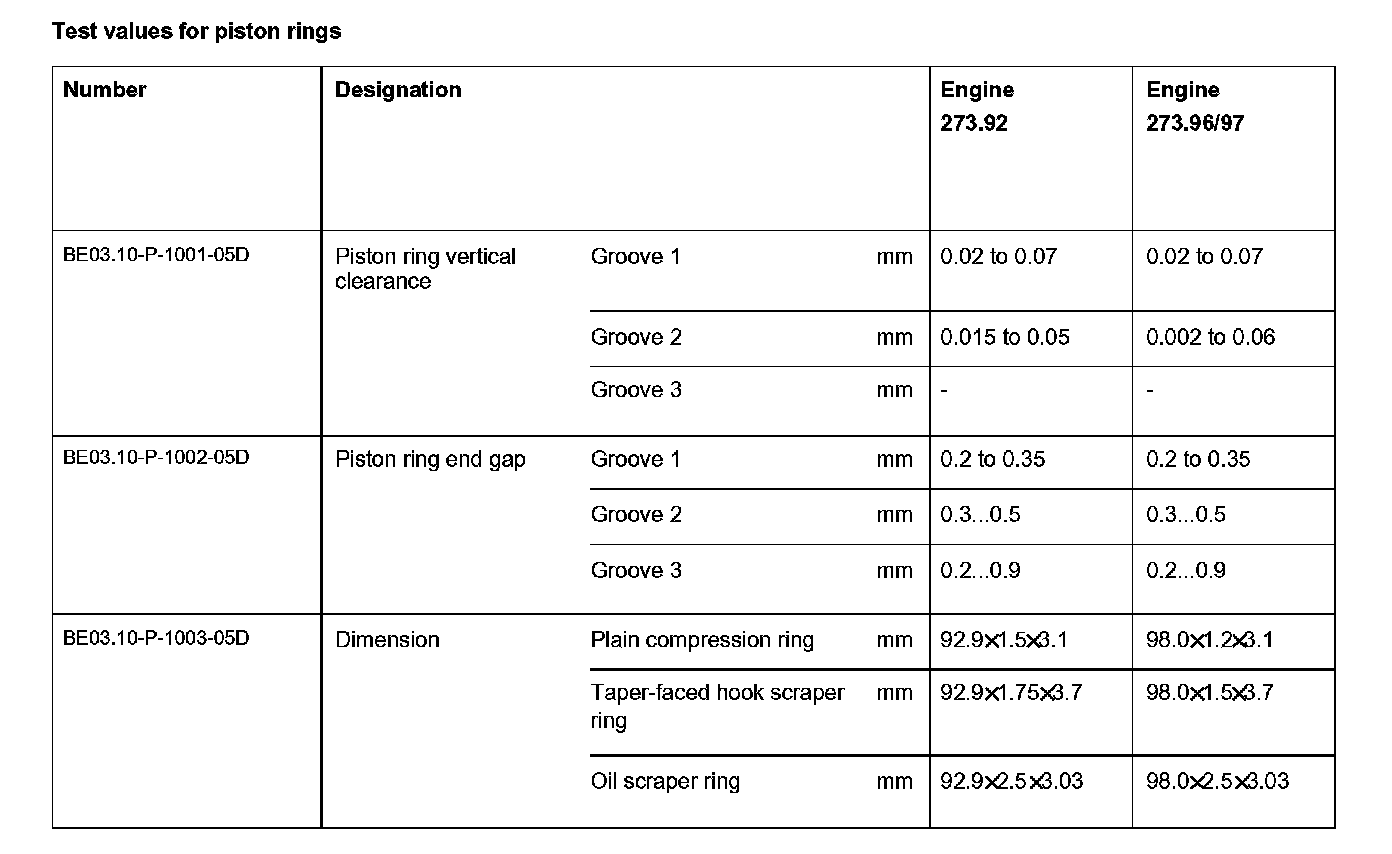

Test values for piston rings:

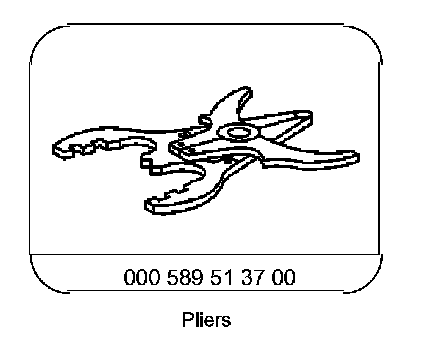

Special Tools:
AR03.10-P-7311VA Remove, install piston rings
- Piston removed
