AR03.10-P-7311VA Remove, Install Piston Rings

AR03.10-P-7311VA Remove, Install Piston Rings
ENGINE 272, 273

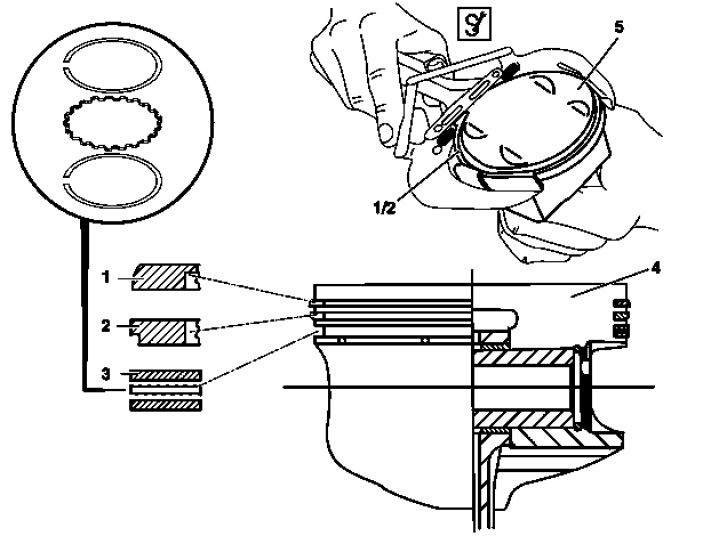

Piston removed





1 Compression ring (plain compression ring)
2 Compression ring (taper-faced hook scraper ring)
3 Oil scraper ring
4 Pistons
5 Piston crown











000 589 51 37 00
Pliers
