Cylinder Liner: Service and Repair
AR01.40-P-9202EWS Measure cylinder bores

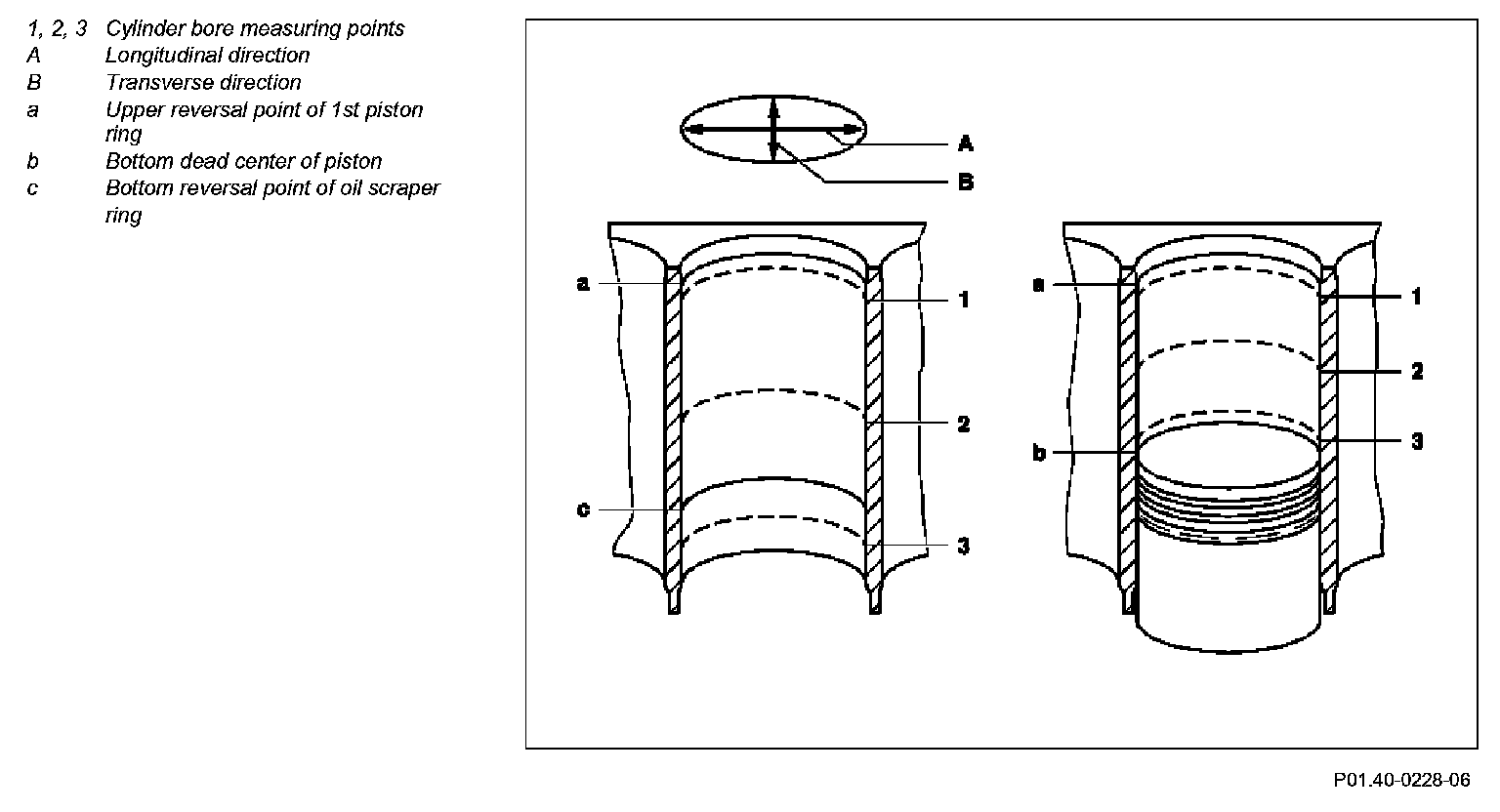

Cylinder bore measurement:

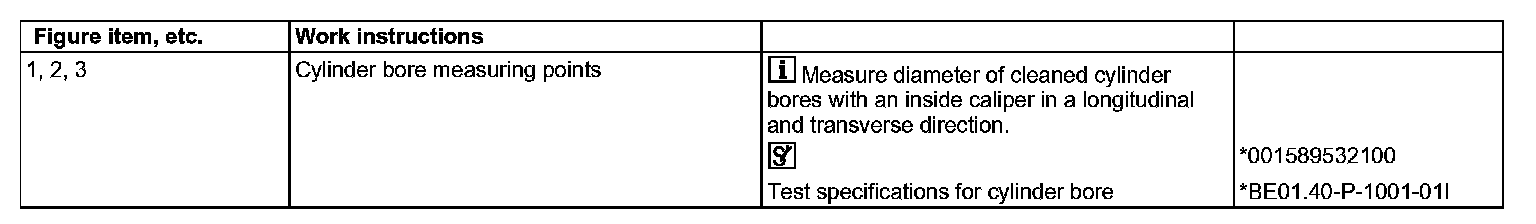

Work instructions:

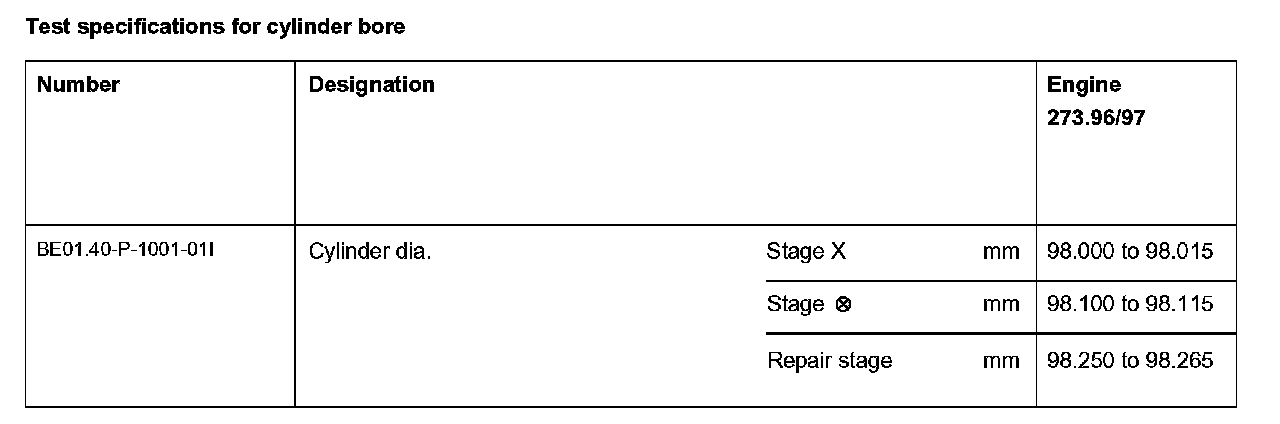

Test specifications for cylinder bore:

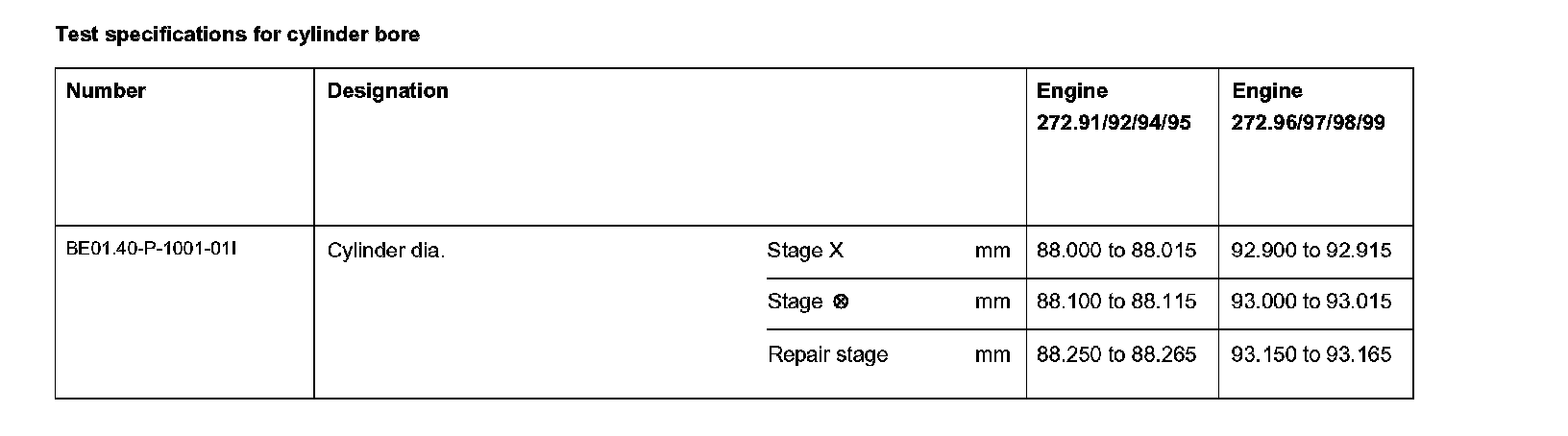

Test specifications for cylinder bore:

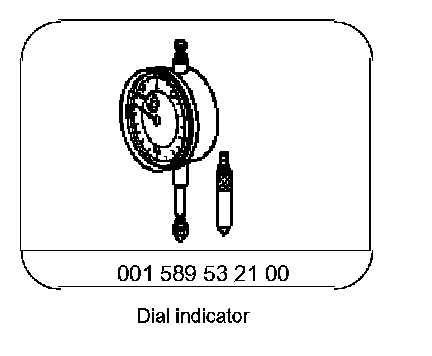

Special Tools:
AR01.40-P-9202EWS Measure cylinder bores
