Crankshaft: Service and Repair

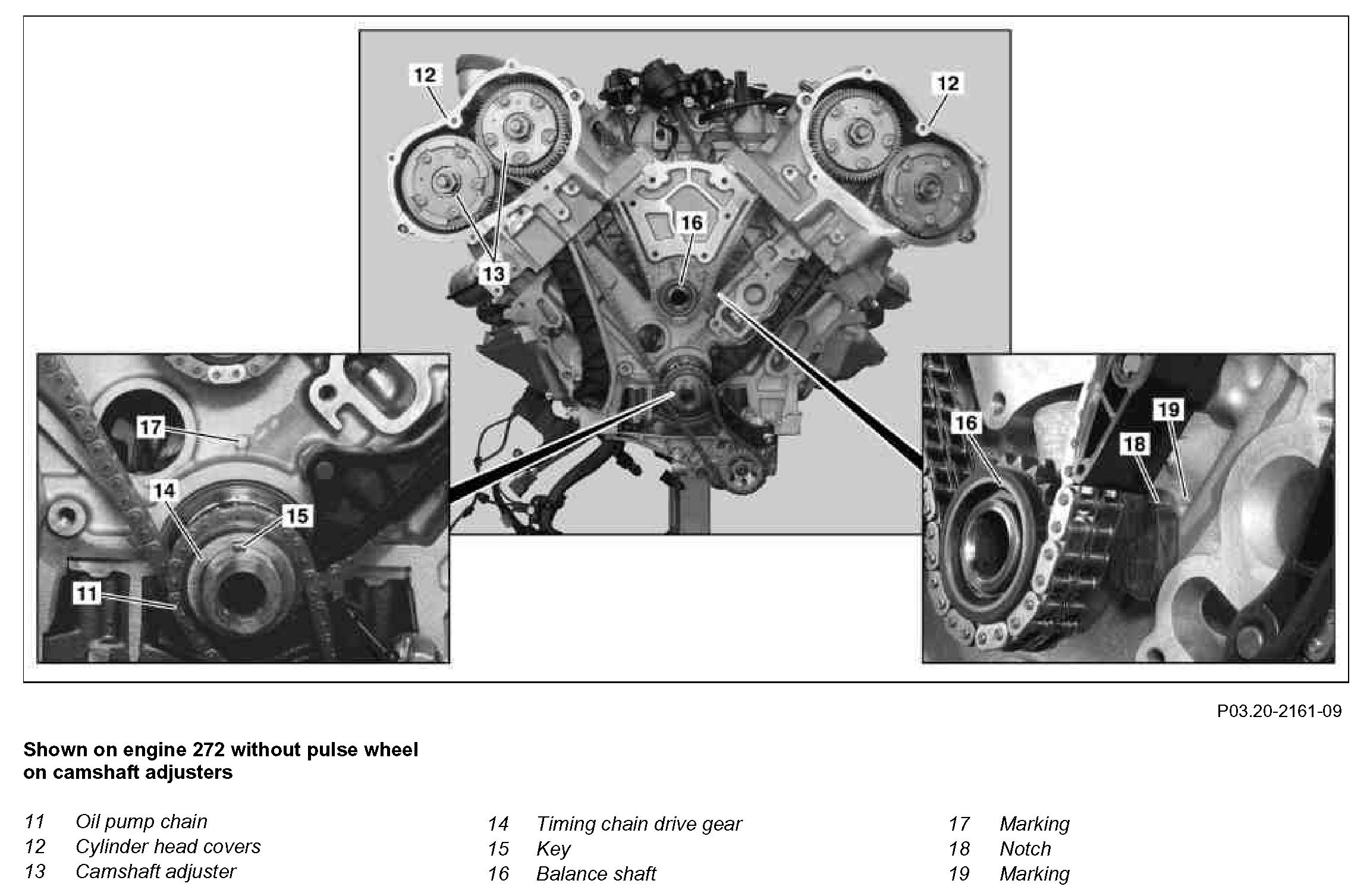

Component Identification:

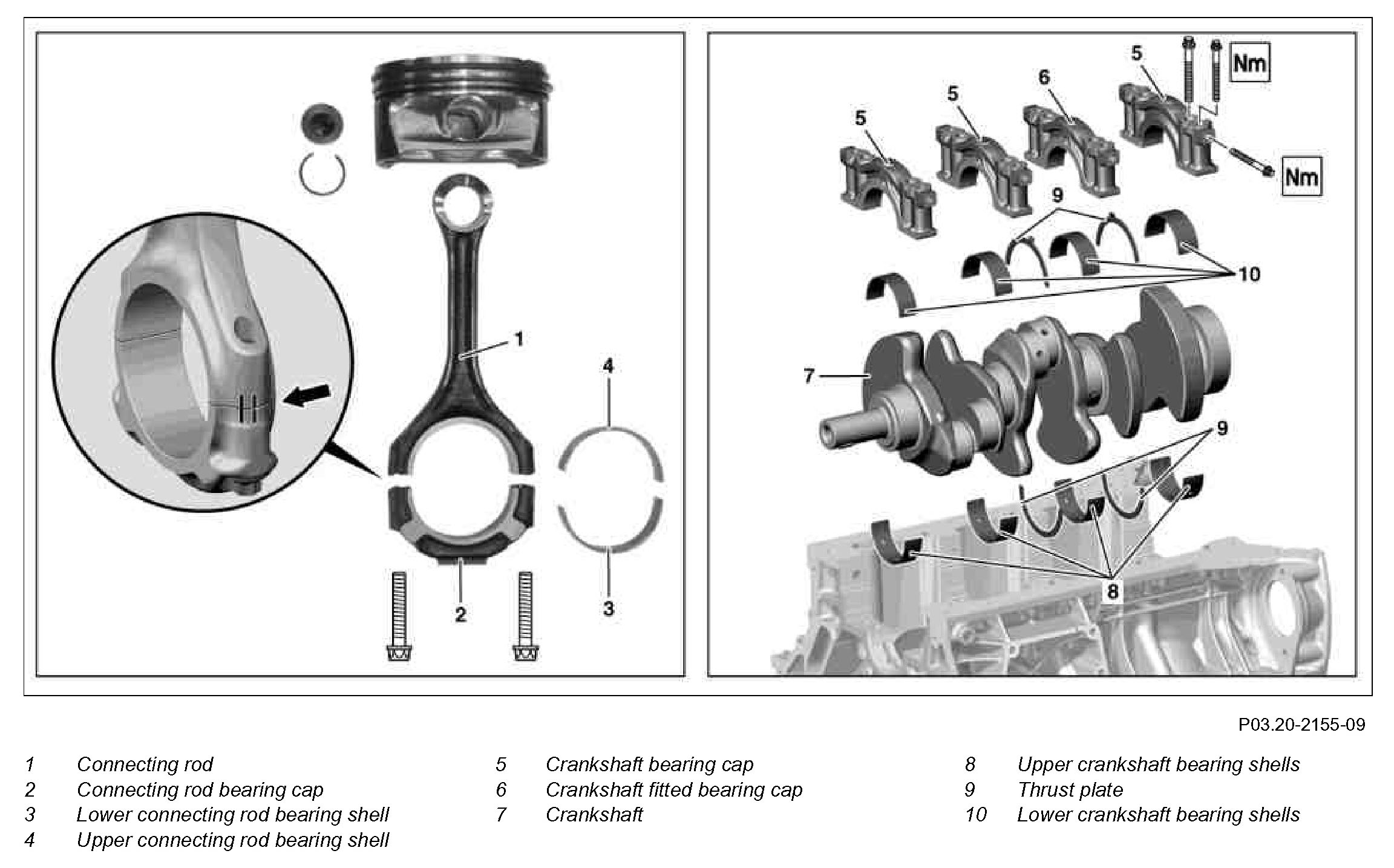

Component Identification:

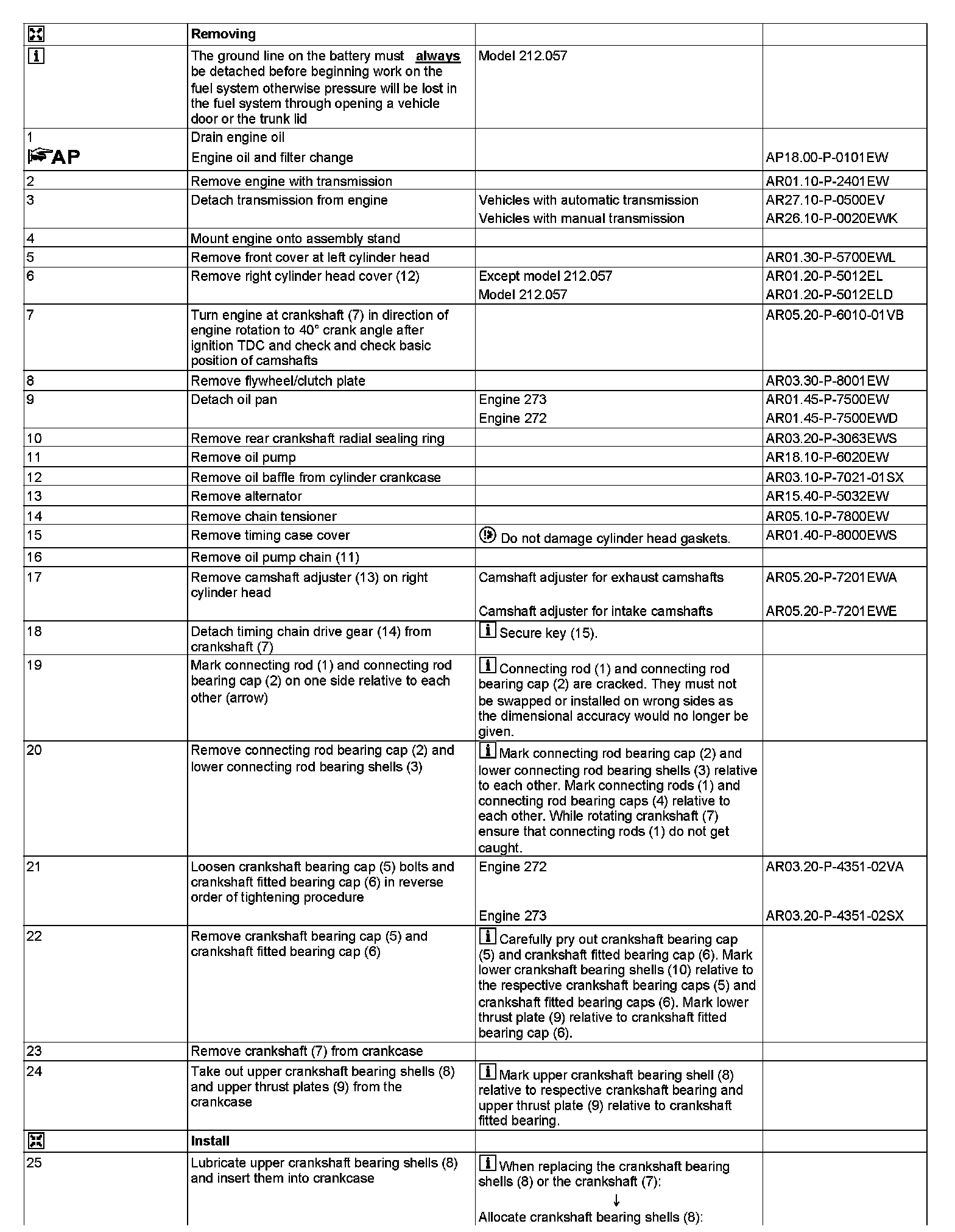

Steps 1-25:

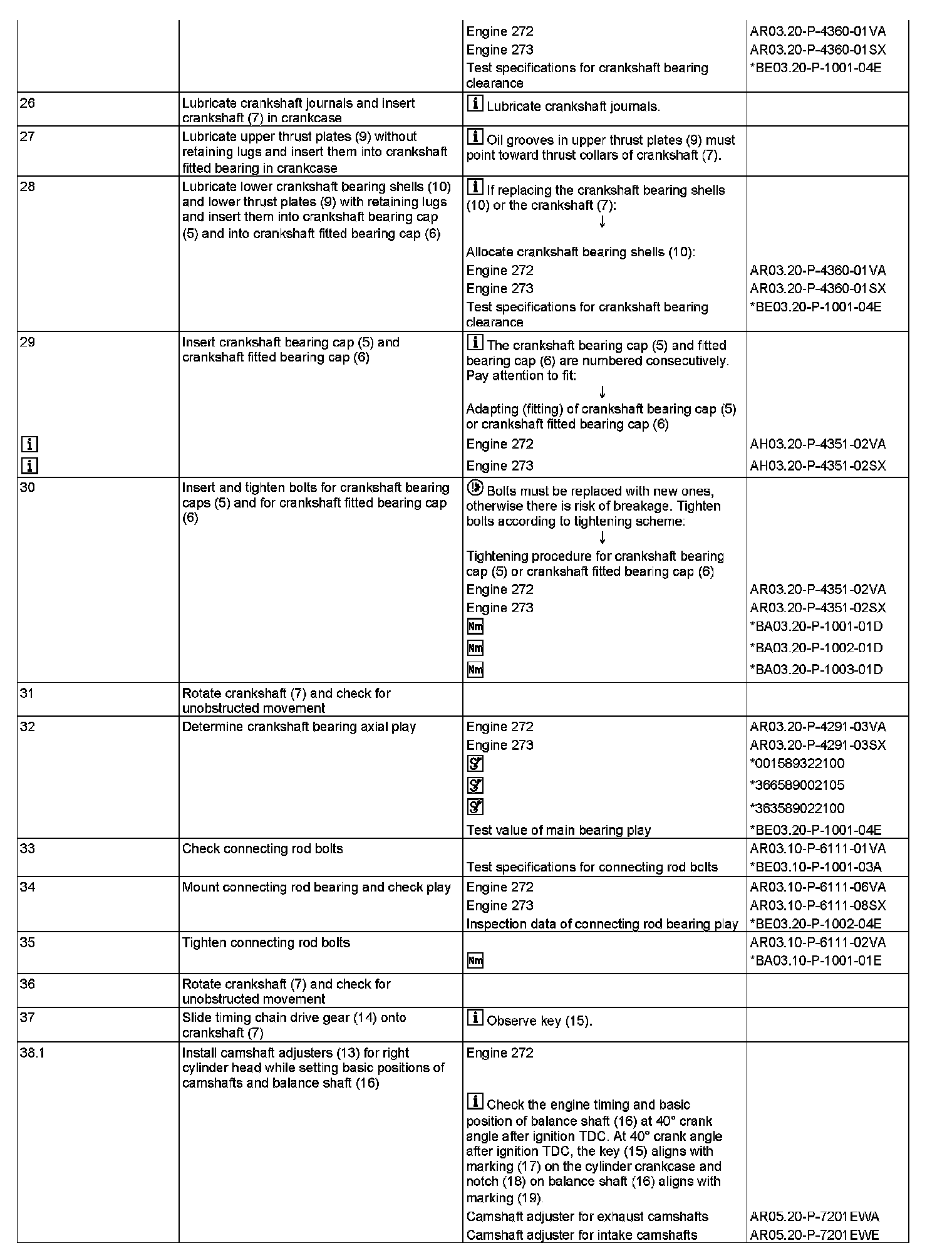

Steps 25 (Continued)-38.1:

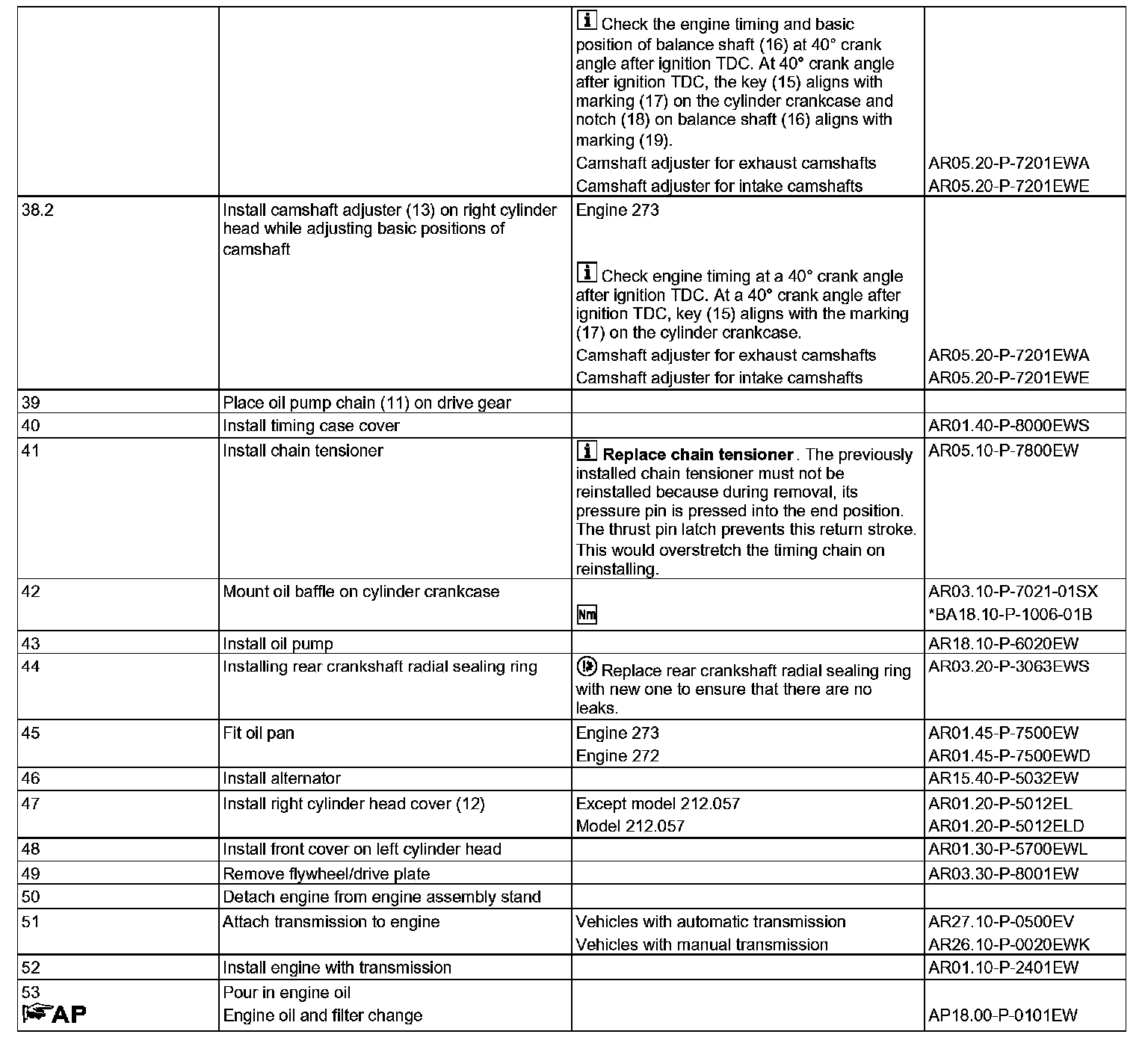

Steps 38.1 (Continued)-53:

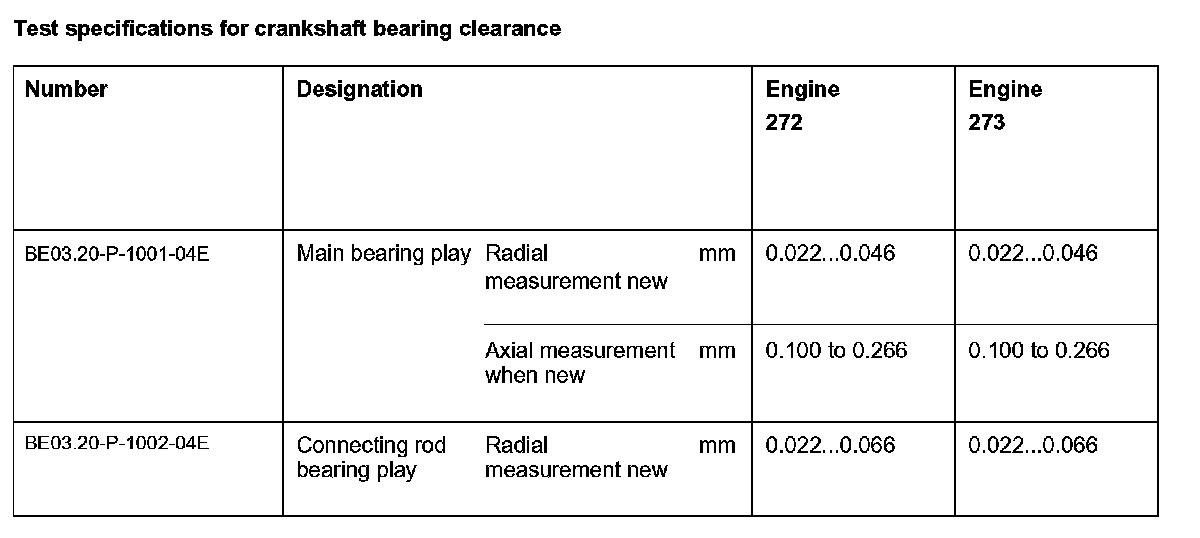

Test specifications for crankshaft bearing clearance:

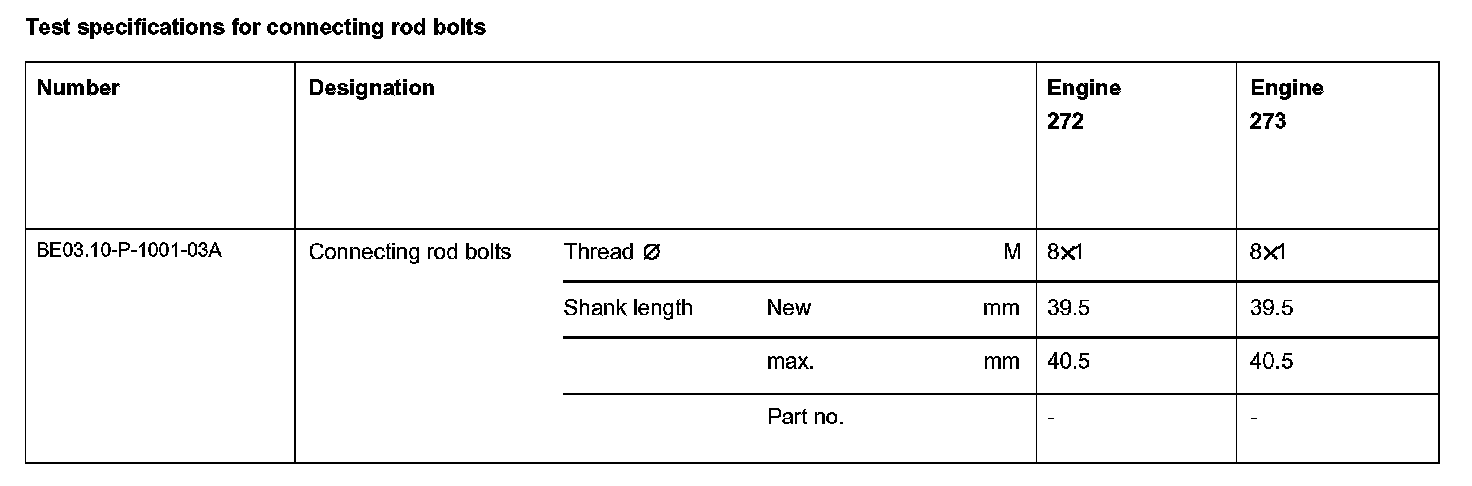

Test specifications for connecting rod bolts:

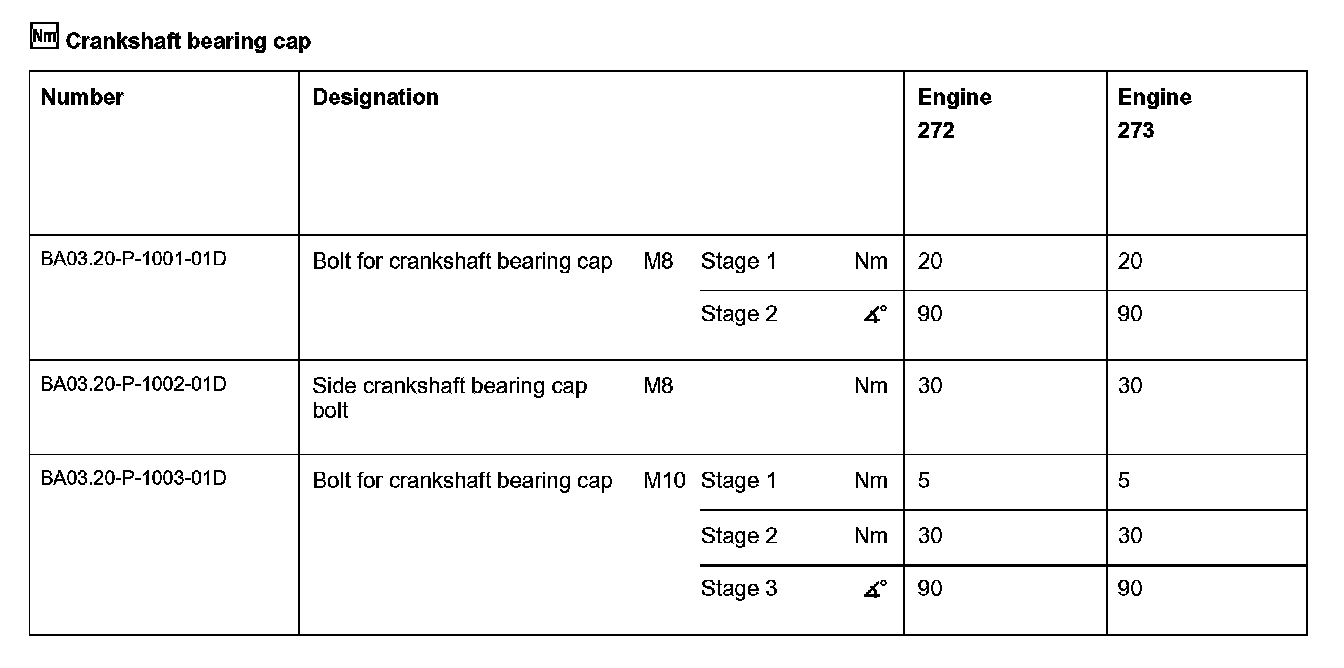

Crankshaft bearing cap:

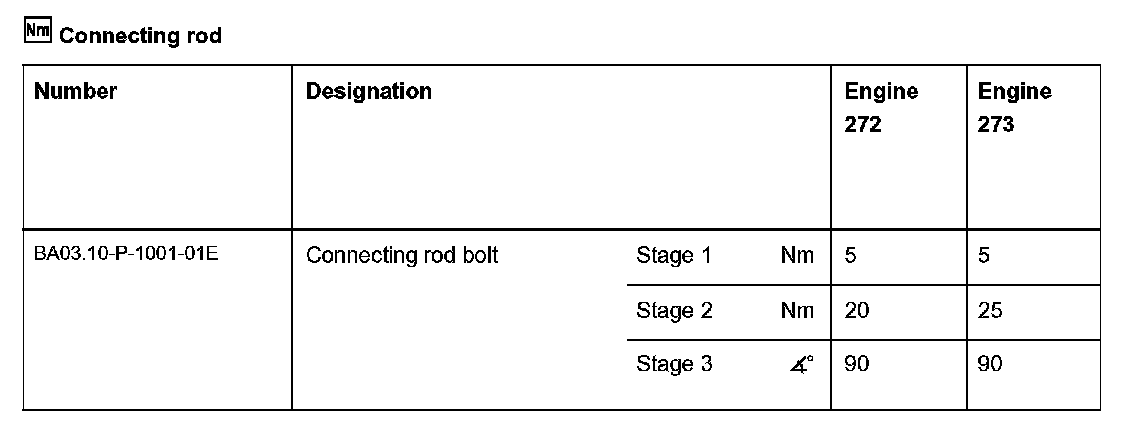

Connecting rod:

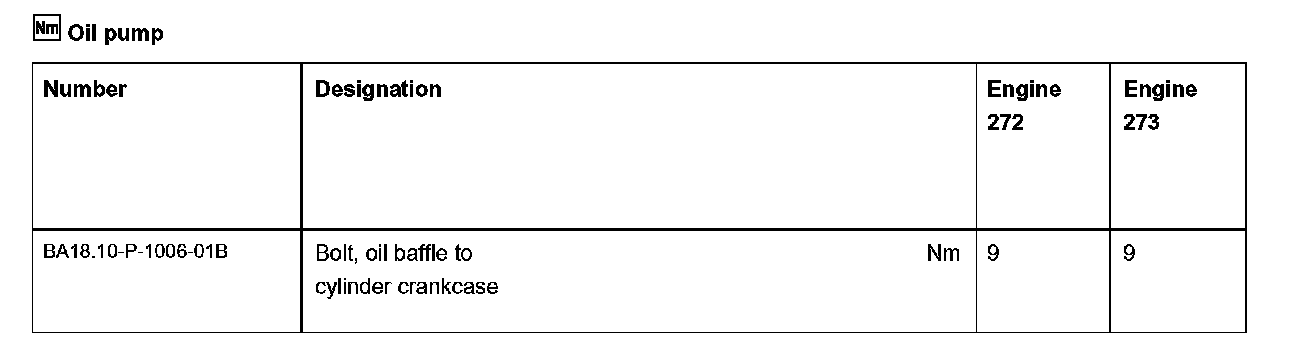

Oil pump:

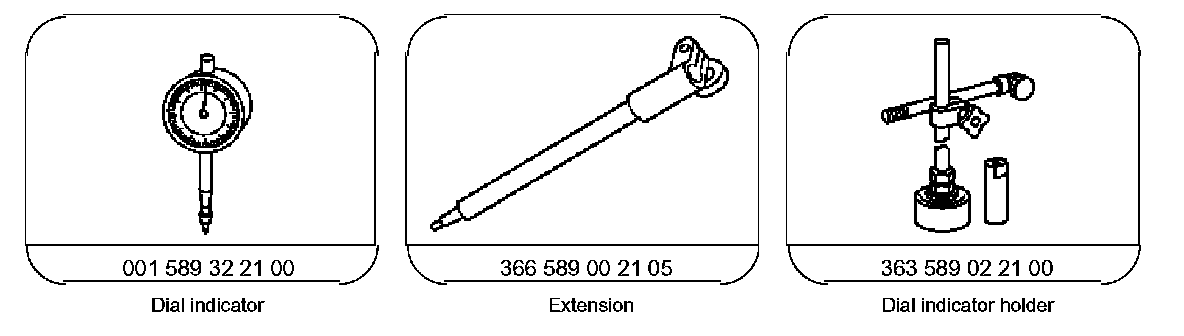

Special Tools:
