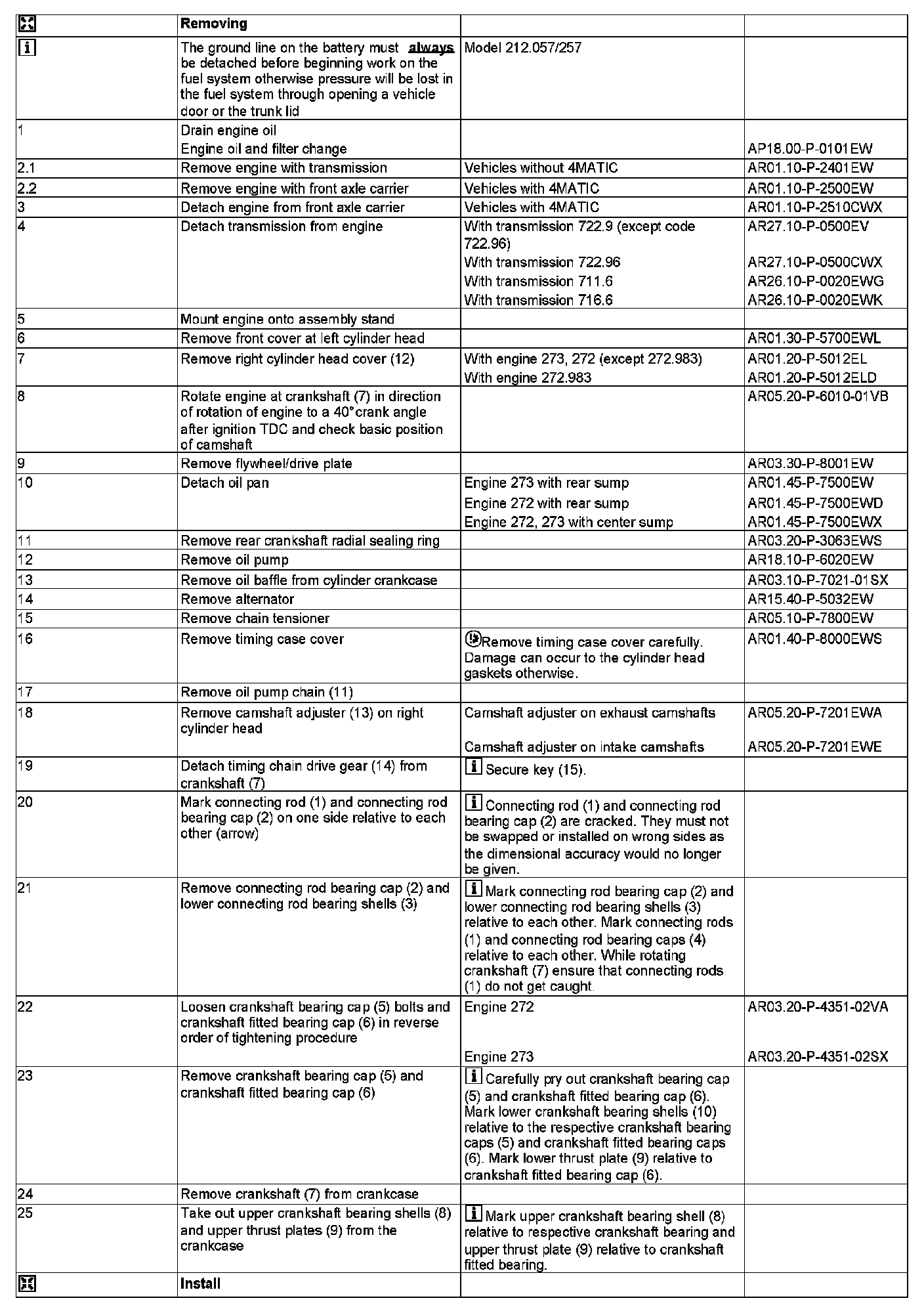

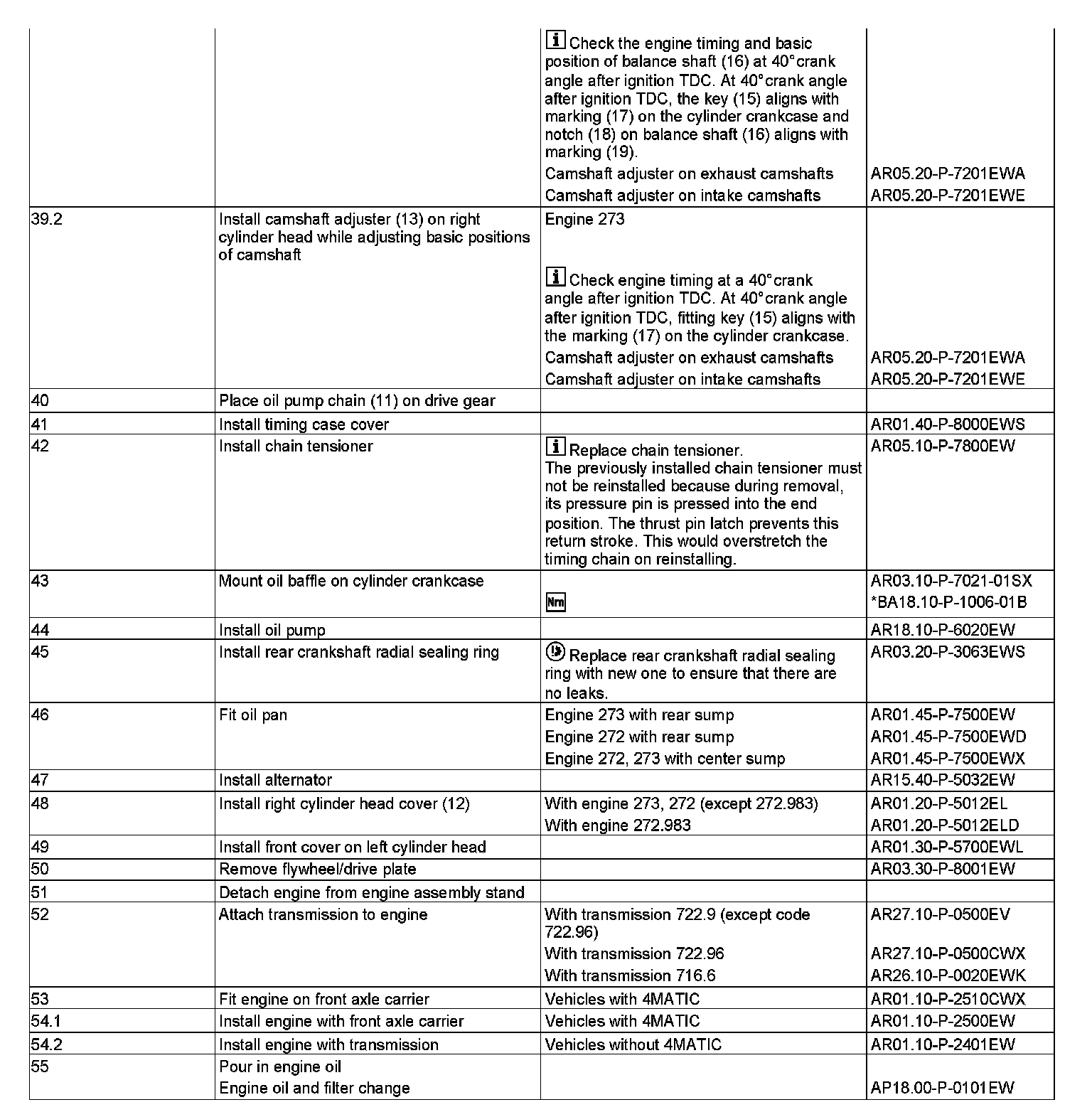

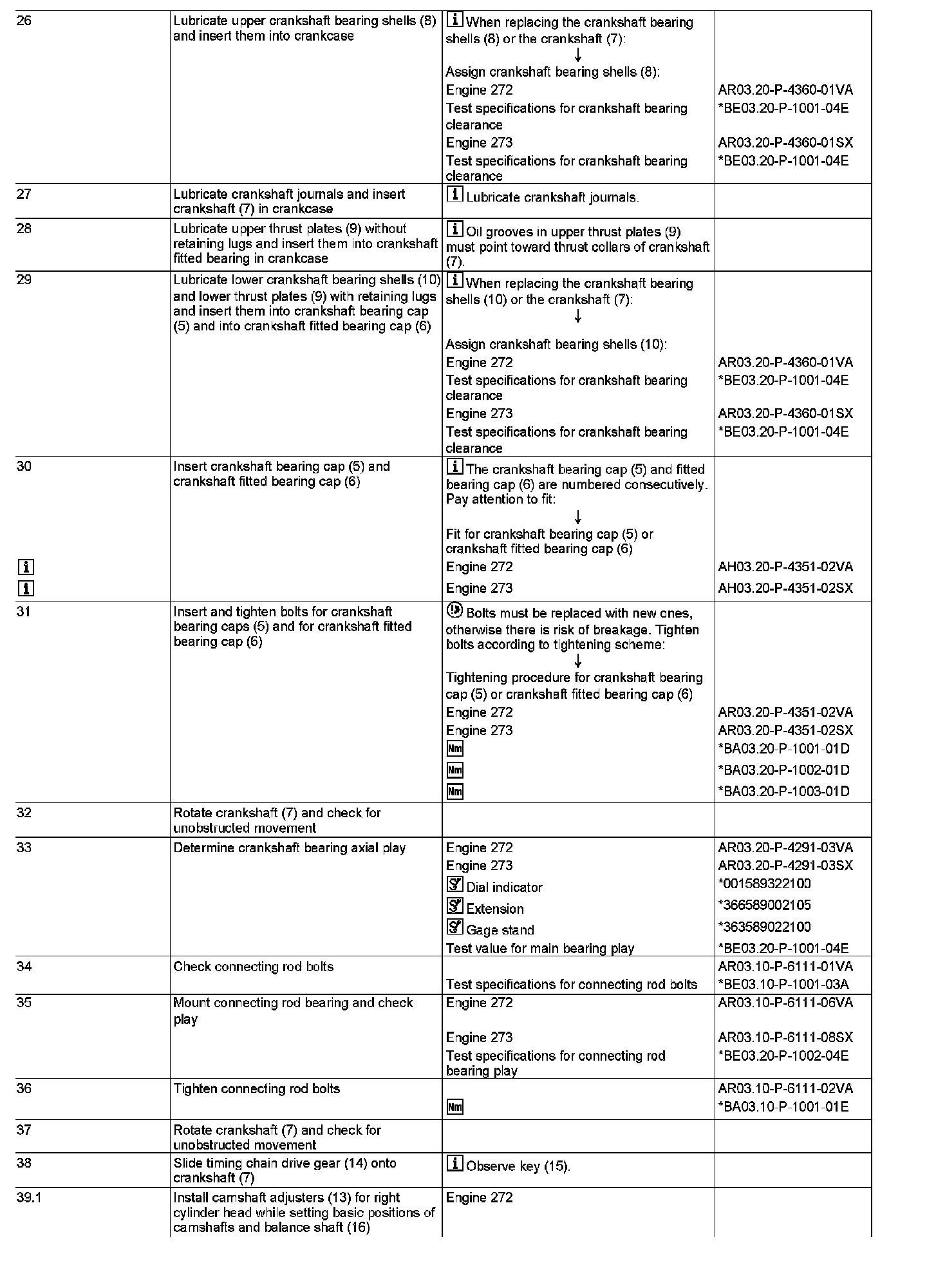

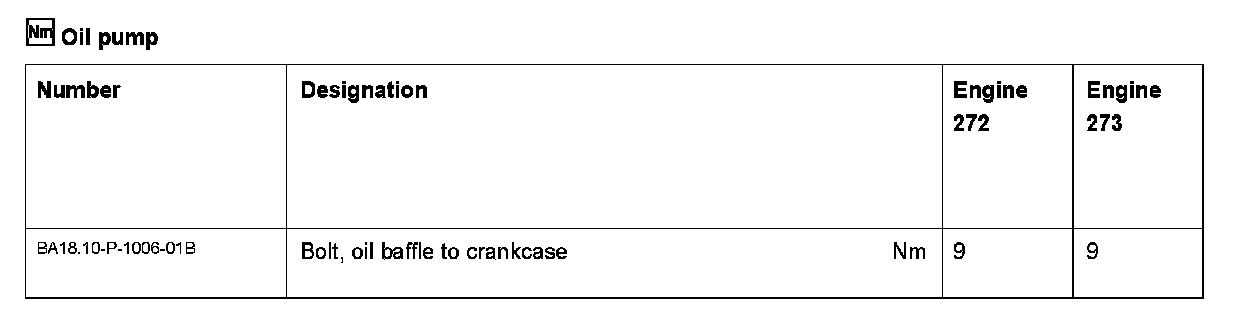

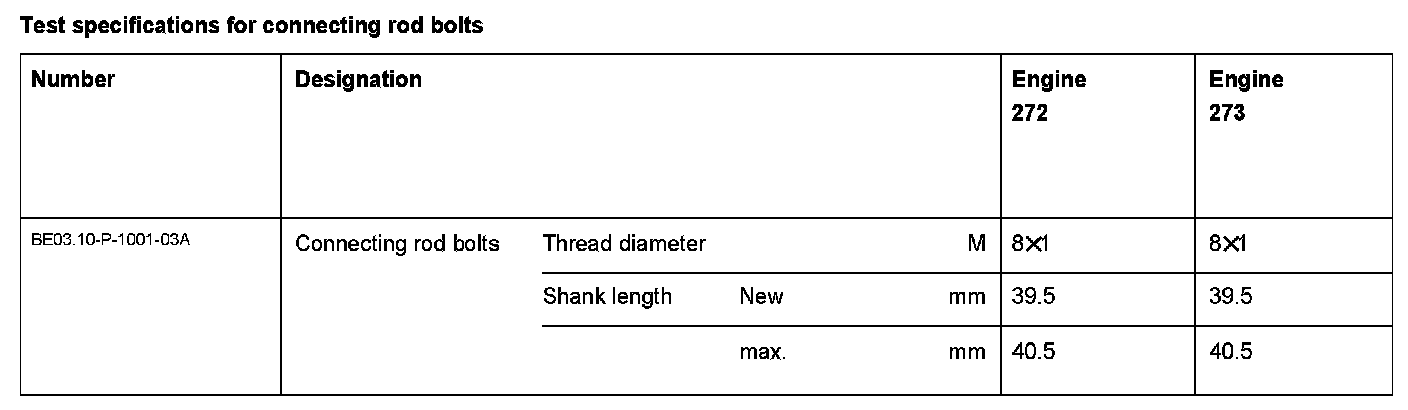

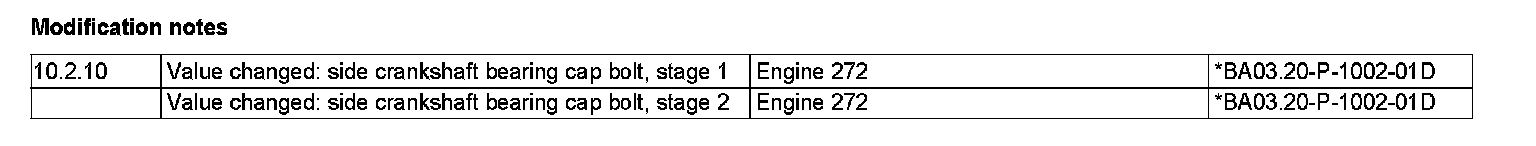

Removal and Replacement

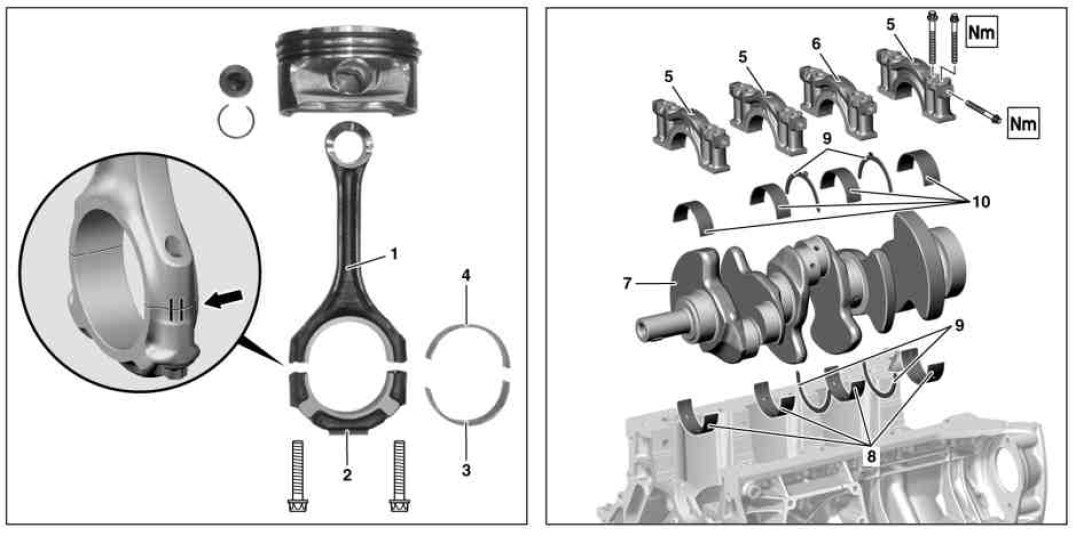

AR03.20-P-4351EWS Remove/Install Crankshaft
ENGINES 272, 273 in MODEL 212





Shown on engine 272 without pulse wheel on camshaft adjusters

11 Oil pump chain
12 Cylinder head covers
13 Camshaft adjuster
14 Timing chain drive gear
15 Key
16 Balance shaft
17 Marking
18 Notch
19 Marking





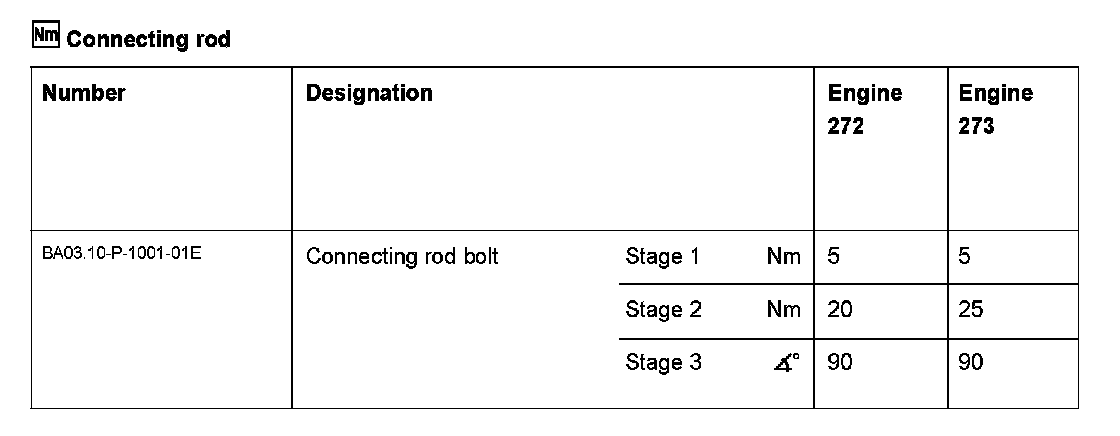

1 Connecting rod
2 Connecting rod bearing cap
3 Lower connecting rod bearing shell
4 Upper connecting rod bearing shell

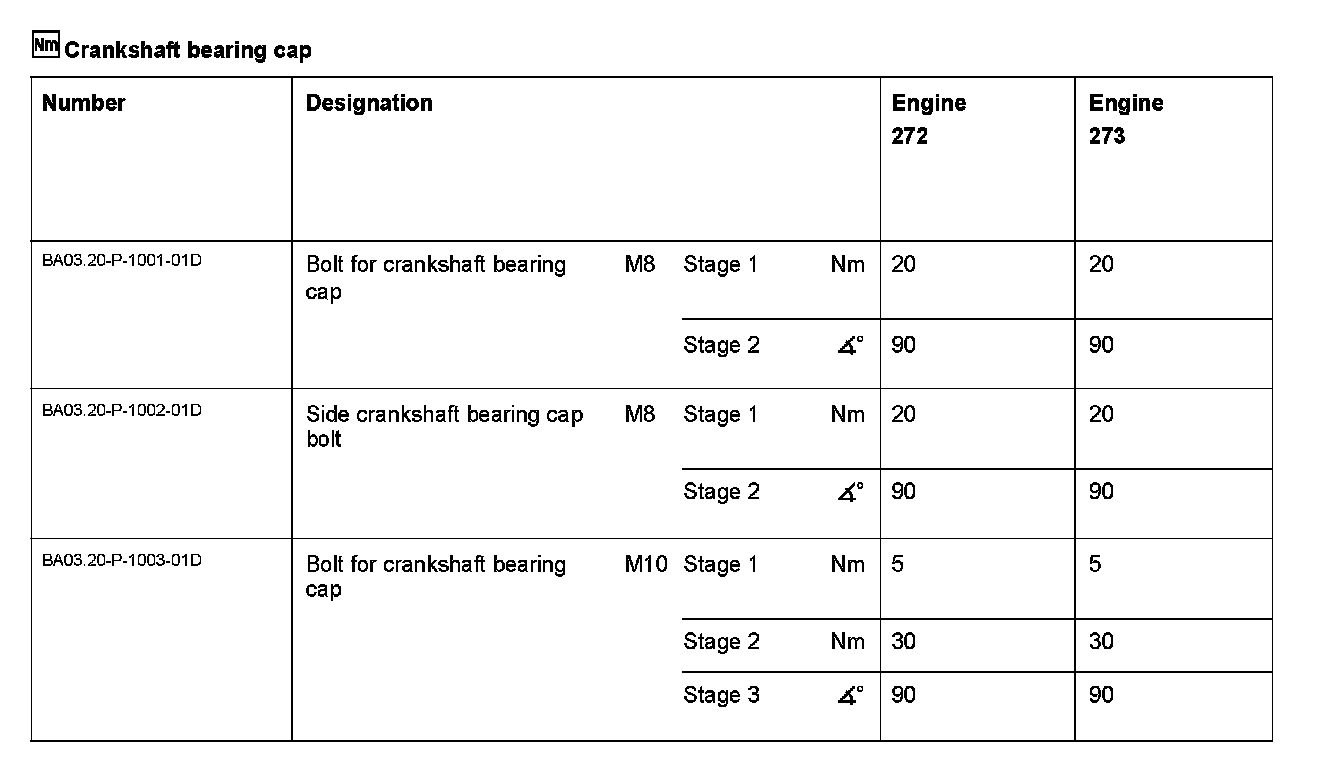

5 Crankshaft bearing cap
6 Crankshaft fitted bearing cap
7 Crankshaft
8 Upper crankshaft bearing shells
9 Thrust plate
10 Lower crankshaft bearing shells
































001 589 32 21 00
Dial indicator





366 589 00 21 05
Extension





363 589 02 21 00
Dial indicator holder
