Lifter / Lash Adjuster: Testing and Inspection
AR05.00-P-2010EW Check hydraulic valve clearance compensating elements

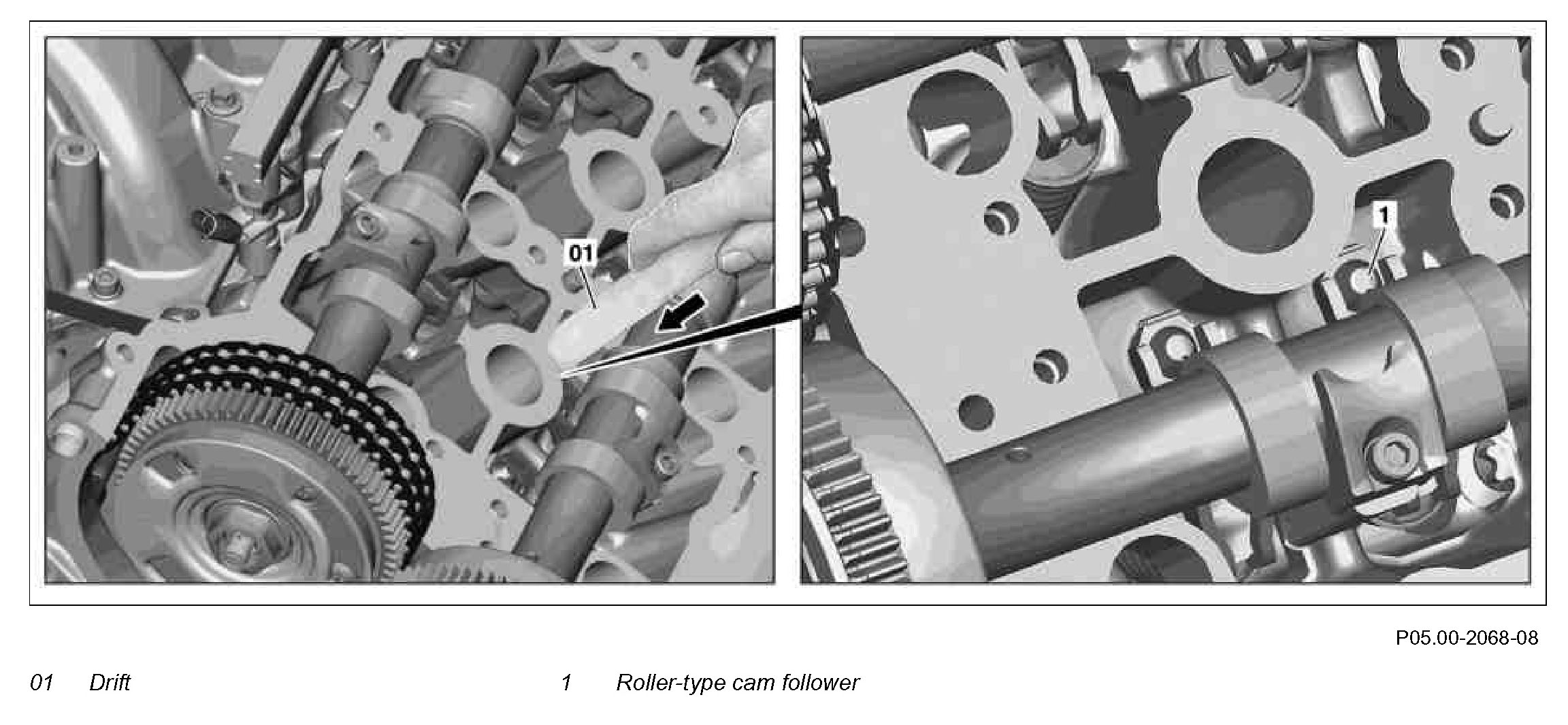

Component Identification:

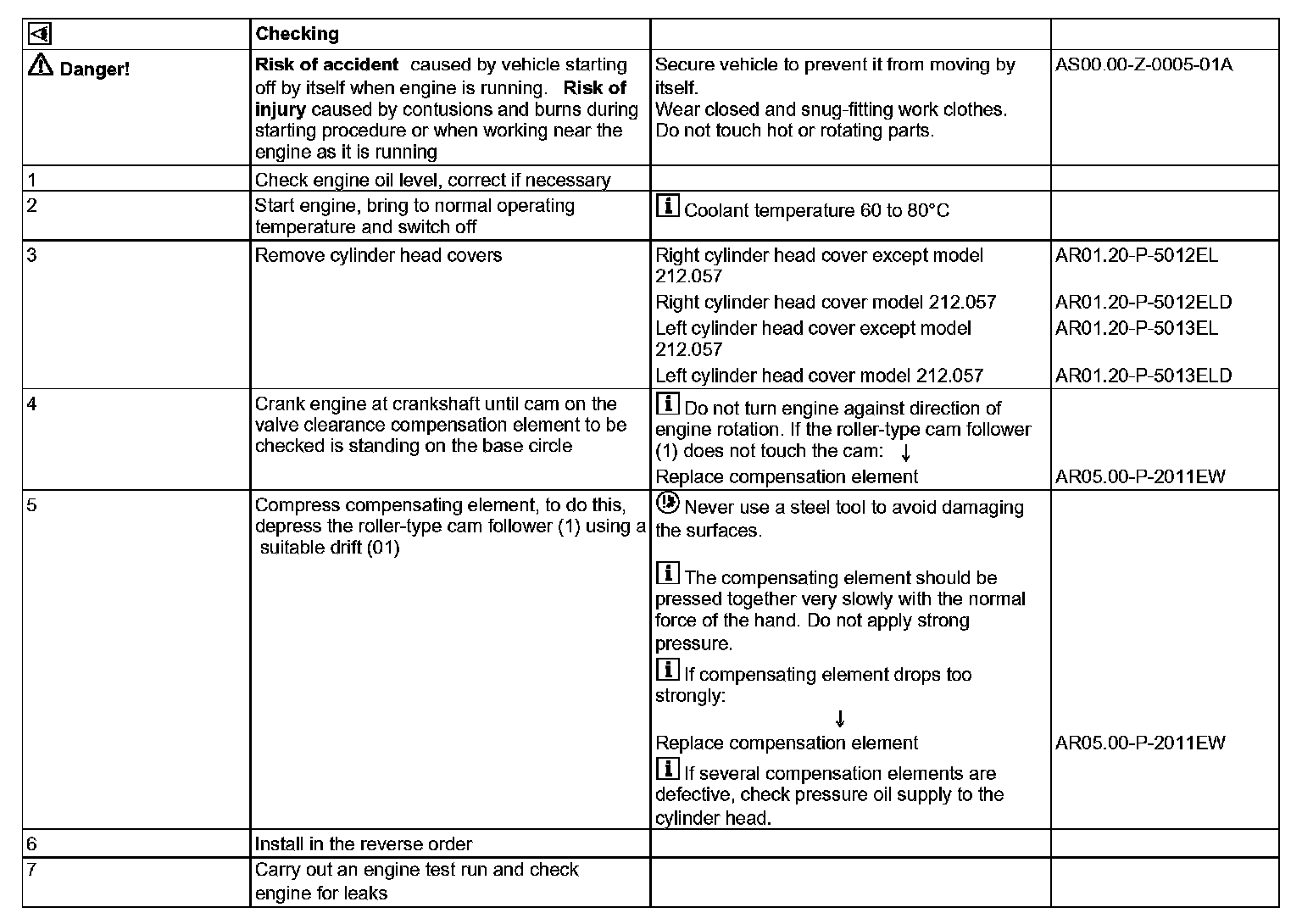

Steps 1-7:
