Lifter / Lash Adjuster: Service and Repair
AR05.00-P-2011EW Remove/install hydraulic valve clearance compensating elements

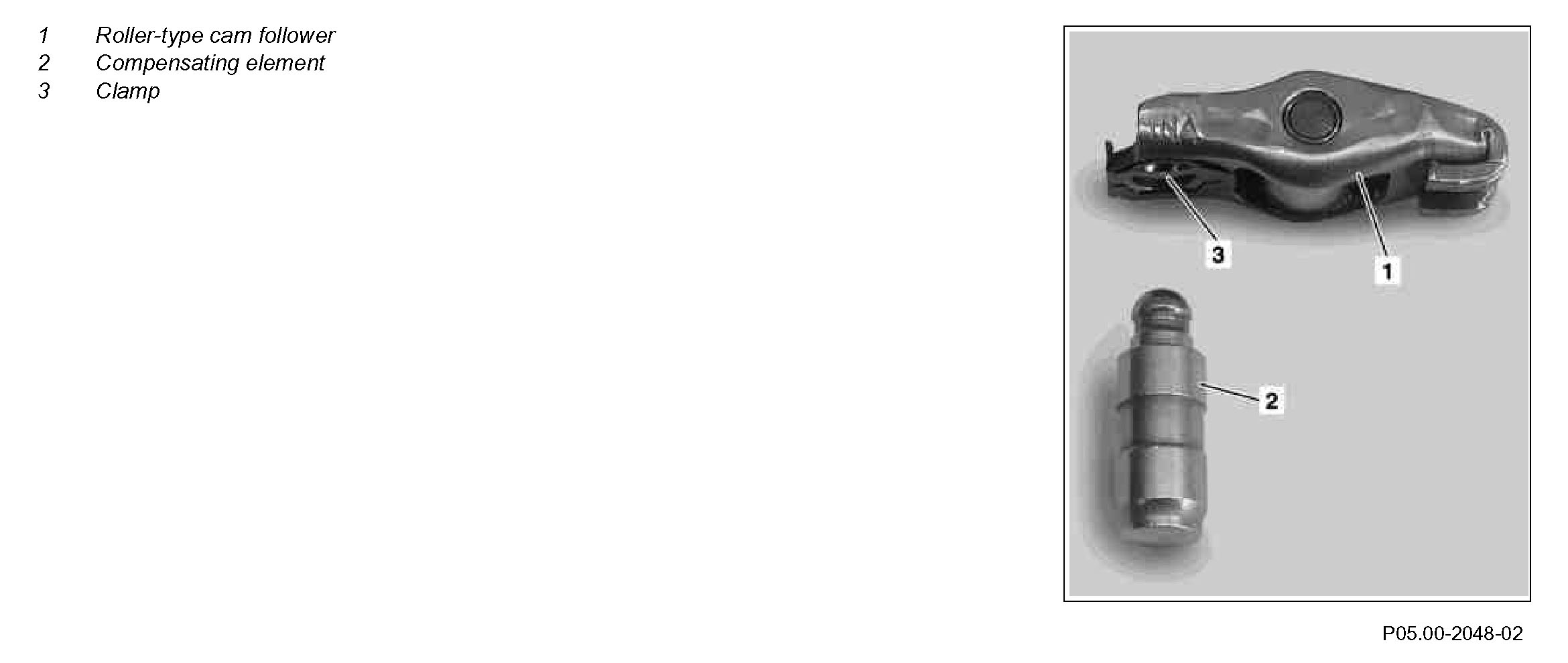

Component Identification:

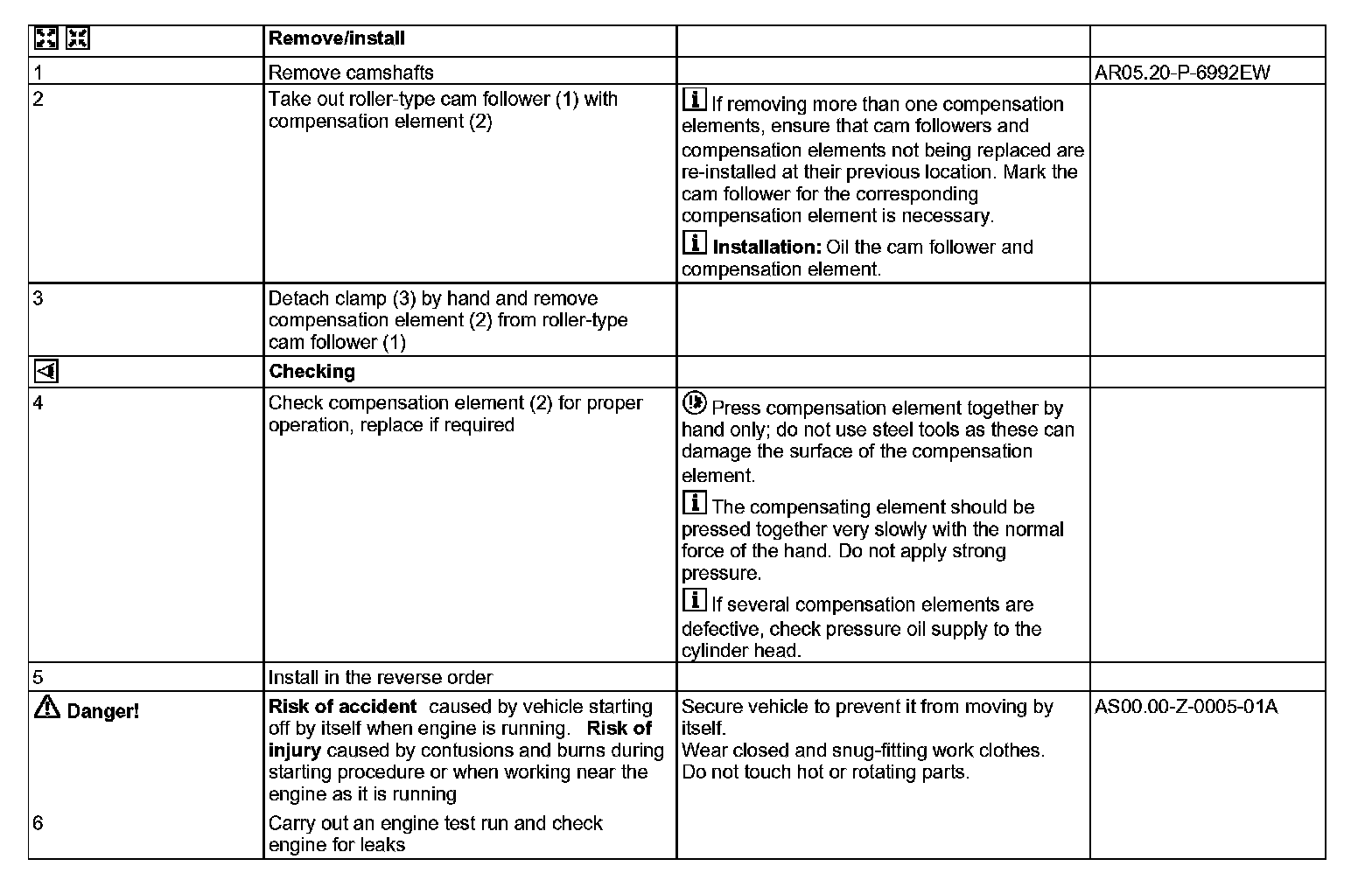

Steps 1-6:
