AR05.20-P-7201EWE Remove/Install Camshafts



AR05.20-P-7201EWE Remove/install camshafts
- on intake camshafts

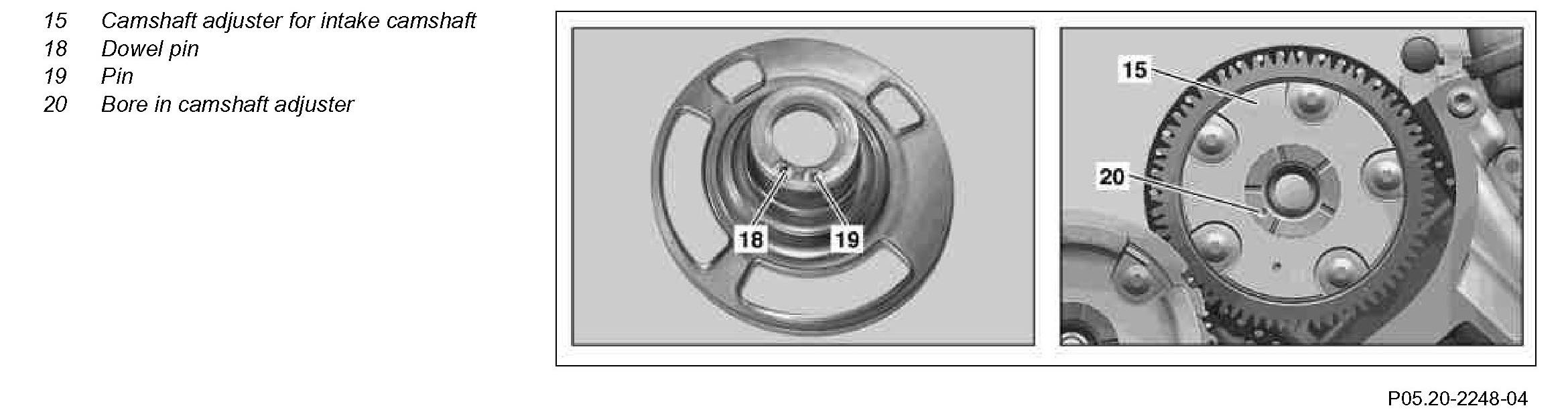

Component Identification:

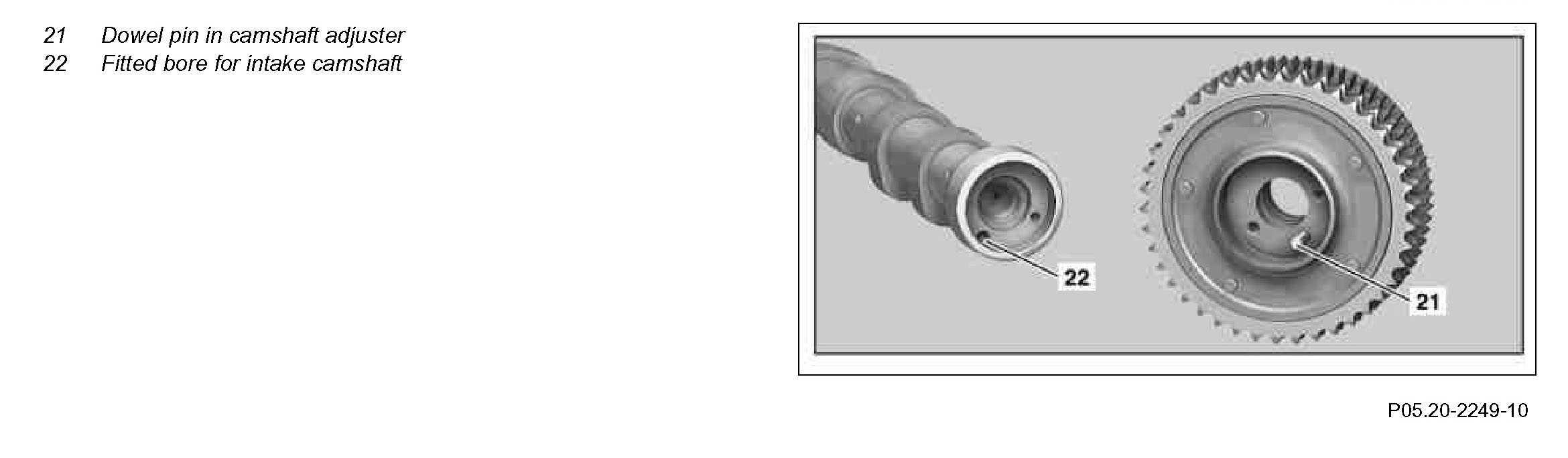

Component Identification:




Component Identification:

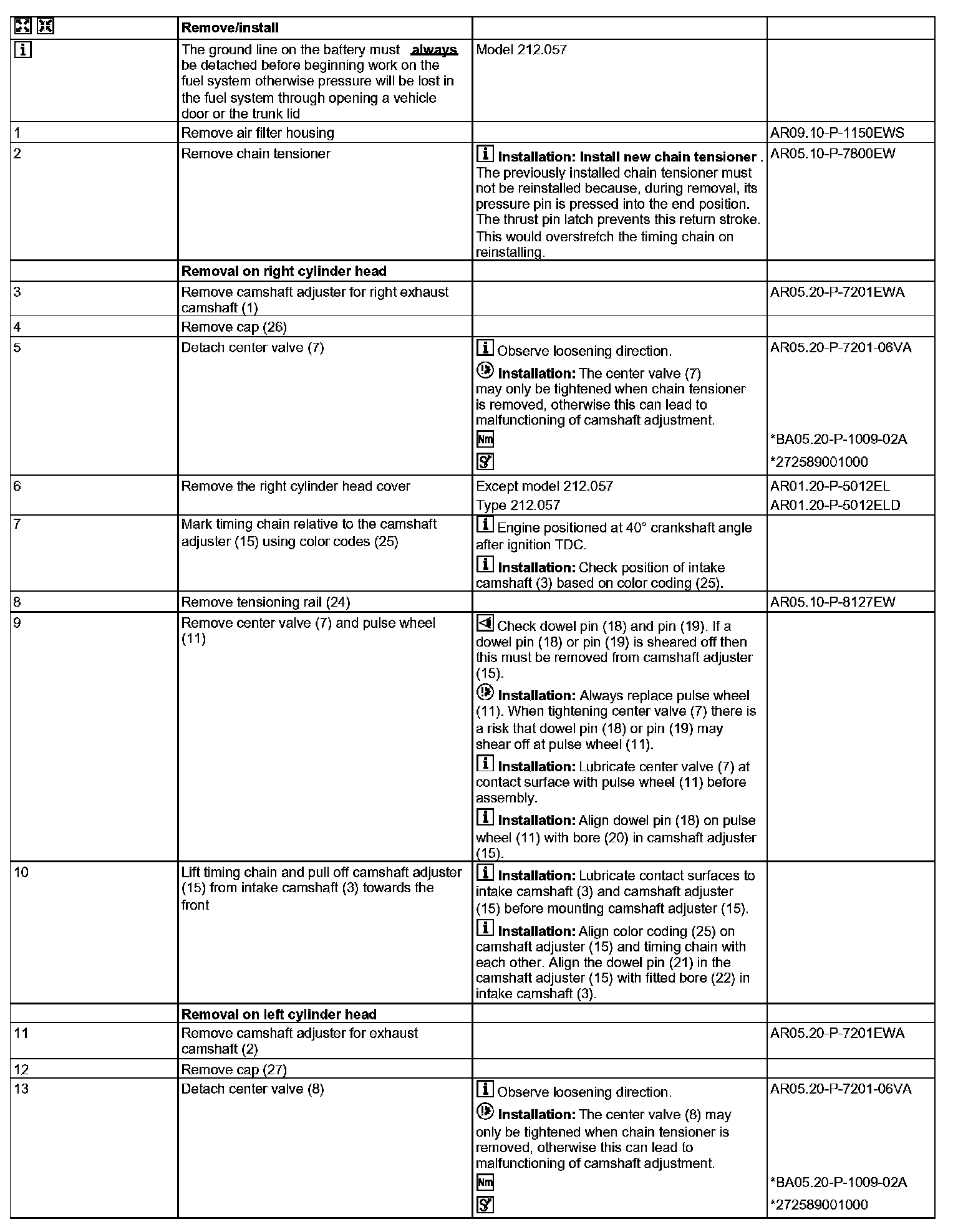

Steps 1-?????:

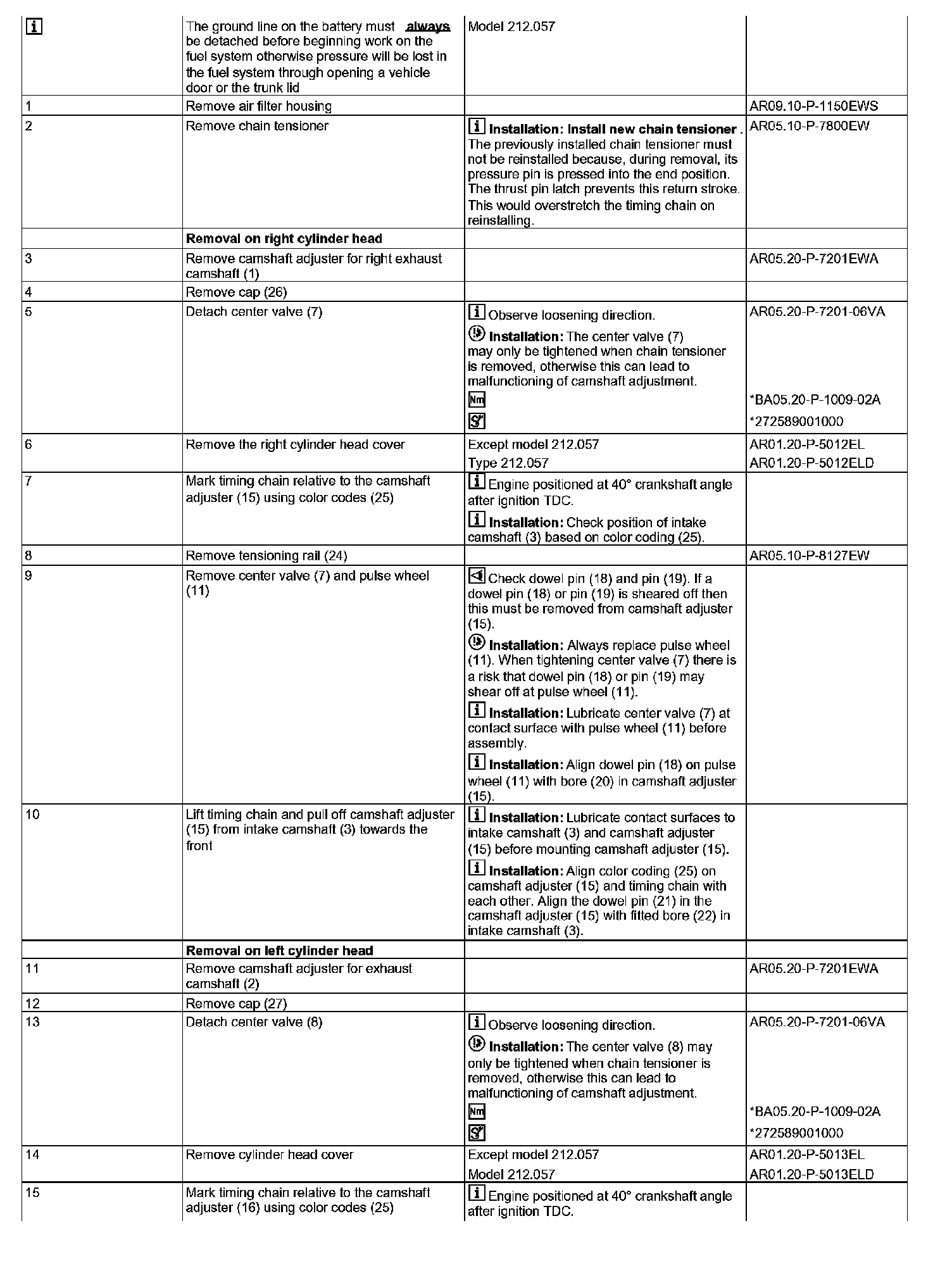

Steps 1-15:

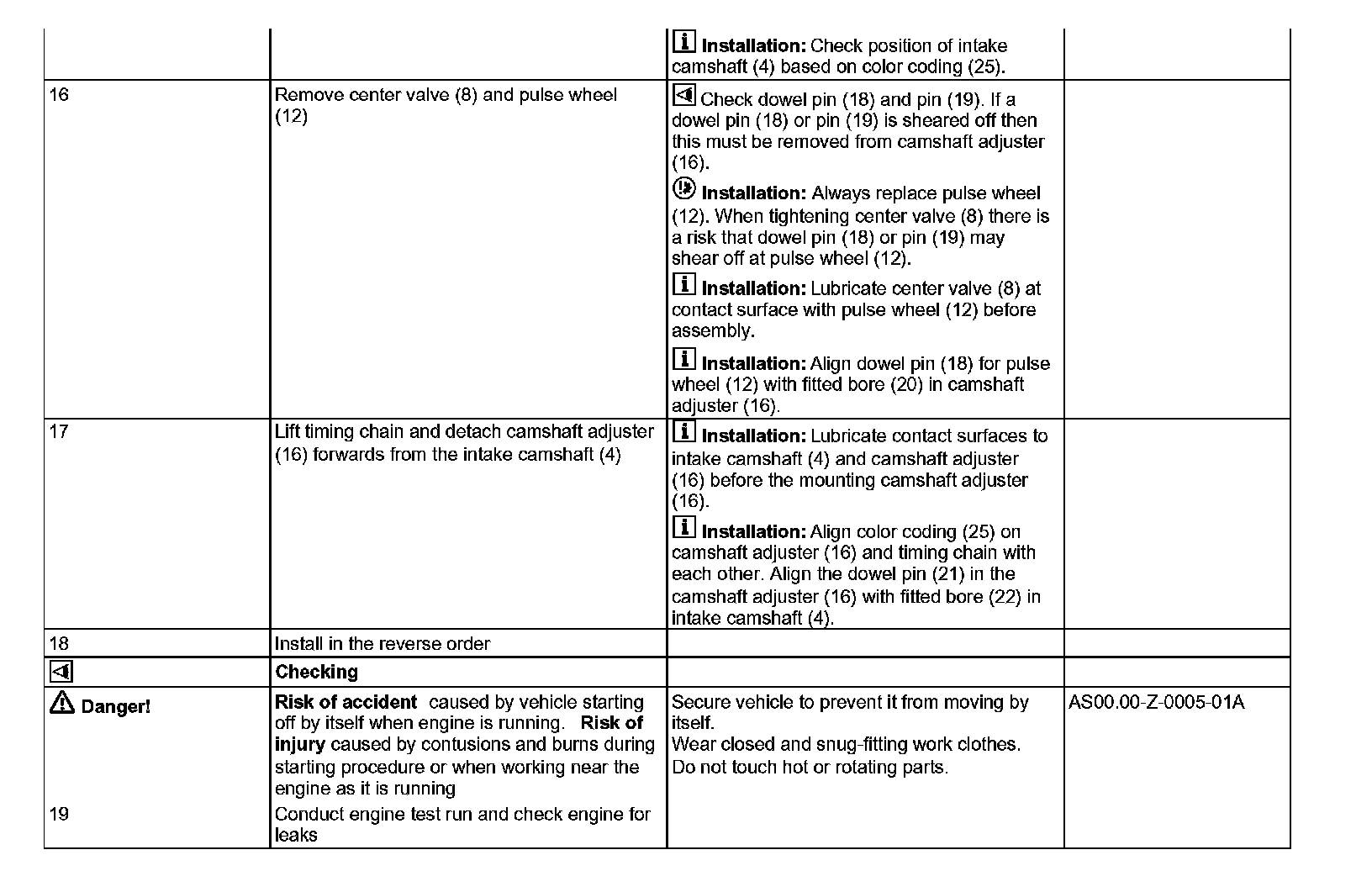

Steps 16-?????:

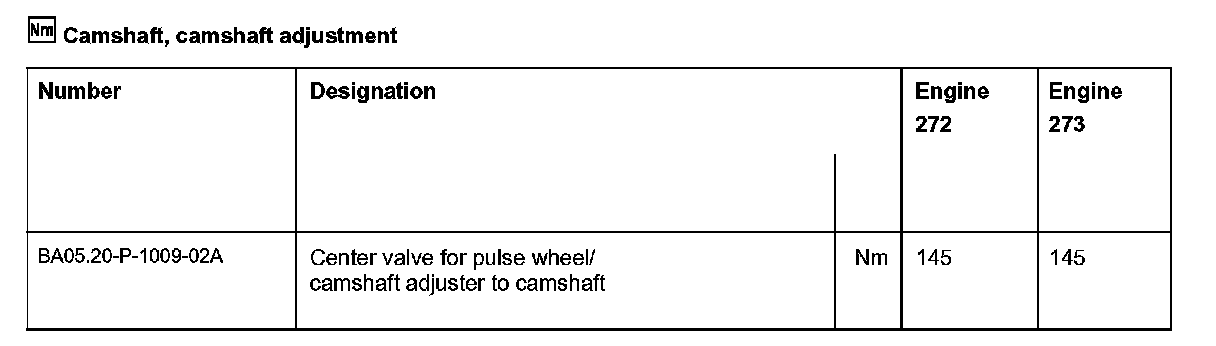

Camshaft, camshaft adjustment:

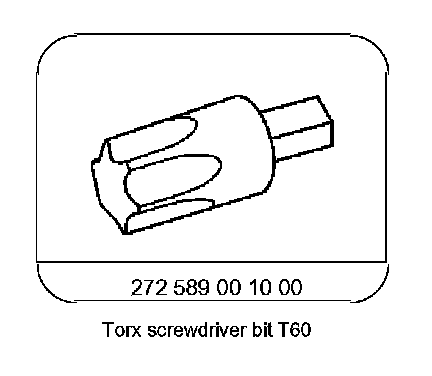

Special Tools:
