AR05.20-P-6992EW Remove/Install Camshafts



AR05.20-P-6992EW Remove/install camshafts

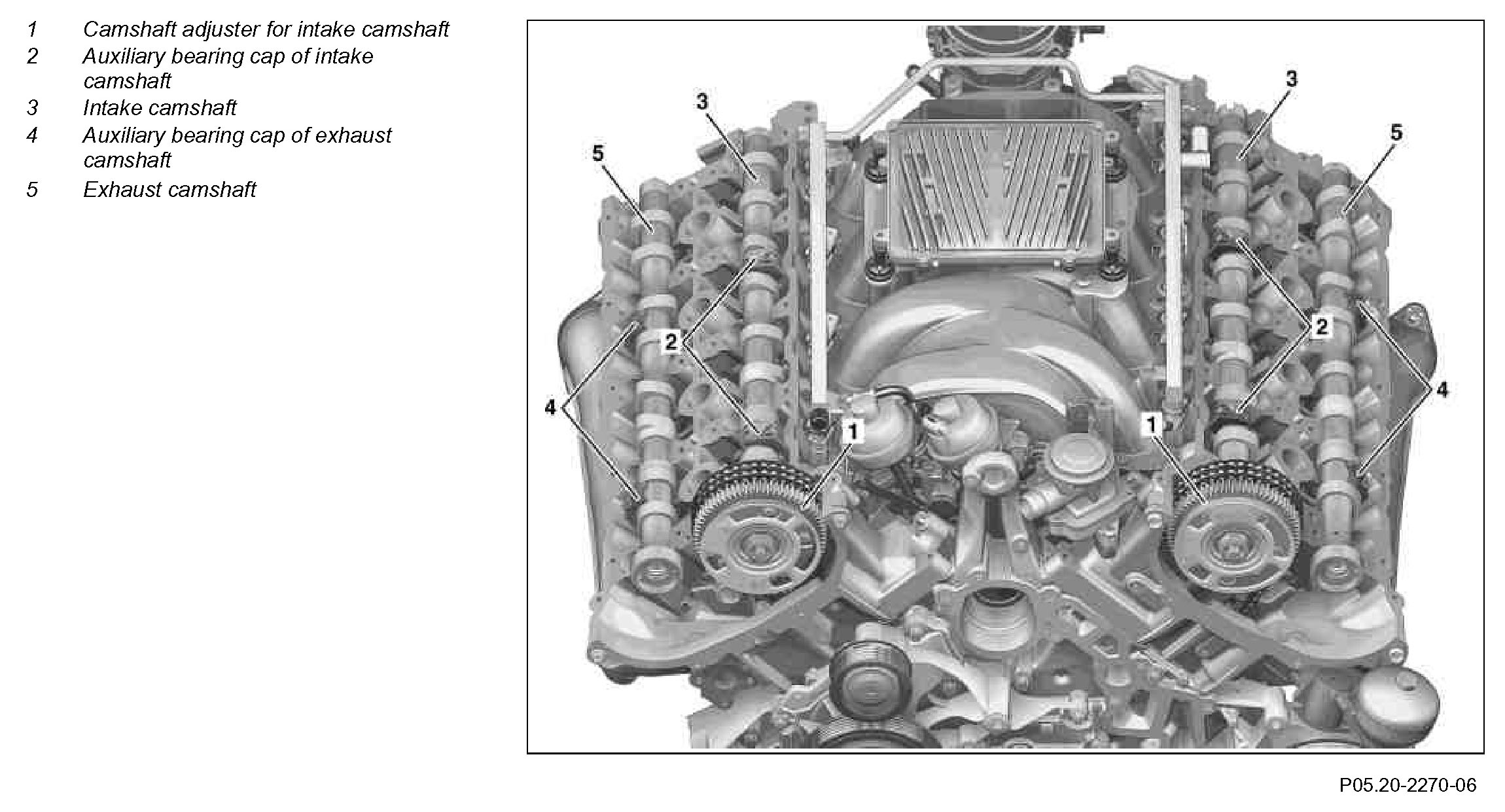

Component Identification:

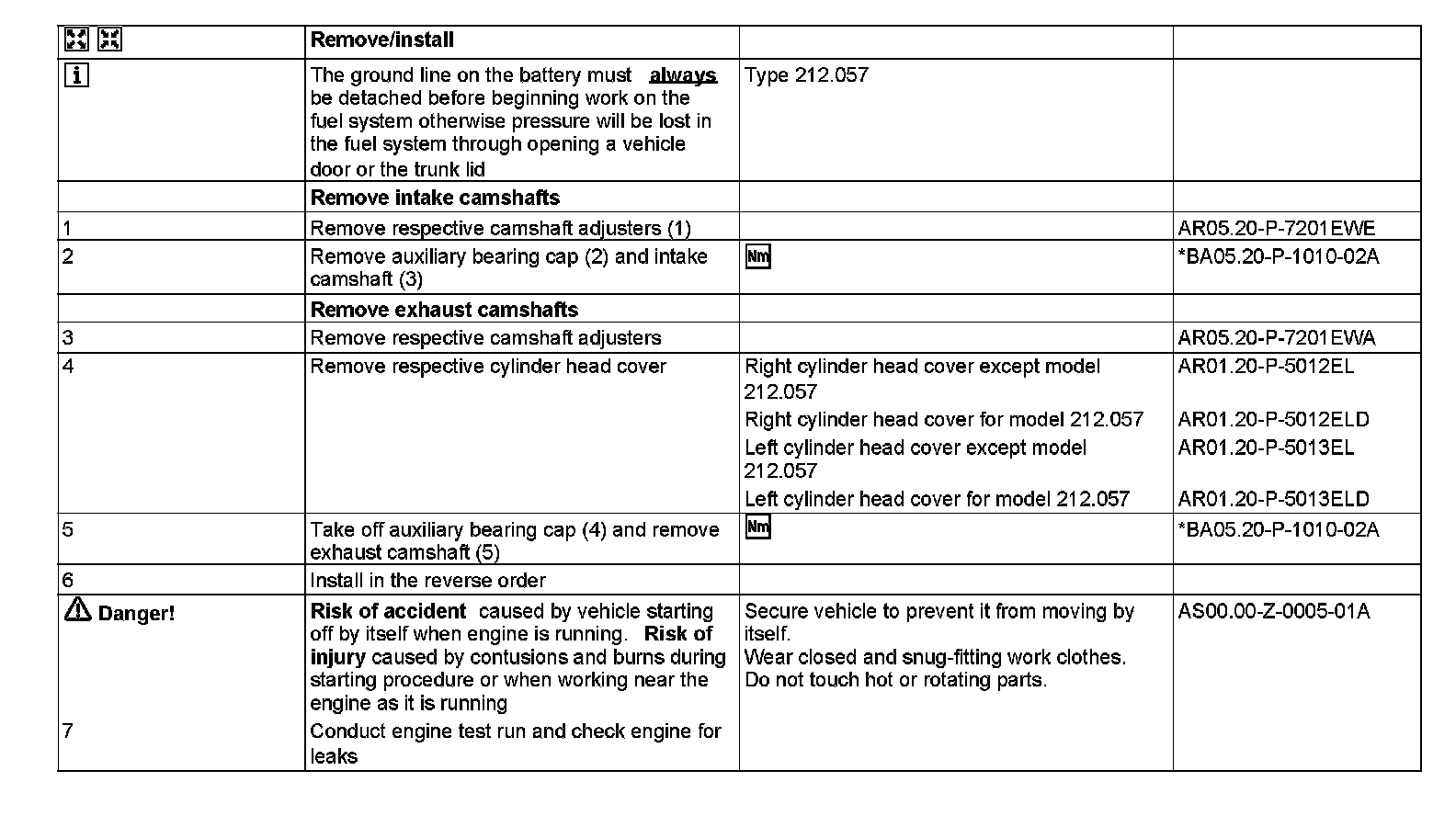

Steps 1-7:

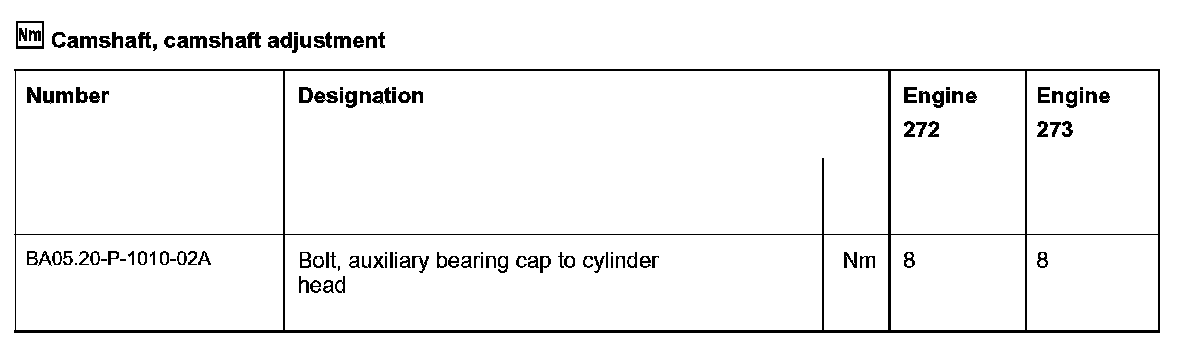

Camshaft, camshaft adjustment:
