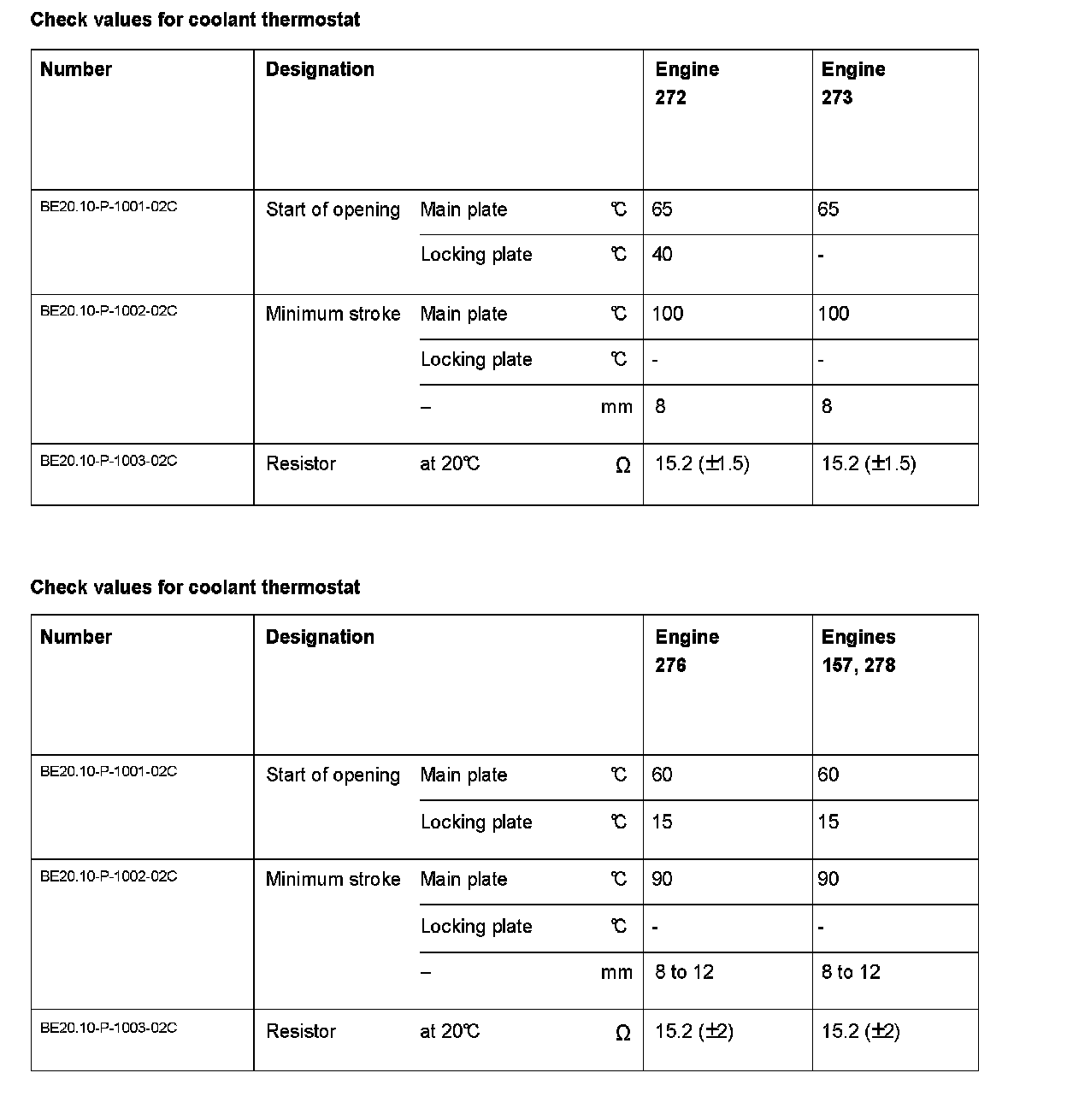

BE20.10-P-1000-02C Coolant Thermostat
BE20.10-P-1000-02C Coolant Thermostat
BE20.10-P-1000-02C Coolant Thermostat
ENGINE 157, 272, 273, 276, 278
