Thermostat: Service and Repair
AR20.10-P-2460EW Remove/install coolant thermostat

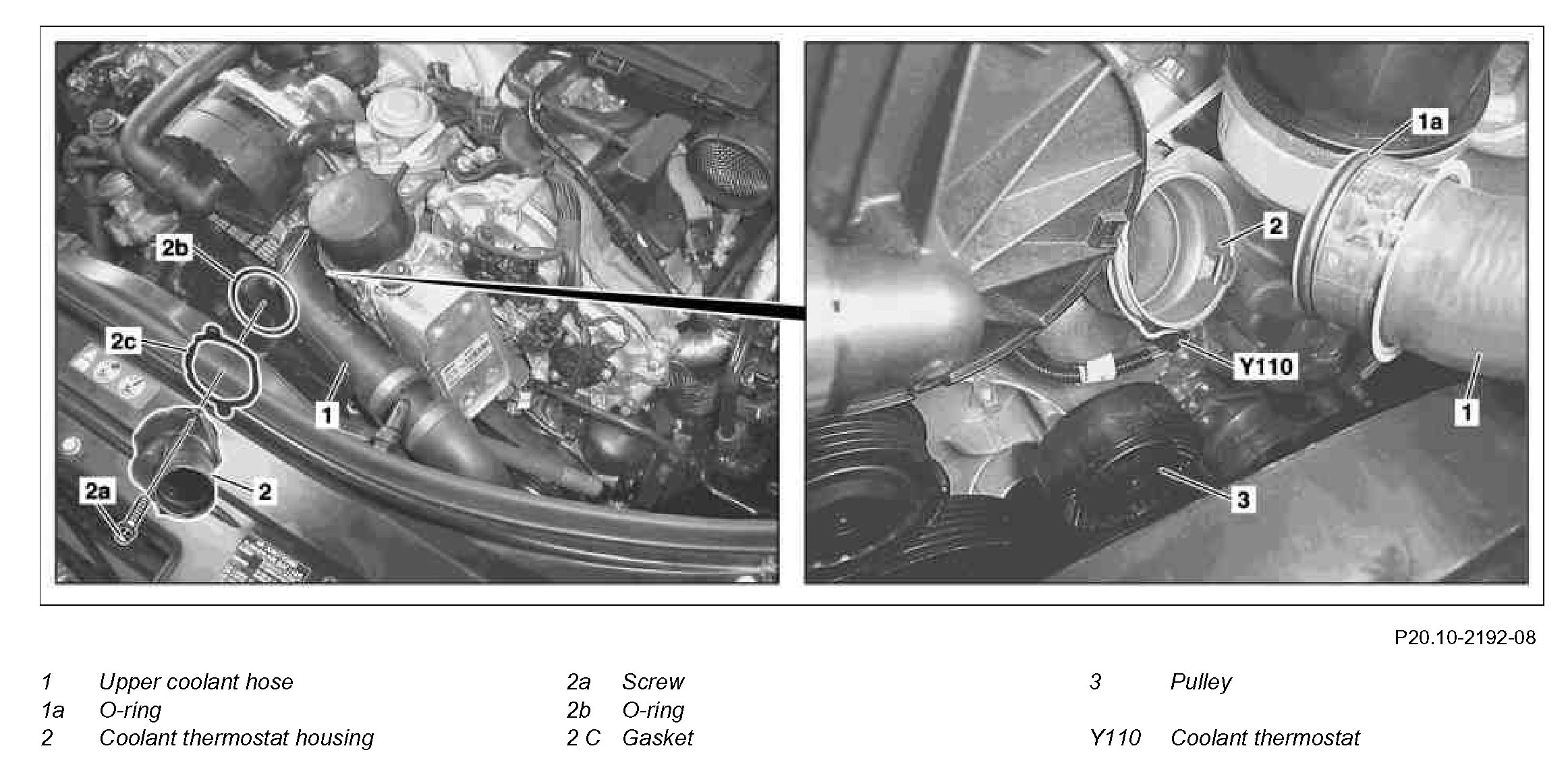

Component Identification:

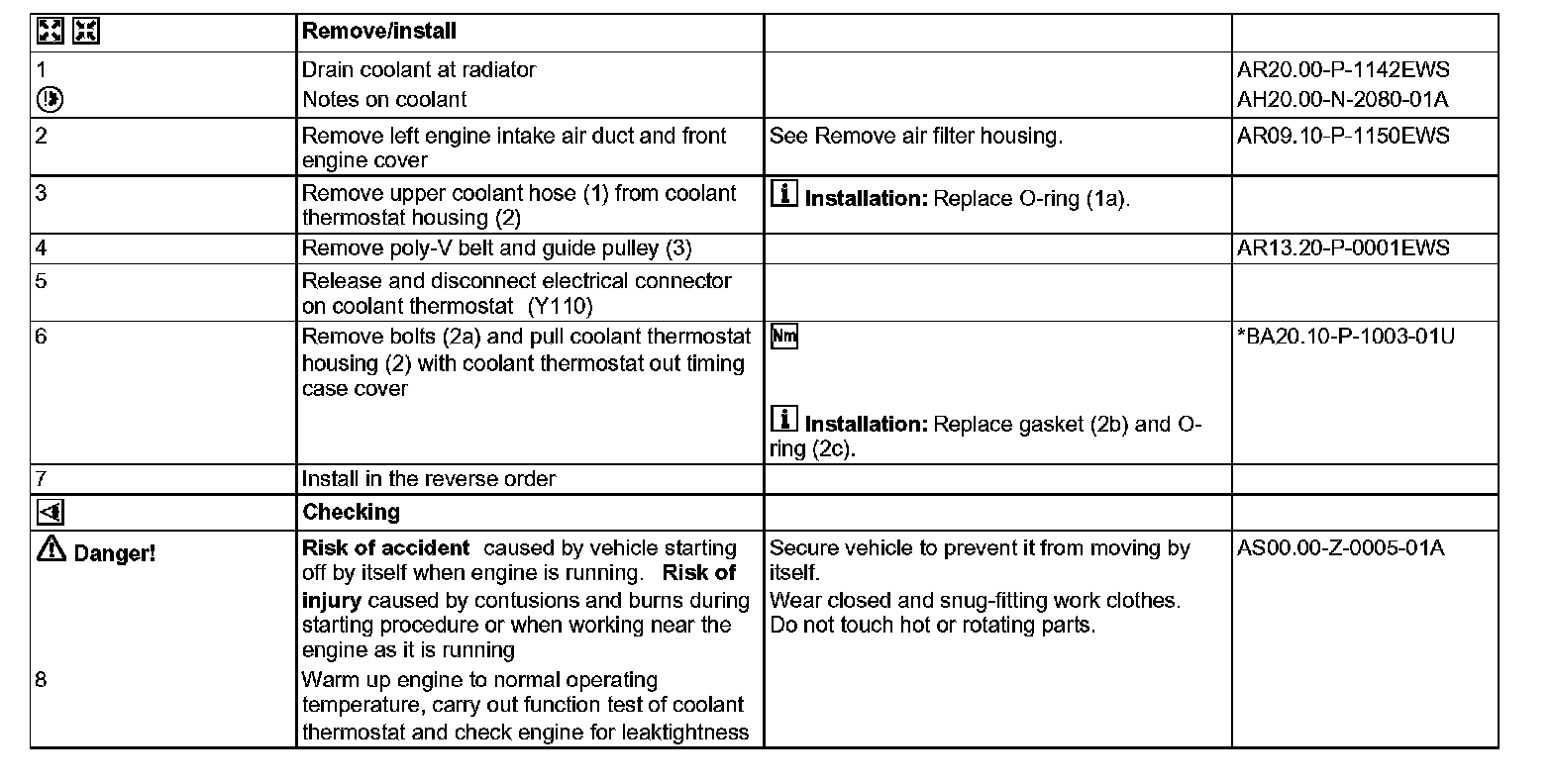

Steps 1-8:

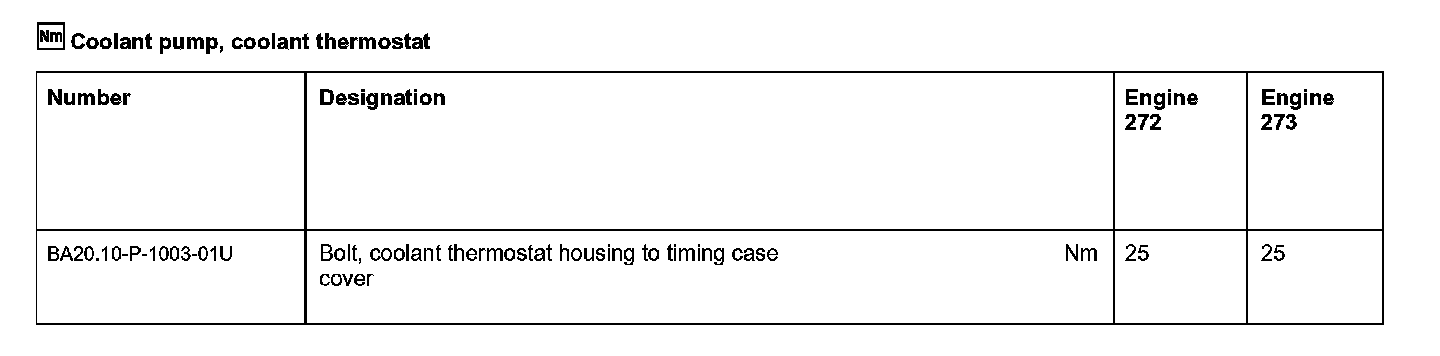

Coolant pump, coolant thermostat:
