Cooling System: Testing and Inspection
AR20.00-P-1010EW Inspecting
cooling system
for leaks

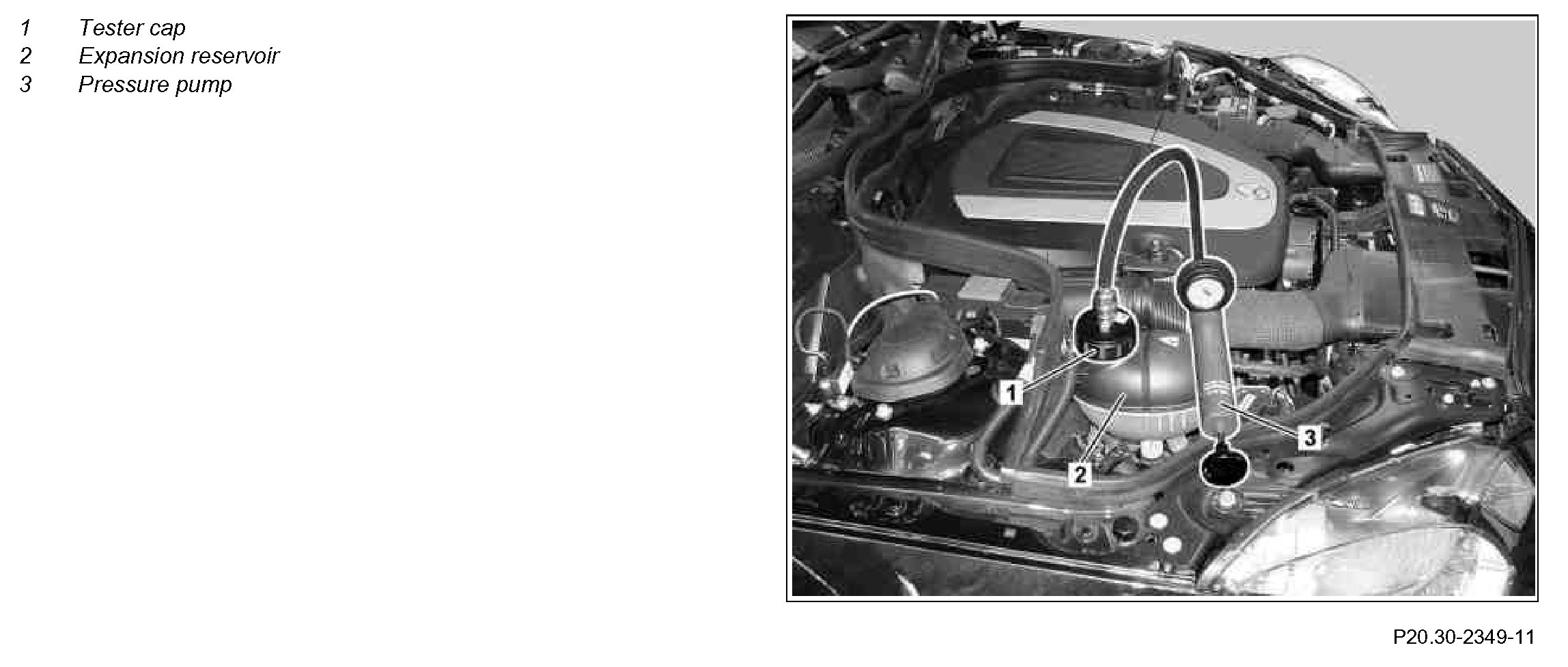

Component Identification:

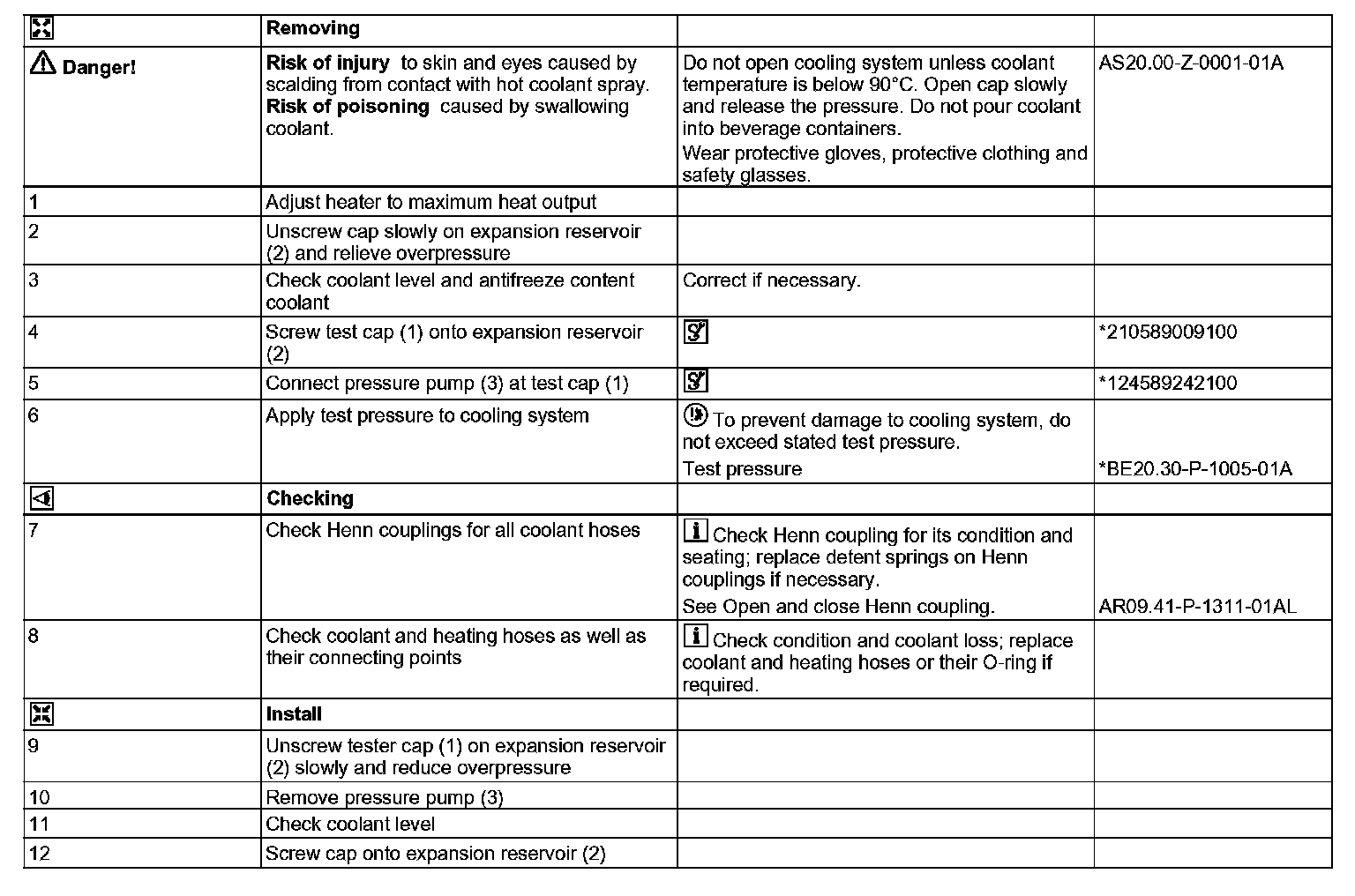

Steps 1-12:

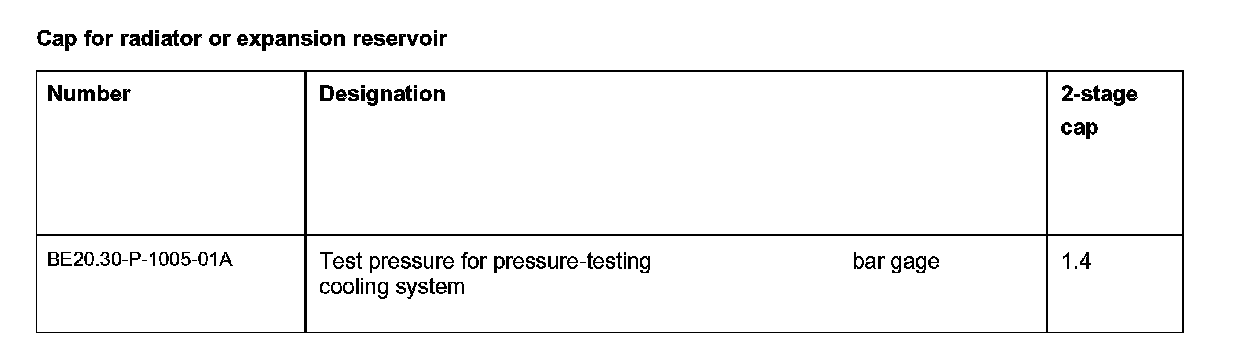

Cap for radiator or expansion reservoir:

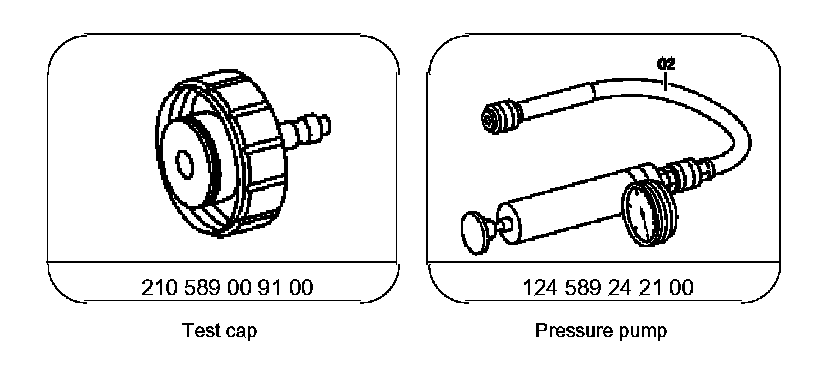

Special Tools:
