Home >> Mercedes Benz >> 2011 >> E 350 4MATIC Wagon (212.287) V6-3.5L (272.977) >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Cooling System >> Radiator >> Service and Repair

Radiator: Service and Repair



AR20.20-P-3865EWS Remove/install radiator

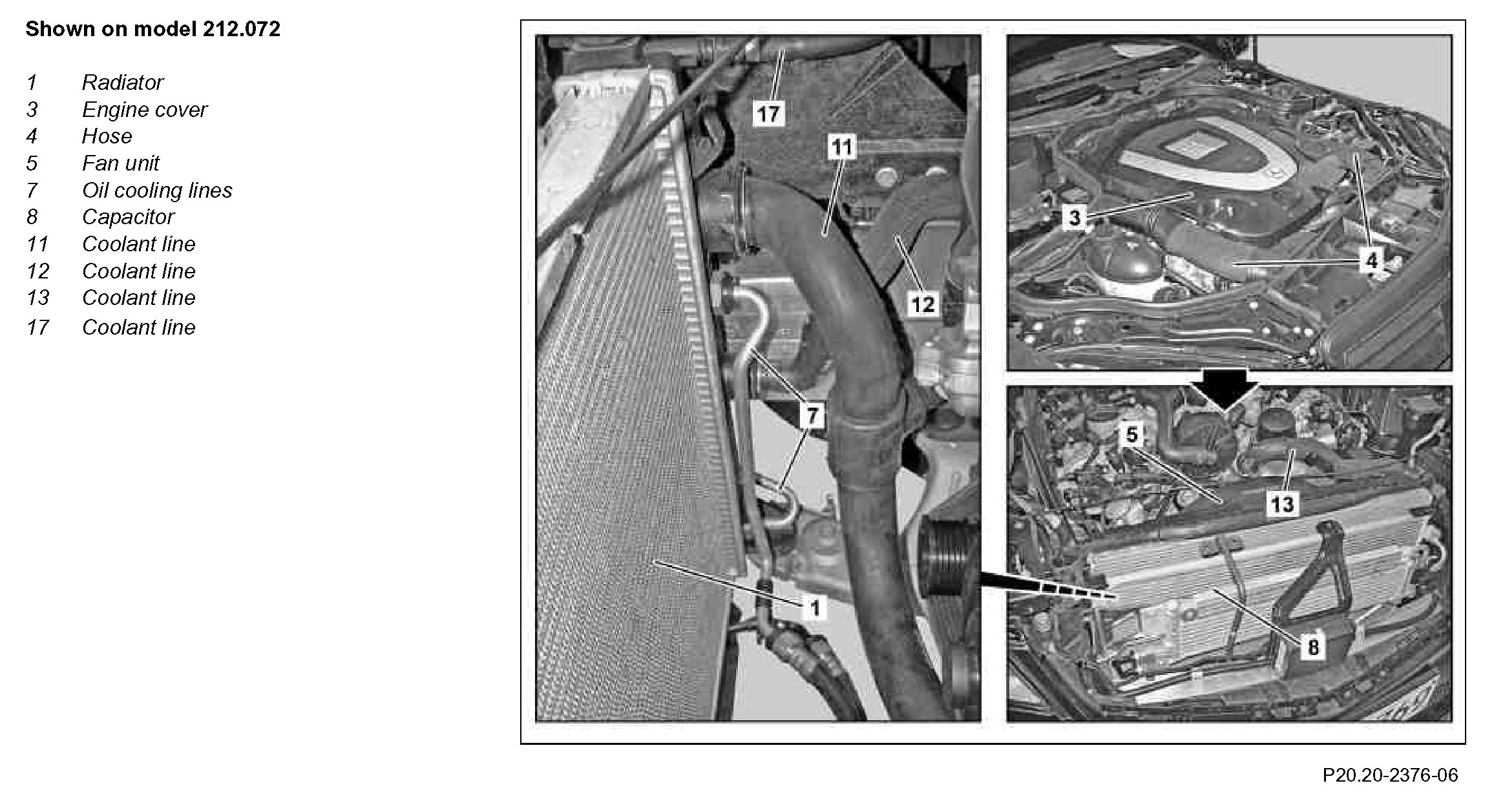

Component Identification:

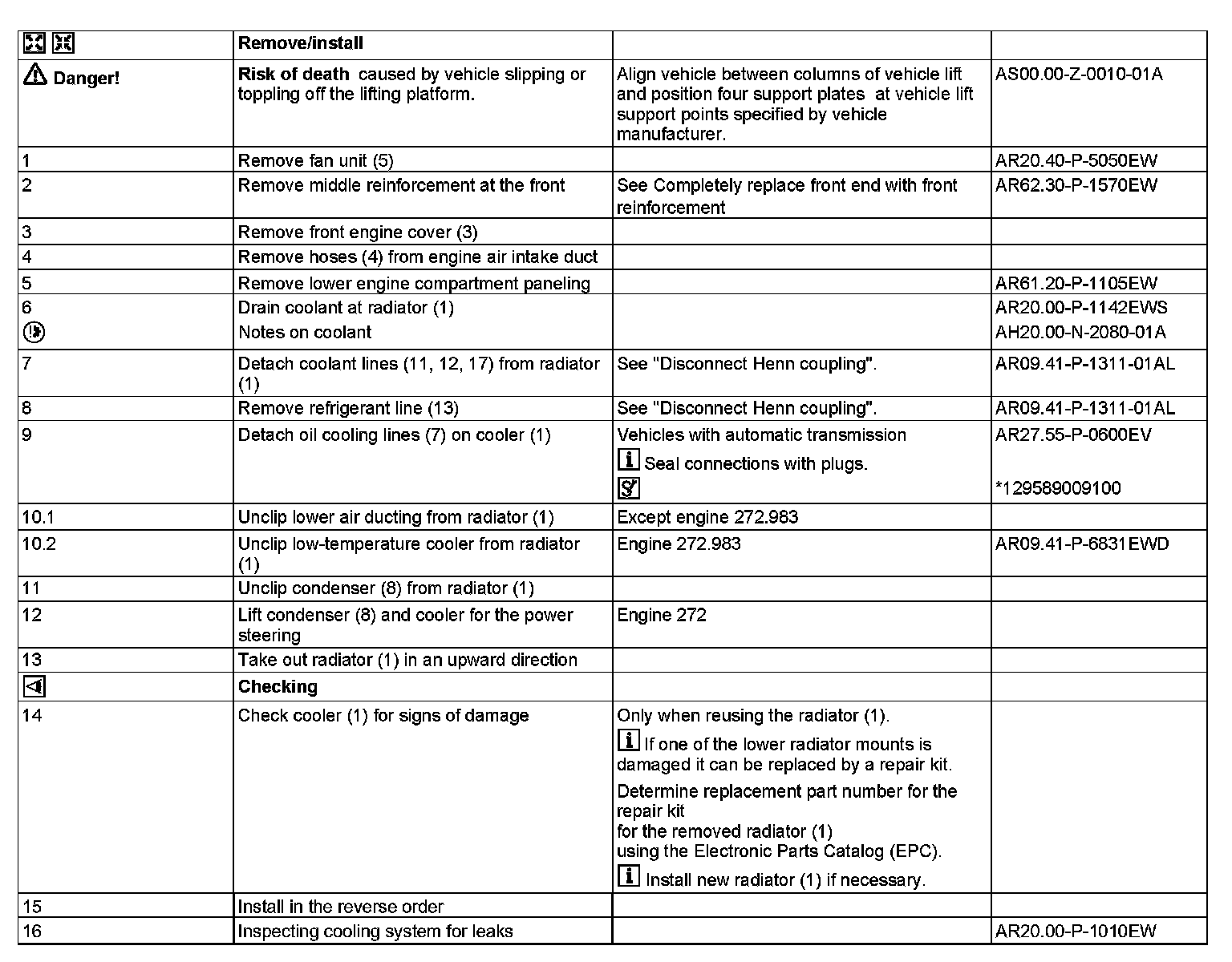

Steps 1-16:

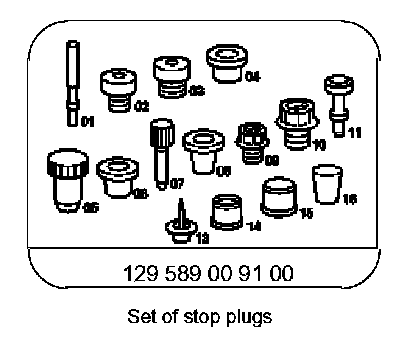

Special Tools:
