Radiator Cooling Fan: Service and Repair
AR20.40-P-5050EW Remove/install fan unit

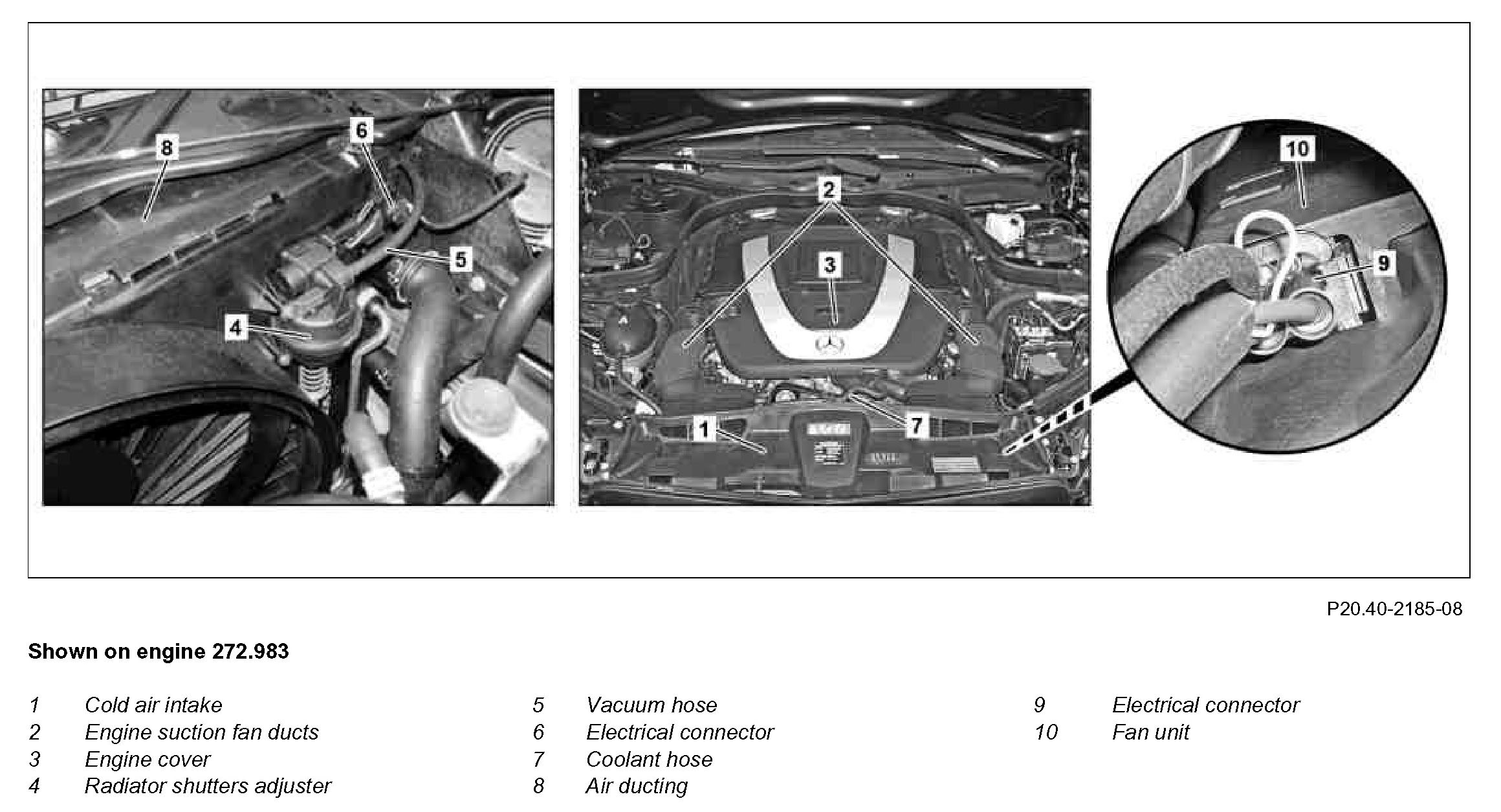

Component Identification:

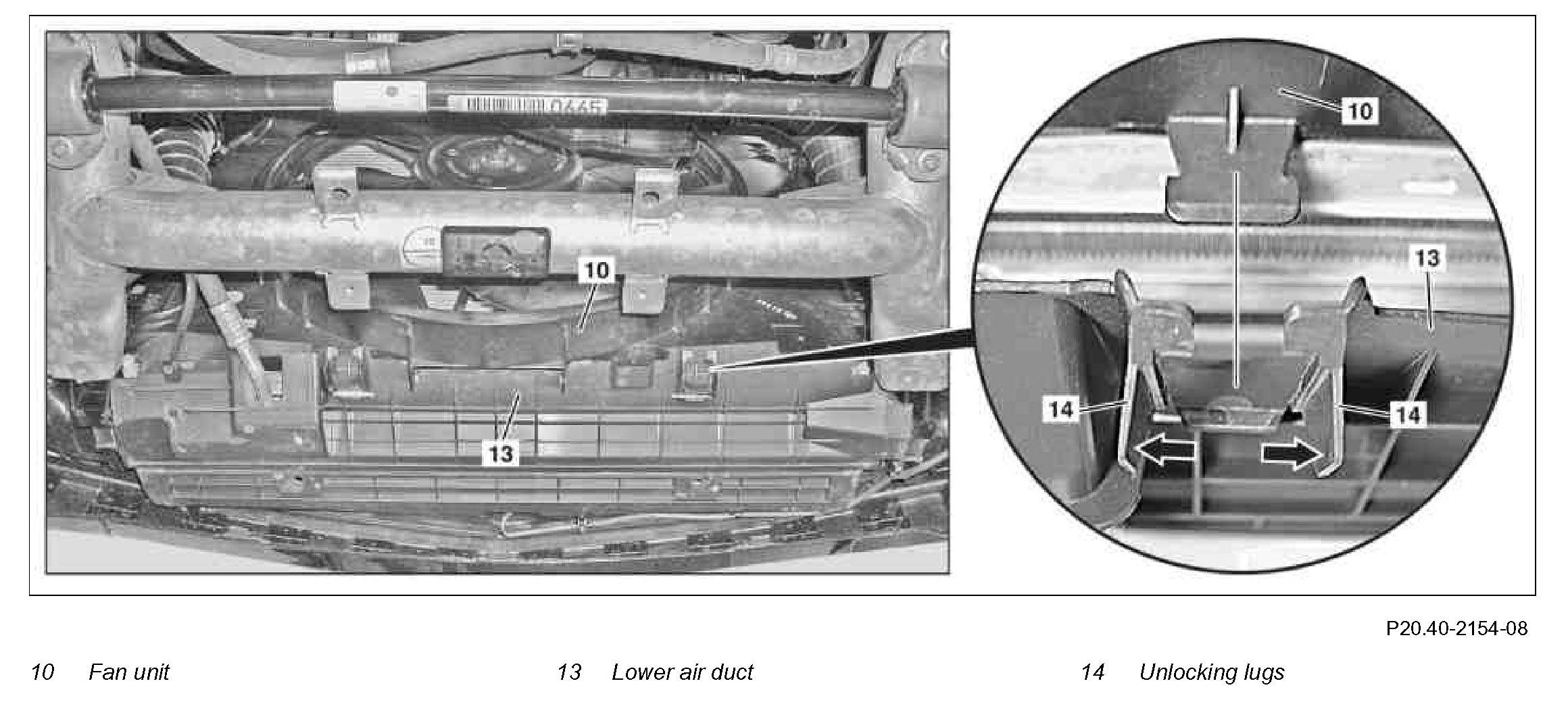

Component Identification:

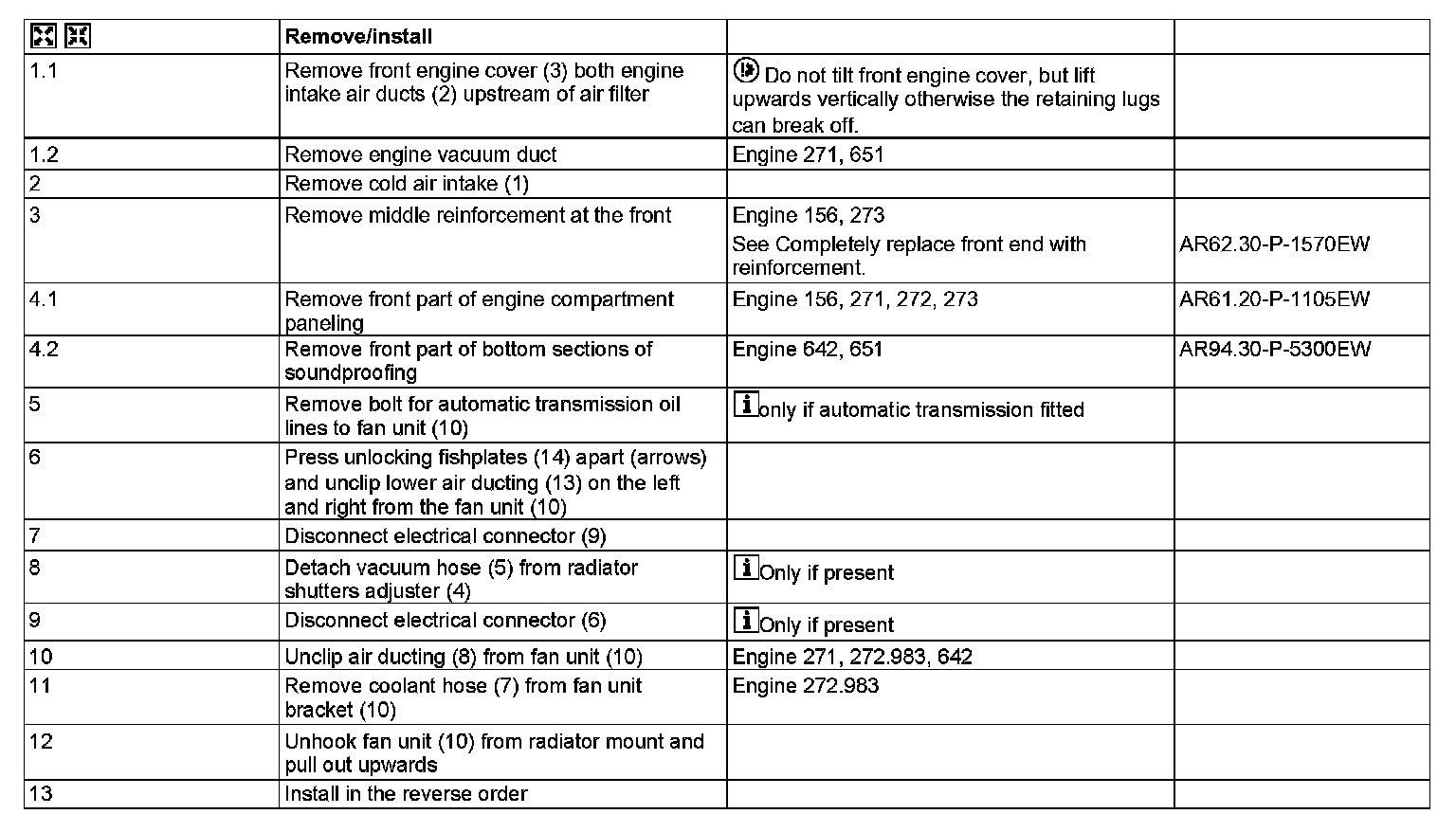

Steps 1.1-13:
