E 350 4MATIC Wagon (212.287) V6-3.5L (272.977)
>>
Repair and Diagnosis
>>
Engine, Cooling and Exhaust
>>
Cooling System
>>
Coolant Reservoir
>>
Service and Repair
Coolant Reservoir: Service and Repair
AR20.30-P-4950EW Remove/install expansion reservoir

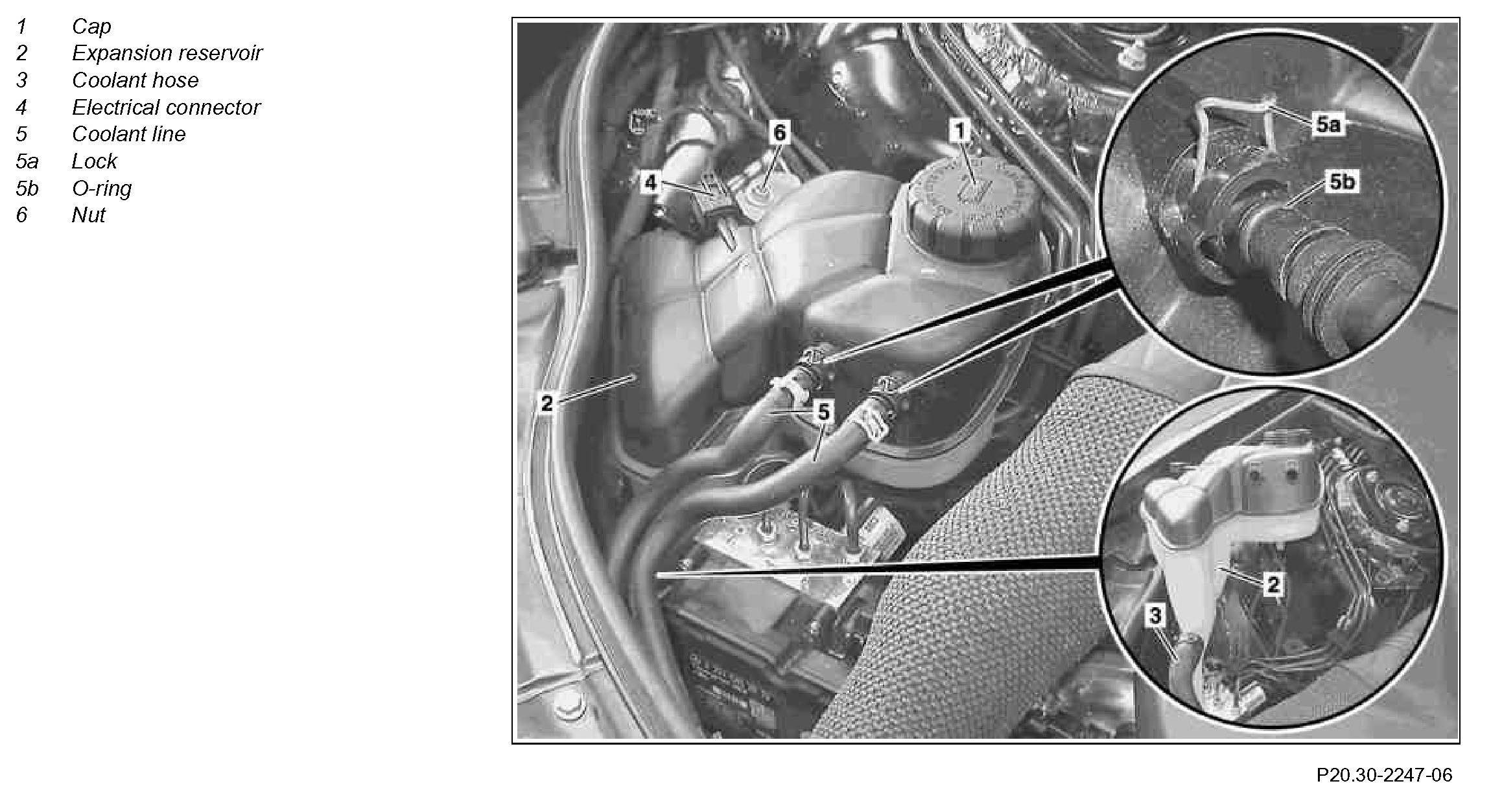

Component Identification:

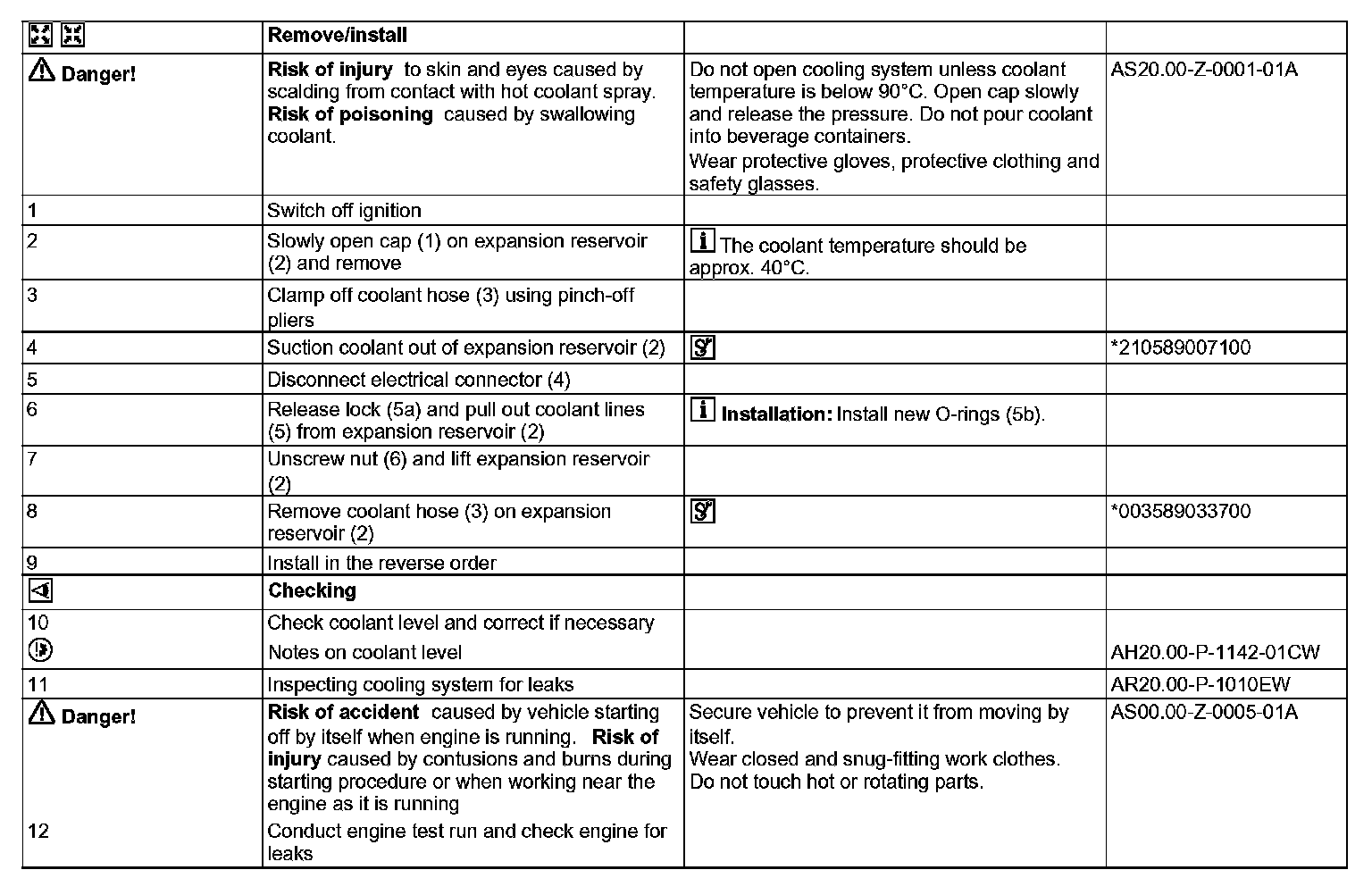

Steps 1-12:

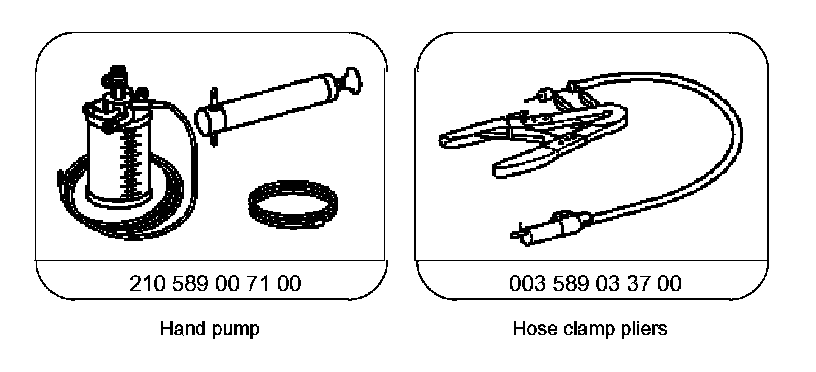

Special Tools:
