Oil Pan, Engine



AR01.45-P-7500-06VA Bolt plan for oil pan

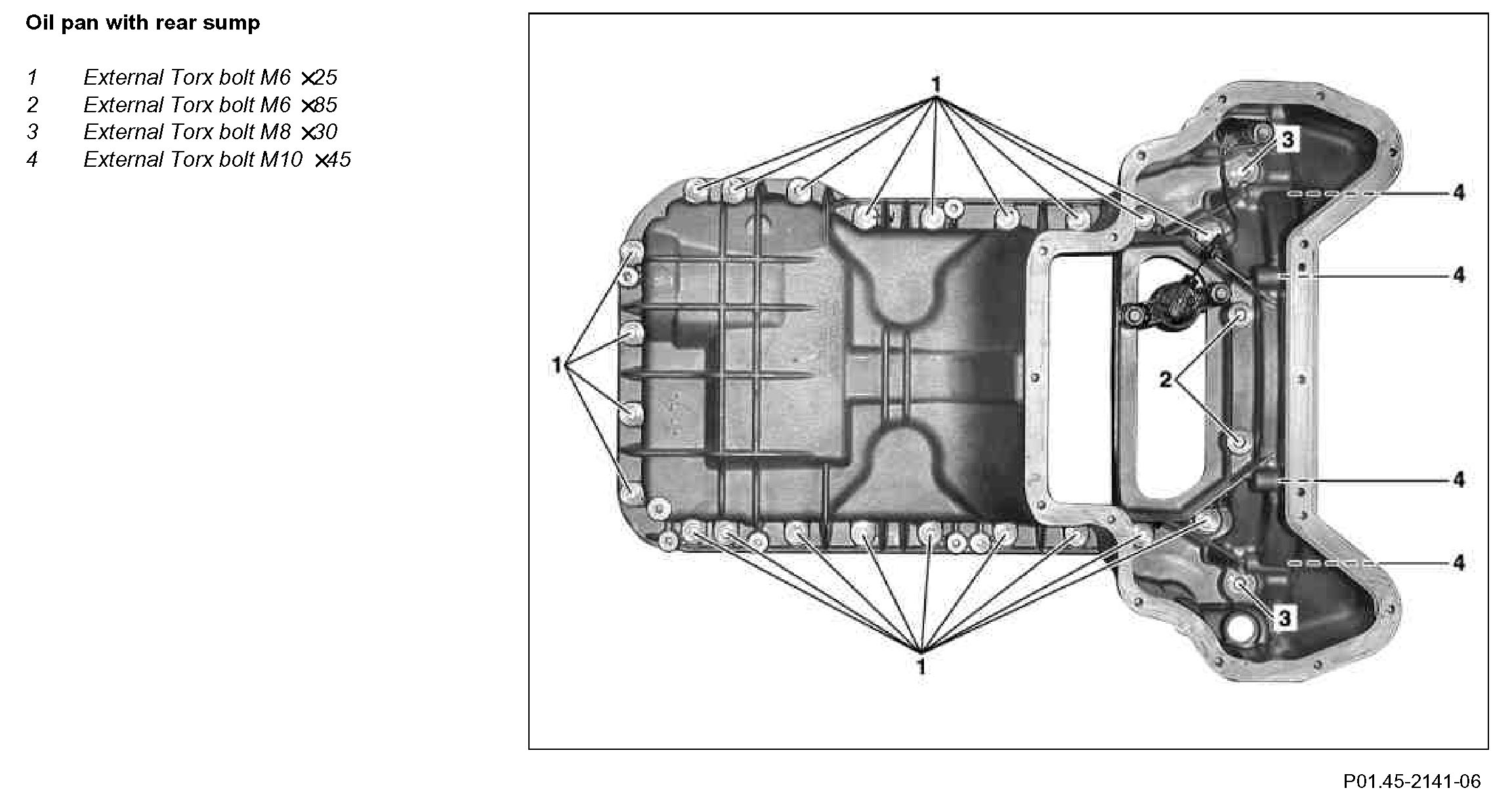

Bolt plan for oil pan - Oil pan with rear sump:

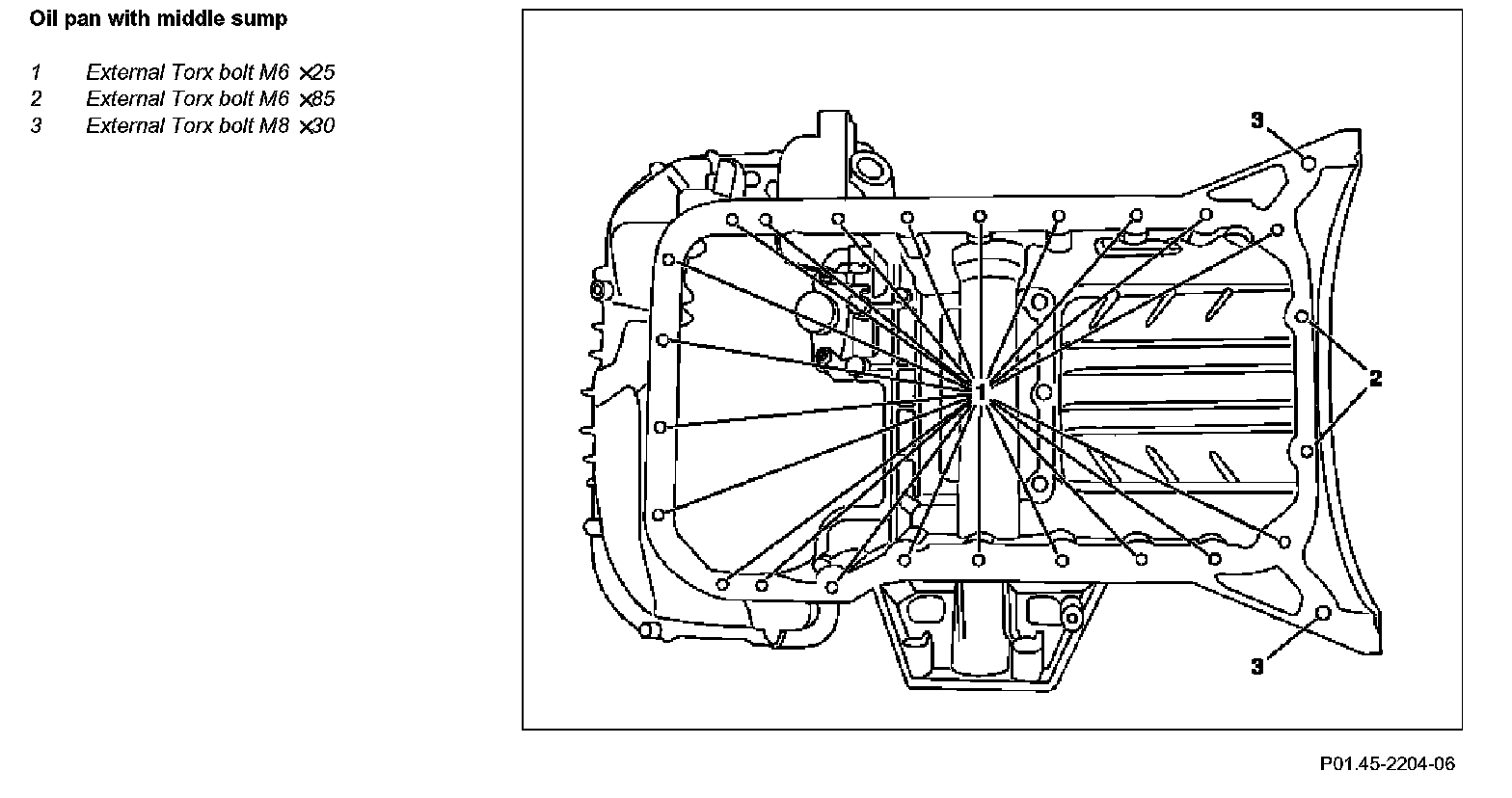

Bolt plan for oil pan - Oil pan with middle sump:

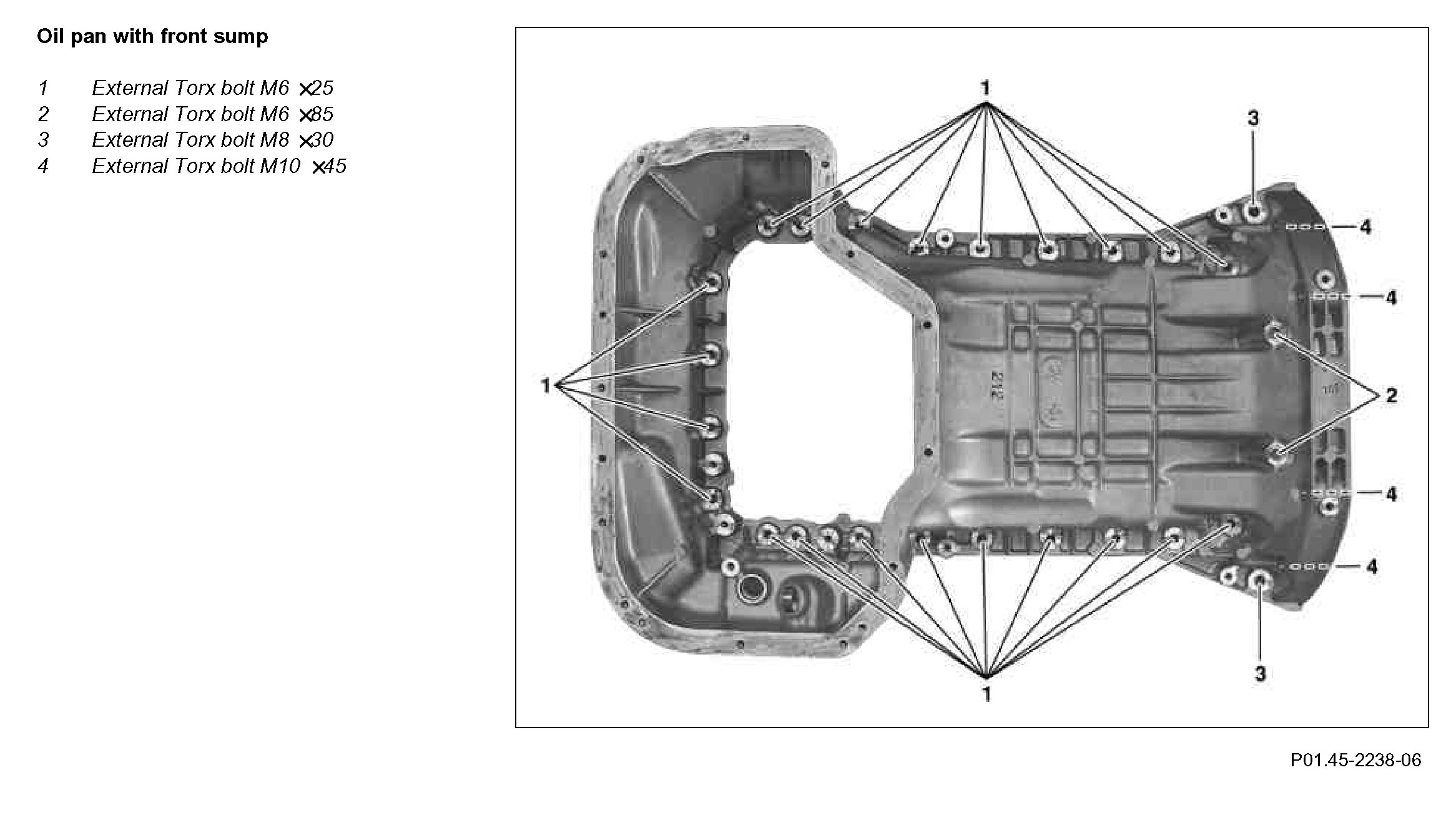

Bolt plan for oil pan - Oil pan with front sump:
