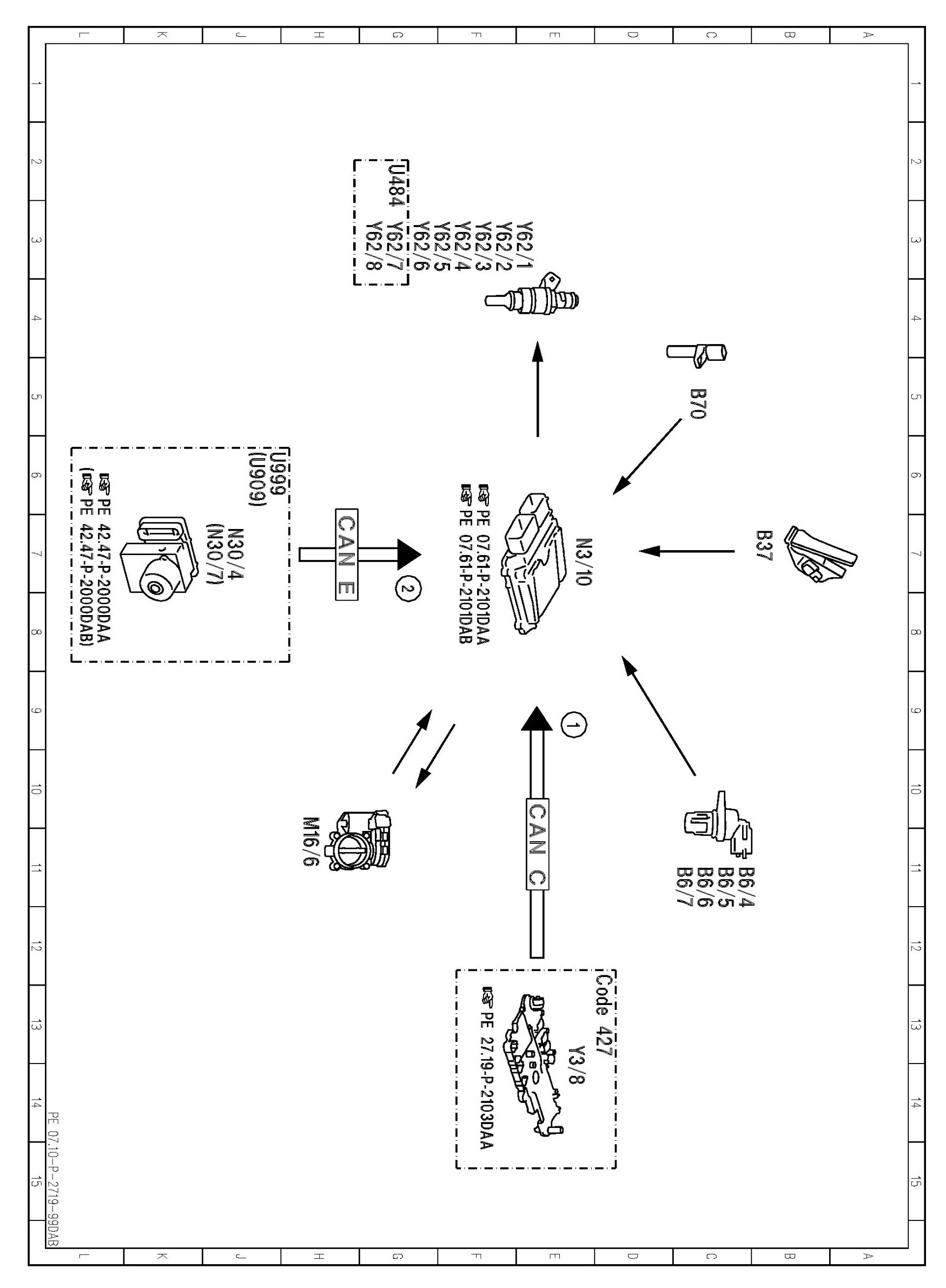

PE07.10-P-2719DAB Electrical Function Schematic, Engine Limp-Home Mode

PE07.10-P-2719DAB Electrical Function Schematic, Engine Limp-Home Mode

ENGINE 272, 273 in MODEL 212 except engine 272.98














































































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
