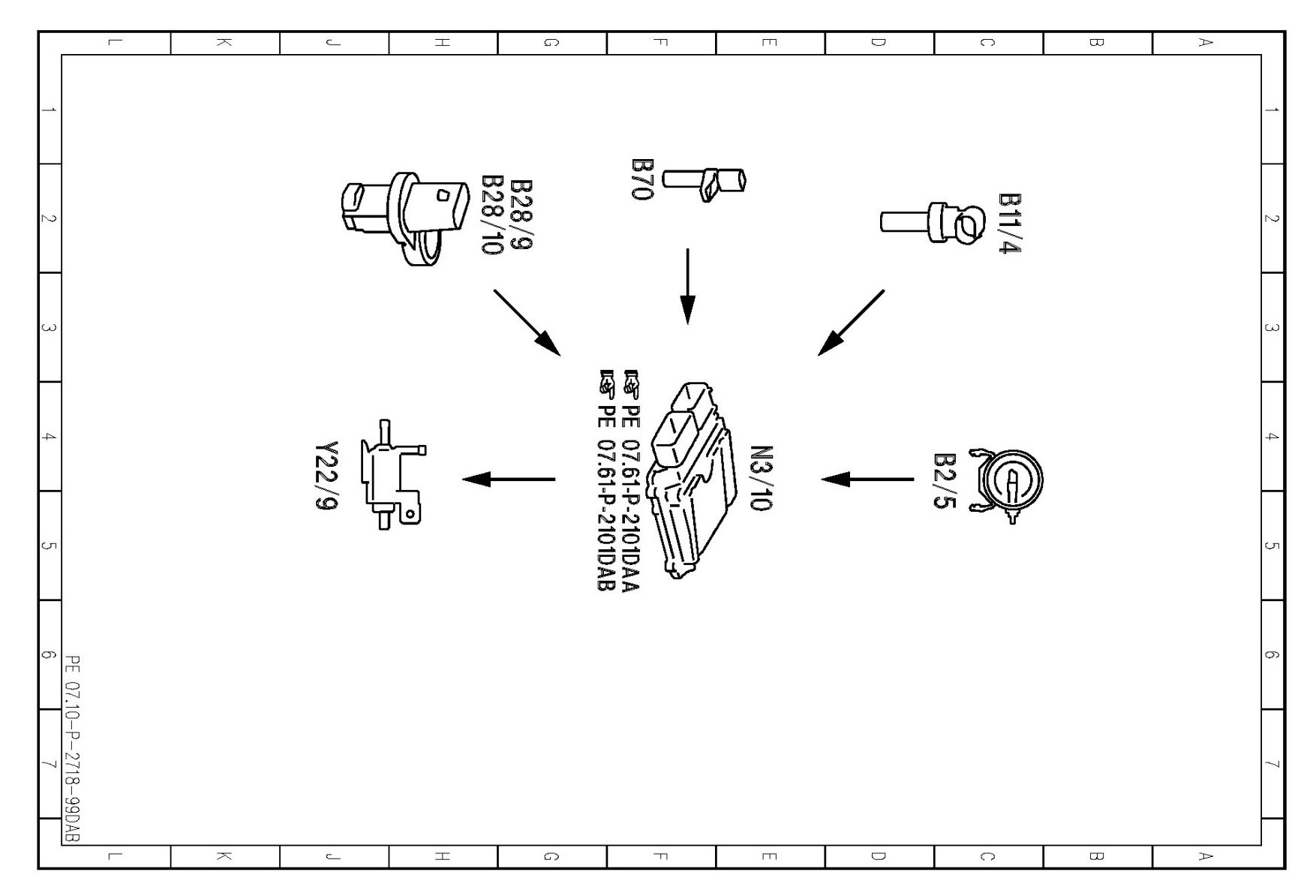

PE07.10-P-2718DAB Electrical Function Schematic, Tumble Flap Switchover

PE07.10-P-2718DAB Electrical Function Schematic, Tumble Flap Switchover

ENGINE 272, 273 in MODEL 212 except engine 272.98

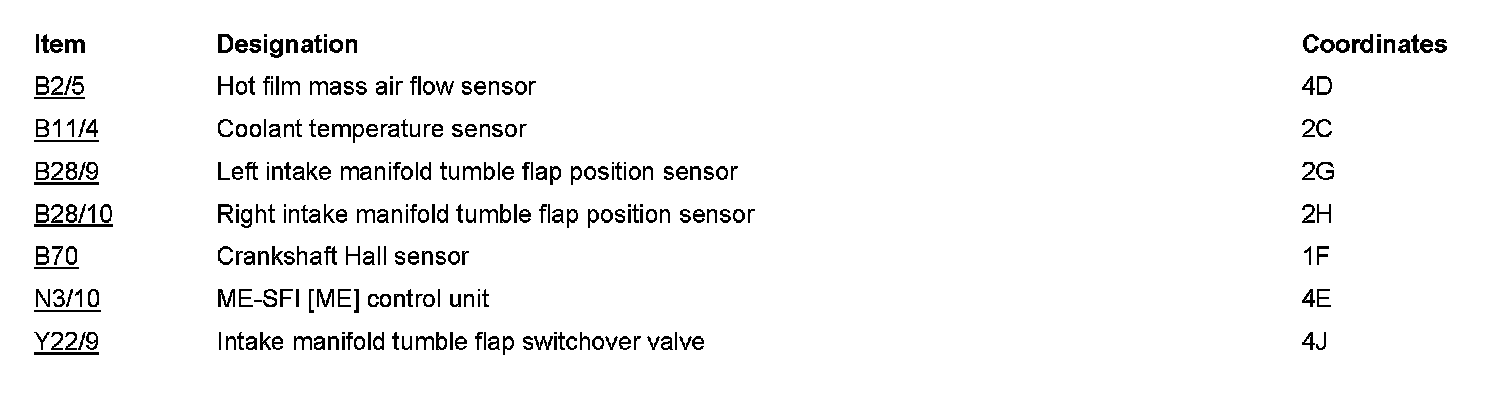

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
