PE07.10-P-2714DAB Electrical Function Schematic, Deceleration Fuel Shutoff

PE07.10-P-2714DAB Electrical Function Schematic, Deceleration Fuel Shutoff

ENGINE 272, 273 in MODEL 212 except engine 272.98

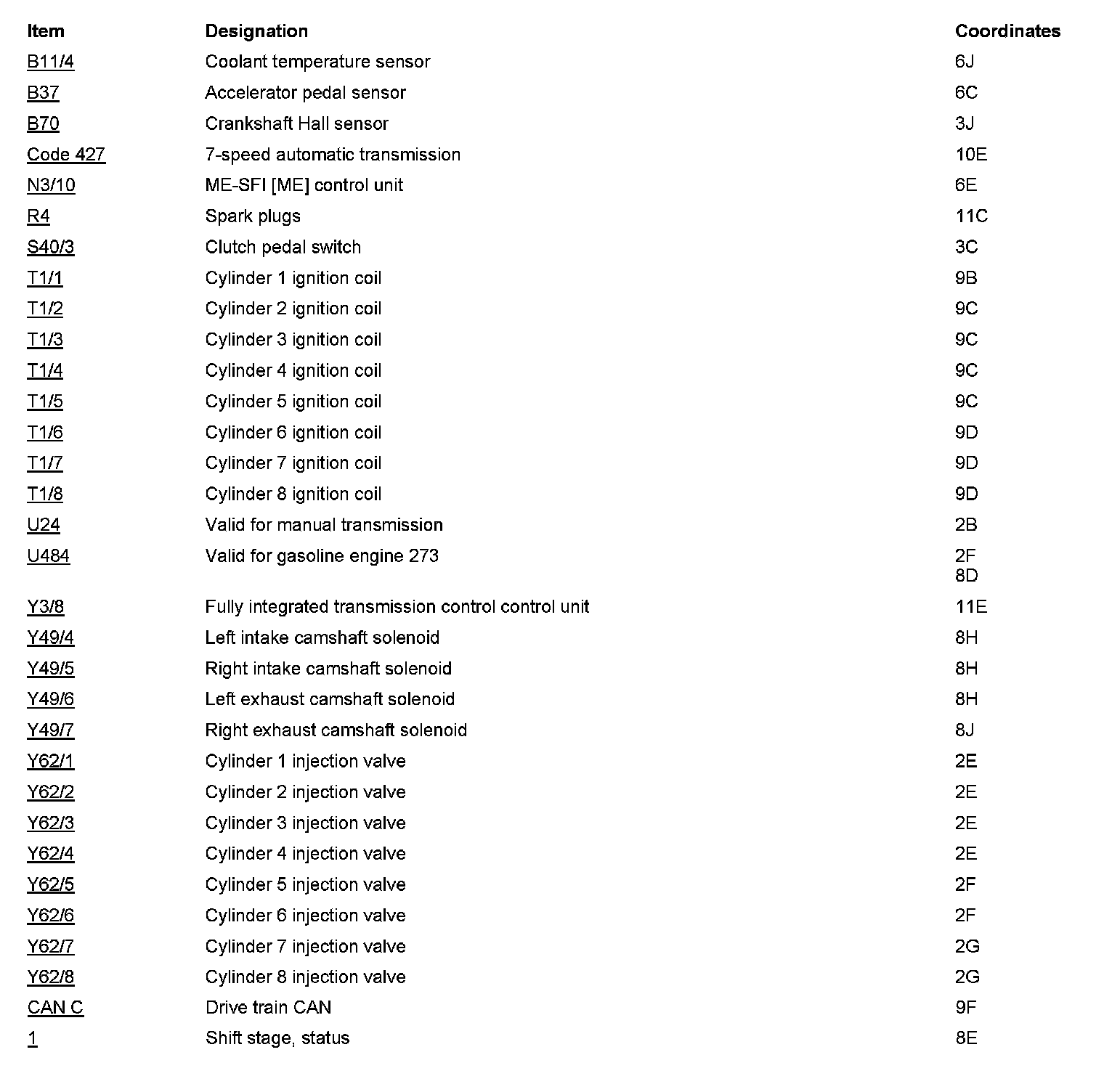

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
