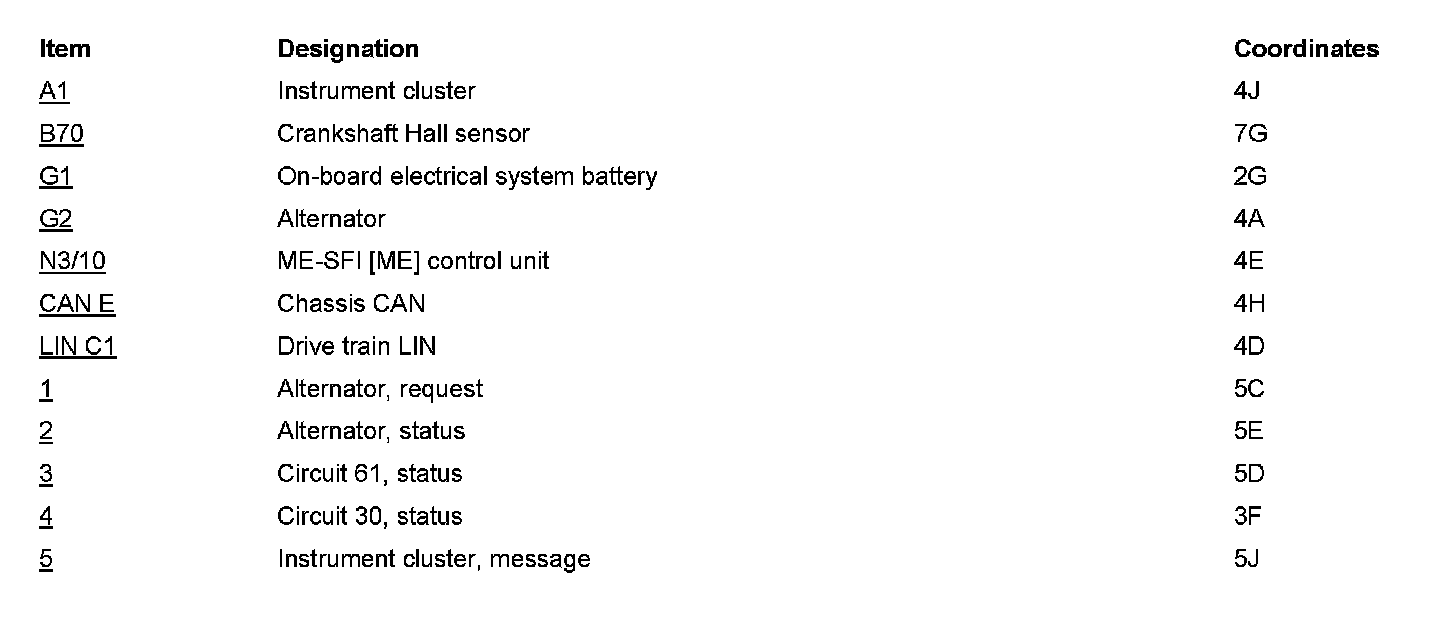

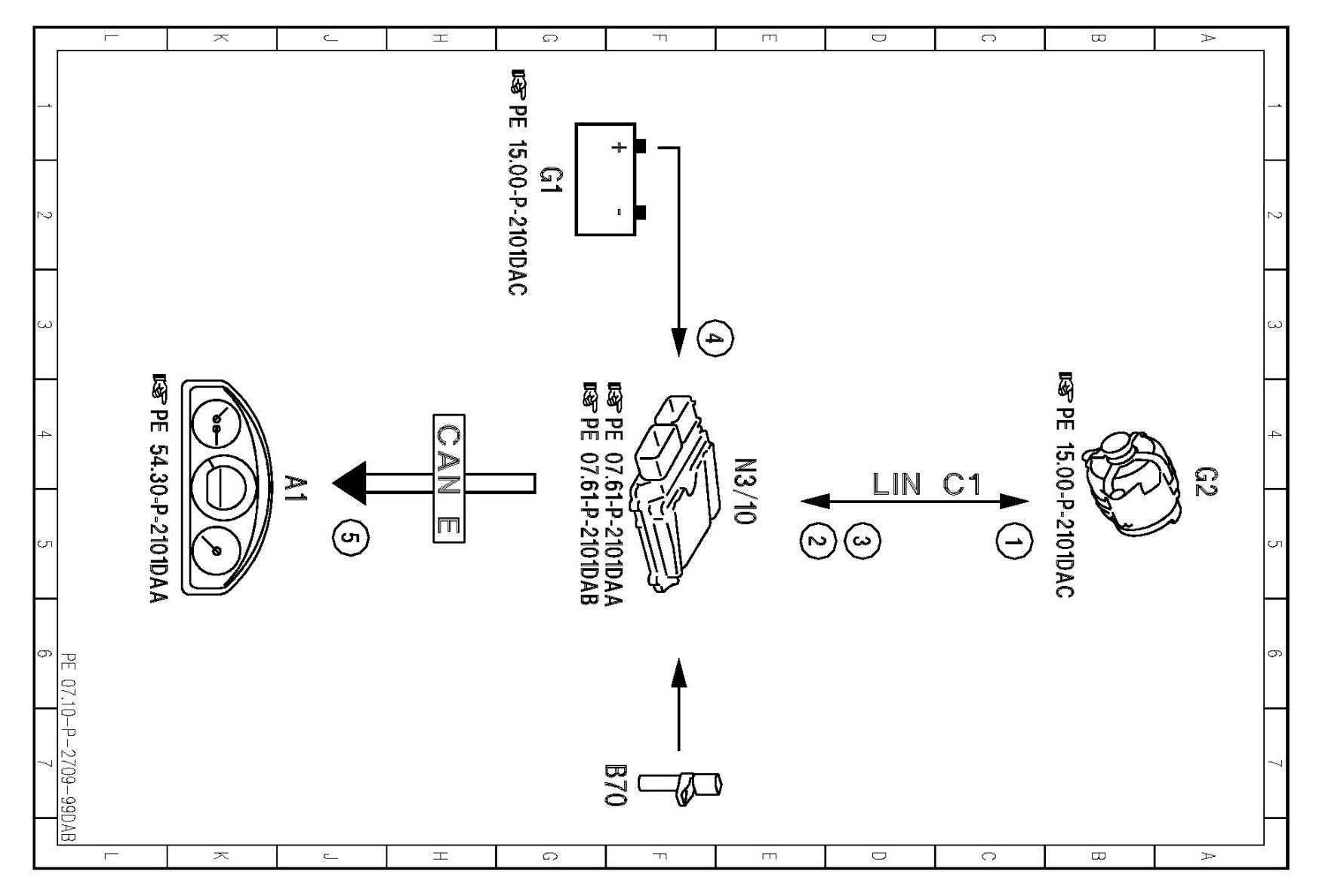

PE07.10-P-2709DAB Electrical Function Schematic, Alternator Interface

PE07.10-P-2709DAB Electrical Function Schematic, Alternator Interface

ENGINE 272, 273 in MODEL 212 except engine 272.98






















Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
