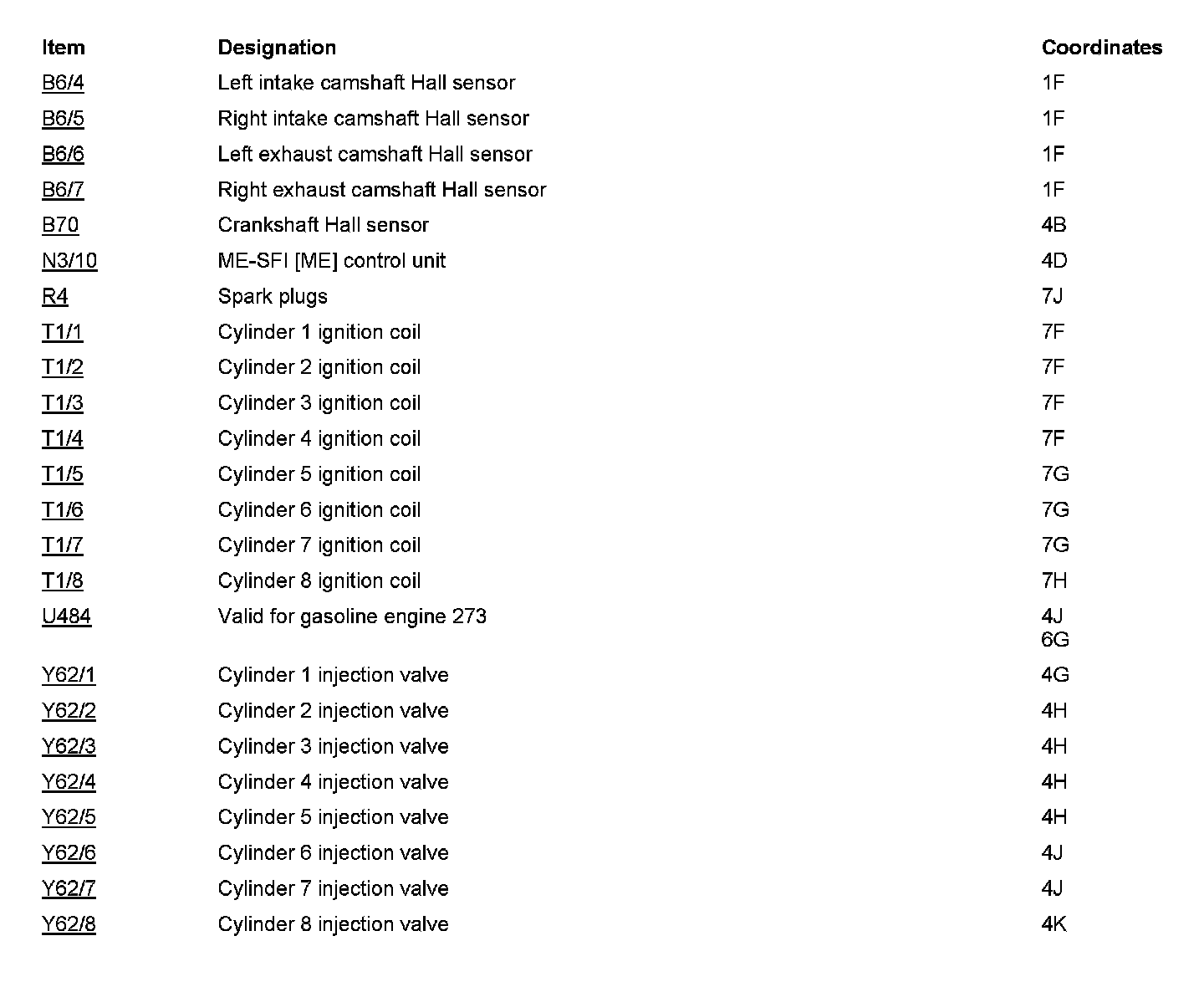

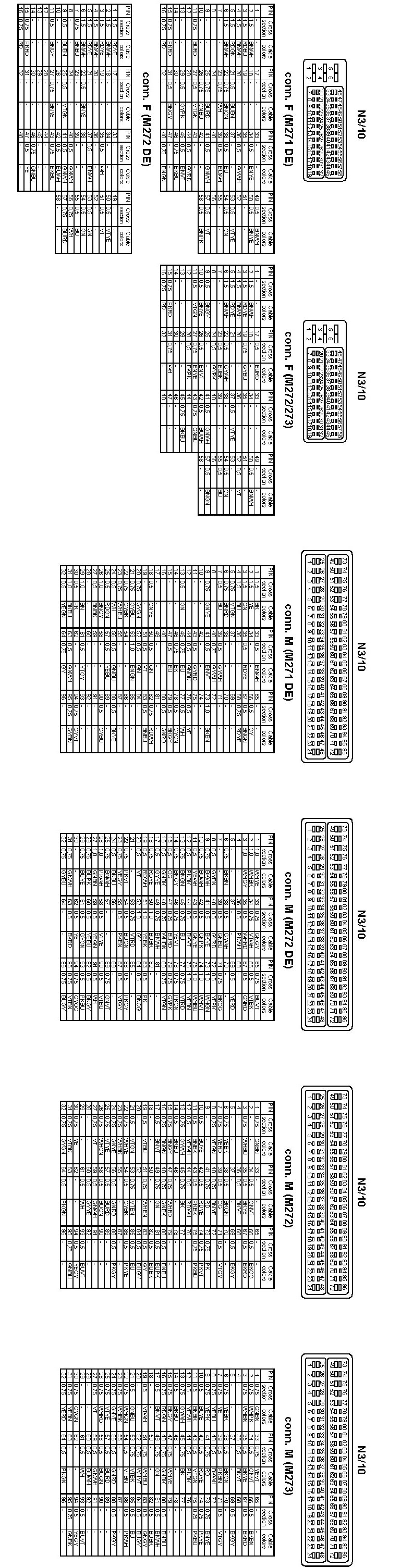

PE07.10-P-2706DAB Electrical Function Schematic, Synchronization Of The Injection And Firing Order

PE07.10-P-2706DAB Electrical Function Schematic, Synchronization Of The Injection And Firing Order

ENGINE 272, 273 in MODEL 212 except engine 272.98






























































































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
