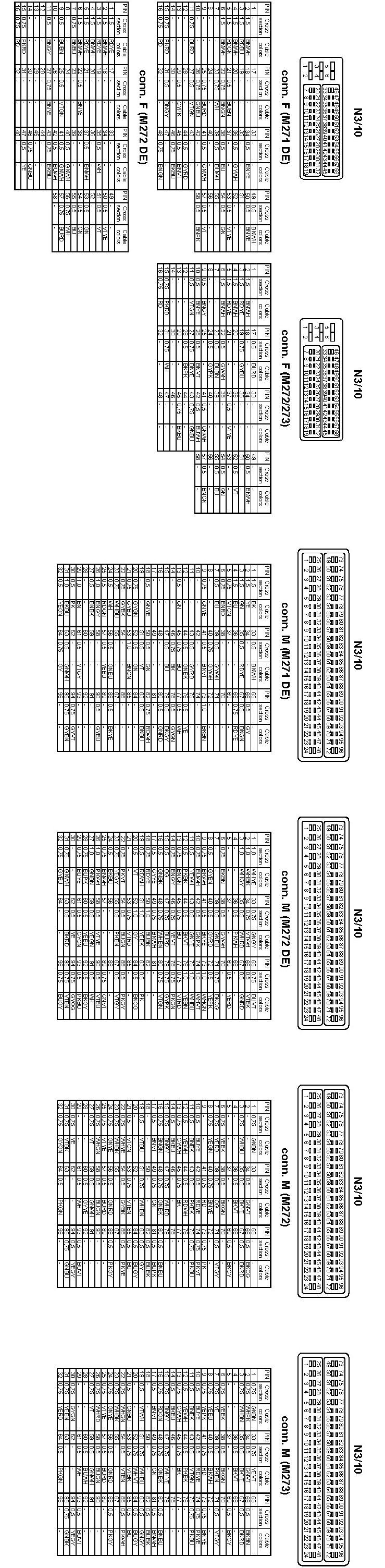

PE07.10-P-2703DAB Electrical Function Schematic For Fuel Supply

PE07.10-P-2703DAB Electrical Function Schematic For Fuel Supply

ENGINE 272, 273 in MODEL 212 except engine 272.98


















































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
