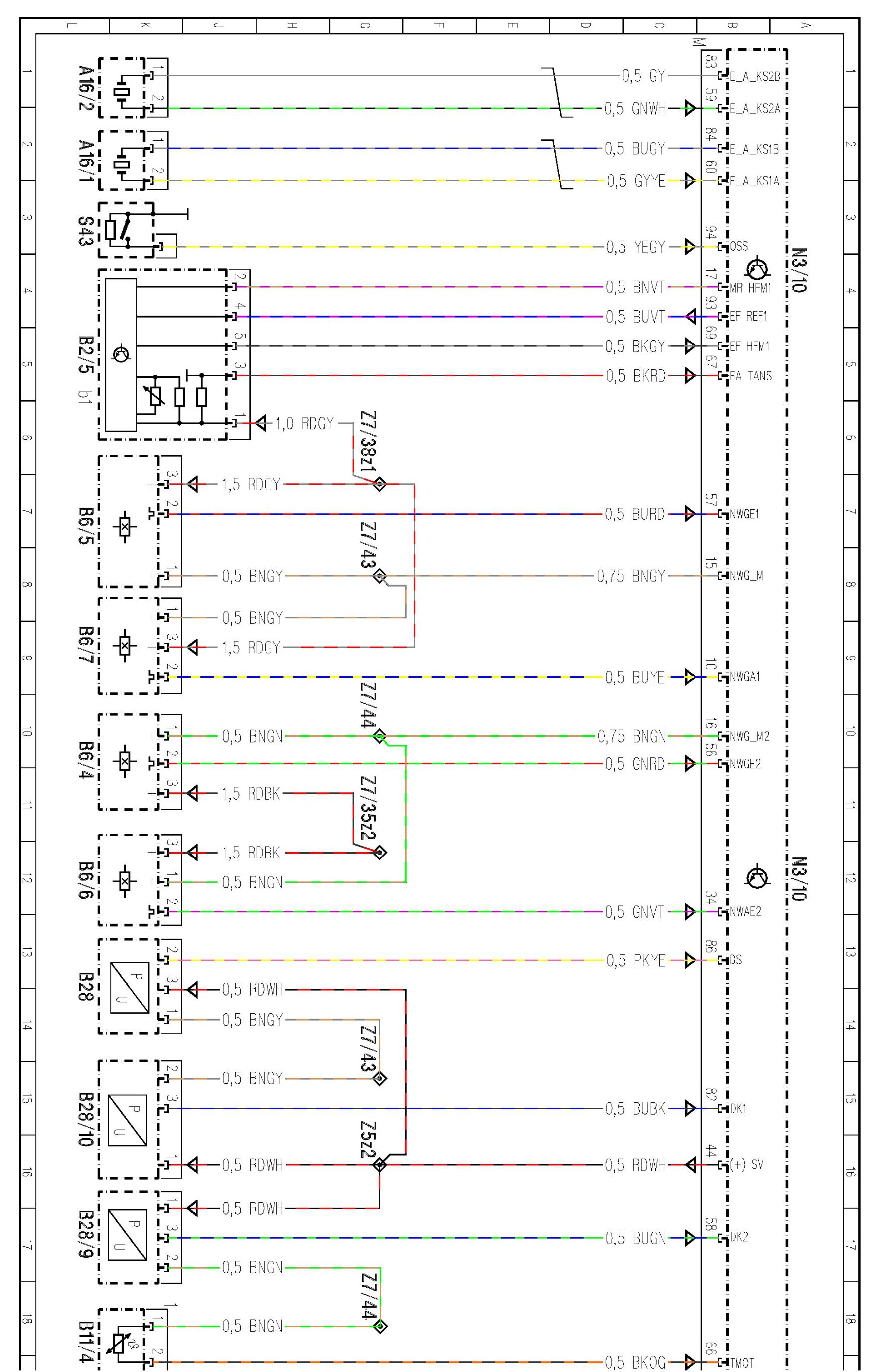

PE07.61-P-2101DAE ME-SFI [ME] Gasoline Injection And Ignition System Control Unit

PE07.61-P-2101DAE ME-SFI [ME] Gasoline Injection And Ignition System Control Unit
ENGINE 272 in MODEL 212

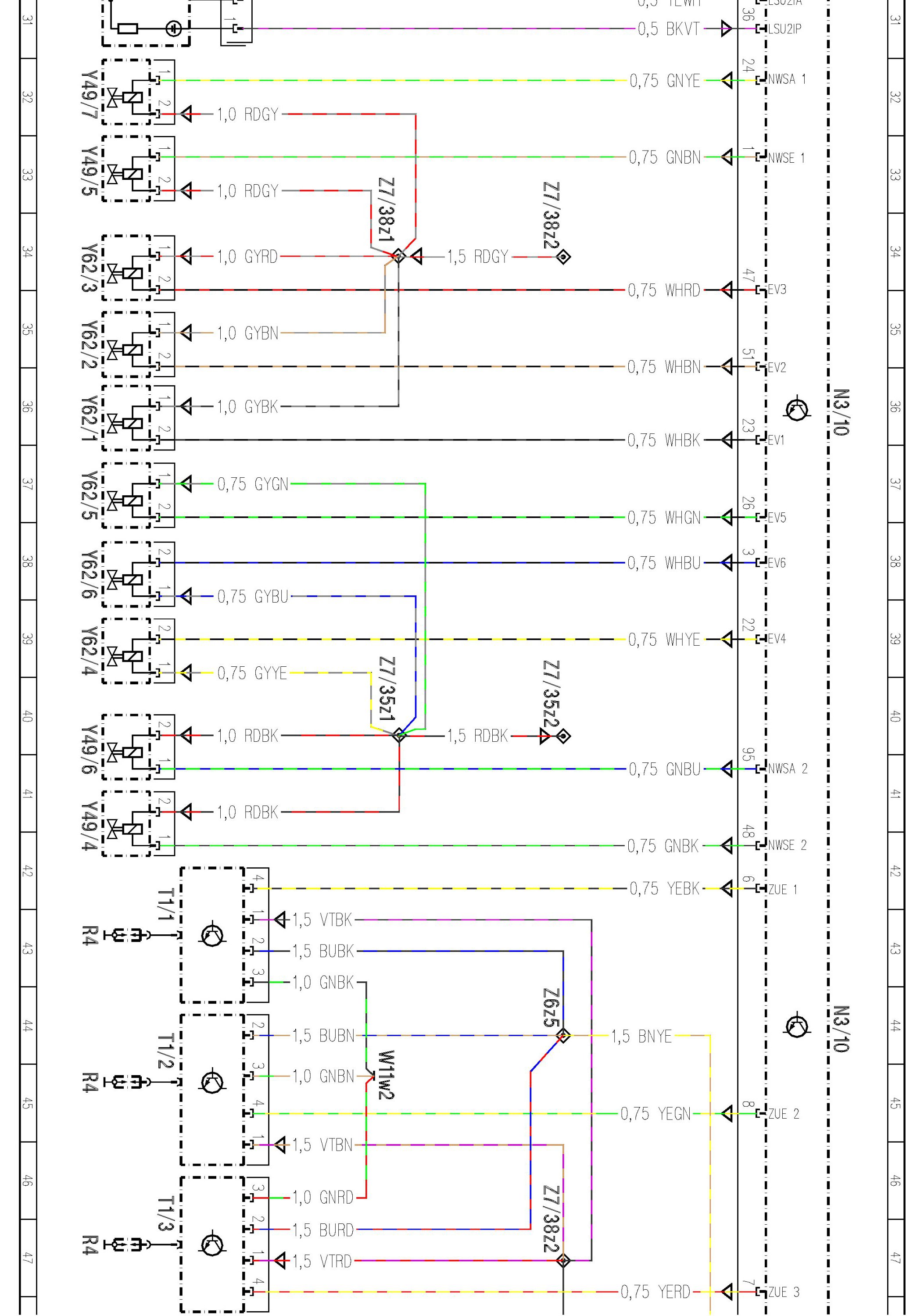

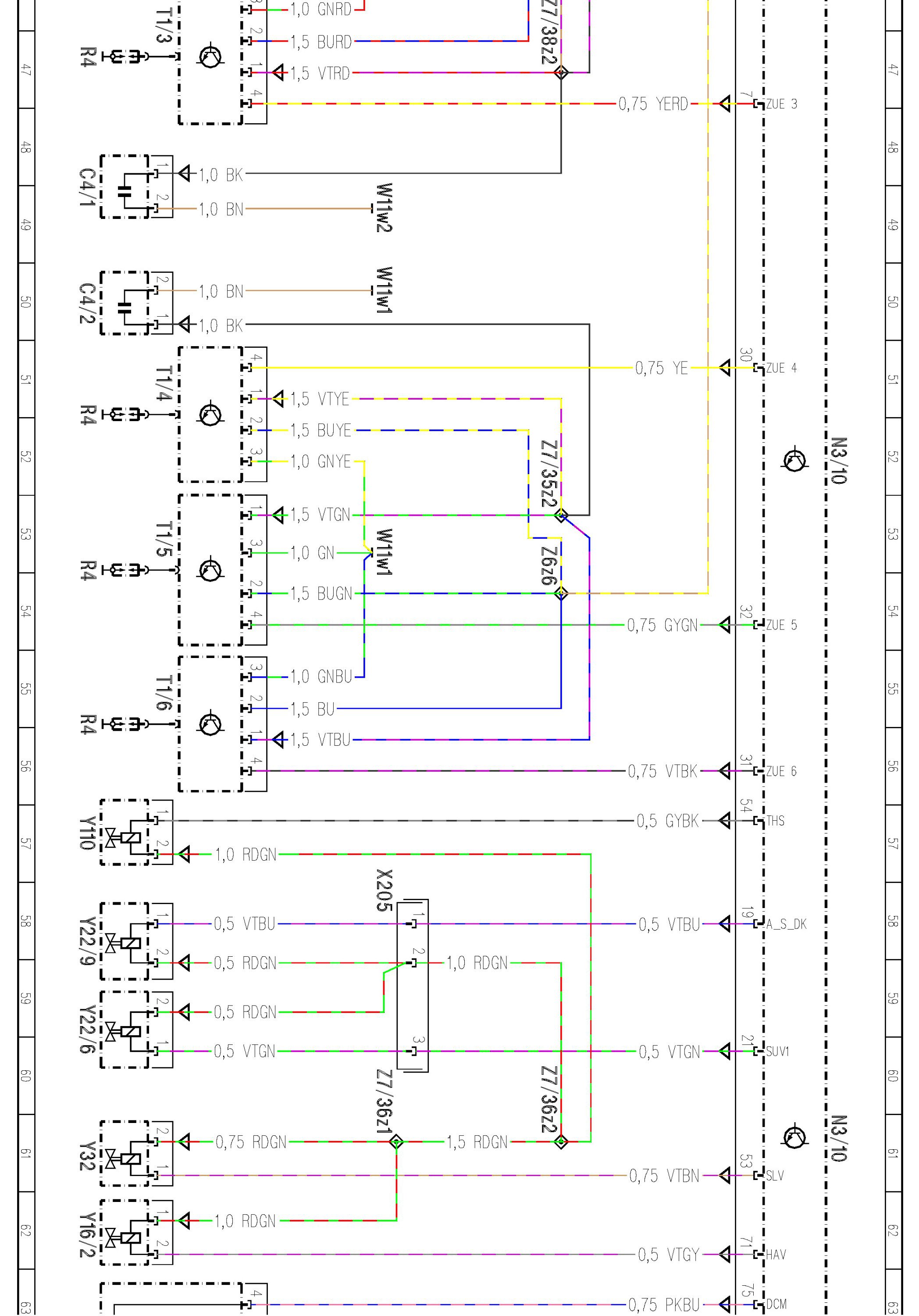

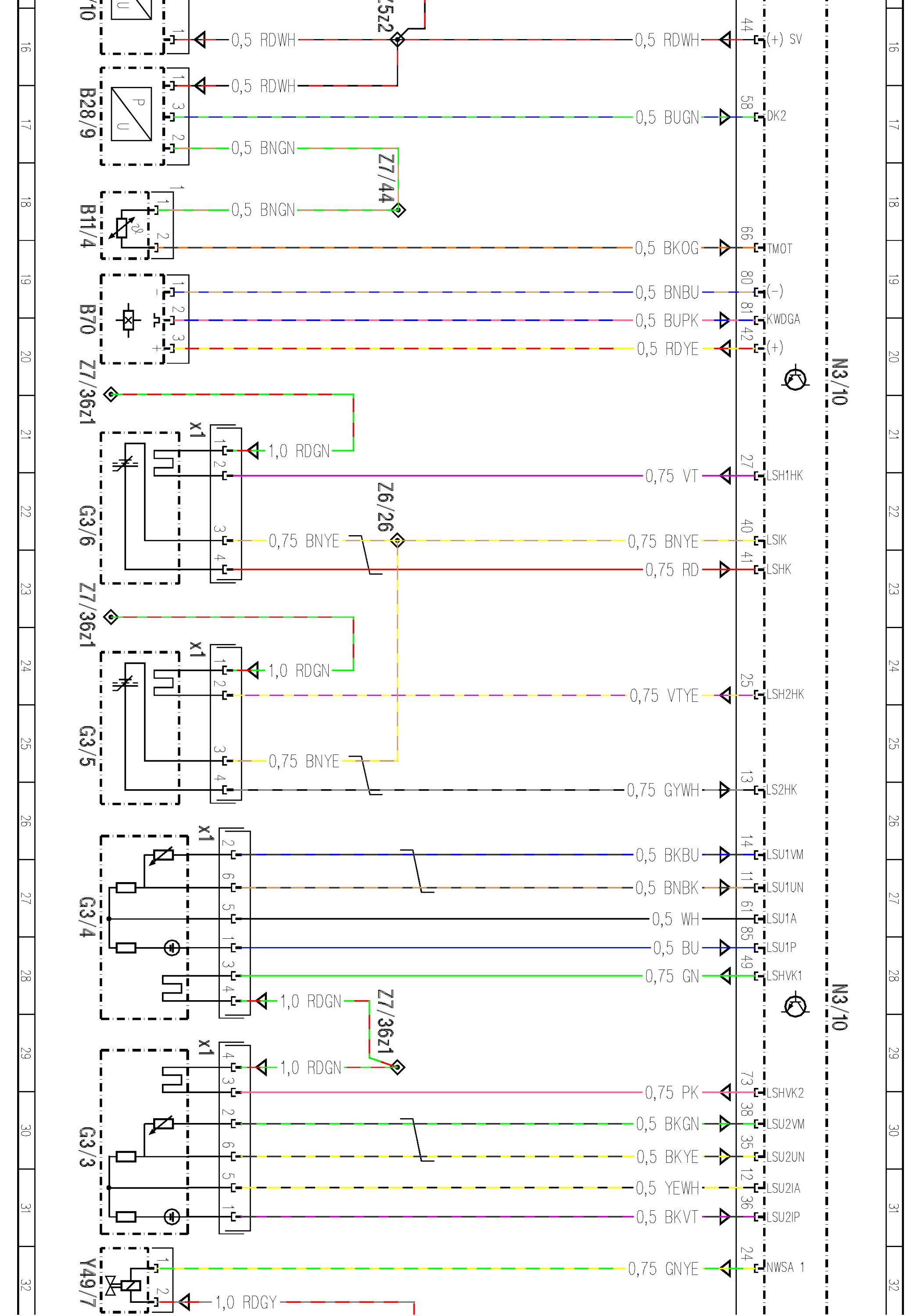

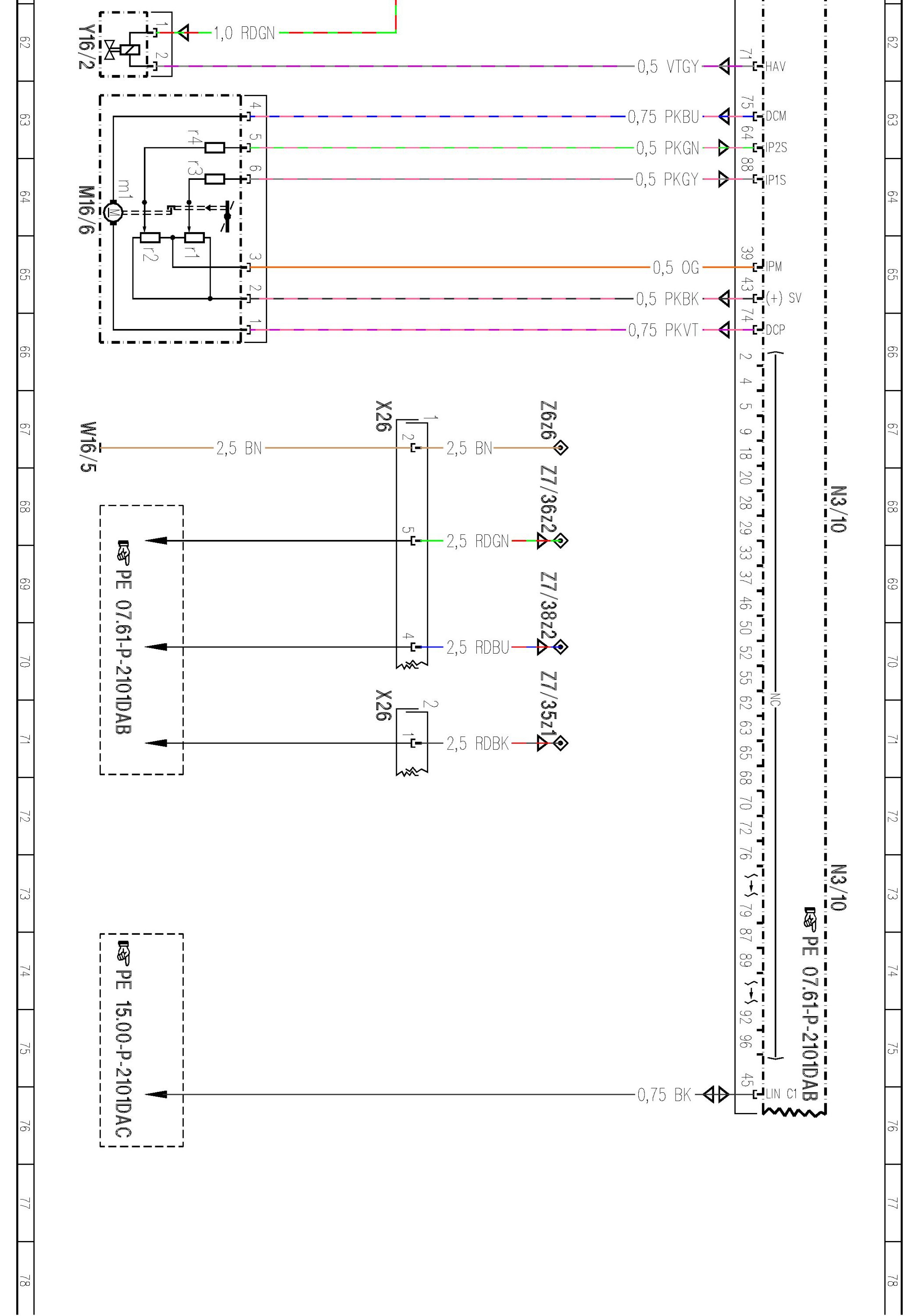

- control unit N3/10, engine connector






















































































































































































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
