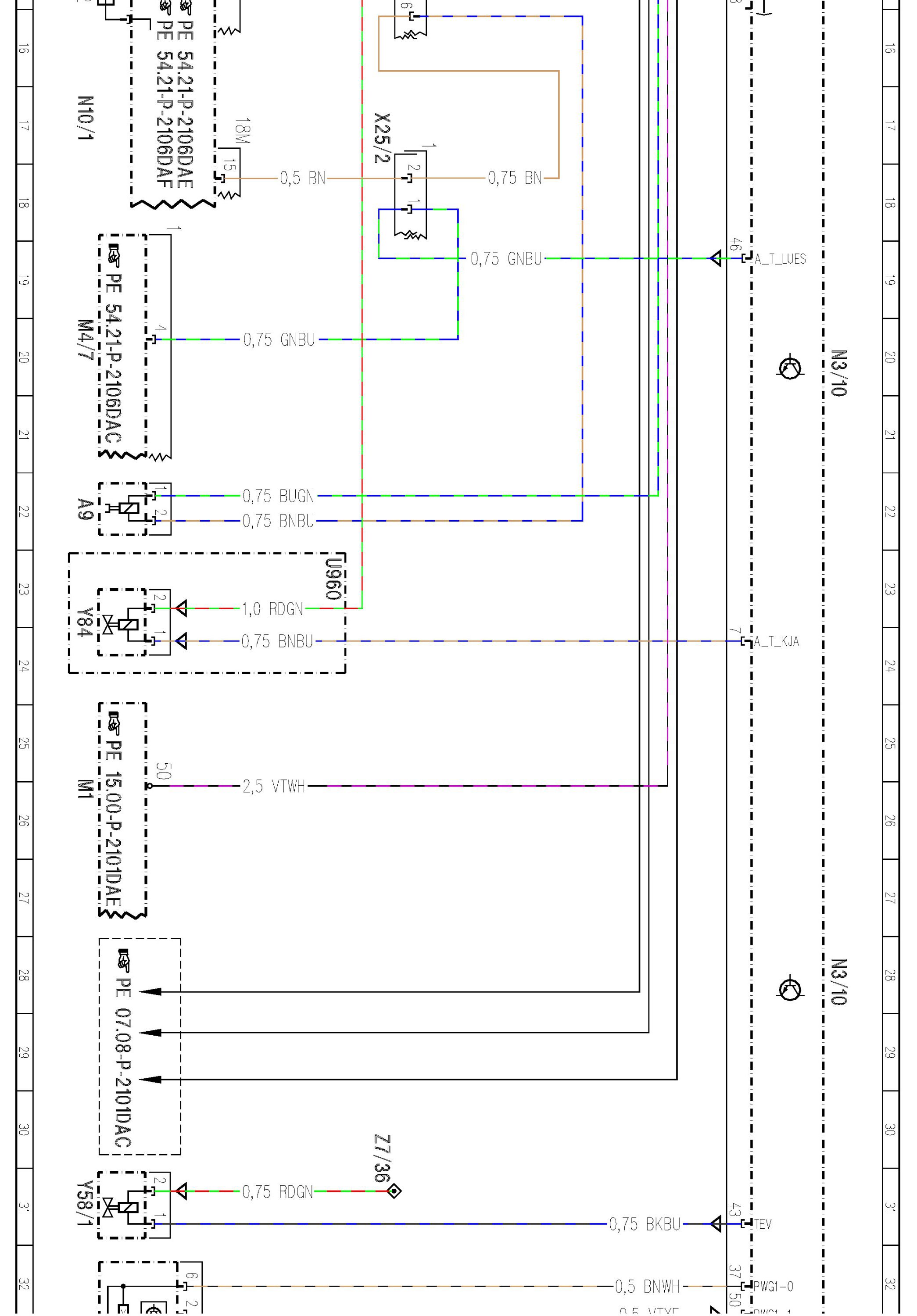

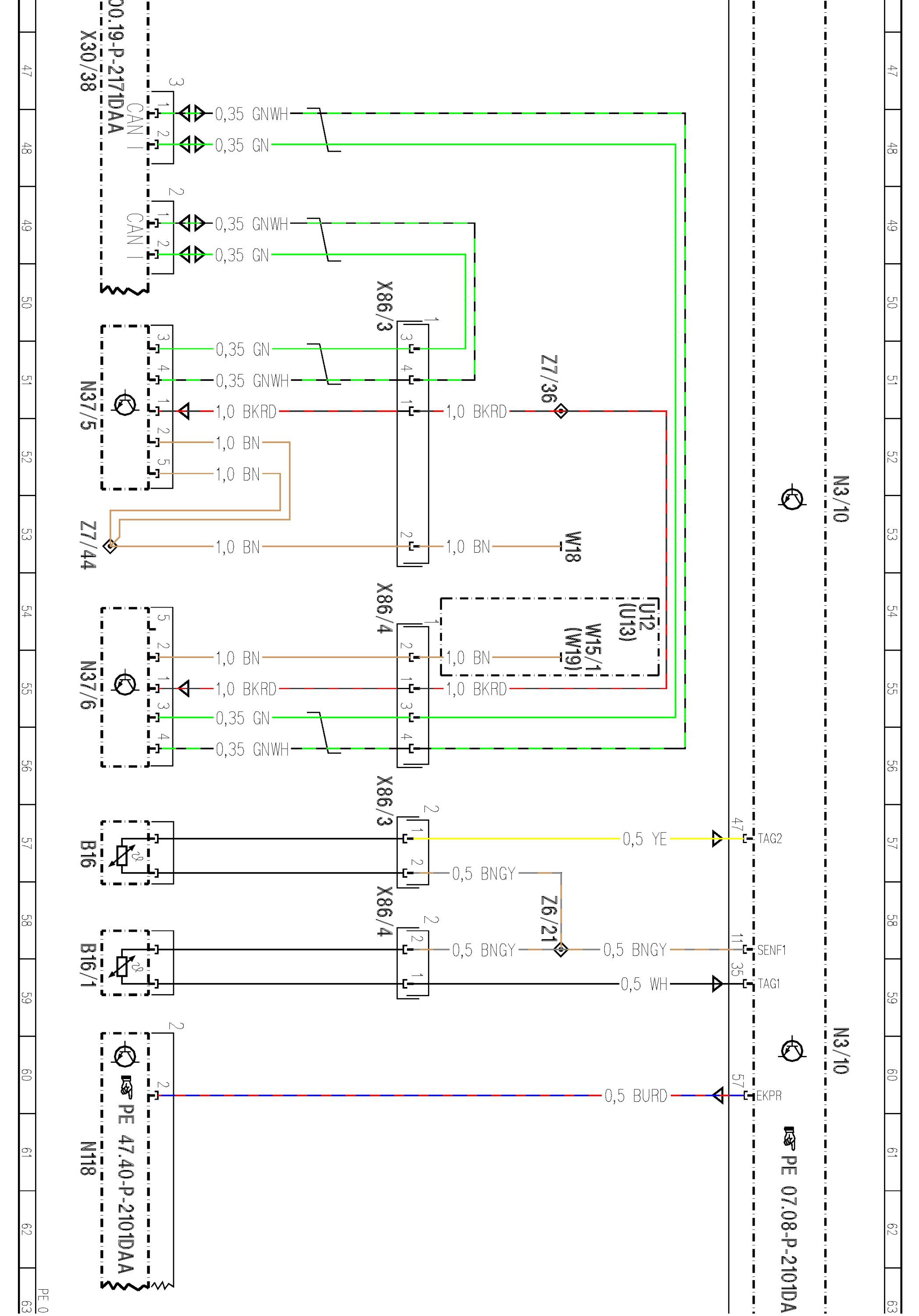

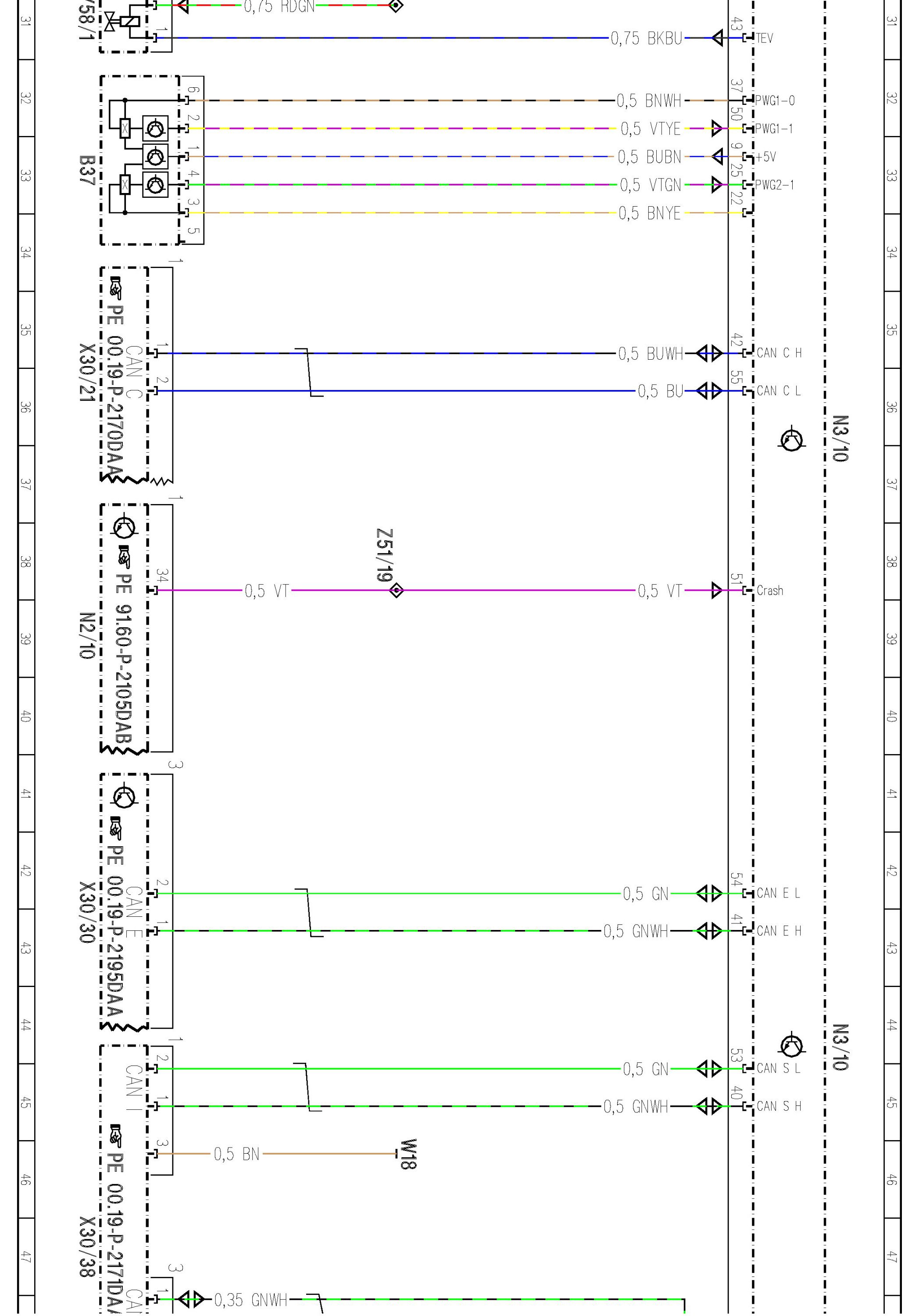

PE07.08-P-2101DAD Gasoline Direct Injection System Control Unit

PE07.08-P-2101DAD Gasoline Direct Injection System Control Unit

ENGINE 272 in MODEL 212

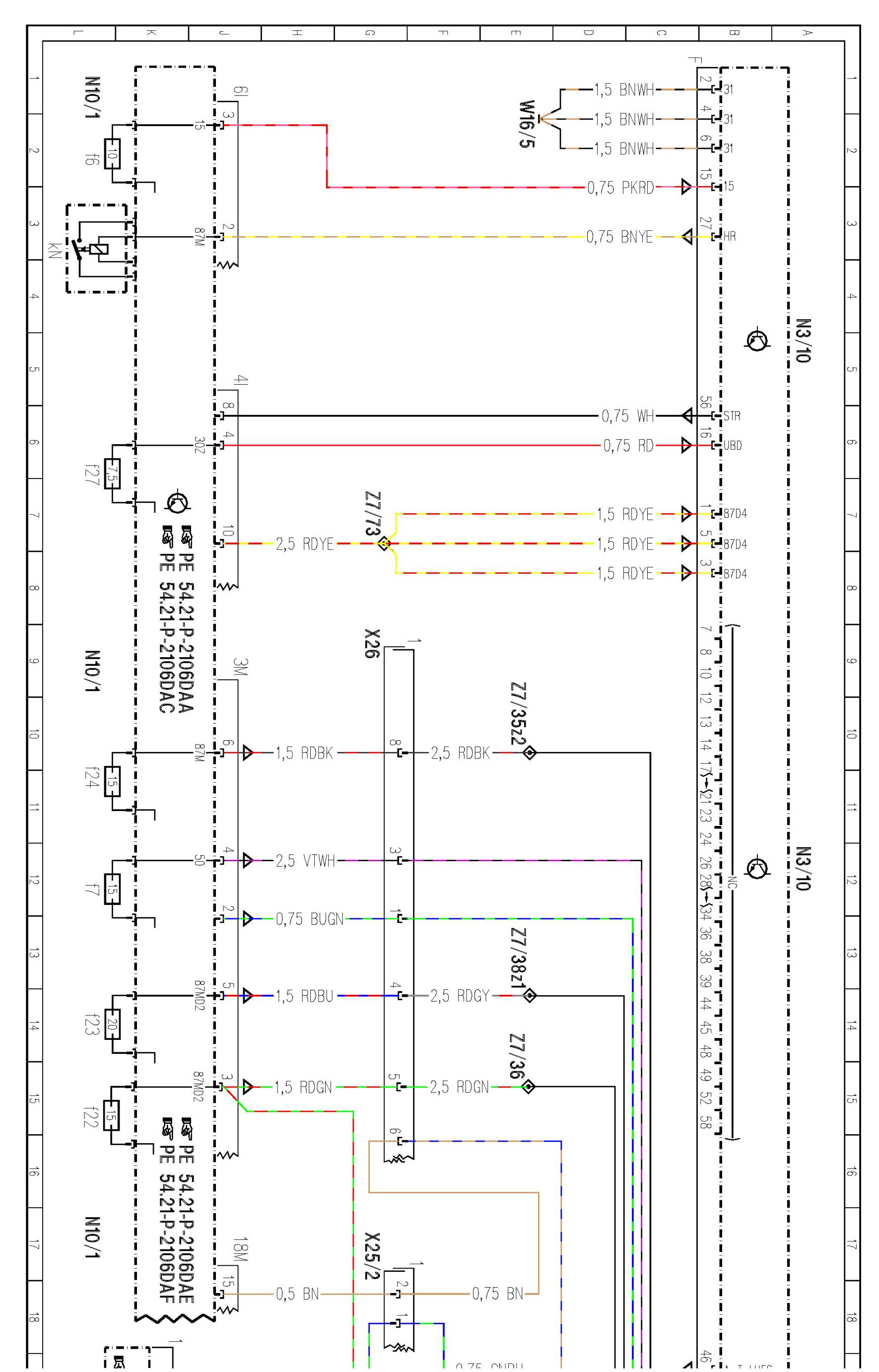

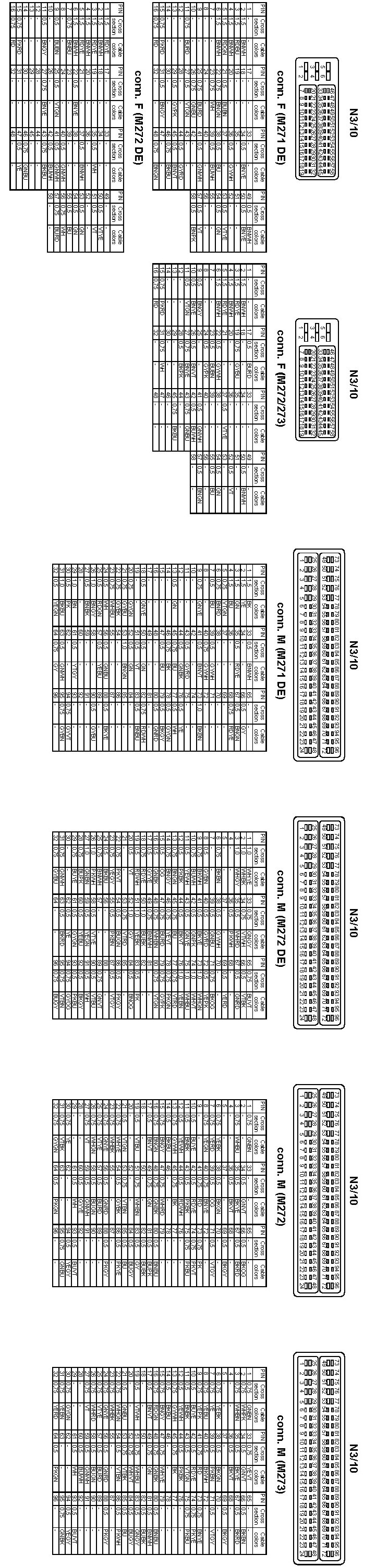

- Control Unit N3/10, Vehicle Connector

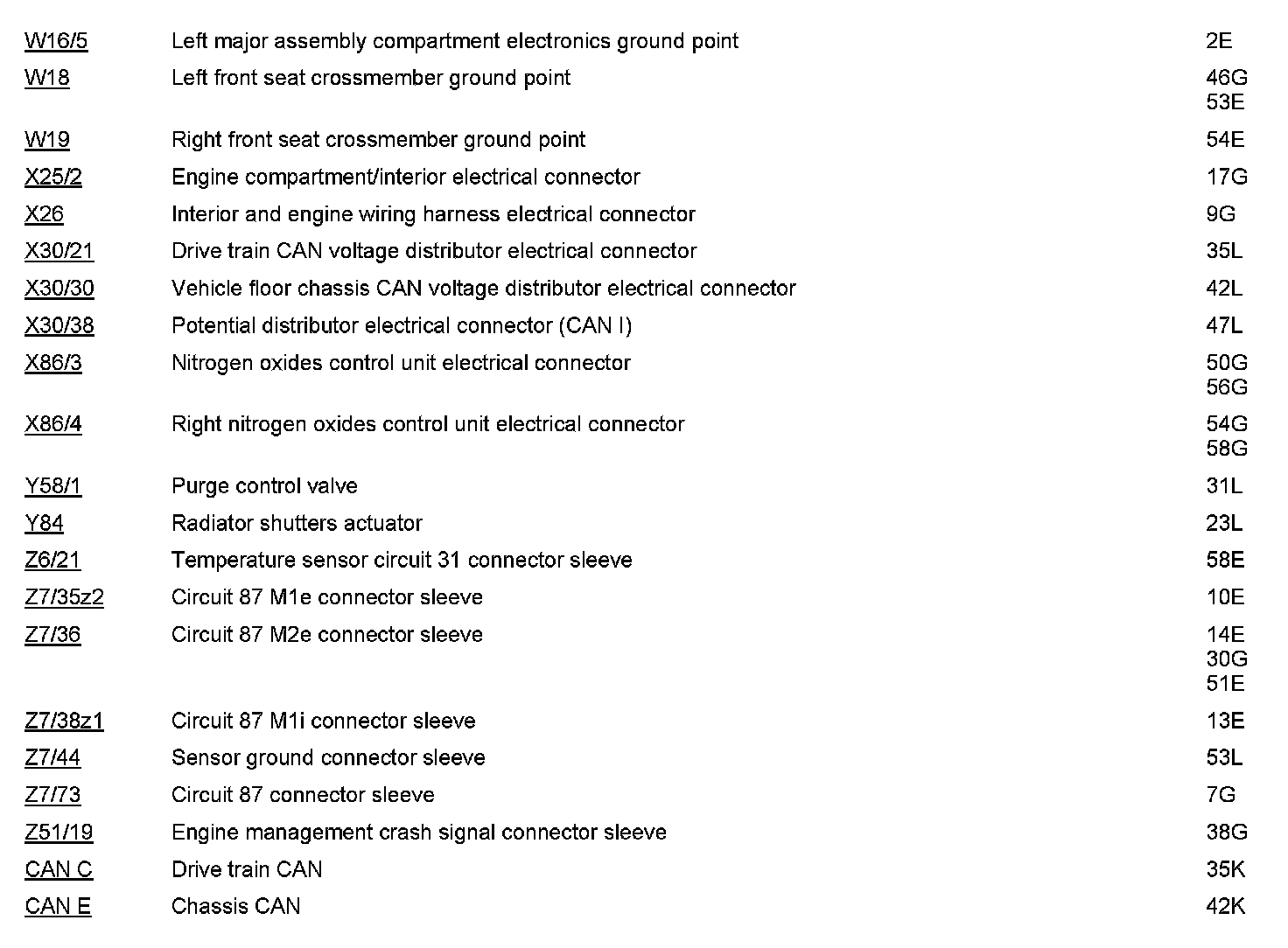

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
